Rear fittings
Aircraft-style rear tables
These tables, fitted to the backs of the front seats,   incorporate   a   cup-holder   recess   A   and   a
r

etaining   strap   B.
F

P
ull   the   table   downwards   to   open.
F

T
o stow the table, raise it until the latch
locks.
For safety reasons, these tables collapse
downwards
  if   excessive   pressure   is   exerted   on
t

hem. Reading
  lamps   C   may   be   fitted   in   the   front   seat
b

ackrests,   behind   the   tables.   They   illuminate
t

he   sur face   of   the   tables   without   disturbing   the
o

ther
 p
assengers.
They   can   be   used   only   while   the   table   is   down.
F
P
ress   the   "on/off "   button   to   turn   the   lamp
o

n   or   off.
Individual reading lamps
Rear table stowed
Rear table opened
Side blinds
Fitted to the windows for the 2nd row seats, they protect
the

passenger

compartment

from   the   sun's   rays.
F Pull the tab A   and   anchor   the   blind   on   the  h
ook   B.
3
Ease of use and comfort

112

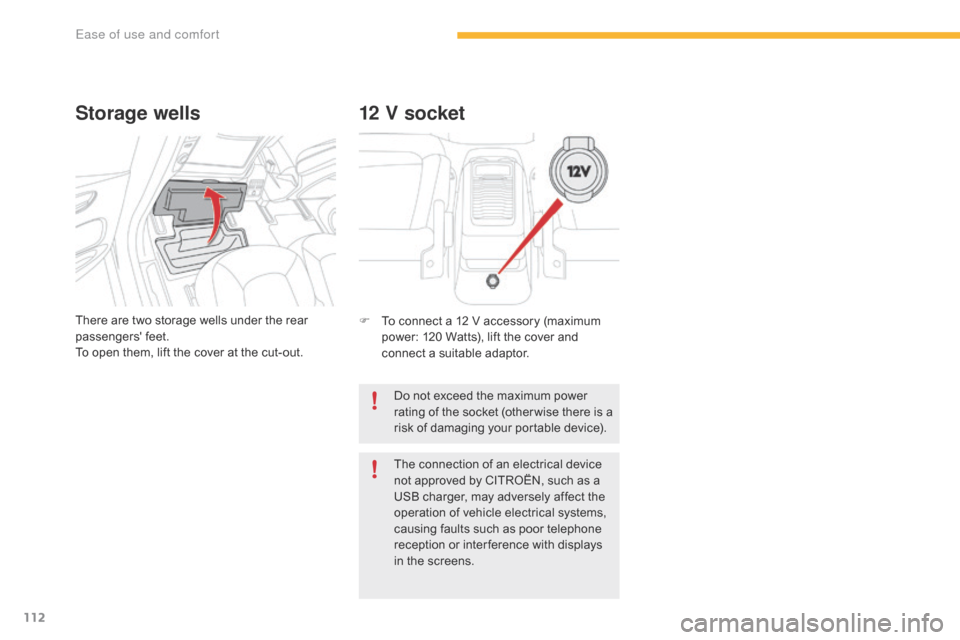

Storage wells
There are two storage wells under the rear passengers' f eet.
To
  open   them,   lift   the   cover   at   the   cut-out.
12 V socket
F To  connect   a   12   V   accessory   (maximum  p
ower:   120   Watts),   lift   the   cover   and
c

onnect   a   suitable   adaptor.
Do
  not   exceed   the   maximum   power
r

ating   of   the   socket   (other wise   there   is   a
r

isk   of   damaging   your   portable   device).
The
  connection   of   an   electrical   device
n

ot   approved   by   CITROËN,   such   as   a
U

SB   charger,   may   adversely   affect   the
o

peration   of   vehicle   electrical   systems,
c

ausing   faults   such   as   poor   telephone
r

eception   or   inter ference   with   displays
i

n   the   screens.
Ease of use and comfort

113

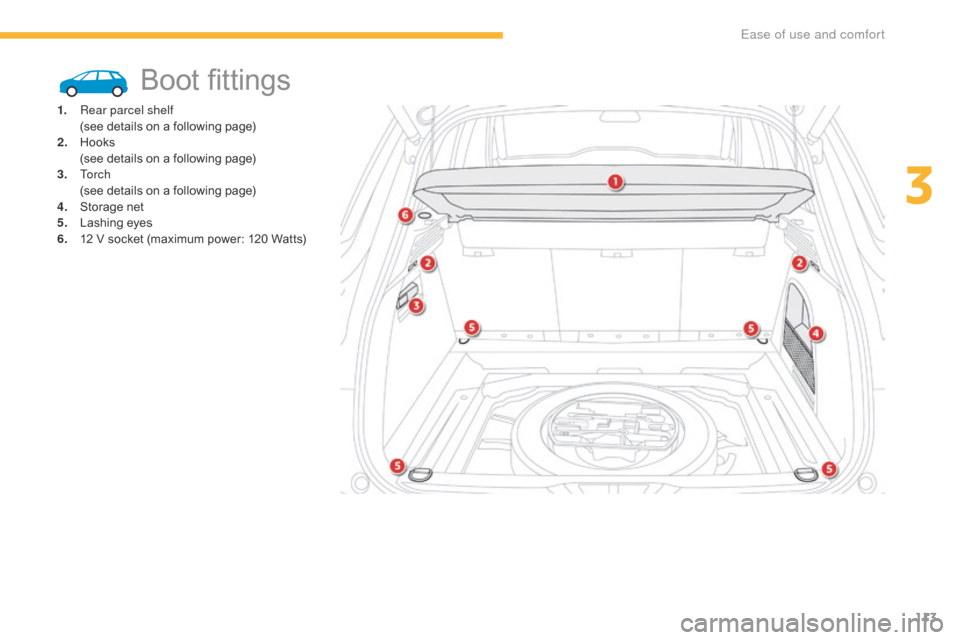

Boot fittings
1. Rear parcel shelf (see   details   on   a   following   page)
2.
 H

ooks
 (

see   details   on   a   following   page)
3.


To r c h
 (

see   details   on   a   following   page)
4.
 St

orage
 n
et
5.
 L

ashing   eyes
6.
 1

2   V   socket   (maximum   power:   120   Watts)
3
Ease of use and comfort

114
To remove the shelf:
F  u nhook   the   two   cords,
F

r
aise   the   shelf   slightly,   then   remove   it.
Rear parcel shelf
There are several options for storing the shelf:
-  e ither   upright   behind   the   front   seats,
-

o
r   flat   at   the   base   of   the   boot.The
  hooks   can   be   used   to   secure   shopping
b

ags.
Hooks
Ease of use and comfort

115
Boot fittings
1. Luggage  cover   blind (
see   details   on   a   following   page)
2.
T

o r c h
 (

see   details   on   a   following   page)
3.
 C

oncertina
 b
oards
4.
 1

2   V   socket   (maximum   power:   120   Watts)
5.
 A

rmrest   with   cup   holder   and   storage   space
6.
 L

ocation   for   stowing   the   luggage   cover
b

lind
7.
 O

pen
 s
torage
8.
 L

ower   lashing   eyes
3
Ease of use and comfort

116

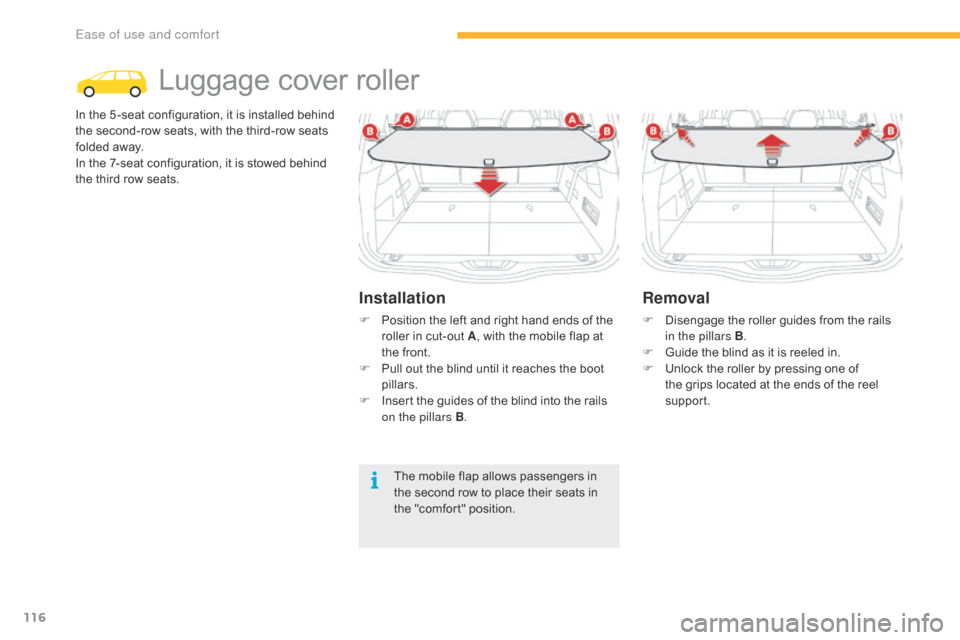

Luggage cover roller
In the 5 -seat configuration, it is installed behind t
he   second-row   seats,   with   the   third-row   seats
f

olded   away.
In
  the   7-seat   configuration,   it   is   stowed   behind
t

he   third   row   seats.
Installation
F Position  the   left   and   right   hand   ends   of   the  r
oller   in   cut-out   A,
  with   the   mobile   flap   at
t

he   front.
F

P
ull   out   the   blind   until   it   reaches   the   boot
p

illars.
F

I
nsert   the   guides   of   the   blind   into   the   rails
o

n the pillars B .
Removal
F Disengage   the   roller   guides   from   the   rails  i
n the pillars B .
F

G
uide   the   blind   as   it   is   reeled   in.
F

U
nlock   the   roller   by   pressing   one   of
t

he   grips   located   at   the   ends   of   the   reel
sup

port.
The

mobile

flap

allows

passengers

in

t

he

second

row

to

place

their

seats

in

t

he

"comfort"

position.
Ease of use and comfort

117
Stowing behind the 3rd row seats
To fold the 3rd row seats with the roller
stowed

at

the
  rear,   it   is   necessary   to   raise   the
c

oncertina

boards   in   order   to   allow   access   to
t

he

seat

locking   controls   (red   straps).
F
 E
nsure

that

the

3rd row seats are folded.
F
 F
old

the

first

two

concertina   boards.
F

I

nstall

the

roller

in
  the   space   above   the   arm
r

est,

one

side

after   the   other,   inclining   it
s

li g ht l y.
F

S

lide

the

roller

as

far   as   it   will   go,   up   to   the
c

ut-outs

provided

at   the   back   of   the   boot,
w

ith

the

two

flaps

directed   downwards.
F

U

nfold

the

third

row   seats.
The

folded

concertina
  boards   can   be
p

ositioned

horizontally   or   vertically.
3
Ease of use and comfort

118

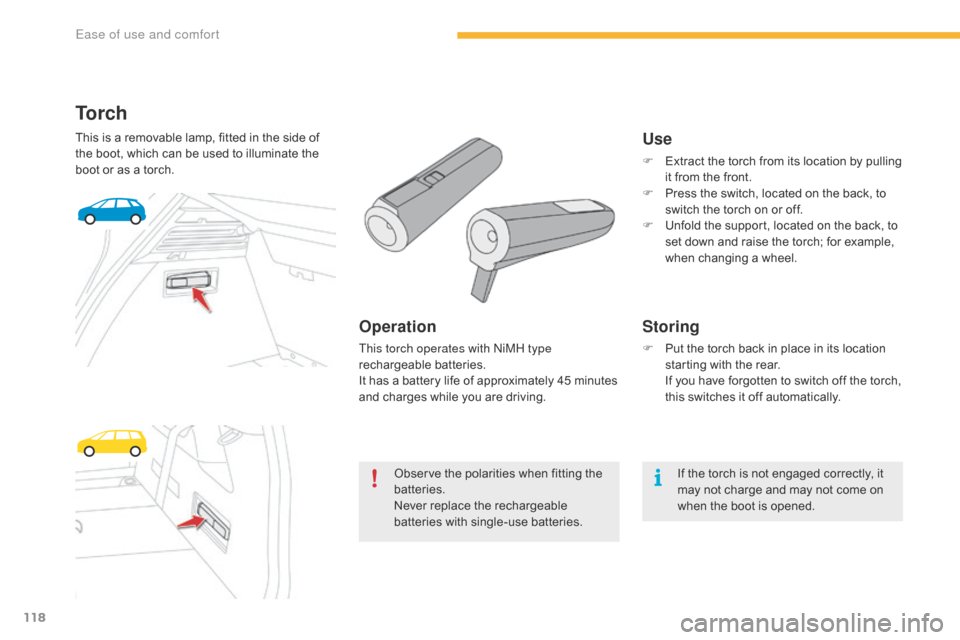

To r c h
This is a removable lamp, fitted in the side of the   boot,   which   can   be   used   to   illuminate   the
b

oot   or   as   a   torch.
Operation
This torch operates with NiMH type
rechargeable b atteries.
It
  has   a   battery   life   of   approximately   45   minutes
a

nd   charges   while   you   are   driving.
Use
F Extract  the   torch   from   its   location   by   pulling  i
t   from   the   front.
F

P
ress   the   switch,   located   on   the   back,   to
s

witch   the   torch   on   or   off.
F

U
nfold   the   support,   located   on   the   back,   to
s

et   down   and   raise   the   torch;   for   example,
w

hen   changing   a   wheel.
Storing
F Put  the   torch   back   in   place   in   its   location  s
tarting   with   the   rear.
 I

f   you   have   forgotten   to   switch   off   the   torch,
t

his   switches   it   off   automatically.
If
  the   torch   is   not   engaged   correctly,   it
m

ay   not   charge   and   may   not   come   on
w

hen   the   boot   is   opened.
Observe

the

polarities

when

fitting

the

b

atteries.
Never

replace

the

rechargeable

b

atteries

with

single-use

batteries.
