2016 CITROEN DS3 CABRIO DAG Handbook (in English)

2Driving

Moving off


If position N
is selected inadvertently
while driving, allow the engine to
return to idle then select position D
to
accelerate.
If the ambient temperature is below
-23°C, the engine should be left at idle
for four minutes, to ensure the correct
operation and life of the engine and
gearbox.
When the engine is running at idle, with
the brakes released, if position R
, D
or
M
is selected, the vehicle moves even
without the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P
.


)
Apply the parking brake.

)
Select position P
or N
.

)
Start the engine.
If these conditions are not met, there is an
audible signal, accompanied by the display of
an warning message.


)
With the engine running, press the brake
pedal.

)
Release the parking brake.

)
Select position R
, D
or M
.

)
Gradually release the brake pedal.
The vehicle moves off immediately.

3Driving

Reverse

When selecting reverse R
with the ignition on,
the rear parking sensors are activated.
For more information, refer to the "Rear parking
sensors" section.


Creep function (moving without
using the accelerator)
This function provides great flexibility in
manoeuvring the vehicle at low speed (when
parking, in traffic jams, …).
With the engine at idle, parking brake released
and position D
, M
or R
selected, the vehicle
moves
as soon as you take your foot off
the brake pedal (even without pressing the
accelerator).
For your safety, this function will be activated
only if you press the brake pedal when
changing from for ward drive to reverse.
It is deactivated on opening the driver's door.
Closing the door then pressing the brake or
accelerator pedal, reactivates the function.



Automatic operation


Never select position N
while the
vehicle is moving.
Never select positions P
or R
unless
the vehicle is completely stationary.

)
Select position D
for automatic
changing
of the six gears.
The gearbox then operates in auto-adaptive
mode, without any inter vention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the selector, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.

4Driving

If the selector is not in position P
,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, a warning
message appears in the screen.


)
Return the selector to position P
;
the message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking
pace.



Manual operation



)
Select position M
for sequential
changing
of the six gears.

)
Move the selector towards the +
sign to
change up a gear.

)
Move the selector towards the -
sign to
change down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; other wise, the gearbox will operate
temporarily in automatic mode. This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).


D
disappears and the gears
engaged appear in succession in the
instrument panel.

Stopping the vehicle

Before switching off the engine, you can
engage position P
or N
to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle.

Invalid value during manual
operation
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox engages first gear
automatically. When the ignition is on, the lighting
of this warning lamp, accompanied

Operating fault
by an audible signal and a message in the
multifunction screen, indicates a gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P

to R
and from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a CITROËN dealer or a qualified
workshop as soon as possible.

There is a risk of damage to the gearbox:


- if you press the accelerator and
brake pedals at the same time,

- if you force the movement of the
selector from the P
position to
another position when the battery is
flat.
To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam...), put the selector
in the N
position and apply the parking
brake.

5Driving











Stop & Start
The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.


Operation


Going into engine STOP mode


For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as for
example, braking, power steering...

Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key. The "ECO"
warning lamp comes
on in the instrument panel and the
engine goes into standby:


- with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear
lever into neutral, and you release the
clutch pedal.

- with a 5 or 6-speed electronic gearbox
,
when stationary or at speeds below 5 mph
(8 km/h) (depending on version), when
you press the brake pedal or put the gear
selector in position N
.

- with an automatic gearbox
, vehicle
stationary, when you press the brake pedal
or you place the gear selector in position N
. A time counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is
switched on with the key. STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start using
the key,

- the engine is needed to maintain a
comfortable temperature in the passenger
compartment,

- demisting is active,

- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.


Special cases: STOP mode not
available
The "ECO"
warning lamp flashes for
a few seconds then goes off.

This operation is per fectly normal.

6Driving

Going into engine START mode

The "ECO"
warning lamp goes off
and the engine starts:


- with a manual gearbox
, when you
depress the clutch pedal,

- with an electronic or automatic
gearbox
:


●
gear selector in position A
/ D
or M
,
when you release the brake pedal,

●
or gear selector in position N
and the
brake pedal released, when you move
the gear selector to position A / D
or M
,

●
or when you engage reverse gear.




Special cases: START invoked
automatically

If the system has been deactivated
in STOP mode, the engine restarts
immediately.
At any time, press the "ECO OFF"
switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by a message in the
screen.

Deactivation

For reasons of safety and for your comfort,
START mode is invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds 7 mph
(11 km/h) with the electronic gearbox
system,

- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
The "ECO"
warning lamp flashes for
a few seconds, then goes off.

This operation is per fectly normal.




With a manual gearbox in STOP
mode, if you engage a gear without
fully depressing the clutch pedal, a
message is displayed asking you to
fully depress the clutch pedal so that
the engine can restart.

7Driving

The system is reactivated automatically
at every new start using the key.



Reactivation

This system requires a battery with a special
specification and technology (reference
numbers available from a CITROËN dealer or a
qualified workshop).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the system.
In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes then
comes on continuously.
Have it checked by a CITROËN dealer or a
qualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall. All of the instrument panel
warning lamps come on. It is then necessary
to switch off the ignition and start the engine
again using the key.


Operating fault
Maintenance


Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from automatic operation of
START mode.

The Stop & Start system makes use
of advanced technology. All work
on this type of battery must be done
by a CITROËN dealer or a qualified
workshop.
Press the "ECO OFF"
switch again.
The system is active again; this is confirmed
by the switch warning lamp going off,
accompanied by a message in the screen.

1
Audio and Telematics
Additif-2_en_web_DS3_SMEGplus_Services_connectes_ed01-2015
Connected services
Level 1Level 2Level 3

Audio and Telematics 3
Additif-2_en_web_DS3_SMEGplus_Services_connectes_ed01-2015

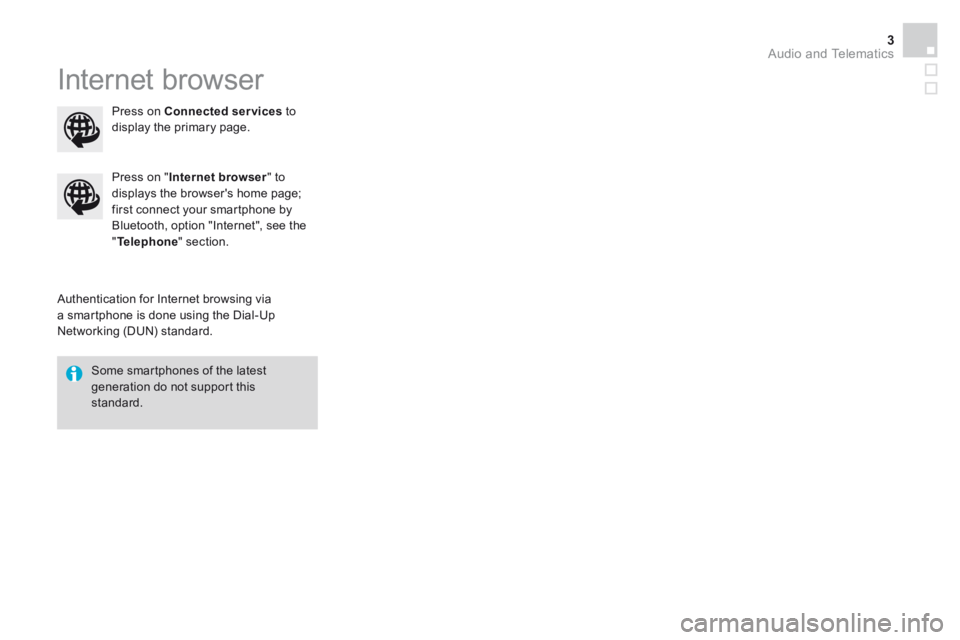

Internet browser
Authentication for Internet browsing via a smartphone is done using the Dial-Up Networking (DUN) standard.
Press on " Internet browser " to displays the browser's home page; first connect your smartphone by Bluetooth, option "Internet", see the " Telephone " section.
Some smartphones of the latest generation do not support this standard.
Press on Connected services to display the primary page.
