2016 CITROEN DS3 CABRIO DAG Handbook (in English)

DS3_en_Chap06_securite_ed01-2015

Direction
indicators
F Left:  lower   the   lighting   stalk   beyond   the  p
oint   of   resistance.
F

R
ight:   raise   the   lighting   stalk   beyond   the
p

oint   of   resistance.
Three flashes of the direction
indicators
F Press briefly upwards or downwards, without   going   beyond   the   point   of
r

esistance;   the   direction   indicators   will
f

lash   3   times.
Hazard warning lam ps
A visual warning by means of the direction i
ndicators to alert other road users to a vehicle
breakdown,
  towing   or   accident.
F

P
ress this button, the direction indicators
flash.
They
  can   operate   with   the   ignition   off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on the   deceleration,   the   hazard   warning   lamps
c

ome   on   automatically.
They
  switch   off   automatically   the   first   time   you
a

ccelerate.
F

Y
ou   can   also   switch   them   off   by   pressing
t

he   button.

145
DS3_en_Chap06_securite_ed01-2015
Horn
Audible warning to alert other road users to an imminent d anger.
F

P
ress   one   of   the   spokes   of   the   steering
w

heel.
Emergency o r
a

ssistance call
This system allows you to make an emergency o
r   assistance   call   to   the   emergency   services
o

r   to   the   dedicated   service   (operated   by
C

ITROËN   Assistance).
For
  more   information   on   the   use   of   this
f

unction,   refer   to   the   "Audio   and   telematics"
s

ection.
Safety

Under-inflation detection
System which automatically checks the pressures of the tyres while driving.
T he   under-inflation   detection   system
d

oes   not   replace   the   need   for   vigilance
o

n   the   part   of   the   driver.
This
  system   does   not   avoid   the   need   to
c

heck   the   tyre   pressures   (including   the
s

pare   wheel)   every   month   as   well   as
b

efore   a   long   journey.
Driving
  with   under-inflated   tyres
i

mpairs   road   holding,   extends   braking
d

istances   and   causes   premature
t

yre wear, particularly under arduous
condition
  (high   loading,   high   speed,
lon

g
 jo
urney).The inflation pressures defined for
your vehicle can be found on the tyre
pressure
  label.
See
  the   "Identification   markings"
s

ection.
Tyre
  pressures   should   be   checked
w

hen   the   tyres   are   "cold"   (vehicle
s

topped   for   1   hour   or   after   a   journey   of
l

ess   than   6   miles   (10   km)   at   moderate
s

peeds).
Other wise
  (when   hot),   add   0.3   bar   to
t

he   pressures   shown   on   the   label.
Driving
  with   under-inflated   tyres
i

ncreases   fuel   consumption.
The
  system   monitors   the   pressures   in   the   four
t

yres,   once   the   vehicle   is   moving.
It
  compares   the   information   given   by   the   four
w

heel speed sensors with reference values,
which must be reinitialised ever y time the
tyre pressures are adjusted or a wheel
changed .
The
  system   triggers   an   alert   as   soon   as   it
d

etects a drop in the inflation pressure of one
or
  more   tyres.

147
DS3_en_Chap06_securite_ed01-2015
The alert is maintained until the system is r einitialised.
The loss of pressure detected does not
always

cause

visible

bulging

of

the

tyre.

D

o

not

satisfy

yourself

with

just

a

visual

c

heck. Before
  reinitialising   the   system,   ensure
t

hat the pressures of the four tyres are
correct for the use of the vehicle, as
given
  on   the   tyre   pressure   label.
The
  under-inflation   detection   system
d

oes   not   give   a   warning   if   a   pressure   is
i

ncorrect   at   the   time   of   reinitialisation.
Under-inflation alert
This is given by fixed illumination of this   warning   lamp,   accompanied   by
a

n   audible   signal   and   the   display   of   a
m

essage.
F

R

educe   speed   immediately,   avoid
e

xcessive   steering   movements   and   sudden
b

raking
F

S

top

the   vehicle   as   soon   as   it   is   safe   to   do   so.F
 I f   you   have   a   compressor   (such   as   the   one
i

n   the   temporary   puncture   repair   kit),   check
t

he   pressures   of   the   four   tyres   when   cold.
I

f   it   is   not   possible   to   carry   out   this   check
s

traight   away,   drive   carefully   at   reduced
s

peed.
or
F

I
n the event of a puncture, use the
temporary
  puncture   repair   kit   or   the   spare
w

heel   (depending   on   equipment).
Reinitialisation
It is necessary to reinitialise the system every time   one   or   more   tyre   pressure   is   adjusted,   and
a

fter   changing   one   or   more   wheels.
A
  label   on   the   middle   pillar,   left   hand   side,   gives
a

  reminder   of   this.
Safety

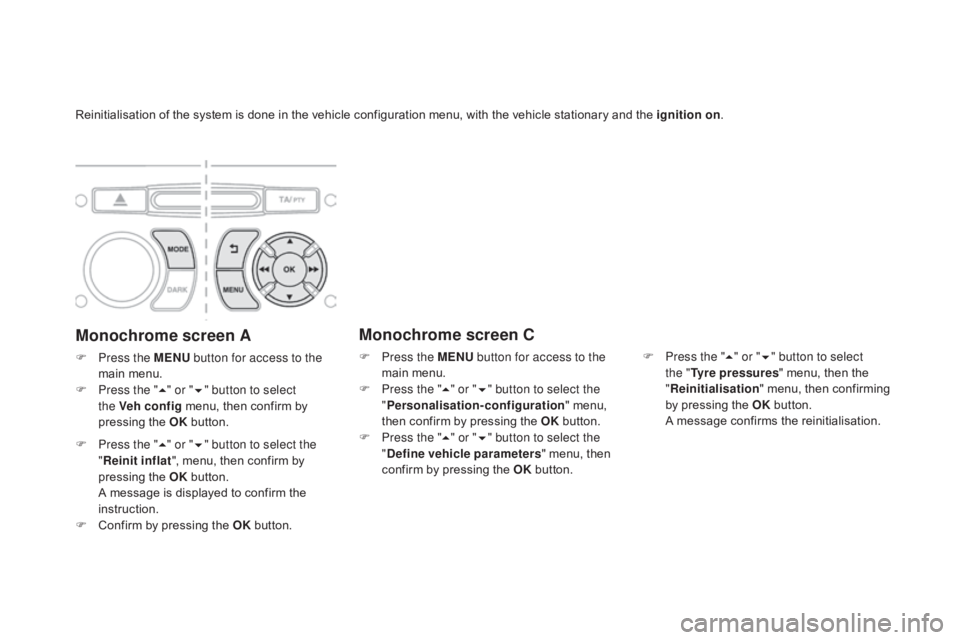

Reinitialisation of the system is done in the vehicle configuration menu, with the vehicle stationary and the ignition on.
Monochrome screen A
F Press the MEn U button for access to the
main   menu.
F

P
ress the " 5" or " 6" button to select
the Veh conf ig


menu,   then   confirm   by
p

ressing   the   OK

button.
F

P
ress the " 5" or " 6" button to select the
" Reinit inflat ",
  menu,   then   confirm   by
p

ressing   the   OK

button.
 A

  message   is   displayed   to   confirm   the
in

struction.
F

C
onfirm   by   pressing   the   OK

button.
Monochrome screen C
F Press the MEnU button for access to the
main   menu.
F

P
ress the " 5" or " 6" button to select the
" Personalisation-configuration "
  menu,
t

hen   confirm   by   pressing   the   OK

button.
F

P
ress the " 5" or " 6" button to select the
"
def

ine vehicle parameters "
  menu,   then
c

onfirm   by   pressing   the   OK

button.F
P ress the "
5" or " 6" button to select
the " Tyre pressures "
  menu,   then   the
"R

einitialisation"
  menu,   then   confirming
b

y   pressing   the   OK

button.
 A

  message   confirms   the   reinitialisation.

149
DS3_en_Chap06_securite_ed01-2015
Touch screen tablet
F Press the MEnU  button.
F Sel ect the "dr iving"
  menu.
F

I
n   the   secondary   page,   select   "Under-
inflation initialisation ".
A
  message   is   displayed   to   confirm   the
r

einitialisation
 i
nstruction.
F

Sel
ect "Ye s" or "
n

o",
  then   confirm.
 A

  message   confirms   the   reinitialisation.The
  new   pressure   settings   registered   are
c

onsidered to be reference values by the
system.Snow chains
The system does not have to be r einitialised   after   fitting   or   removing
sn

ow
 c
hains. Before
  doing   anything   to   the   system,
t

he   pressures   of   the   four   tyres   must   be  c
hecked   and   the   system   reinitialised.
The under-inflation alert is only
dependable
  if   the   system   has   been
r

einitialised with all four tyres inflated to
the   correct   pressures.
Operating fault
The flashing and then fixed illumination of the u
nder-inflation w arning lam p a ccompanied b

y   illumination   of   the   Service   warning   lamp
i

ndicates   a   fault   with   the   system.
In
  this   case,   under-inflation   monitoring   of   the
t

yres   is   no   longer   assured.
Have
  the   system   checked   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
Safety

Braking assistance systems
Group of supplementary systems which help you   to   obtain   optimum   braking   in   complete
s

afety   in   emergency   situations:
-

a
nti-lock   braking   system   (ABS),
-

e
lectronic   brake   force   distribution   (EBFD),
-

e
mergency   braking   assistance   (EBA).Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and manoeuvrability   of   your   vehicle   when   braking,
i

n   particular   on   poor   or   slippery   sur faces.
Activation
The anti-lock braking system comes into operation   automatically   when   there   is   a   risk   of
w

heel   lock.
Normal
  operation   of   the   ABS   may   make   itself
f

elt   by   slight   vibration   of   the   brake   pedal.
When
  braking   in   an   emergency,   press
v

ery   firmly   without   releasing   the
p

ressure.
Operating fault
If this warning lamp comes on, together   with   the   STOP and ABS
warning
  lamps,   accompanied   by   an
a

udible

signal   and   a   message   in   the   screen,   it
i

ndicates

a   malfunction   of   the   electronic   brake
f

orce distribution which could result in loss of
control

of
  the   vehicle   when   braking.
You must stop as soon as it is safe to do so.
When
  replacing   wheels   (tyres   and
r

ims),   ensure   that   they   conform   to   the
ma

nufacturer's
 r
ecommendations.
If
  this   warning   lamp   comes   on,
a

ccompanied   by   an   audible   signal
a

nd   a   message   in   the   screen,   it
i

ndicates

a   malfunction   of   the   anti-lock   braking
s

ystem

which   could   result   in   loss   of   control   of
t

he

vehicle   when   braking.
In either case, contact a CITROËN dealer or a
qualified
 w
orkshop.
