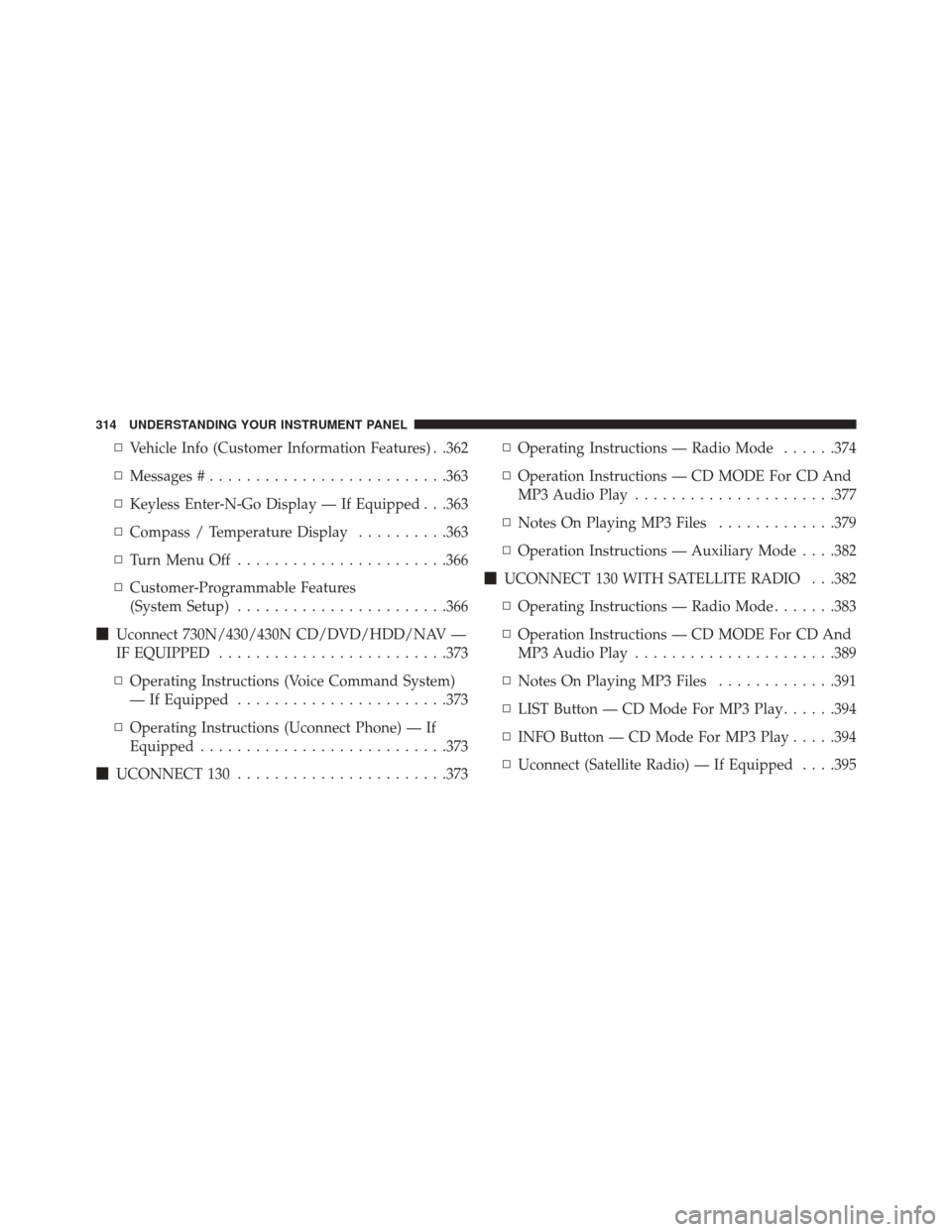

▫Vehicle Info (Customer Information Features) . .362
▫ Messages # ......................... .363
▫ Keyless Enter-N-Go Display — If Equipped . . .363
▫ Compass / Temperature Display ..........363
▫ Turn Menu Off ...................... .366
▫ Customer-Programmable Features
(System Setup) ...................... .366
 Uconnect 730N/430/430N CD/DVD/HDD/NAV —
IF EQUIPPED ........................ .373
▫ Operating Instructions (Voice Command System)
— If Equipped ...................... .373
▫ Operating Instructions (Uconnect Phone) — If
Equipped .......................... .373
 UCONNECT 130 ...................... .373▫
Operating Instructions — Radio Mode ......374
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ..................... .377
▫ Notes On Playing MP3 Files .............379
▫ Operation Instructions — Auxiliary Mode . . . .382
 UCONNECT 130 WITH SATELLITE RADIO . . .382
▫ Operating Instructions — Radio Mode .......383
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ..................... .389
▫ Notes On Playing MP3 Files .............391
▫ LIST Button — CD Mode For MP3 Play ......394
▫ INFO Button — CD Mode For MP3 Play .....394
▫ Uconnect (Satellite Radio) — If Equipped . . . .395
314 UNDERSTANDING YOUR INSTRUMENT PANEL

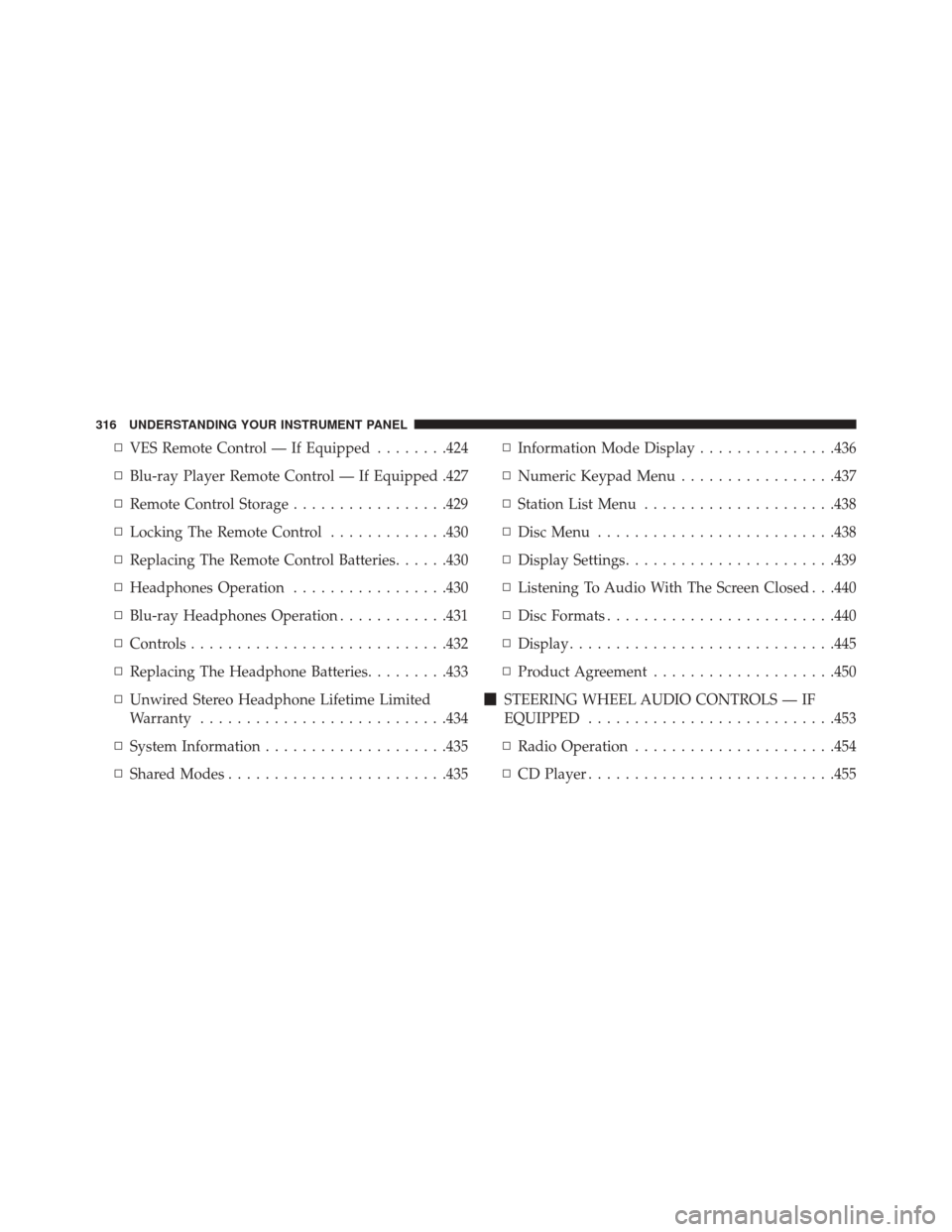

▫VES Remote Control — If Equipped ........424
▫ Blu-ray Player Remote Control — If Equipped .427
▫ Remote Control Storage .................429
▫ Locking The Remote Control .............430
▫ Replacing The Remote Control Batteries ......430
▫ Headphones Operation .................430
▫ Blu-ray Headphones Operation ............431
▫ Controls ........................... .432
▫ Replacing The Headphone Batteries .........433
▫ Unwired Stereo Headphone Lifetime Limited
Warranty .......................... .434
▫ System Information ....................435
▫ Shared Modes ....................... .435▫
Information Mode Display ...............436
▫ Numeric Keypad Menu .................437
▫ Station List Menu .....................438
▫ Disc Menu ......................... .438
▫ Display Settings ...................... .439
▫ Listening To Audio With The Screen Closed . . .440
▫ Disc Formats ........................ .440
▫ Display ............................ .445
▫ Product Agreement ....................450
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED .......................... .453
▫ Radio Operation ..................... .454
▫ CD Player .......................... .455
316 UNDERSTANDING YOUR INSTRUMENT PANEL

Electronic Throttle Control (ETC) Warning Light
Red TelltaleLight What It Means
Electronic Throttle Control (ETC) Warning Light
This light informs you of a problem with the Electronic Throttle Control (ETC) system. If a
problem is detected while the engine is running, the light will either stay on or flash de-
pending on the nature of the problem. Cycle the ignition key when the vehicle is safely and
completely stopped and the shift lever is placed in the PARK position. The light should turn
off. If the light remains on with the engine running, your vehicle will usually be drivable;
however, see an authorized dealer for service as soon as possible.
If the light continues to flash when the engine is running, immediate service is required and
you may experience reduced performance, an elevated/rough idle, or engine stall and your
vehicle may require towing. The light will come on when the ignition is first turned to ON/
RUN and remain on briefly as a bulb check. If the light does not come on during starting,
have the system checked by an authorized dealer.
336 UNDERSTANDING YOUR INSTRUMENT PANEL

Engine Check/Malfunction Indicator Light (MIL)
Yellow TelltaleLight What It Means
Engine Check/Malfunction Indicator Light (MIL)
The Engine Check/Malfunction Indicator Light (MIL) is a part of an Onboard Diagnostic
System called OBD II that monitors engine and automatic transmission control systems. The
light will illuminate when the ignition is in the ON position before engine start. If the bulb
does not come on when turning the key from OFF to ON/RUN, have the condition checked
promptly.
Certain conditions, such as a loose or missing gas cap, poor quality fuel, etc., may illuminate
the light after engine start. The vehicle should be serviced if the light stays on through sev-
eral typical driving styles. In most situations, the vehicle will drive normally and will not
require towing.
When the engine is running, the MIL may flash to alert serious conditions that could lead to
immediate loss of power or severe catalytic converter damage. The vehicle should be ser-
viced as soon as possible if this occurs.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 345

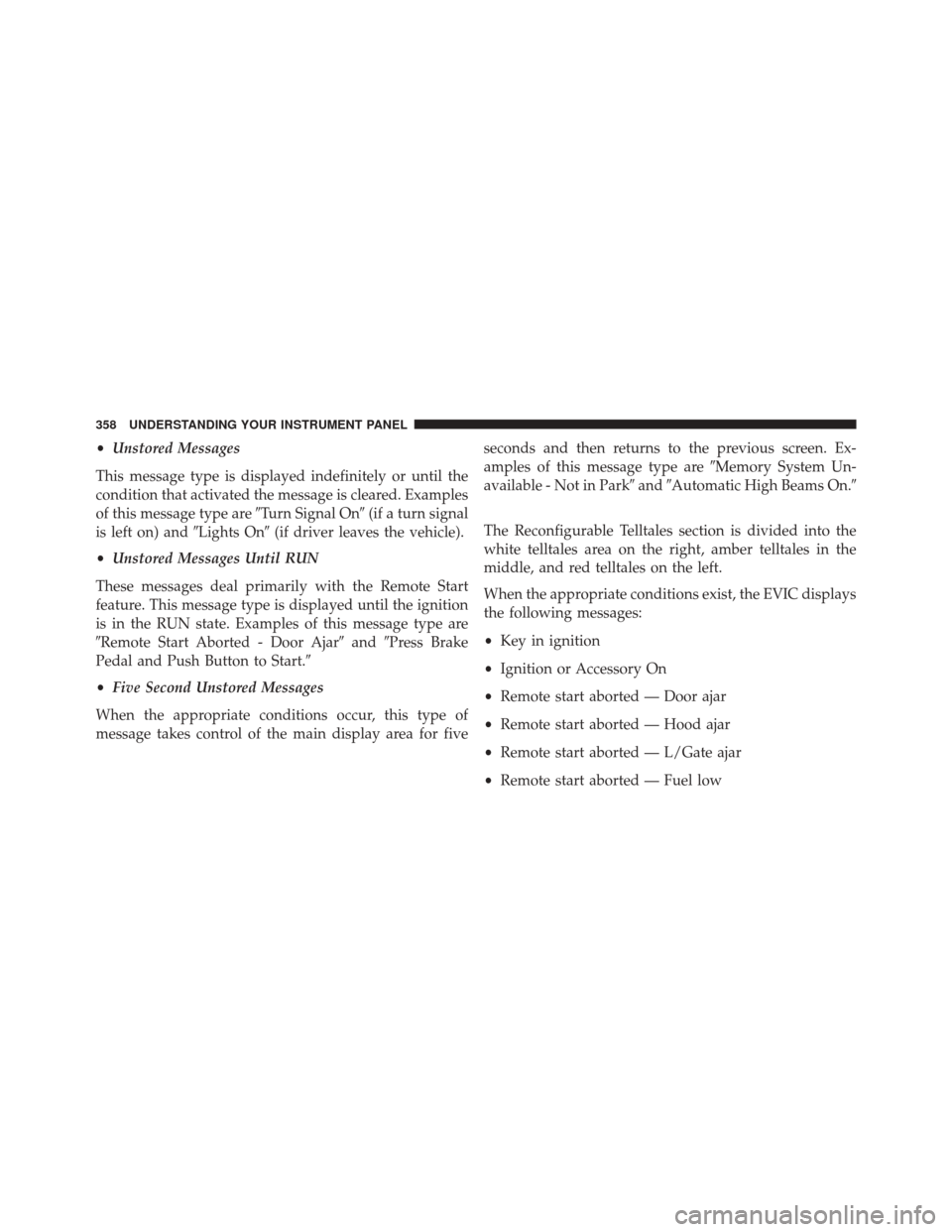

•Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are Turn Signal On(if a turn signal
is left on) and Lights On(if driver leaves the vehicle).
• Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition
is in the RUN state. Examples of this message type are
Remote Start Aborted - Door Ajar andPress Brake
Pedal and Push Button to Start.
• Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five seconds and then returns to the previous screen. Ex-
amples of this message type are
Memory System Un-
available - Not in Park andAutomatic High Beams On.
The Reconfigurable Telltales section is divided into the
white telltales area on the right, amber telltales in the
middle, and red telltales on the left.
When the appropriate conditions exist, the EVIC displays
the following messages:
• Key in ignition
• Ignition or Accessory On
• Remote start aborted — Door ajar
• Remote start aborted — Hood ajar
• Remote start aborted — L/Gate ajar
• Remote start aborted — Fuel low
358 UNDERSTANDING YOUR INSTRUMENT PANEL

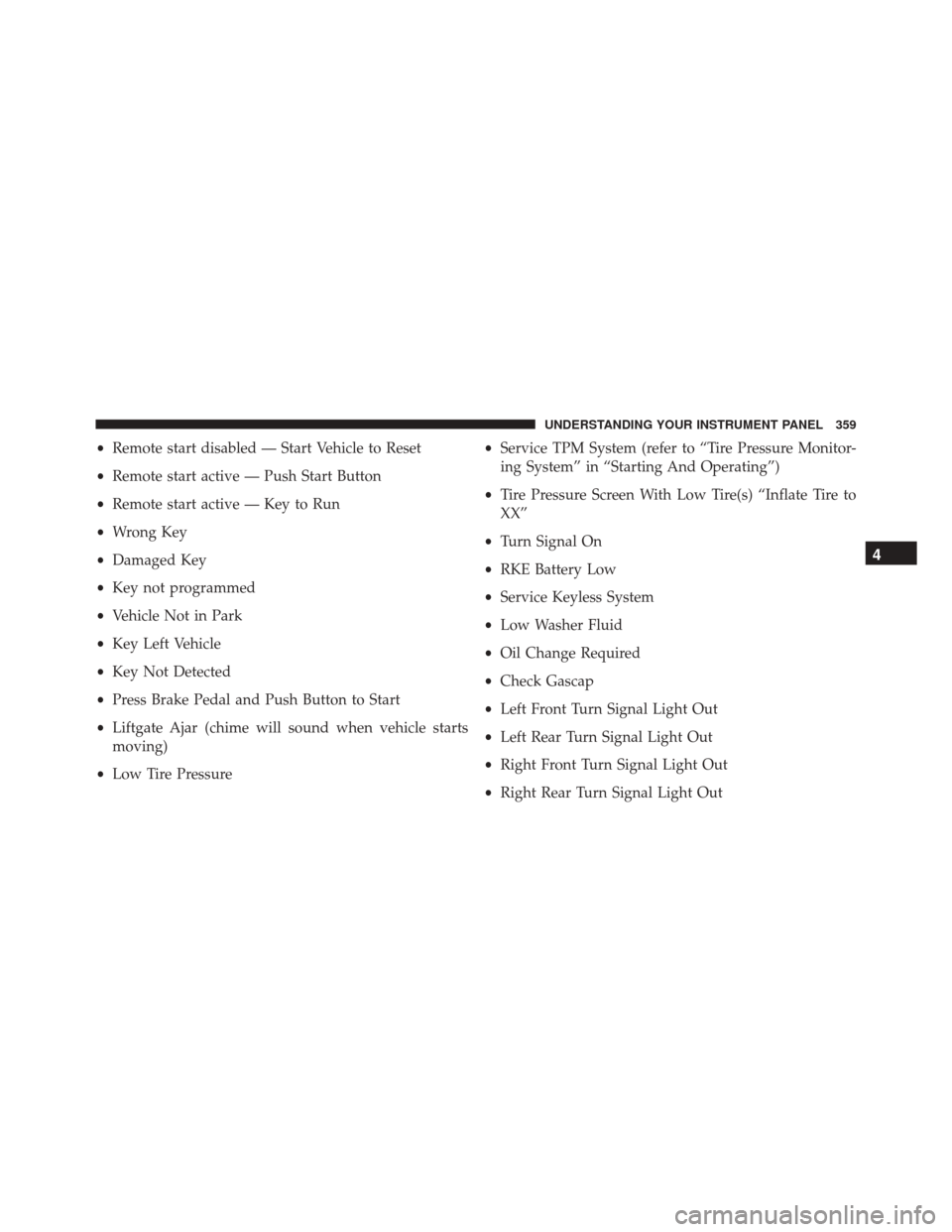

•Remote start disabled — Start Vehicle to Reset
• Remote start active — Push Start Button
• Remote start active — Key to Run
• Wrong Key
• Damaged Key
• Key not programmed
• Vehicle Not in Park
• Key Left Vehicle
• Key Not Detected
• Press Brake Pedal and Push Button to Start
• Liftgate Ajar (chime will sound when vehicle starts
moving)
• Low Tire Pressure •
Service TPM System (refer to “Tire Pressure Monitor-
ing System” in “Starting And Operating”)
• Tire Pressure Screen With Low Tire(s) “Inflate Tire to
XX”
• Turn Signal On
• RKE Battery Low
• Service Keyless System
• Low Washer Fluid
• Oil Change Required
• Check Gascap
• Left Front Turn Signal Light Out
• Left Rear Turn Signal Light Out
• Right Front Turn Signal Light Out
• Right Rear Turn Signal Light Out
4
UNDERSTANDING YOUR INSTRUMENT PANEL 359

•Park Assist Disabled
• Service Park Assist System
• Personal Settings Not Available — Vehicle Not in Park
• Blind Spot System Off — This message is displayed
when the ignition is turned to ON to indicate the Blind
Spot System has been turned off.
• Blind Spot System Not Available — This message is
displayed to indicate the Blind Spot Monitor (BSM)
system is temporarily unavailable due to sensor block-
age, electronic interference, or other temporarycon-
ditions. When this message is displayed, both outside
rear view icons will be illuminated. If electronic inter-
ference is present, the BSM system will illuminate the
icon only on the side of interference as long as inter-
ference is present.
• Service Blind Spot System — This message is dis-
played to indicate the Blind Spot Monitor (BSM) system is permanently unavailable. The driver will
receive an EVIC message and the BSM display warn-
ing in both mirrors will be permanently illuminated. If
this message is present, see an authorized dealer.
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The Oil Change Required message will
display in the EVIC display for approximately 10 sec-
onds, after a single chime has sounded, to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty-cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position or cycle the ignition to the ON/RUN position if
equipped with Keyless Enter-N-Go. To turn off the
360 UNDERSTANDING YOUR INSTRUMENT PANEL

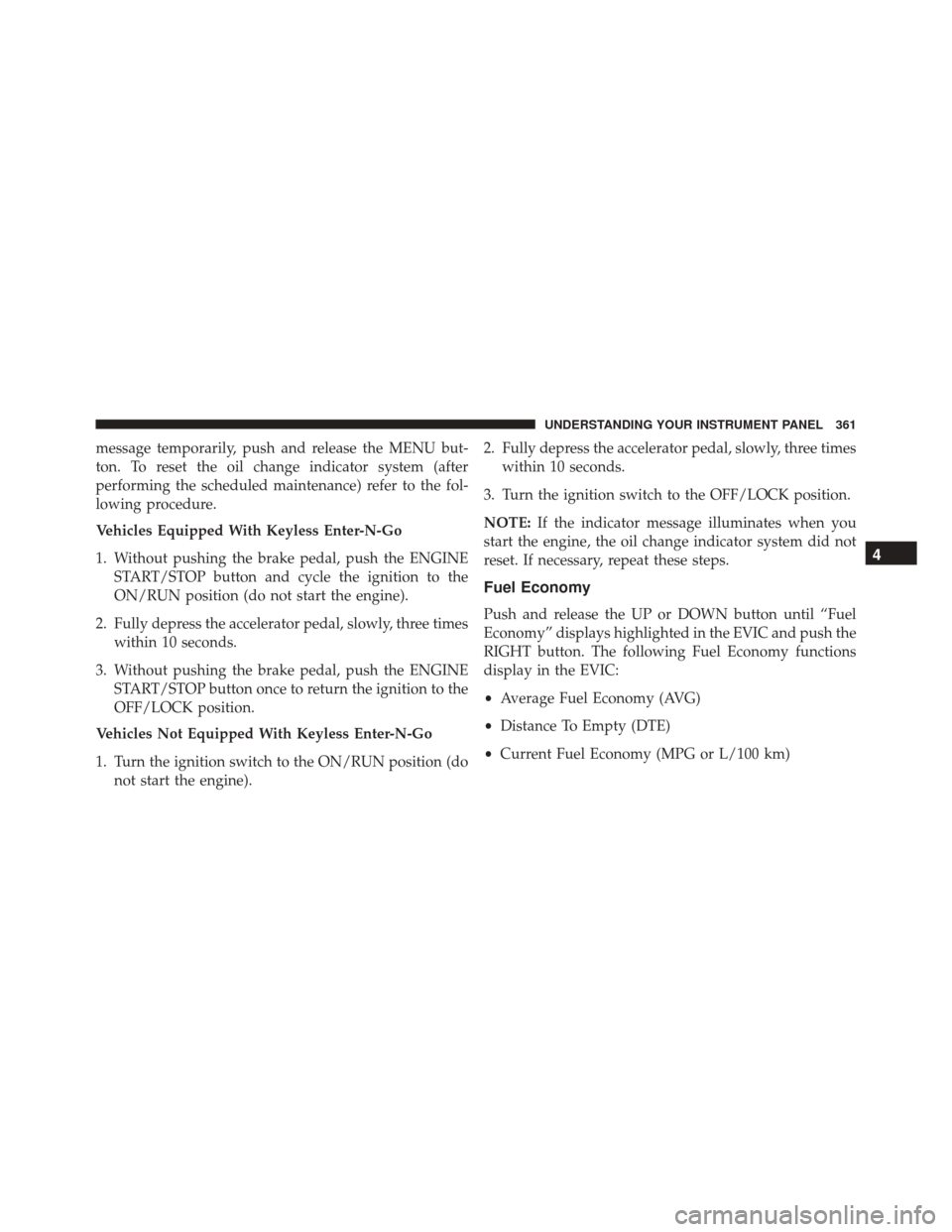

message temporarily, push and release the MENU but-
ton. To reset the oil change indicator system (after
performing the scheduled maintenance) refer to the fol-
lowing procedure.
Vehicles Equipped With Keyless Enter-N-Go
1. Without pushing the brake pedal, push the ENGINESTART/STOP button and cycle the ignition to the
ON/RUN position (do not start the engine).
2. Fully depress the accelerator pedal, slowly, three times within 10 seconds.
3. Without pushing the brake pedal, push the ENGINE START/STOP button once to return the ignition to the
OFF/LOCK position.
Vehicles Not Equipped With Keyless Enter-N-Go
1. Turn the ignition switch to the ON/RUN position (do not start the engine). 2. Fully depress the accelerator pedal, slowly, three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the engine, the oil change indicator system did not
reset. If necessary, repeat these steps.
Fuel Economy
Push and release the UP or DOWN button until “Fuel
Economy” displays highlighted in the EVIC and push the
RIGHT button. The following Fuel Economy functions
display in the EVIC:
• Average Fuel Economy (AVG)
• Distance To Empty (DTE)
• Current Fuel Economy (MPG or L/100 km)
4
