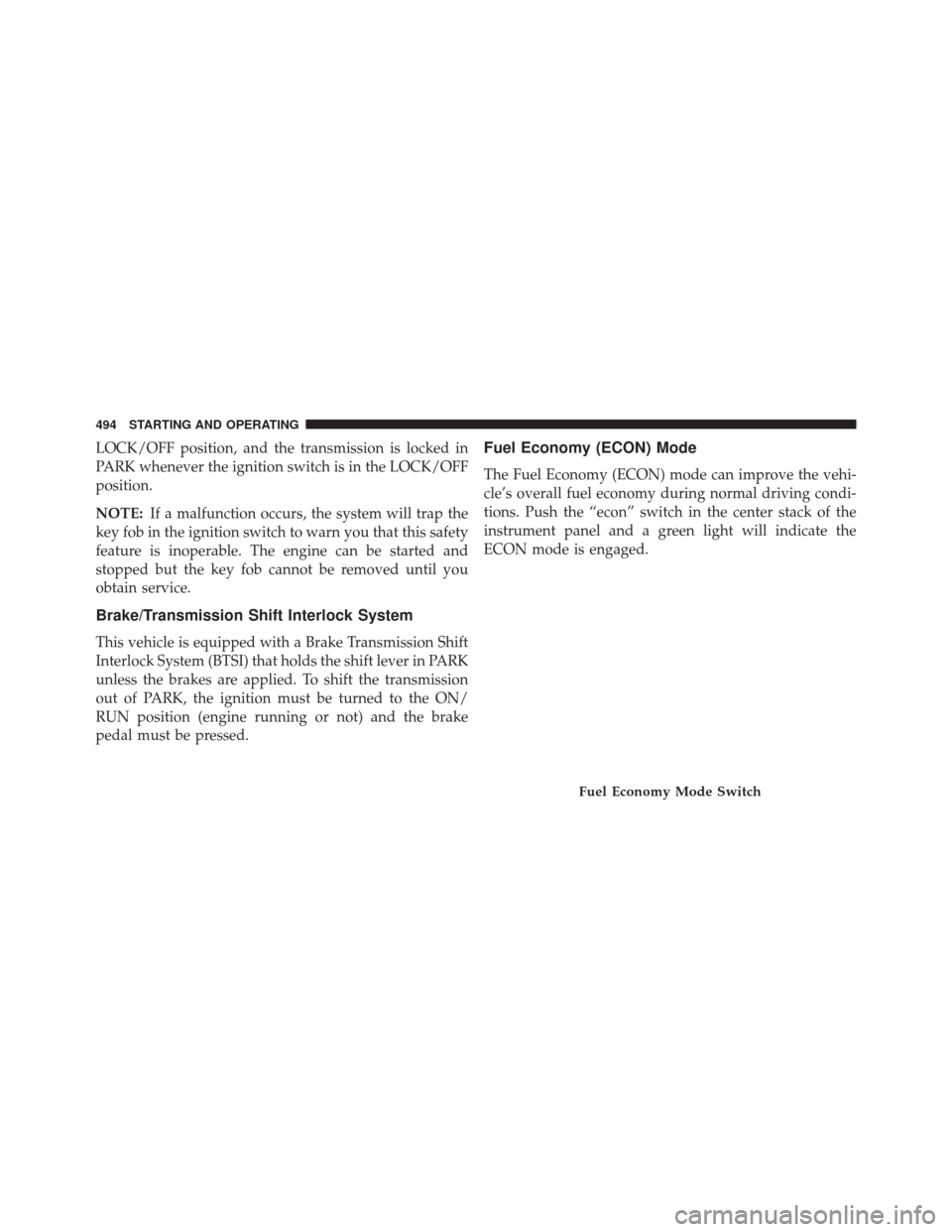

2016 CHRYSLER TOWN AND COUNTRY key

LOCK/OFF position, and the transmission is locked in
PARK whenever the ignition switch is in the LOCK/OFF
position.
NOTE:If a malfunction occurs, the system will trap the
key fob in the ignition switch to warn you that this safety
feature is inoperable. The engine can be started and
stopped but the key fob cannot be removed until you
obtain service.
Brake/Transmission Shift Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock System (BTSI) that holds the shift lever in PARK
unless the brakes are applied. To shift the transmission
out of PARK, the ignition must be turned to the ON/
RUN position (engine running or not) and the brake
pedal must be pressed.
Fuel Economy (ECON) Mode
The Fuel Economy (ECON) mode can improve the vehi-
cle’s overall fuel economy during normal driving condi-
tions. Push the “econ” switch in the center stack of the
instrument panel and a green light will indicate the
ECON mode is engaged.
Fuel Economy Mode Switch
494 STARTING AND OPERATING

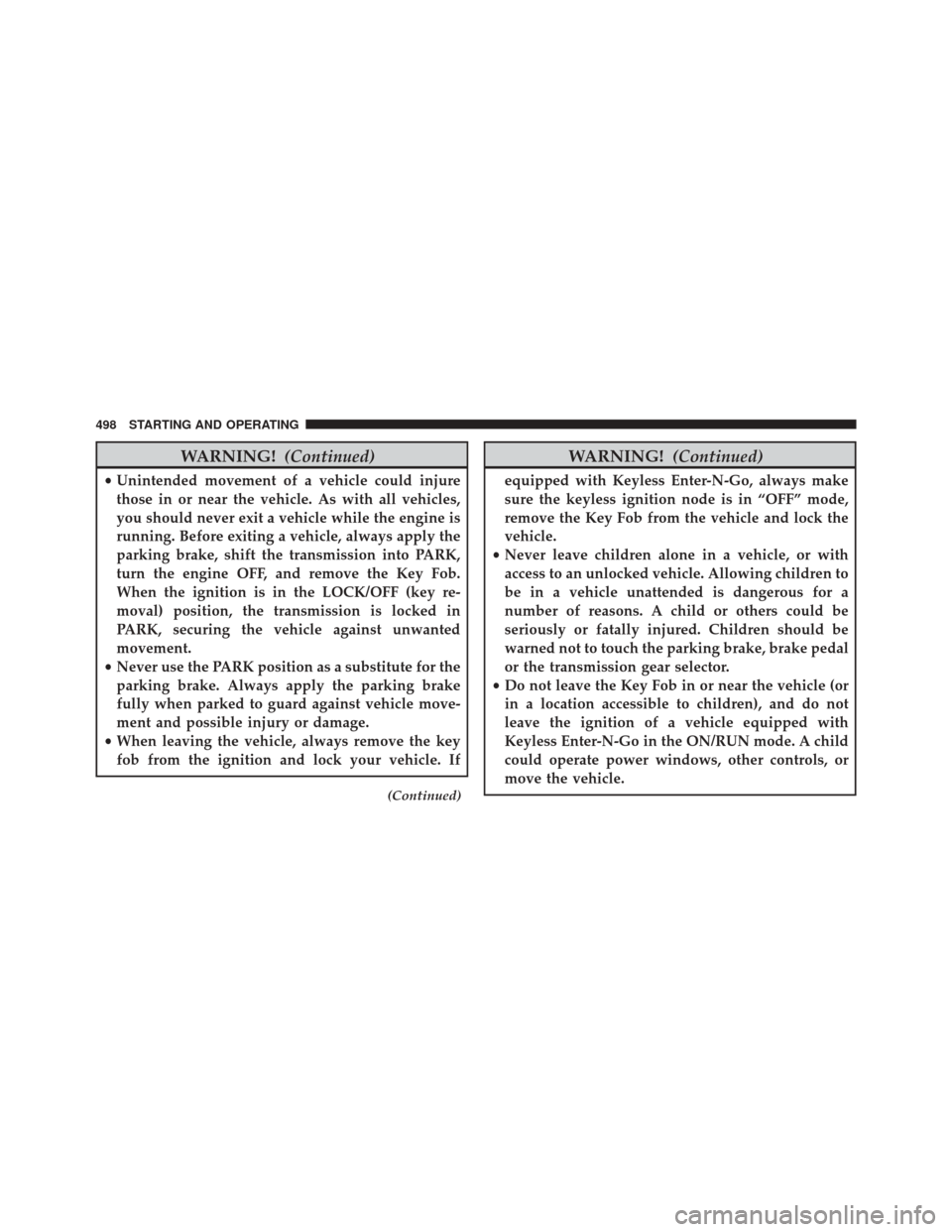

WARNING!(Continued)
•Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a vehicle, always apply the
parking brake, shift the transmission into PARK,
turn the engine OFF, and remove the Key Fob.
When the ignition is in the LOCK/OFF (key re-
moval) position, the transmission is locked in
PARK, securing the vehicle against unwanted
movement.
• Never use the PARK position as a substitute for the
parking brake. Always apply the parking brake
fully when parked to guard against vehicle move-
ment and possible injury or damage.
• When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle. If
(Continued)
WARNING! (Continued)
equipped with Keyless Enter-N-Go, always make
sure the keyless ignition node is in “OFF” mode,
remove the Key Fob from the vehicle and lock the
vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the transmission gear selector.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ON/RUN mode. A child
could operate power windows, other controls, or
move the vehicle.
498 STARTING AND OPERATING

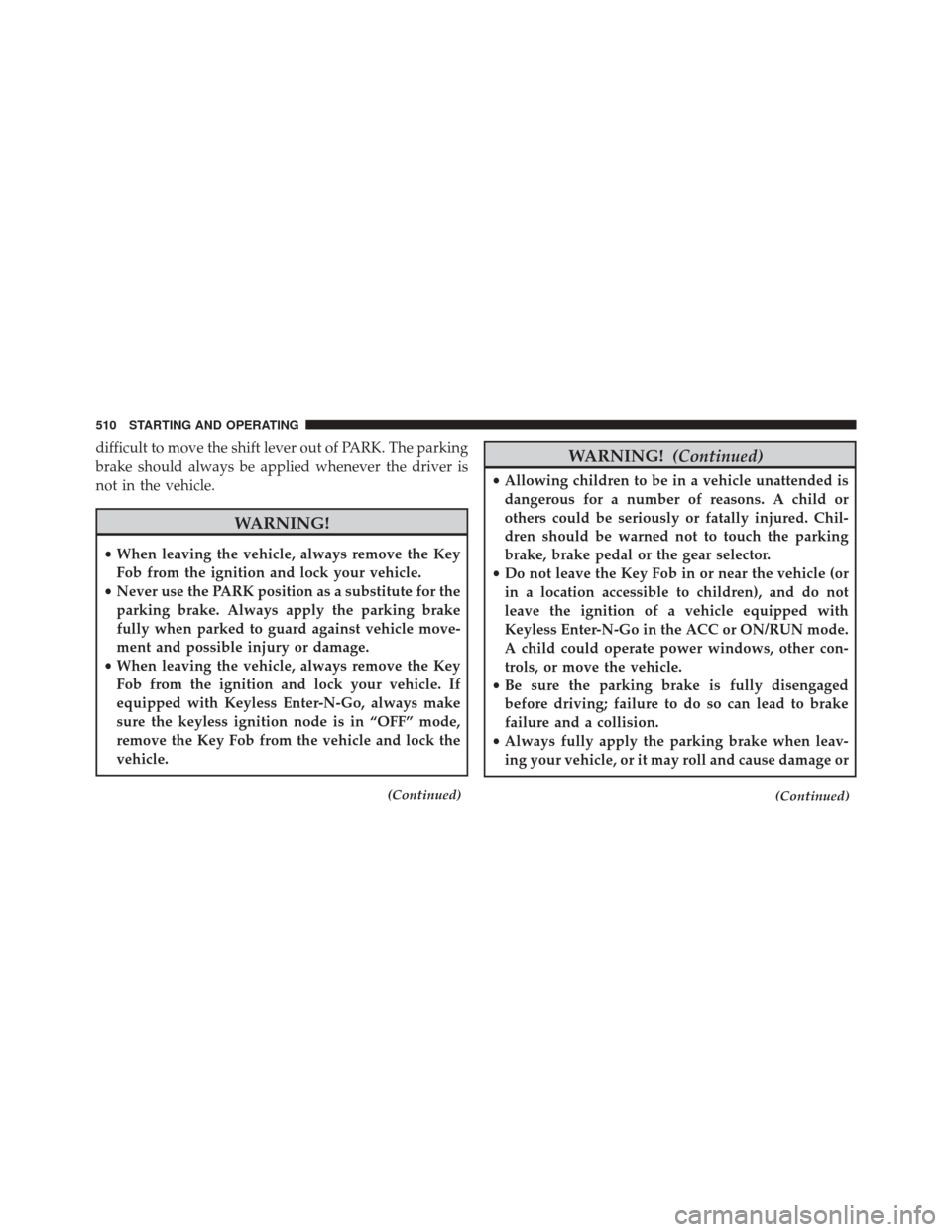

difficult to move the shift lever out of PARK. The parking
brake should always be applied whenever the driver is
not in the vehicle.
WARNING!
•When leaving the vehicle, always remove the Key
Fob from the ignition and lock your vehicle.
• Never use the PARK position as a substitute for the
parking brake. Always apply the parking brake
fully when parked to guard against vehicle move-
ment and possible injury or damage.
• When leaving the vehicle, always remove the Key
Fob from the ignition and lock your vehicle. If
equipped with Keyless Enter-N-Go, always make
sure the keyless ignition node is in “OFF” mode,
remove the Key Fob from the vehicle and lock the
vehicle.
(Continued)
WARNING! (Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.
• Be sure the parking brake is fully disengaged
before driving; failure to do so can lead to brake
failure and a collision.
• Always fully apply the parking brake when leav-
ing your vehicle, or it may roll and cause damage or
(Continued)
510 STARTING AND OPERATING

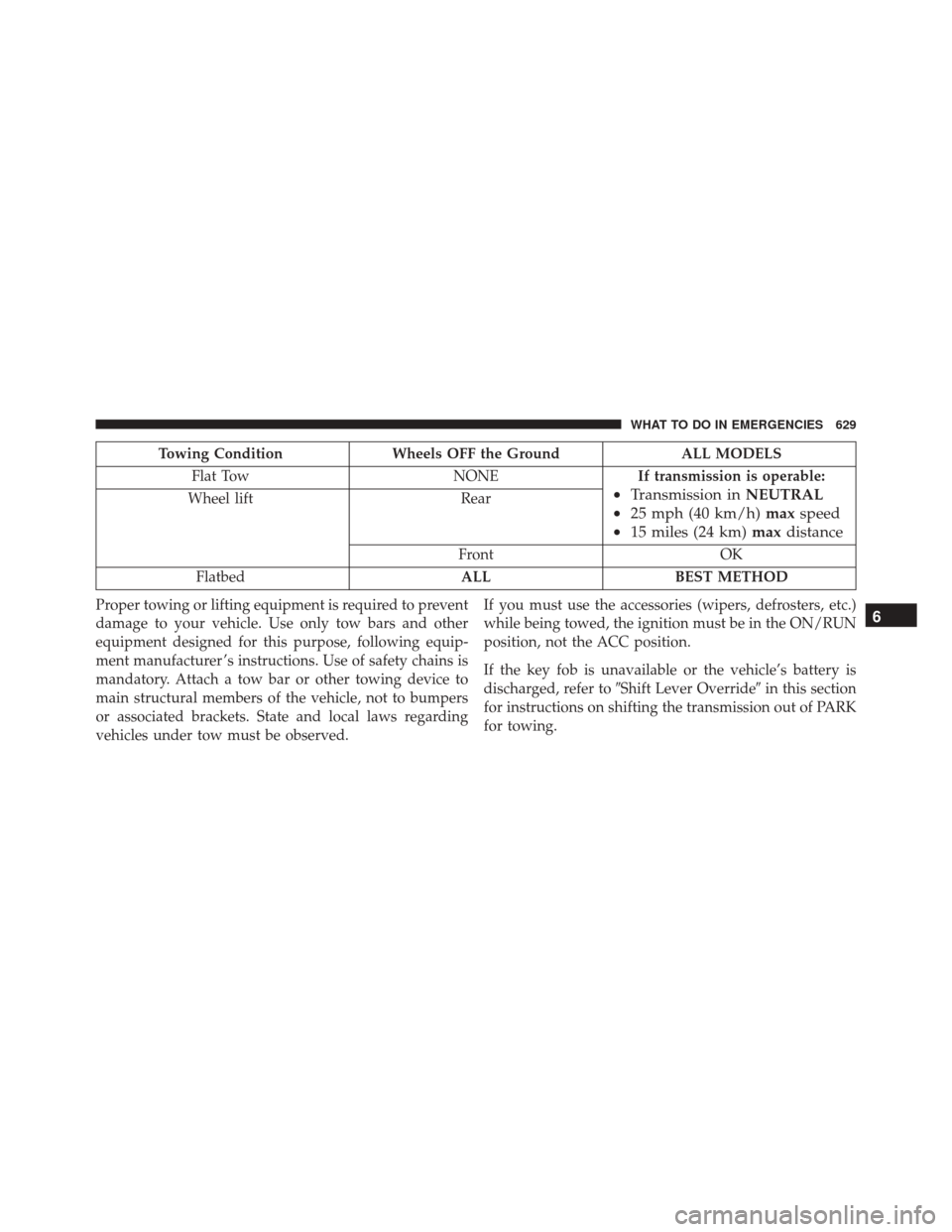

Towing ConditionWheels OFF the Ground ALL MODELS
Flat Tow NONEIf transmission is operable:
•Transmission in NEUTRAL
• 25 mph (40 km/h) maxspeed
• 15 miles (24 km) maxdistanceWheel lift Rear
Front OK
Flatbed ALLBEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the key fob is unavailable or the vehicle’s battery is
discharged, refer to
Shift Lever Override in this section
for instructions on shifting the transmission out of PARK
for towing.
6
WHAT TO DO IN EMERGENCIES 629

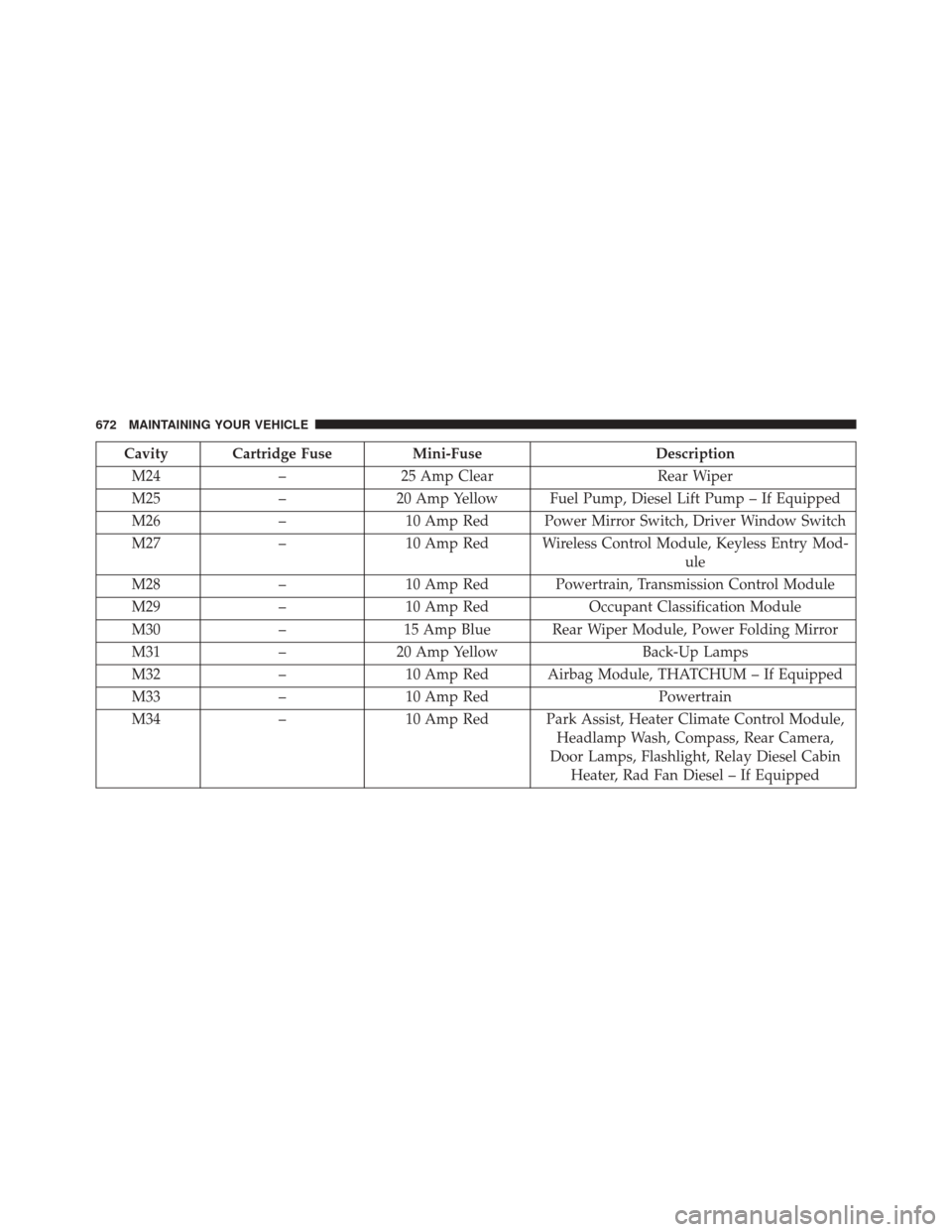

Cavity Cartridge FuseMini-FuseDescription
M24 –25 Amp Clear Rear Wiper
M25 –20 Amp Yellow Fuel Pump, Diesel Lift Pump – If Equipped
M26 –10 Amp Red Power Mirror Switch, Driver Window Switch
M27 –10 Amp Red Wireless Control Module, Keyless Entry Mod-
ule
M28 –10 Amp Red Powertrain, Transmission Control Module
M29 –10 Amp Red Occupant Classification Module
M30 –15 Amp Blue Rear Wiper Module, Power Folding Mirror
M31 –20 Amp Yellow Back-Up Lamps
M32 –10 Amp Red Airbag Module, THATCHUM – If Equipped
M33 –10 Amp Red Powertrain
M34 –10 Amp Red Park Assist, Heater Climate Control Module,
Headlamp Wash, Compass, Rear Camera,
Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped
672 MAINTAINING YOUR VEHICLE

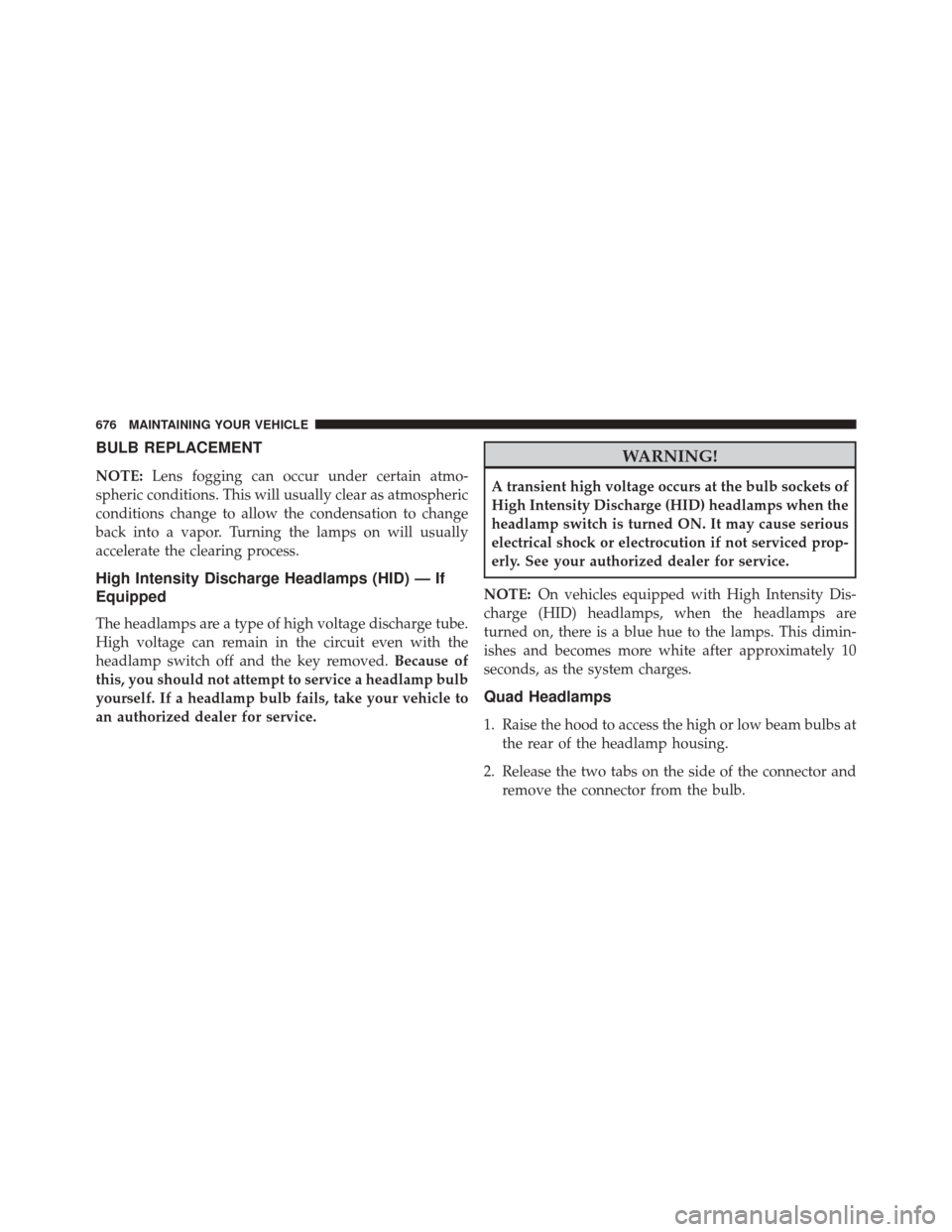

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE: On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately 10
seconds, as the system charges.
Quad Headlamps
1. Raise the hood to access the high or low beam bulbs at the rear of the headlamp housing.
2. Release the two tabs on the side of the connector and remove the connector from the bulb.
676 MAINTAINING YOUR VEHICLE

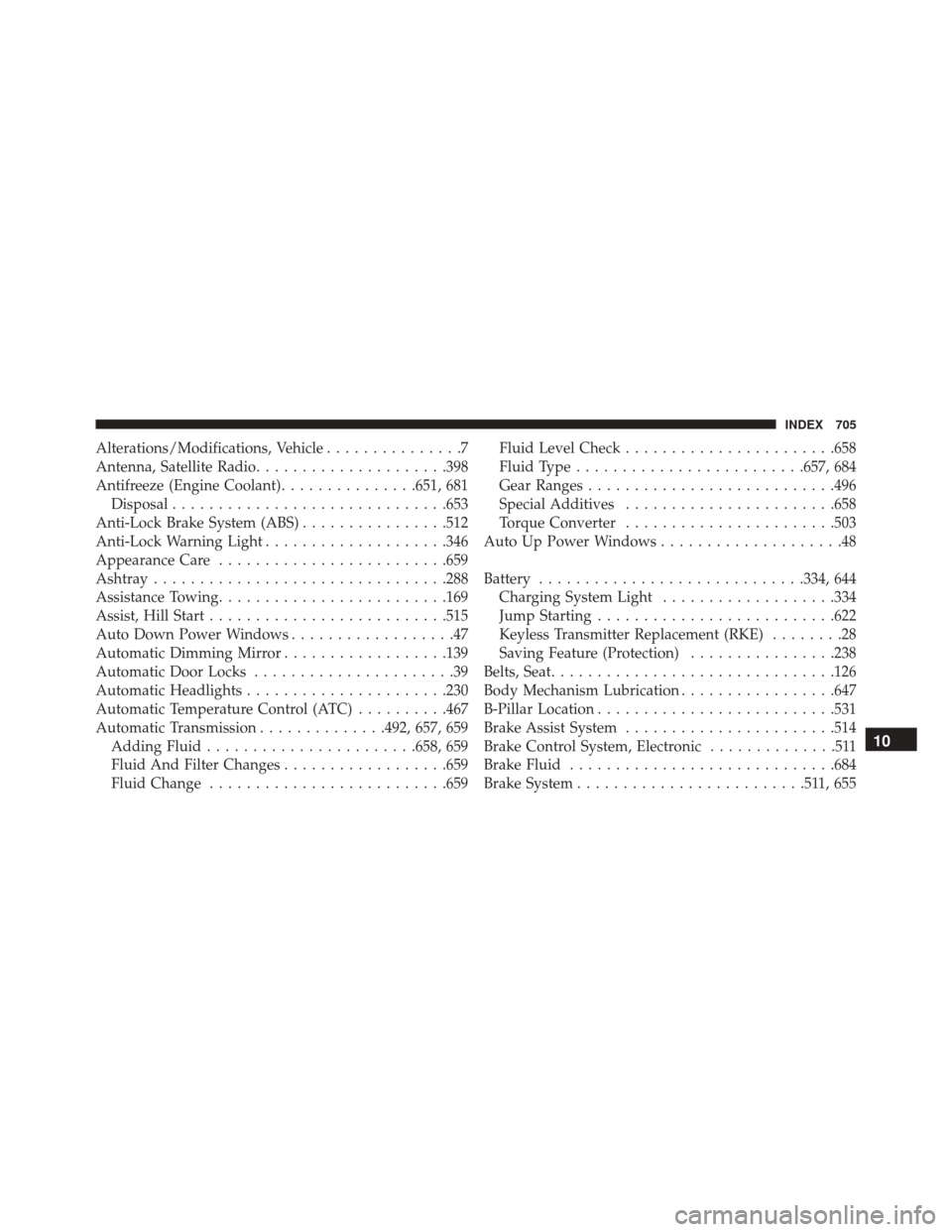

Alterations/Modifications, Vehicle...............7
Antenna, Satellite Radio .....................398
Antifreeze (Engine Coolant) ...............651, 681
Disposal ............................. .653
Anti-Lock Brake System (ABS) ................512
Anti-Lock Warning Light ....................346
Appearance Care ........................ .659
Ashtray ............................... .288
Assistance Towing ........................ .169
Assist, Hill Start ......................... .515
Auto Down Power Windows ..................47
Automatic Dimming Mirror ..................139
Automatic Door Locks ......................39
Automatic Headlights ..................... .230
Automatic Temperature Control (ATC) ..........467
Automatic Transmission ..............492, 657, 659
Adding Fluid ...................... .658, 659
Fluid And Filter Changes ..................659
Fluid Change ......................... .659Fluid Level Check
...................... .658
Fluid Type ........................ .657, 684
Gear Ranges .......................... .496
Special Additives ...................... .658
Torque Converter ...................... .503
Auto Up Power Windows ....................48
Battery ............................ .334, 644
Charging System Light ...................334
Jump Starting ......................... .622
Keyless Transmitter Replacement (RKE) ........28
Saving Feature (Protection) ................238
Belts, Seat .............................. .126
Body Mechanism Lubrication .................647
B-Pillar Location ......................... .531
Brake Assist System ...................... .514
Brake Control System, Electronic ..............511
Brake Fluid ............................ .684
Brake

System .........................511,655
10
INDEX 705

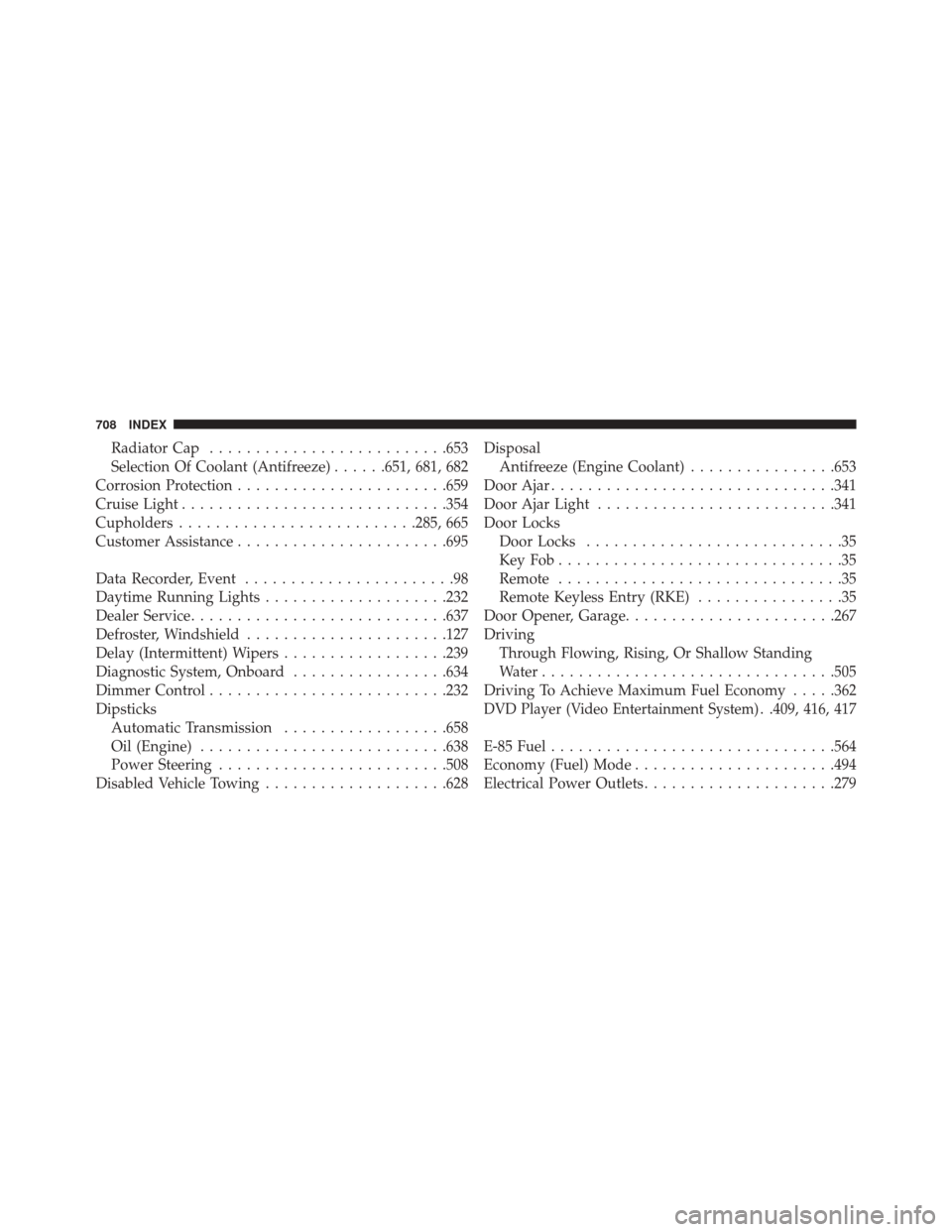

Radiator Cap......................... .653
Selection Of Coolant (Antifreeze) ......651, 681, 682
Corrosion Protection ...................... .659
Cruise Light ............................ .354
Cupholders ......................... .285, 665
Customer Assistance ...................... .695
Data Recorder, Event .......................98
Daytime Running Lights ....................232
Dealer Service ........................... .637
Defroster, Windshield ..................... .127
Delay (Intermittent) Wipers ..................239
Diagnostic System, Onboard .................634
Dimmer Control ......................... .232
Dipsticks Automatic Transmission ..................658
Oil (Engine) .......................... .638
Power Steering ........................ .508
Disabled Vehicle Towing ....................628 Disposal
Antifreeze (Engine Coolant) ................653
Door Ajar .............................. .341
Door Ajar Light ......................... .341
Door Locks Door Locks ............................35
KeyFob...............................35
Remote ...............................35
Remote Keyless Entry (RKE) ................35
Door Opener, Garage ...................... .267
Driving Through Flowing, Rising, Or Shallow Standing
Water ............................... .505
Driving To Achieve Maximum Fuel Economy .....362
DVD Player (Video Entertainment System). .409, 416, 417
E-85 Fuel .............................. .564
Economy (Fuel) Mode ..................... .494
Electrical Power Outlets .....................279
