Improper reliance on the side assist system
can cause collisions and serious personal in­
jury:
- Never rely only on side assist when chang­
ing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles under
all conditions -danger of accident!
- Please note that side assist indicates there
are approaching vehicles, or vehicles in your
blind spot, only after your vehicle has
reached a driving speed of at least 19 mph
(30 km/h).
- In certain situations, the system may not
function or its function may be limited. For
example:
- if vehicles are approaching or being left
behind very quickly. The display may not
turn on in time.
- in poor weather conditions such as heavy
rain, snow or heavy mist.
- on very wide lanes, in tight curves or if
there is a rise in the road surface. Vehicles
in the adjacent lane may not be detected
because they are outside of the sensor
range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system. Have
your authorized Audi dealer or authorized
Audi Service Facility check their function.
(D Tips
-If the window glass in the driver's door or
front passenger's door has been tinted , the
display in the exterior mirror may be misin­
terpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢page 283.
Audi side assist
Activating and deactivating
Applies to vehicles: with A udi side ass ist
Fig. 131 Dr iver 's do or: Sid e assis t button
.,. Press the button ¢ & in General information
on page 116
to switch the system on/ off . The
LED in the button turns on when side assist is
switched on .
Adjusting the display brightness
Applies to vehicles: with Audi side assist
The signal brightness can be set in the radio or
MM!*.
.,. Select: !CAR I function button> Audi side assist .
Or
.,. Select: !CAR I function button> Car systems *
control button > Driver assist > Audi side as­
sist.
The display brightness adjusts automatically to
the brightness of the surroundings, both in the
information and in the warning stage. In very
dark or very bright surroundings, the display is
already set to the minimum or maximum level by
the automatic adjustment. In such cases, you
may notice no change when adjusting the bright­
ness, or the change may only be noticeable once
the surroundings change .
Adjust the brightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the
display in the exterior mirror will briefly show the
brightness level in the information stage . The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment . ..,.
117

Audi side assist
(D Tips
-Si de assist is not active w hile you are mak­
i ng t he a dju stment .
- You r settings are automatic ally store d an d
assi gned to t he remote co ntrol key being
u sed.
Driver messages
A ppl ies to ve hicles: w ith Audi side assis t
If side ass ist switches off by itself, the LED in the
button turns off a nd a message will appear in the
i n str ument cluster d isp lay :
Audi side assist unavailable: Sensors blocked
The rada r senso rs ' vision is affected. Do not cove r
the area in front of the sensors with b ike wheels,
stickers , dirt or other objects. Clean the area in
front of the sensors, if necessary
c> page 116 ,
fig. 130.
Audi side assist: Currently unavailable
Side assist cannot be switched on tempo rar ily be­
cause there is a malfunction (for example, the
battery charge level may be t oo low).
Audi side assist: System fault!
The system cannot guarantee that it wi ll detect
ve hicl es co rrectly and it is switc hed off. The sen­
sors have been d isp laced or are fa ulty. Have the
system checked by an a uthorized Audi dealer or
author ized Audi Se rvice Facility soon.
Audi side assist: Unavailable when towing
Side assist sw itches off automati ca lly w hen a fac ­
to ry -installed trailer hitch is connected to t he
electrical connector on the trailer. The re is no
gua rantee the system w ill sw itch off whe n using
a retrofitted tra ile r hitc h. Do not use side assist
when towing a trailer.
118

,....,
N
co
er::
co
,...., Audi drive select Drive settings
Introduction
Applies to vehicles: with Audi drive select
Drive select provides the possibility to experience
d iff erent types of vehicle settings in one veh icle.
F or instance, using the three
Comfort, Auto and
Dynamic modes, the driver can switch from a
sporty to a comfortab le driving mode with the
press of a button.
Addit ionally, in vehicles with MM I*, the vehicle
setup for
Individual* mode can be customized by
you. This makes it possible to combine settings
such as a sporty engine tuning with comfortable
steering.
A WARNING
-
Improper use of the drive select can cause
collisions, other accidents and serious person­
al injury.
Description
App lies to vehicles: with Audi drive select
The vehicle setup in each mode depends on the
veh icle's features . However, the engine, auto­
matic transmission and steering are always in­
volved.
Engine and automatic transmission
Depending on the mode, the engine and the au ­
tomatic transm ission respond quicker or in a
more balanced manner to accelerator pedal
movements . In the sporty dynam ic mode, the au­
tomatic transmission shifts at higher RPMs .
Steering
The steering adapts in terms of steering effort
and steering ratios . Indirect steer ing that moves
eas ily, like the steering in comfort mode, is best
suited to long drives on a highway. In contrast,
dynamic mode provides sporty, direct steering.
The follow ing applies to vehicles with dynam ic
steering*: the steering rat io changes based on
vehicle speed in order to ma inta in optim um
steering effort for the driver at all times. This
Audi drive select
sets the steering to be less sensitive at higher
speeds in order to provide improved vehicle con­
tro l. At reduced speeds, however, steering is
more direct in order to keep the steering effort as
minimal as possible when the driver is maneuver­
ing the vehicle. At low and average speeds, dy ­
nam ic steering additionally prov ides more re­
sponsive steering performance .
Adaptive dampers*
The adaptive dampers* use sensors to record in­
formation regarding steering movements, brak­ ing and acceleration operations by the driver,
road surface, driving speed, and load . This makes
it possible to adapt damping to the driving situa­
t ion virtua lly in real time. Drive select also makes
it possible to sat isfy the desire for sporty suspen­
sion (Dynamic) and comfortable suspension
(Comfort) without giving up balanced tuning (Au­
to).
Engine sound*
T he sound of the eng ine is adapted to the select ­
ed mode and ranges from subtle to spo rty.
Adaptive cruise control*
The behavior when accelerating can be adjusted
from comfortable to sporty, depending on the drive select mode. Adaptive cruise control also
responds to the driv ing behavior of the vehicle
ahead in a more conservative or sporty manner.
(D Tips
- In some models, the maximum vehicle
speed can only be reached in the
Auto and
Dynamic modes.
- Selecting the
Dynamic mode results in spo r­
ty shift ing characteristics. The S gear posi­
tion engages automatically.
- In vehicles that have dynamic steering*, op­
erating noise is heard when starting or stop­
ping the engine . This does not indicate a
prob lem.
119

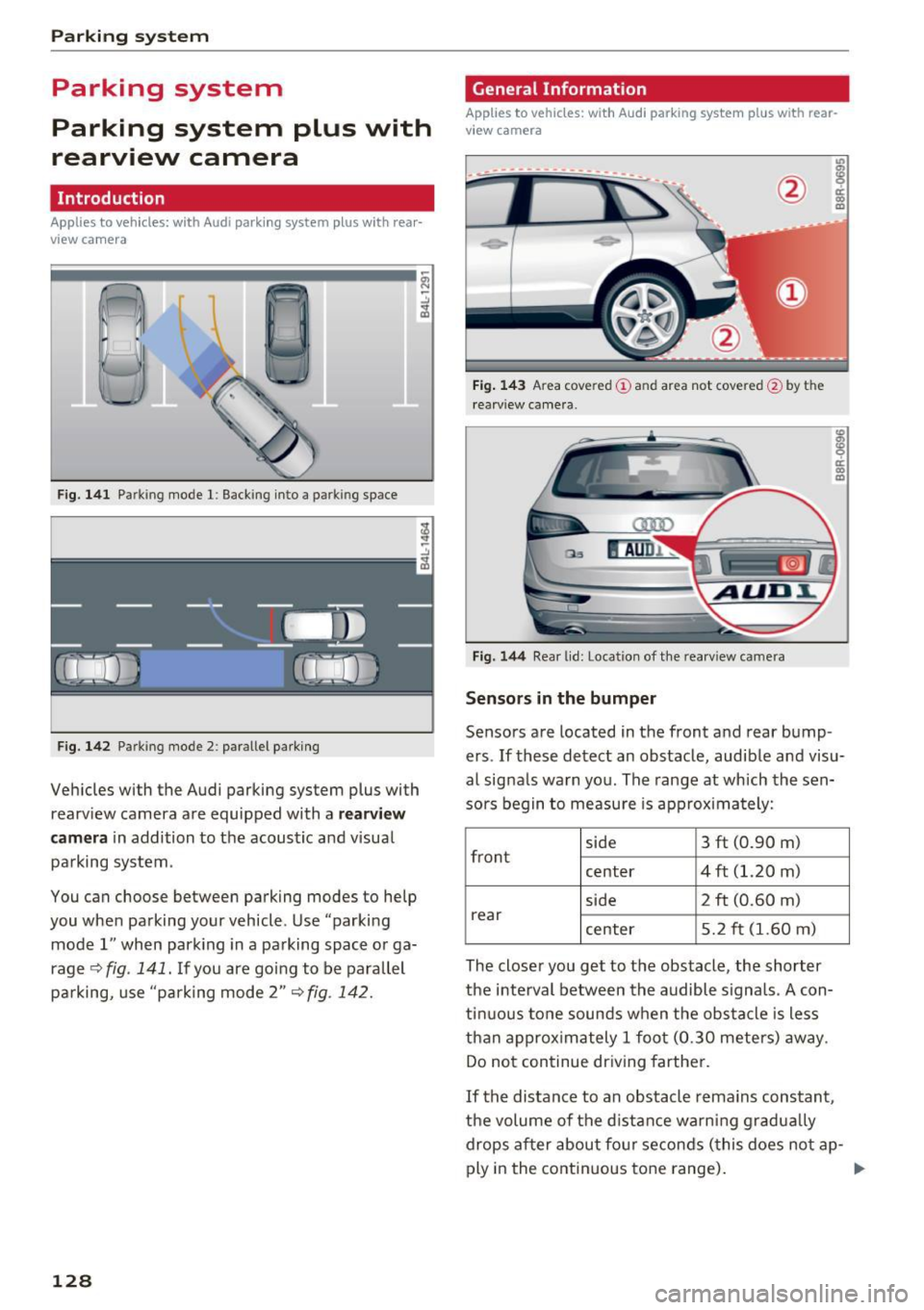

Parking system
Parking system
Parking system plus with
rearview camera
Introduction
Applies to vehicles: with Audi parking system plus with rear­
view camera
Fig. 141 Parkin g mo de 1 : Back ing i nto a pa rk in g space
Fig. 142 Parkin g mo de 2: par allel parking
Vehicles with the Audi parking system plus with
rearview camera are equipped with a
rearview
ca mera
in addition to the acoustic and visual
parking system .
You can choose between parking modes to help
you when parking your vehicle . Use "parking
mode 1" when park ing in a parking space or ga­
rage
Q fig . 141. If you are going to be parallel
parking, use "parking mode 2 "
~ fig. 142.
128
General Information
Applies to vehicles: with Audi parking system plus with rear­
view camera
Fig. 143 Area cover ed (!) an d area not covered @by the
rearv iew camera .
-
==== ffl
Fig. 144 Rear lid: Loca tion of the rearview ca mera
Sensors in the bumper
U')
~ ci: CIO m
8 ci: CIO m
Sensors are located in the front and rea r bump ­
ers . If these detect an obstacle , audible and visu­
al signa ls warn you . The range at which the sen­
sors begin to measure is approxima tely:
side 3
ft (0.90 m)
front center 4
ft (1.20 m)
s ide 2
ft (0.60 m)
rear center 5.2 ft (1.60 m)
The closer you get to the obstacle , the shorter
the interval between the audible signals . A con­
t inu ous tone sounds when the obstacle is less
than approximately
1 foo t (0.30 meters) away .
Do not continue driving farther.
If the distance to an obstacle remains constant ,
the volume of the distance warning gradua lly
drops after about four seconds (this does not ap­
ply in the continuous tone range).

Parking system
Switching on and off
Applies to veh icles: w ith Aud i park ing system p lus w ith rear ­
view ca mera
The rearview camera switches on automatically
together with the acoustic and visual park assist
when you put the vehicle in reverse.
F ig. 145 Center console: Pa rking system sw itch
F ig. 146 MM I d isp lay : v isual d istance display
Sw itch ing on
• Switch the MM I on and select reverse gear .
• To use the front parking system, press the
switch
P11A in the center console¢ fig. 145. A
sho rt confi rmation to ne sounds and the indica­
tor light in the switch lights up.
Sw itching betwe en th e re arview came ra and
visual display
• Press t he Graphi c control but ton ¢ page 131,
fig. 147
® to see the vis ual d isplay.
• Press the
Re ar view contro l button to see the
rearview camera image¢
fig. 146.
Switching off
• Drive faster than 6 mph (10 km/h), or
• press the switch
P"1A or
• swit ch off the ignition.
130
S egments in the vis ual d isplay
The red segments in front of and behind the vehi­
cle
¢ fig. 146 help you to determine the distance
between you and an obstacle . As your vehicle
comes closer to the obstacle, the segments move
closer to the vehicle . The collision area has been
reached when the next to last segment is dis­
played . Do not continue dr iving farther ¢.&.
in
General Information on page 129!
,& WARNING
- The MMI display cannot show, or cannot ad­
equate ly show, certain objects (such as
sma ll posts or grati ng), re cesses in the
gro und and protrud ing parts on another car.
- On ly use the rearv iew camera to ass ist you if
it shows a good, clear picture . For example,
the image may be affected by the sun shin­
ing into the lens, dirt on the lens o r if there
is a defect .
- Use the rearview camera on ly with the rear
lid completely closed. Make sure any ob jects
you may have mounted on the rear lid do
not block the rearview camera.
(D Tips
- The sensors m ust be kept clean and free of
snow and ice for the park assist to operate .
- The visu al display is shown in the illustra ­
tion of the rearview camera. This display
shows where the sensors have detected an obstacle.
- Yo u can change the vol ume and pitch of the
signals as well as the disp lay ¢
page 133.
-Please follow the instruc tions for tow ing a
trailer
¢ page 133.
- What appears in the display is time -de ­
layed .

,....,
N
co
er::
co
,...., mirror or a corner of your vehicle does not co l­
lide with any obstacles. This can damage to
your veh icle.
(D Tips
The left or right orientation lines and surfaces
wi ll be displayed, depending on the turn sig­
na l being used .
Adjusting the display
and warning tones
Applies to vehicles: with Audi parking system plus with rear­
view camera
The display and warning tones can be adjusted in
the MMI.
~ Select: I CARI function button > Parking syste m.
Or
~ Se lect: I CARI funct ion button > C ar sy stem s*
control button > Driver a ssi st > Pa rking aid .
Di sp lay
- Off -
when the parking system is switched on,
only aud ible signals are g iven.
- On -when the parking system is switched on,
either the visual disp lay or the picture from the
rearview camera is displayed.
Warning tones
- Front volu me -
fron t se nso r volume
- Front fr equ ency -front se nsor frequency
- Rea r volum e -rear sensor vol ume
- Rea r frequency -rear sensor frequency
-In -car enterta inment fade r/Mus ic volum e
w hile pa rking -
when the parking system is
switched on, the volume of the active audio
source is lowered .
The new ly adjusted value is briefly heard from
the signal generator .
- The warning tones can also be ad justed d i­
rectly by the vis ual disp lay or the picture
from the rearview camera. Simply press the
Sett ings control button.
- Changed settings are activated when park­
ing system is switched on again.
Par king system
- The settings are automatically stored and
assigned to the remote control key .
Trailer hitch
Applies to vehicles: with Audi parking system plus with rear­
view camera and trailer hitch
Fo r vehicles with a factory installed trailer hitch,
o r a tra ile r hi tch installed according to factory
specifications, the par king system rear sensors
do not come on whenever you shift into reverse
gear or when you press the
P •1~ switch . Remem­
ber, there is no war ning for distances to the rear .
The front sensors remain activated. The visual
display switches to the tra iler tow ing mode. The
picture from the rearview camera w ill not show
the or ientat io n lines nor the blue surfaces .
If you insta ll a hitch yourse lf, this f unct ion may
not work.
Error messages
Applies to vehicles: with Audi parking system plus with rear­
view camera
T he re is an error in the system if the LE D on the
Pw~ switch is blink ing and yo u hear a continuous
alarm for a few seconds after sw itch ing on the
park ing system or when the parking system is al­
ready activated. Have your authorized Audi dealer
correct the error.
(D Tips
If the error is not corrected before you switch
off the ign ition, when you switch on the park­
i ng system again, the LED in the
Pw.A sw itch
will blink.
133

,....,
N
co
er::
co
,...., The shoulder belt should lie as close to the center
of the collar bone as possib le and should fit well
on the bod y ¢
A in Safety belt position on
page 147.
.. Push
the loop- around fittings up ¢ fig. 164 @,
or
.. squeeze to gether the@ button, and push the
loop-around fittings
do wn@ .
.. Pull the belt to make sure that the upper at­
tachment is p roperly engaged .
A WARNING
Always read and heed all WARNINGS and oth­
er important informat ion
¢ page 145.
With the front seats, the height adjustment
of the seat can also be used to adjust the po­
sition of the safety belts .
Improperly worn safety belts
Incorrectly positioned safety belts can cause se­
vere injuries.
Wearing safety belts improperly can cause seri­
ous injury or death . Safety belts can only work
when they a re correctly pos itioned on the body .
Improper seating positions reduce the effect ive­
n ess of safety be lts and will even inc rease the
ris k of injury and death by mov ing the safety bel t
to cr it ica l areas of the body. Imp roper seating
positions also increase the risk of serious inj ury
and death when an airbag deploys and strikes an
occ upant who is not in the co rrect seat ing posi­
tion . A driver is respons ible for the safety of all
vehicle occupants and espec ia lly for children.
Therefore:
.. Never permit anyone to ass ume an incorrect
s itting position in the veh icle wh ile traveling
¢ &, .
A WARNING
Improperly worn safety belts increase the risk
of serious personal injury a nd death wheneve r
a vehicle is be ing used.
S afet y be lts
- Always make sure that all veh icle occupants
are cor rectly restrained and stay in a correct
seating position whenever the vehicle is be­ ing used .
- Always read and heed all WARNINGS and
other important informat io n ¢
page 145.
Belt tensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular severity and in a rollover, safety belts
are tensioned automatically.
The safety belts are equ ipped w it h safety belt
pretens ione rs . The system is activated by sensors
i n front, s ide and rear-end collisions of great se­
ver ity and in a ro llover. This tightens the bel t and
t a kes up belt slack¢.&.
in Service and disposal of
safety belt pretensioner on page 150.
Taking up
the slack he lps to reduce forward occupant
movement during a collision.
(D Note
Neve r let the belt remain over a rea r seatback
that has been folded forwar d.
{D Tips
The safety belt pretensioner can only be ac ti­
vated once.
- T he safe ty be lt pretensione rs do no t de ploy
in minor fron tal, side a nd rear -end colli ­
sions .
- W hen the safe ty belt pretensioners are acti­
vated, a fine dust is released . This is normal
and is not caused by a fire in the ve hicle .
- T he relevant safety requirements mus t be
observed when the vehicle or components
of the system are scrapped. An autho rize d
Audi dealer or qua lified workshop is familia r
w ith these reg ulations and will be pleased
to pass on the information to yo u.
- Be sure to observe all safety, environmenta l
and other regulat ions if the vehicle or indi­
vidua l parts of the system, particularly the
safety belt or airbag, are to be disposed. We
recommend you have yo ur autho rized Aud i
dea ler perform t his service fo r you.
149

Airbag syste m
greater detail below. Because the front passen ­
ger seat contains important parts of the Ad­
vanced Airbag System, you must take care to pre ­
vent it from being damaged. Damage to the seat m ay prevent the Advanced Airbag for the front
passenger seat from doing its job in a crash .
The front Advanced Airba g Sy stem con sists
of the follo wing :
-Crash sensors in the front of the vehicle that
measure vehicle acceleration/deceleration to
provide information to the Advanced Airbag
System about the seve rity of the crash .
- An electronic control un it, with integrated
crash sensors for front and side impacts . The
contro l unit "decides " whethe r to fire the front
airbags based on the information received from
the crash sensors. The control unit a lso "de­
cides" whether the safety be lt pretensioners
shou ld be activated.
- An Advanced Airbag with gas generator and
contro l valve for the driver ins ide the steering
whee l hub .
- An Advanced Airbag with gas generator and
contro l valve inside the instrument pane l for
the front passenger .
- A weight -sensing mat under the upho lstery
padding of the front passenger seat cushion
that measures th e total weight on the seat . T he
information registered is sent continuously to
the e lec tronic control unit to regu la te dep loy­
ment of the front Advanced A irbag on the pas ­
senger side .
- An airbag monitoring system and indica tor
l ight in the instrument cluster
c> page 161 .
-A sensor in each front sea t registers the dis­
tance between the respective seat and the
steering wheel or instrument panel. The infor­ mation reg istered is sent continuous ly to the
electronic control u nit to regulate deployment
of the front Advanced A irbags.
- T he
PASSEN GE R AIR B AG OFF light comes on
and stays on in the center of the inst rument
pane l
c> page 161 , fig . 168 and tells you when
the front Advan ced Airbag on the passenger
side has been turned off .
- A sensor below the safety belt la tch fo r the
front seat passenger to meas ure the tension on
158
the safety belt. The tension on the safety belt
and the weight reg istered by the weight-sens­
ing mat help the contro l unit "decide" whether
the front airbag for the front passenger seat
should be turned
off or not c> page 152, Child
restraints on the front seat -some important
things to know .
-A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transmits this information to the e lectronic
cont rol u nit.
_&. WARNING
Damage to the fron t passenge r seat can pre­
vent the front airbag from work ing properly .
- Improper repair or disassembly of the front
passenger and driver seat will prevent the
Advanced Airbag System from f unctioning
proper ly.
- Repairs to the front passenger seat mus t be
performed by qualified and proper ly trained
wo rkshop personne l.
- Never remove the front passenger or driver
seat from the vehicle.
- Never remove the upholstery from the front
passenger seat.
- Never d isassemble or remove pa rts from the
seat o r disconnect wi res from it.
- Never carry sharp objects in your pocke ts or
place them on the seat. If the weight-sens­
ing mat in the passenger seat is p unctured
it cannot work proper ly.
- Never carry things on your lap or carry ob­ jects on the passenger seat. Such items can increase the weight reg istered by the
weight-sensing mat and send the wrong in­
formation to the airbag control unit.
- Never store items under the front passenger
seat . Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, preventing them and the airbag sys­
tem from working properly .
- Never p lace seat covers or replacement up­
holstery that have not been specifically ap­
proved by Audi on the front seats.
- Seat covers can prevent the Advanced A ir­
bag System from recognizing child
