2016 AUDI A4 Owners Manual

..... N
0 ::..:: co ..... ..... A WARNING
Improperly stored luggage or other items can
fly through the vehicle causing serious per­
sonal injury in the event of hard braking or an
accident . To help reduce the risk of serious
personal injury:
- Always put objects, for example, luggage or
other heavy items in the luggage compart­
ment.
- Always secure objects in the luggage com­
partment using the tie-down eyelets and
suitable straps.
A WARNING
Heavy loads will influence the way your vehi­
cle handles. To help reduce the risk of a loss
of control leading to serious personal injury:
- Always keep in mind when transporting
heavy objects, that a change in the center of
gravity can also cause changes in vehicle
handling:
-Always distribute the load as evenly as
possible .
- Place heavy objects as far forward in the
luggage compartment as possible.
- Never exceed the Gross Axle Weight Rating
or the Gross Vehicle Weight Rating specified
on the safety compliance sticker on the left
door jamb. Exceed ing permissible weight
standards can cause the veh icle to slide and
hand le differently.
- Please observe information on safe driving
qpage 121.
A WARNING
To help prevent poisonous exhaust gas from
being drawn into the vehicle, always keep the
rear lid closed while driving.
- Never transport objects larger than those
fitting completely into the luggage area be­
cause the rear lid cannot be fully closed.
- If you absolutely must drive with the rear lid
open, observe the fo llowing notes to reduce
the risk of poisoning:
- Close all windows,
- Close the sunroof,
Driving safety
-Open all air outlets in the instrument pan­
el,
- Switch off the air recirculation
,
- Set the fresh air fan to the highest speed .
A WARNING
=
Always make sure that the doors, a ll win-
dows, the sunroof and the rear lid are secure­
ly closed and locked to reduce the risk of in­
jury when the vehicle is not being used.
- After closing the rear lid, always make sure
that it is properly closed and locked .
- Never leave your vehicle unattended espe­
cially with the rear lid left open . A child
could crawl into the vehicle through the lug­
gage compartment and close the rear lid be­
coming trapped and unable to get out . Be­
ing trapped in a vehicle can lead to ser ious
personal injury.
- Never let children play in or around the vehi­ cle .
- Never let passengers ride in the luggage
compartment . Vehicle occupants must al­
ways be properly restrained in one of the ve­
h icle 's seat ing positions.
(D Tips
-Air circulation helps to reduce window fog­
ging . Stale air escapes to the outs ide
through vents in the tr im panel. Be sure to
keep these slots free and open.
- The tire pressure must correspond to the
load. The t ire pressure is shown on the tire
pressure label. The tir e pressure label is lo­
cated on the driver's side B-pillar . The tire
pressure label lists the recommended cold
tire inflation pressures for the vehicle at its
maximum capacity weight and the tires that
were on your vehicle at the time it was man­
ufactured. For recommended tire pressures
for normal load conditions, please see chap­
ter
q page 22 7
127

Driving sa fe ty
Tie-downs
Applies to vehicles: with tie-downs
The luggage compartment is equipped with four
tie-downs to secure luggage and other items .
Use the tie-downs to secure your cargo properly
¢page 126, Loading the luggage compartment.
In a collision, the laws of physics mean that even
smaller items that are loose in the vehicle will
become heavy missiles that can cause ser ious in­
jury. Items in the veh icle possess energy which
vary with vehicle speed and the weight of the
item . Veh icle speed is the most s ignificant facto r.
For examp le, in a frontal collision at a speed of
30 mph (48 km/h), the forces act ing on a 10-lb
(4 .5 kg) object are about 20 times the normal
weight of the item. Th is means that the weight
of the item would suddenly be about
200 lbs . (90 kg). You can imagine the injuries
that a 200 lbs. (9 0 kg) item flying free ly through
the passenger compartment could cause in a co l­
lision like this.
/1. WARNING
Weak, damaged or improper straps used to secure items to tie-downs can fail d uring hard
brak ing or in a collision and cause serious per­
sonal injury.
- Always use suitab le mounting straps and
properly secure items to the tie-downs in
the luggage compartment to help prevent
items from shifting or flying forwa rd as dan­
gerous missiles .
- When the rear seat backrest is folded down, always use suitab le mounting straps and
prope rly secure items to the tie-dow ns in
the luggage compartmen t to help p reve nt
items from f lying forwa rd as dangerous
missiles into the passenger compartment .
- Never a ttach a child safe ty seat tether strap
to a tie-down.
128
-
Reporting Safety Defects
Applicable to U.S.A.
If you belie ve that your vehi cle
ha s a defect whi ch could cau se a
c rash or could cau se injur y or
d eath, you should immedi ate ly in­
form the Nat ional Highw ay Traffic
Safet y Admini stration (NHTSA) in
a ddition to n otif yin g Audi of
Ameri ca, Inc.
If NHTS A re cei ves s imilar com­
pl aint s, it m ay ope n a n inv estiga­
tion , and if it find s that a saf ety
d efec ts ex ists in a group of
ve hicle s, it m ay ord er a re call and
r e med y campaign. H owe ver,
NHTSA cannot b ecome in volved in
indi vidual p robl em s between you,
your dealer, or Audi of America, In c.
To conta ct the NHTSA, you ma y
e ither call:
T el.: 1-888-327-4236 (TTY:
1-800-424-9153) or
1-800-424-9 393
or y ou may writ e to:

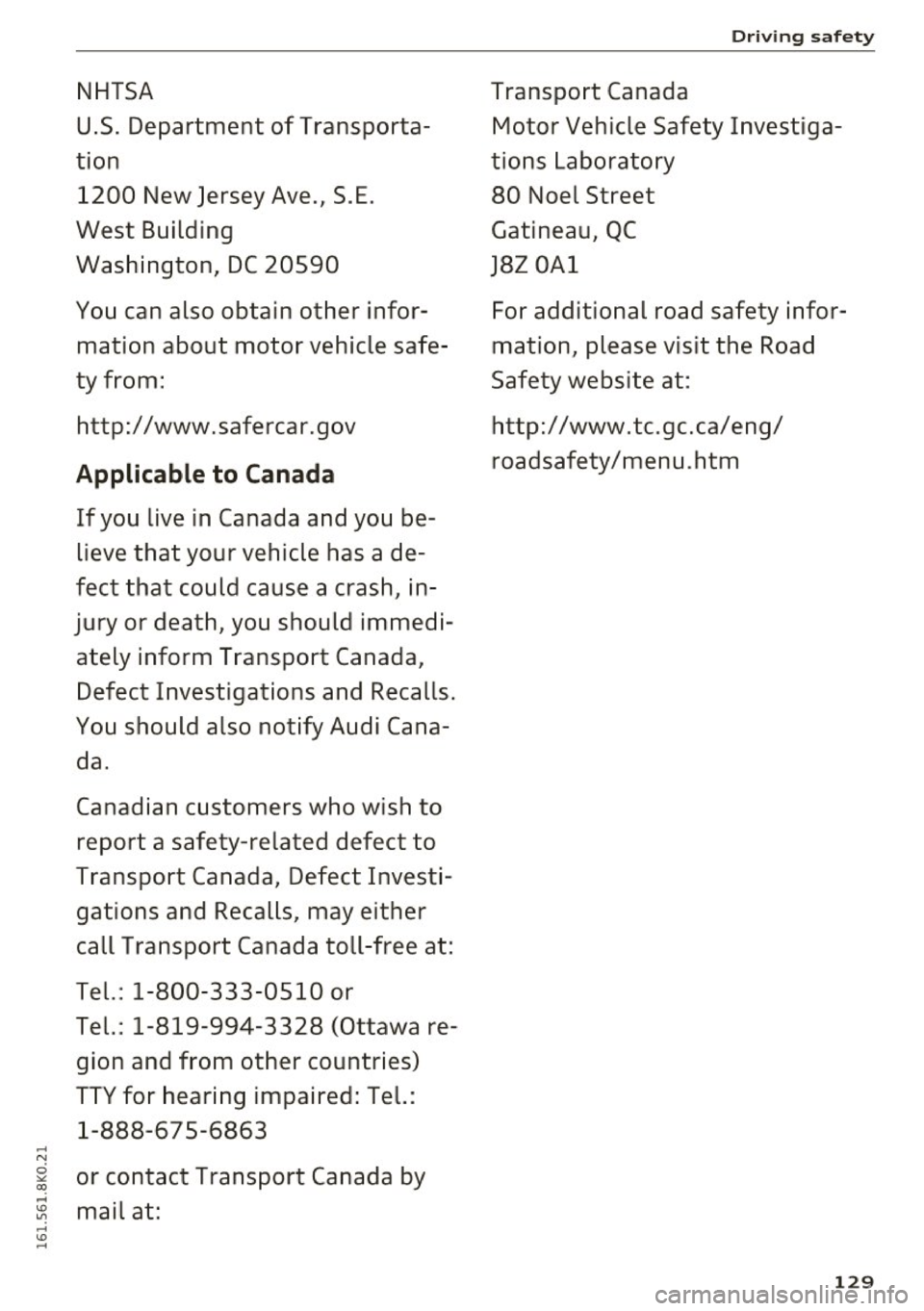

... N
NHTSA
U.S. Department of Transporta­
tion 1200 New Jersey Ave., S .E.
West Building
Washington, DC 20590
You can also obtain other infor­ mation about motor vehicle safe­
ty from:
http:/ /www.safercar.gov
Applicable to Canad a
If you live in Canada and you be­
lieve that your vehicle has a de­
fect that could cause a crash, in­
jury or death, you should immedi­
ately inform Transport Canada,
Defect Investigations and Recalls .
You should also notify Audi Cana­ da.
Canadian customers who wish to
report a safety-related defect to
Transport Canada, Defect Investi­
gations and Recalls, may either
call Transport Canada toll-free at:
Tel. : 1-800-333 -05 10 or
Tel.: 1-819-994-3328 (Ottawa re­
gion and from other countries)
TTY for hearing impaired: Tel.:
1 -888-67 5-6863
~ or contact Transport Canada by
...
~ mail at:
Driving safety
Transpo rt Canada
Motor Vehicle Safety Investiga­
tions Laboratory
80 Noel Street
Gatineau, QC
J8Z 0Al
F or additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc.gc.ca/eng/
roadsafety/menu .htm
1 29

Safety belt s
Safety belts
General information
Always wear safety belts!
Wearing safe ty belts correctly saves lives!
This chapte r explains why safety be lts a re neces­
sary, how they work and how to adjust and wear
them correct ly.
.. Read all the information that follows and heed
all of the instructions and WARNINGS.
&_ WARNING
Not wea ring safety belts or wearing them im­
properly increases the risk of ser ious personal
injury and dea th .
- Safety belts are the s ingle most effective
mea ns ava ilab le to reduce the risk of serious
injury and dea th in automob ile accidents .
For yo ur protect ion and that of your passe n­
gers, alw ays co rre ctly wea r sa fety be lt s
when the veh icle is moving .
- Pregnant wom en, in ju re d, o r physically i m­
paired persons mus t also use s afety be lts.
L ik e all vehi cle o ccu pants, they are mo re
li kely to be serio usly injure d if th ey do no t
wea r safety be lts. The best way to protect a
fetus is to protect the mothe r -th roughout
the ent ire pregnancy .
Number of seats
Your Audi has a total of five seating positions:
two in the front and three in the rear. Each seat­
i n g position has a safety belt.
&_ WARNING
N ot wea ring safety bel ts or weari ng them im­
properly increases th e r isk of ser ious personal
inju ry and dea th.
- N ever st rap more tha n one perso n, includ­
ing small ch ildren, into a ny be lt .
It is espe­
ci ally dan gerous to pla ce a sa fety bel t over a
c hild s itting on you r lap.
- N ever le t mo re people ride in t he vehicle
t h an t he re are saf ety bel ts availab le.
130
-Be sure everyone riding in the vehicle is
properly restrained with a separate safety
be lt or ch ild restraint.
Safety belt warning light
Your vehicle has a warning system for the driver
and (on USA models only) front seat passenger
to remind you about the importance of buckling­
up .
Fig. 141 Safety belt wa rning lig ht in th e in st rument clu s­
ter -enl arged
Before driv ing off , alway s:
.. Fasten your sa fety belt and make sure you are
wearing it prope rly.
(0
"'
"' 0 N .. Make sure that your passengers a lso buc kle up
and proper ly wea r th eir safety belts .
.. Protec t your ch ildren with a ch ild rest raint sys­
tem app ropr iate for the size and age of the chil­
dren .
The . war ning light i n the instrument cluste r
l ights up when the ig nition is swi tched on as a re­
minde r to fas ten t he safety be lts. In addition,
yo u w ill hea r a wa rn ing tone for a ce rt ain per io d
of time.
Fasten your safety belt now and make sure that
your passengers also properly put on their safe­
ty belts.

,....,
N
0
""' CX) ,....,
I.Cl U"I ,....,
I.Cl ,....,
Why use safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for peo­
ple riding in vehicles .
Fig. 142 Unbelted occupants in a vehicle heading for a wall
Fig . 143 The vehicle crashes into the wall
CD
~ ± The physical principles are simple. Both the vehi­
cle and the passengers possess energy which var ­
ies with vehicle speed and body weight. Engi­
neers call this energy "kinetic energy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash.
Veh icle speed is the most significant factor.
If
the speed doubles from 15 to 30 mph (25 to
50 km/h), the energy increases 4 times!
Because the passengers of this vehicle are not us­
ing safety belts¢
fig. 142, they will keep mov ing
at the same speed the vehicle was moving just
before the crash, until something stops them -
here, the wall
¢fig. 143.
The same principles apply to people sitting in a
vehicle that is involved in a frontal collision. Even
at city speeds of 20 to 30 mph (30 to 50 km/h),
the forces acting on the body can reach one ton
Safety belts
(2,000 lbs. o r 1,000 kg) or more . At greater
speeds, these forces are even higher.
People who do not use safety belts are also not
attached to their vehicle. In a frontal collision
they will also keep moving forward at the speed
their vehicle was travelling just before the crash.
Of course, the laws of physics don't just apply to
frontal collisions, they determine what happens in all kinds of accidents and collisions.
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed. Always wear your safety belts!
Fig. 144 A driver not wearing a safety belt is v iolently
thrown forward
Fig. 145 A rear passenger not wearing a safety belt will f ly
forwa rd and strike the
driver
Unbelted occupants are not able to resist the tre­
mendous forces of impact by holding tight or
bracing themselves . Without the benefit of safe­
ty restraint systems, the unrestrained occupant
will slam viol ently into the steering wheel, in­
strument panel, windshield, or whatever else is
in the way
¢fi g. 144. This impact with the vehi­
cle interior has all the energy they had just be-
fore the crash.
Ill>-
131

Safe ty belts
Never rely o n airbags alone for protection . Even
when they deploy, airbags provide only additional
protection. A irbags are not supposed to dep loy in
all kinds of accidents. A lthough your Audi is
equipped w ith airbags, all vehicle occupants, in­
cluding the driver, must wear safety belts cor ­
rectly in order to minimize the risk of severe in­
jury or death in a crash .
Remember too, that airbags will deploy only
once and that your safety belts are a lways there
to offer protect ion in those accidents in wh ic h
airbags are not supposed to deploy or when they
have a lready dep loyed. Unbel ted occupants can
a lso be thrown o ut of the veh icle where eve n
mo re severe or fatal injur ies can occur .
It is also important for the rear pass enge rs to
wear safety belts co rrectly. Unbelted passengers
i n t he rea r seats endanger no t on ly themse lves
but also the drive r and other passengers
~ fig . 145. In a frontal collision they will be
thrown forward violently, where they can hit and
in jure the driver and/or front seat passenger.
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision . It's simply
not true!
F ig . 14 6 Driver is correctly restrai ned in a sudde n braking
m aneuver
Safety belts used properly can make a b ig d iffer­
ence. Safety belts help to keep passengers in
their seats, gradually reduce energy levels ap­
plied to the body in an accident, and he lp prevent
the uncont rolled moveme nt that can cause seri­
ous injur ies. In addition, safety belts reduce the
danger of being thrown out of the veh icle .
132
Safety be lts attach passengers to the car an d give
them the benefit of being s lowed down more
gently or "soft ly" thro ugh the "give" in the safety
belts, crush zones and other safety feat ures engi­
neered into today's vehicles. By "absorbing" the
k inet ic energy over a longer per iod of t ime, the
safety belts make the forces on the body more
"tole rab le" and less likely to cause inj ury.
Although these examples are based on a frontal
collision, safety be lts ca n also substantially re ­
duce the r isk o f injury in ot her kinds of crashes.
So, whethe r yo u're on a long trip or just going to
the cor ne r store, a lways b uckle up and make s ure
othe rs do, too. Ac ciden t stat ist ics show that veh i­
cl e o ccupants prope rly wearing safety bel ts have
a lowe r risk of being injured and a m uch better
chance of surviving an acc ident . Properly using
safety be lts also great ly increases the ability of
the supp lemental airbags to do their job in a col­
li sion. For this reason, wearing a safety belt is le­
gally required in most countries including much
of the United States and Canada .
Although your Aud i is equipped with airbags, you
still have to wear the safety belts provided. Front
airbags, for examp le, are activated only in some
frontal collisions. The front airbags are not act i­
vated in all frontal collisions, in side and rear co l­
li sions, in roll overs or in cases where the re is not
eno ugh deceleration throug h impa ct to the front
of the vehicle. The same goes for the other a irbag
systems in your Audi. So, always wear your safety
belt and make sure everybody in your vehicle is
properly rest rained!
Important safety instructions about safety
belts
Safety belts must always be correctly positioned
across the strongest bones of your body.
.,. Always wear safety belts as illustrated and de ­
scribed in this chapter.
.,. Make sure that your safety be lts are always
ready fo r use a nd are not damaged .

,....,
N
0
""' ex:, ,....,
I.Cl U"I ,....,
I.Cl ,....,
_& WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death . Safety belts can work only
when used correct ly.
-Always fasten your safety belts correctly be­ fore driving off and make sure all passen­
gers are cor rect ly restrained.
- For maximum protection, safety belts must
always be posit ioned properly on the body .
- Never strap more than one person, includ­
ing small ch ildren, into any belt .
- Never place a safety belt over a child sitt ing
on your lap.
- Always keep feet in the footwell in front of
the seat wh ile the vehicle is being driven.
- Never let any person ride w ith their feet on
the instrument panel or st icking out the
window or on the seat .
- Never remove a safety belt while the vehicle
is moving . Do ing so will increase your risk of
being injured or k illed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable ob-
jects in or on your clothing, such as eye
glasses, pens, keys, etc., as these may cause
injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat hard­
ware.
- Do not wear the shoulder part of the belt
under your arm or otherwise out of position .
- Several layers of heavy clothing may inter­
fere with correct positioning of belts and re­
duce the overall effectiveness of the system.
- Always keep belt buckles free of anything
that may prevent the buckle from latching
securely .
- Never use comfort clips or devices that cre­
ate slack in the shoulder be lt . However, spe­
cial clips may be requ ired for the proper use
of some child restraint systems.
- Torn or frayed safety belts can tear, and
damaged belt ha rdware can break in an acc i­
dent. Inspect belts regularly.
If webbing,
bind ings, buckles, or re tractors are dam-
Safet y bel ts
aged, have belts rep laced by an authorized
Aud i dea ler .
- Safety belts that have been worn and loaded
in an accident must be replaced with the
correct replacement safety belt by an au­
thorized Audi dealer. Replacement may be
necessary even if damage cannot be clearly
seen. Anchorages that were loaded must al­
so be inspected.
- Never remove, mod ify, d isassemble, or try
to repair the safety belts yourse lf.
-Always keep the belts clean . Dirty belts may
not work properly and can impair the func­
tion of the inert ia reel¢
page 193.
Safety belts
Fastening safety belts
Safety first -everybody buckle up!
F ig. 14 7 Belt buckle and tongu e on t he d river' s se at
To provide maximum protection, safety belts
must always be positioned correctly on the wear­
er 's body .
... Adjust the front seat and head restraint proper­
ly
¢ page 59, Seats and storage.
... Make sure the seatback of the rear seat bench
is in an upright posit ion a nd securely latched in
place before using the belt
Q _&. .
"' Ho ld the bel t by the tongue and pu ll it evenly
across the chest and pelvis¢_&. .
... Insert the tongue in to the correct buckle of
your seat unti l you hear it latch securely
Qfig. 147.
... Pull on the belt to make sure that it is securely
latched in the buckle .
IIJ,,
133

Safe ty belts
Autom ati c s afet y belt retr actors
Every safety belt is equ ipped with an automa tic
be lt retractor on the shoulder belt. This feature
locks the belt when the belt is pulled out fast,
during hard braking and in a n accident . The belt
may a lso lock when you drive up or down a steep
hill or through a sharp curve. Dur ing normal driv­
ing the belt lets you
move freely .
Safety belt p ret en sion ers
The safety belts are equipped with a belt preten­
sioner that helps to t ighten the safety belt and
remove slack when the pretensioner is activated.
The function of the pretensioner is mon itored by
a warning light
r:::') page 19.
Convertib le loc king retracto r
Every safety be lt except the one on the driver
seat is equipped with a convertible locking retrac­
tor that
mus t be used when the safety belt is
used to attach a child safety seat. Be sure to read
the impo rtant information about this feature
c:;, page 167.
.&_ WARNING
Imprope rly pos itioned safety be lts can cause
ser ious injury in an accident
c:;, page 134,
Safety belt position.
- Safety belts offer optimum protection only
when the seatback is upright and belts are
properly positioned on the body.
- Always make sure that the rear seat back­
rest to which the center rea r safety belt is
attached is secure ly latched whenever the
rear center safety belt is being used. If the
backrest is not securely latched, the passen­
ger will move forward with the backrest dur­
ing sudden braking, in a sudden maneuver
and especially in a crash.
- Never attach the safety belt to the buckle for another seat. Attaching the belt to the
wrong buckle will reduce safety belt effec­
tiveness and can cause serious persona l in­
jury.
- A passenger who is not properly restrained can be seriously in jured by the safety be lt it­
self when it moves from the stronger parts
134
of the body into critical areas like the abdo­ men.
- Always lock the convertible locking retractor
when you are securing a child safety seat in
the vehicle
c:;, page 169.
Safety belt position
Correct belt position is the key to getting maxi­
mum protection from safety belts .
Fig. 148 Safety belt posit ion
-"' .... 9 I ... a,
Standard features on your vehicle help you adjust
the position of the safety belt to match your body
s ize.
- belt height adjustment for the front seats,
- automatic belt height adjustment for the rear
seats .
.&_ WARNING
Improperly positioned safety belts can cause
serious personal injury in an acc ident.
- The shou lder belt should lie as close to the
center of the collar bone as possible and
should fi t well on t he body. Hold the belt
above the latch to ng ue and pull it evenly
across the chest so tha t it s its as low as pos­
sible on the pe lvis and there is no pressure
on the abdomen . The belt sho uld a lways f it
snug ly
c:;, fig. 148 . Pull on the belt to tig hten
if necessary.
- The lap be lt portion of the safety belt must
be positioned as low as poss ible across pel ­
vis and never over the abdomen. Make sure the belt lies flat and snug
c:;, fig. 148. Pull on
the belt to tighten if necessary. .,.
