2016 Acura MDX audio

279
XX
Rear Control Panel Operation
XDual Screen Mode (Ultrawide RES only)
Rear Entertainment System
HMENU button (in the DVD mode)
X Initial Settings
X Language Settings
1. Select an item. Press the ENTER
button.
2. Select a language. Press the ENTER
button.
Dual Screen Mode (Ultrawide RES only)Select between the two scre en modes, single or dual.
■ Single Mode
The selected source is displaye d in the center of the screen.
■ Dual Mode
Two separate screens are displayed side by side. You can only select one output
source from the front audio system. Th e other source must come from “AUX-
VIDEO” or “AUX-HDMI.”■ Selecting the DVD Menu Language
1 Selecting the DVD Menu Language
When you select Other, enter a 4-digit language
code.
2 List of Language Codes P. 343
Continued
RearEntertainmentSystem.fm 279 ページ ２０１４年１２月２４日　水曜日　午前１１時３３分

282Rear Entertainment System
Front Control Panel OperationOperate the Rear Entertainment System (RES) from the front control panel.Selecting the Audio Source using front control panel
1.Press the Rear 9 (Power) button
on the front control panel.
2. Press the REAR AUDIO button.X
The rear source is displayed on
the front audio/information
screen and the On Demand
Multi-Use Display™.
X
The rear source is heard from
the front speakers.
3. Select Rear Audio Source on the
On Demand Multi-Use Display™.
4. Select the audio source icon on the
On Demand Multi-Use Display™.
5. Select a station, channel, track, or
chapter in the same way as the
front audio system.
2 Audio
P. 143
MDX_KA-31TZ58200.book 282 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

283
XX
Front Control Panel Operation
XRear System Setup
Rear Entertainment System

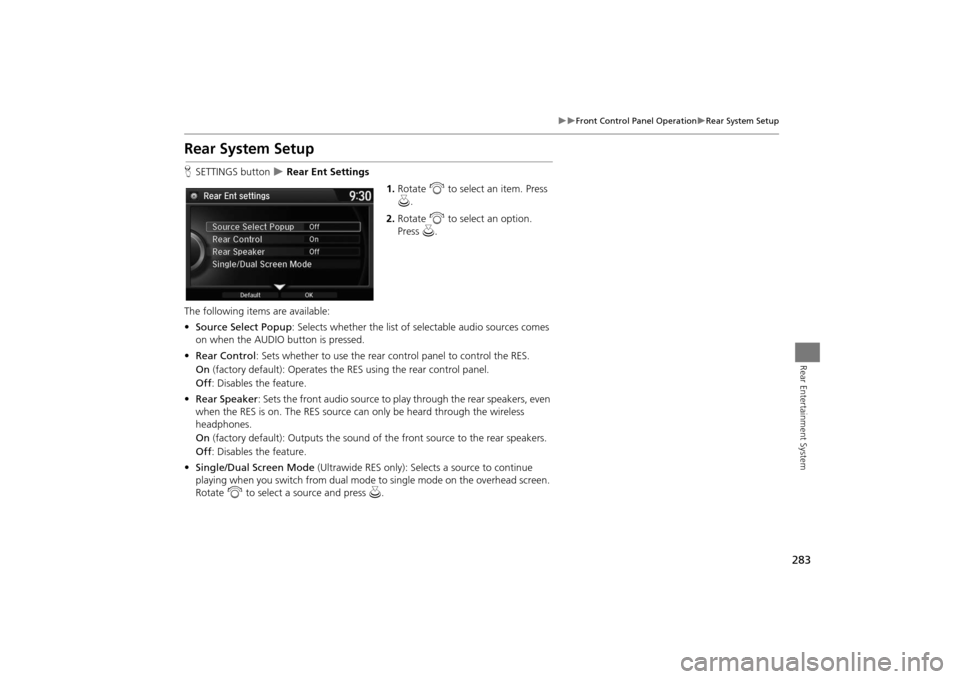

Rear System SetupHSETTINGS button
X Rear Ent Settings
1.Rotate i to select an item. Press
u .
2. Rotate i to select an option.
Press u.
The following items are available:
• Source Select Popup : Selects whether the list of selectable audio sources comes
on when the AUDIO button is pressed.
• Rear Control : Sets whether to use the rear control panel to control the RES.
On (factory default): Operates the RES using the rear control panel.
Off : Disables the feature.
• Rear Speaker : Sets the front audio source to pl ay through the rear speakers, even
when the RES is on. The RES source can only be heard through the wireless
headphones.
On (factory default): Output s the sound of the front source to the rear speakers.
Off : Disables the feature.
• Single/Dual Screen Mode (Ultrawide RES only): Selects a source to continue
playing when you switch from dual mode to single mode on the overhead screen.
Rotate i to select a source and press u.
MDX_KA-31TZ58200.book 283 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

284
XX
Front Control Panel Operation
XSetting the DVD Menu
Rear Entertainment System

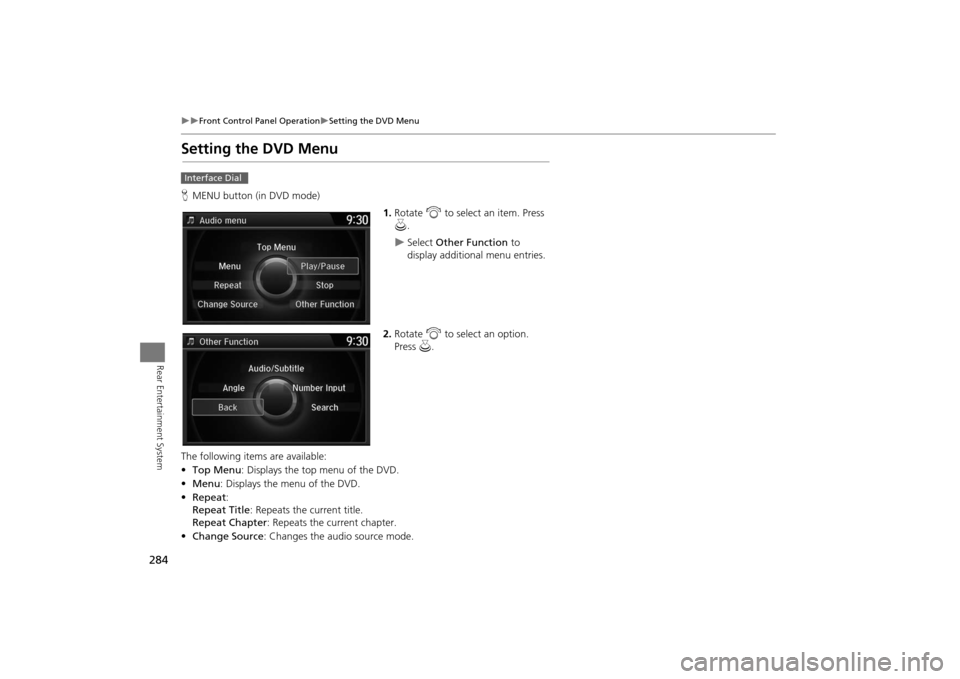

Setting the DVD MenuHMENU button (in DVD mode)
1.Rotate i to select an item. Press
u .
X
Select Other Function to
display additional menu entries.
2. Rotate i to select an option.
Press u.
The following item s are available:
• Top Menu : Displays the top menu of the DVD.
• Menu : Displays the menu of the DVD.
• Repeat :
Repeat Title : Repeats the current title.
Repeat Chapter : Repeats the current chapter.
• Change Source : Changes the audio source mode.
Interface Dial
MDX_KA-31TZ58200.book 284 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

285
XX
Front Control Panel Operation
XSetting the DVD Menu
Rear Entertainment System
•Play/Pause: Pauses or resume the playback.
• Stop : Stops the playback.
• Audio/Subtitle : Selects the language of the DVD audio and the DVD subtitle.
• Angle : Selects the angle of a scene shot with multiple cameras.
• Back : Hides the DVD menu.
• Number Input : Enters a number of a title or chapter to skip.
• Search : Skips to a title or chapter by Interface Dial.
1.Select More.
2. Select a setting item.
The following items are available:
• Sound : Displays the sound preferences screen.2Adjusting the Sound
P. 153
• Stop : Stops the playback.
• Repeat :
Repeat Title : Repeats the current title.
Repeat Chapter : Repeats the current chapter.
• Screen Settings : Displays the screen preferences screen.
2Changing the Screen Settings
P. 88
On Demand Multi-Use Display™
MDX_KA-31TZ58200.book 285 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

286Rear Entertainment System
Wireless HeadphonesUsing the Wireless HeadphonesAudio for the Rear Entertainment System is sent to the wireless headphones that
come with the system.
1.Pivot the earpieces outward.
2. Adjust the volume by turning the
dial on the bottom of the right
earpiece.
3. Wear the headphones correctly
with the left and right earpieces on
the correct sides.
X
L (left) and R (right) are marked
on the sides of the frame.
1Using the Wireless Headphones
When you remove the headphones, the
earpieces automatically pivot inward, and the
headphones turn off. When not in use, store the
headphones in the back pocket of either front
seat.
Some state and local government agencies
prohibit the use of headphones by the driver of a
motor vehicle. Always obey applicable laws and
regulations.
You can use wired headphones through the
auxiliary input jacks.
2 Auxiliary Console Panel P. 268
Volume Dial
MDX_KA-31TZ58200.book 286 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

294Other Features
Multi-view Rear CameraAbout Your Multi-View Rear CameraThe audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view wh en the shift lever is moved to Reverse.
You can view three different camera angl es on the rearview display. Press the
interface dial to switch the angle.
If Top View is last used before you turn the power mode to OFF, Wide mode is
selected next time you turn the power on and move the shift lever to
Reverse.
■Multi-View Rear Camera Display Area
1 About Your Multi- View Rear Camera
The rear camera view is restricted. You cannot
see the corner ends of the bumper or what is
underneath the bumper. Its unique lens also
makes objects appear closer or farther than they
actually are.
Visually confirm that it is safe to drive before
backing up. Certain conditi ons (such as weather,
lighting, and high temperat ures) may also restrict
the rear view. Do not rely on the rearview display
which does not give you all information about
conditions at the back of your vehicle.
If the camera lens is covered with dirt or
moisture, use a soft, moist cloth to keep the lens
clean and free of debris.
Top Down View Mode Normal View Mode Wide View Mode
Guidelines
Bumper
Camera
Approx. 118 inches (3 m)Approx. 79 inches (2 m)Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)
MDX_KA-31TZ58200.book 294 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

297
Troubleshooting
Troubleshooting................................... 298
Map, Voice, Entering Destinations ........ 298
Traffic .................................................. 300
Guidance, Routing ............................... 301
Update, Coverage, Map Errors ............. 303
Display, Accessories.............................. 303
Miscellaneous Questions ...................... 303
Error Messages ...................................... 304
Navigation System ................................ 304
CD Player ............................................. 305
Hard Disc Drive (HDD) Audio ................ 306
iPod®/USB Flash Drive .......................... 307
Pandora® ............................................ 308
Aha
TM Radio ......................................... 311
MDX_KA-31TZ58200.book 297 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
