1614-1. Before driving
4
Driving
■Kingpin Weight
The load placed on the 5th
wheel mount or the gooseneck
ball. (P. 168)
● The gross trailer weight must never exceed the TWR described in
the table. ( P. 162)
● The gross combination weight must never exceed the GCWR
described in the table. ( P. 162)
● The gross vehicle weight must
never exceed the GVWR indi-
cated on the Certification Label.
● The gross axle weight on each
axle must never exceed the
GAWR indicated on the Certifi-
cation Label.
● If the gross trailer weight is over the unbraked TWR, trailer service
brakes are required.
● If the gross trailer weight is over 2000 lb. (907 kg), a sway control
device with sufficient capacity is required.
● If the gross trailer weight is over 5000 lb. (2268 kg), a weight distrib-
uting hitch with sufficient capacity is required.
Weight limits

1624-1. Before driving
Confirm that the gross trailer weight, gross combination weight, gross
vehicle weight, gross axle weight and tongue weight are all within the
limits.
■GCWR*5 and TWR*5
Regular Cab models
*1: The model code is indicated on the Certification Label. (P. 510)
*2: Vehicles without towing package
*3: Vehicles with towing package
*4: Vehicles with towing package and large fuel tank
GCWR, TWR, Unbraked TWR, Fifth wheel and Gooseneck towing
TWR
*5: These models meet the tow-vehicle trailering requirement of SAE International per SAE J2807.
Model code*1EngineDriving
systemBed typeGCWRTWR
USK51L-THTSKA 3UR-FE engine 2WD
Long14000 lb.
(6350 kg)
*28500 lb.
(3855 kg)
*2
16000 lb.
(7255 kg)
*310500 lb.
(4760 kg)
*3
16000 lb.
(7255 kg)
*410400 lb.
(4715 kg)
*4
USK56L-THTSKA
4WD14000 lb.
(6350 kg)
*28300 lb.
(3760 kg)
*2
16000 lb.
(7255 kg)
*310300 lb.
(4670 kg)
*3
16000 lb.
(7255 kg)
*410100 lb.
(4580 kg)
*4
USK56L-THTSGA 3UR-FBE
engine 14000 lb.
(6350 kg)
*28300 lb.
(3760 kg)
*2
16000 lb.
(7255 kg)
*310300 lb.
(4670 kg)
*3
16000 lb.
(7255 kg)
*410100 lb.
(4580 kg)
*4

1634-1. Before driving
4
Driving
Double Cab models
Model code*1EngineDriving
systemBed typeGCWRTWR
UPK51L-CRTSKA 1UR-FE
engine 2WD
Stan-
dard 12500 lb.
(5670 kg) 6800 lb.
(3080 kg)
UPK56L-CRTSKA 4WD 12500 lb.
(5670 kg) 6500 lb.
(2945 kg)
USK51L-CRTSKA
3UR-FE engine 2WD
Standard 14000 lb.
(6350 kg)
*28300 lb.
(3760 kg)
*2
16000 lb.
(7255 kg)
*310300 lb.
(4670 kg)
*3
16000 lb.
(7255 kg)
*410200 lb.
(4625 kg)
*4
USK51L-CRTLKA 14000 lb.
(6350 kg)
*28200 lb.
(3715 kg)
*2
16000 lb.
(7255 kg)
*310200 lb.
(4625 kg)
*3
16000 lb.
(7255 kg)
*410100 lb.
(4580 kg)
*4
USK52L-CHTSKA Long14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)
*2
16000 lb.
(7255 kg)
*310100 lb.
(4580 kg)
*3
16000 lb.
(7255 kg)
*410000 lb.
(4535 kg)
*4
USK56L-CRTSKA
4WD Standard14000 lb.
(6350 kg)
*28000 lb.
(3625 kg)
*2
16000 lb.
(7255 kg)
*310000 lb.
(4535 kg)
*4
16000 lb.
(7255 kg)
*49900 lb.
(4490 kg)
*4
USK56L-CRTLKA 14000 lb.
(6350 kg)
*27900 lb.
(3580 kg)
*2
16000 lb.
(7255 kg)
*39900 lb.
(4490 kg)
*3
15700 lb.
(7120 kg)
*49500 lb.
(4305 kg)
*4

1644-1. Before driving
*1: The model code is indicated on the Certification Label. (P. 510)
*2: Vehicles without towing package
*3: Vehicles with towing package
*4: Vehicles with towing package and large fuel tank
USK57L-CHTSKA
3UR-FE
engine 4WD Long 14000 lb.
(6350 kg)
*27900 lb.
(3580 kg)
*2
16000 lb.
(7255 kg)
*39900 lb.
(4490 kg)
*3
16000 lb.
(7255 kg)
*49700 lb.
(4395 kg)
*4
USK56L-CRTSGA
3UR-FBE engine 4WDStandard 14000 lb.
(6350 kg)
*28000 lb.
(3625 kg)
*2
16000 lb.
(7255 kg)
*310000 lb.
(4535 kg)
*3
16000 lb.
(7255 kg)
*49900 lb.
(4490 kg)
*4
USK56L-CRTLGA 14000 lb.
(6350 kg)
*27900 lb.
(3580 kg)
*2
16000 lb.
(7255 kg)
*39900 lb.
(4490 kg)
*3
15700 lb.
(7120 kg)
*49500 lb.
(4305 kg)
*4
USK57L-CHTSGA Long14000 lb.
(6350 kg)
*27900 lb.
(3580 kg)
*2
16000 lb.
(7255 kg)
*39900 lb.
(4490 kg)
*3
16000 lb.
(7255 kg)
*49700 lb.
(4395 kg)
*4
Model code*1EngineDriving
systemBed typeGCWRTWR

1654-1. Before driving
4
Driving
CrewMax models
Model code*1EngineDriving
systemBed typeGCWRTWR
UPK51L-PSTSKA 1UR-FE
engine 2WD
Short 12500 lb.
(5670 kg) 6700 lb.
(3035 kg)
UPK56L-PSTSKA 4WD 12500 lb.
(5670 kg) 6400 lb.
(2900 kg)
USK51L-PSTSKA
3UR-FE engine 2WD
Short 14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)
*2
16000 lb.
(7255 kg)
*310100 lb.
(4580 kg)
*3
16000 lb.
(7255 kg)
*410000 lb.
(4535 kg)
*4
USK51L-PSTLKA 14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)
*2
16000 lb.
(7255 kg)
*310000 lb.
(4535 kg)
*3
15800 lb.
(7165 kg)
*49600 lb.
(4350 kg)
*4
USK51L-PSTZKA 14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)
*2
16000 lb.
(7255 kg)
*310000 lb.
(4535 kg)
*3
15800 lb.
(7165 kg)
*49700 lb.
(4395 kg)
*4
USK56L-PSTSKA
4WD14000 lb.
(6350 kg)
*27800 lb.
(3535 kg)
*2
16000 lb.
(7255 kg)
*39800 lb.
(4445 kg)
*3
15900 lb.
(7210 kg)
*49600 lb.
(4350 kg)
*4
USK56L-PSTLKA 14000 lb.
(6350 kg)
*27800 lb.
(3535 kg)
*2
16000 lb.
(7255 kg)
*39800 lb.
(4445 kg)
*3
15200 lb.
(6890 kg)
*48800 lb.
(3990 kg)
*4

1664-1. Before driving
*1: The model code is indicated on the Certification Label. (P. 510)
*2: Vehicles without towing package
*3: Vehicles with towing package
*4: Vehicles with towing package and large fuel tank
■
Unbraked TWR*5
1000 lb. (453 kg)
USK56L-PSTZKA 3UR-FE
engine 4WD Short 14000 lb.
(6350 kg)
*27800 lb.
(3535 kg)
*2
16000 lb.
(7255 kg)
*39800 lb.
(4445 kg)
*3
15200 lb.
(6890 kg)
*48800 lb.
(3990 kg)
*4
USK56L-PSTSGA
3UR-FBE engine 4WD Short 14000 lb.
(6350 kg)
*27800 lb.
(3535 kg)
*2
16000 lb.
(7255 kg)
*39800 lb.
(4445 kg)
*3
15900 lb.
(7210 kg)
*49600 lb.
(4350 kg)
*4
USK56L-PSTLGA 14000 lb.
(6350 kg)
*27800 lb.
(3535 kg)
*2
16000 lb.
(7255 kg)
*39800 lb.
(4445 kg)
*3
15200 lb.
(6890 kg)
*48800 lb.
(3990 kg)
*4
USK56L-PSTZGA 14000 lb.
(6350 kg)
*27800 lb.
(3535 kg)
*2
16000 lb.
(7255 kg)
*39800 lb.
(4445 kg)
*3
15200 lb.
(6890 kg)
*48800 lb.
(3990 kg)
*4
*5: These models meet the tow-vehicle trailering requirement of SAE
International per SAE J2807.
Model code*1EngineDriving
systemBed typeGCWRTWR

1674-1. Before driving
4
Driving
●A recommended tongue weight or kingpin weight varies in accor-
dance with the types of trailers or towing as described below.
● To ensure the recommended values shown below, the trailer must
be loaded by referring to the following instructions.
1.Conventional Towing
The gross trailer weight should be distributed so that the tongue
weight is 9% to 11%. (Tongue Weight/Gross trailer weight x 100
= 9% to 11%)
Gross trailer weight
Tongue Weight
If using a weight distributing hitch when towing, return the front
axle to the same weight as before the trailer connection.
If front axle weight cannot be measured directly, measure the
front fender height above the front axle before connection. Adjust
weight distributing hitch torque until front fender is returned to the
same height as before connection.
Do not reduce front fender height below original measurement.
The gross trailer weight, gross axle weight and tongue weight
can be measured with platform scales found at a highway weigh-
ing station, building supply company, trucking company, junk
yard, etc.

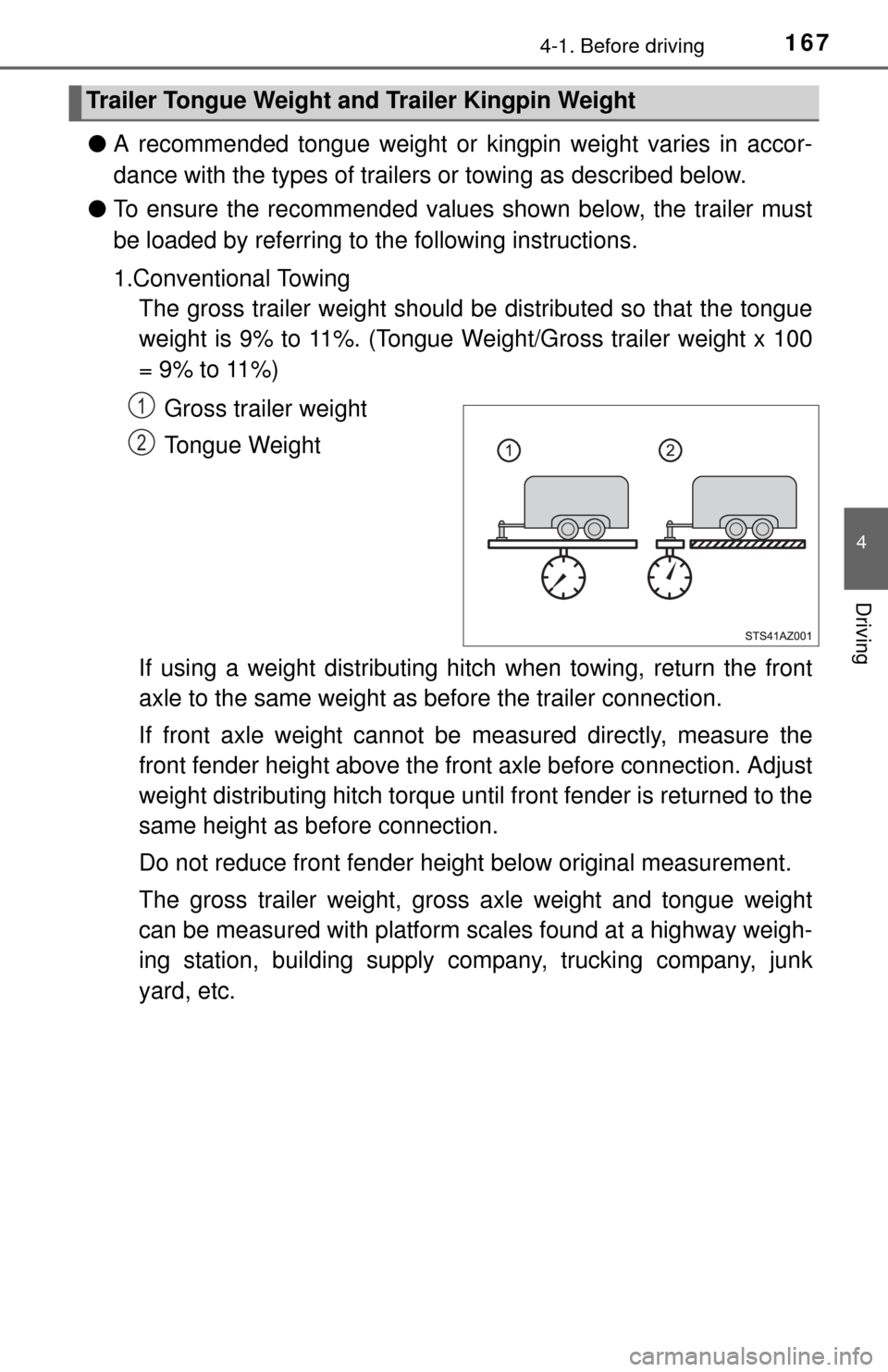

Trailer Tongue Weight and Trailer Kingpin Weight
1
2

1684-1. Before driving

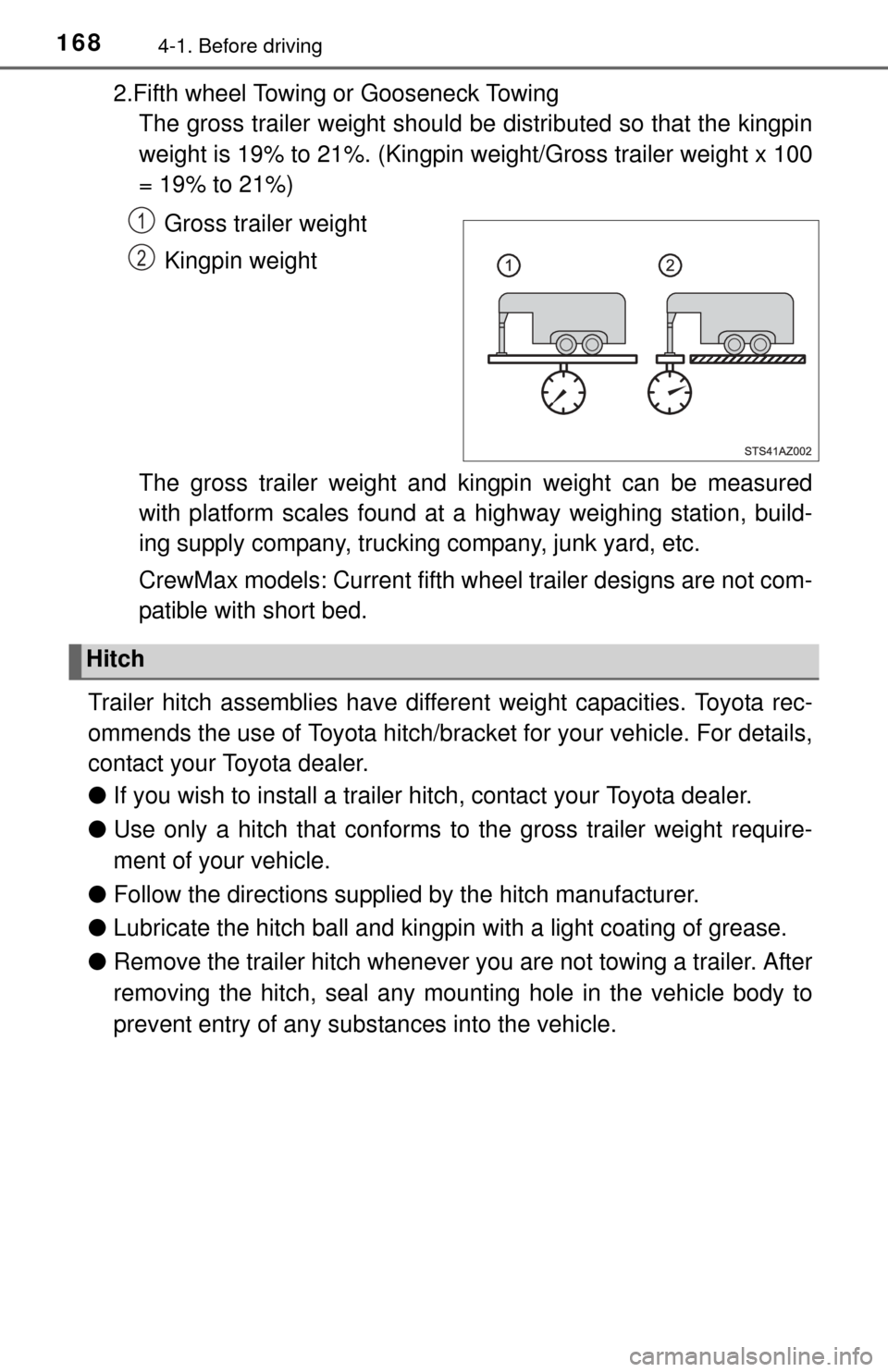

2.Fifth wheel Towing or Gooseneck TowingThe gross trailer weight should be distributed so that the kingpin
weight is 19% to 21%. (Kingpin weight/Gross trailer weight x 100
= 19% to 21%)
Gross trailer weight
Kingpin weight
The gross trailer weight and kingpin weight can be measured
with platform scales found at a highway weighing station, build-
ing supply company, trucking company, junk yard, etc.
CrewMax models: Current fifth wheel trailer designs are not com-
patible with short bed.
Trailer hitch assemblies have different weight capacities. Toyota rec-
ommends the use of Toyota hitch/bracket for your vehicle. For details,
contact your Toyota dealer.
● If you wish to install a trailer hitch, contact your Toyota dealer.
● Use only a hitch that conforms to the gross trailer weight require-
ment of your vehicle.
● Follow the directions supplied by the hitch manufacturer.
● Lubricate the hitch ball and kingpin with a light coating of grease.
● Remove the trailer hitch whenever you are not towing a trailer. After
removing the hitch, seal any mounting hole in the vehicle body to
prevent entry of any subs tances into the vehicle.
1
2
Hitch
