2015 TOYOTA TUNDRA Owners Manual

5059-1. Specifications
9
Vehicle specifications
Double Cab models
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
UPK51L-CRTSKA 1UR-FE
engine 2WD
Standard
1405 lb. (635 kg)
UPK56L-CRTSKA 4WD
1315 lb. (595 kg)
USK51L-CRTSKA
3UR-FE engine 2WD
Standard
1590 lb. (720 kg)
1515 lb. (685 kg)*2
1390 lb. (630 kg)*3
USK51L-CRTLKA
1560 lb. (705 kg)
1485 lb. (670 kg)*2
1365 lb. (615 kg)*3
USK52L-CHTSKA
Long
1560 lb. (705 kg)
1485 lb. (670 kg)*2
1365 lb. (615 kg)*3
USK56L-CRTSKA
4WDStandard
1495 lb. (675 kg)
1425 lb. (645 kg)*2
1300 lb. (585 kg)*3
USK56L-CRTLKA
1490 lb. (675 kg)
1415 lb. (640 kg)*2
1295 lb. (585 kg)*3
USK57L-CHTSKA
Long
1475 lb. (665 kg)
1405 lb. (635 kg)*2
1280 lb. (580 kg)*3

5069-1. Specifications
*1: The model code is indicated on the Certification Label. (P. 510)
*2: Vehicles with towing package
*3: Vehicles with towing package and large fuel tank
Model code*1EngineDriving
systemBed type
Vehicle capacity
weight
(Occupants + luggage)
USK56L-CRTSGA
3UR-FBE engine 4WDStandard
1495 lb. (675 kg)
1425 lb. (645 kg)*2
1300 lb. (585 kg)*3
USK56L-CRTLGA
1490 lb. (675 kg)
1415 lb. (640 kg)*2
1295 lb. (585 kg)*3
USK57L-CHTSGA
Long
1475 lb. (665 kg)
1405 lb. (635 kg)*2
1280 lb. (580 kg)*3

5079-1. Specifications
9
Vehicle specifications
CrewMax models
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
UPK51L-PSTSKA 1UR-FE engine 2WD
Short
1355 lb. (610 kg)
1320 lb. (595 kg)*2
UPK56L-PSTSKA 4WD1255 lb. (565 kg)
1220 lb. (550 kg)*2
USK51L-PSTSKA
3UR-FE engine 2WD Short
1515 lb. (685 kg)
1480 lb. (670 kg)*2
1440 lb. (650 kg)*3
1320 lb. (595 kg)*4
1405 lb. (635 kg)*5
1285 lb. (580 kg)*6
USK51L-PSTLKA
1500 lb. (680 kg)
1465 lb. (660 kg)*2
1425 lb. (645 kg)*3
1305 lb. (590 kg)*4
1390 lb. (630 kg)*5
1270 lb. (575 kg)*6
USK51L-PSTZKA
1505 lb. (680 kg)
1470 lb. (665 kg)*2
1430 lb. (645 kg)*3
1310 lb. (590 kg)*4
1395 lb. (630 kg)*5
1275 lb. (575 kg)*6

5089-1. Specifications
USK56L-PSTSKA3UR-FE engine 4WD
Short
1435 lb. (650 kg)
1400 lb. (635 kg)*2
1360 lb. (615 kg)*3
1240 lb. (560 kg)*4
1325 lb. (600 kg)*5
1205 lb. (545 kg)*6
USK56L-PSTLKA
1405 lb. (635 kg)
1370 lb. (620 kg)*2
1335 lb. (605 kg)*3
1210 lb. (545 kg)*4
1300 lb. (585 kg)*5
1175 lb. (530 kg)*6
USK56L-PSTZKA
1410 lb. (635 kg)
1375 lb. (620 kg)*2
1335 lb. (605 kg)*3
1215 lb. (550 kg)*4
1300 lb. (585 kg)*5
1180 lb. (535 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

5099-1. Specifications
9
Vehicle specifications
*1: The model code is indicated on the Certification Label. (P. 510)
*2: Vehicles with electric moon roof
*3: Vehicles with towing package
*4: Vehicles with towing package and large fuel tank
*5: Vehicles with towing package and electric moon roof
*6: Vehicles with towing package, electric moon roof and large fuel tank
USK56L-PSTSGA
3UR-FBE engine 4WD
Short
1435 lb. (650 kg)
1400 lb. (635 kg)*2
1360 lb. (615 kg)*3
1240 lb. (560 kg)*4
1325 lb. (600 kg)*5
1205 lb. (545 kg)*6
USK56L-PSTLGA
1405 lb. (635 kg)
1370 lb. (620 kg)*2
1335 lb. (605 kg)*3
1210 lb. (545 kg)*4
1300 lb. (585 kg)*5
1175 lb. (530 kg)*6
USK56L-PSTZGA
1410 lb. (635 kg)
1375 lb. (620 kg)*2
1335 lb. (605 kg)*3
1215 lb. (550 kg)*4
1300 lb. (585 kg)*5
1180 lb. (535 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

5109-1. Specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification
1UR-FE engine3UR-FE and 3UR-FBE
engines

5119-1. Specifications
9
Vehicle specifications

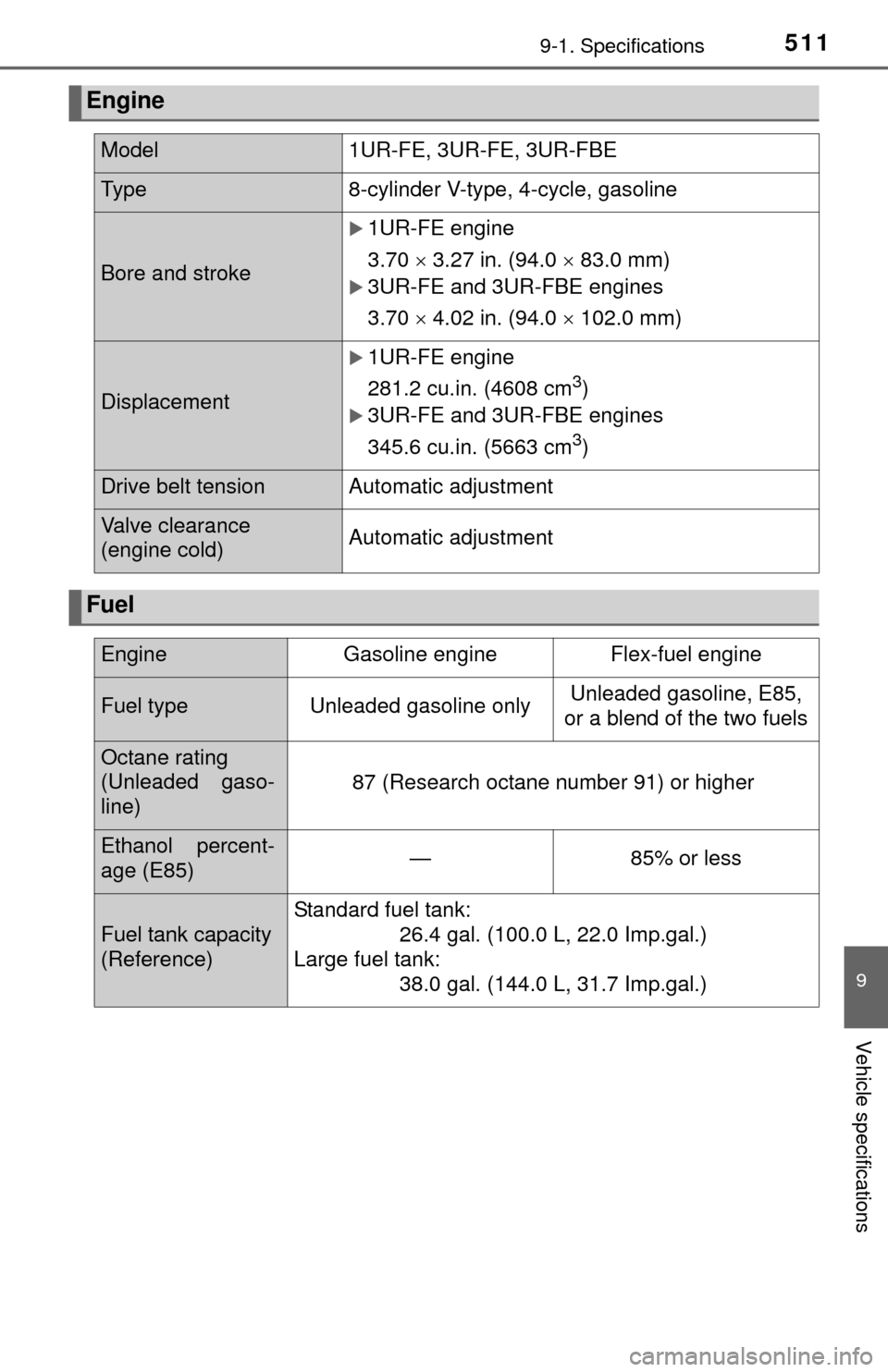

Engine
Model1UR-FE, 3UR-FE, 3UR-FBE
Ty p e8-cylinder V-type, 4-cycle, gasoline
Bore and stroke
1UR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3UR-FE and 3UR-FBE engines
3.70  4.02 in. (94.0  102.0 mm)
Displacement
1UR-FE engine
281.2 cu.in. (4608 cm
3)
3UR-FE and 3UR-FBE engines
345.6 cu.in. (5663 cm
3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Fuel
EngineGasoline engineFlex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gaso-
line)
87 (Research octane number 91) or higher
Ethanol percent-
age (E85)—85% or less
Fuel tank capacity
(Reference)
Standard fuel tank: 26.4 gal. (100.0 L, 22.0 Imp.gal.)
Large fuel tank: 38.0 gal. (144.0 L, 31.7 Imp.gal.)

5129-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Lubrication system
Oil capacity
(Drain and refill - reference
*)
With filter
Without filter 7.9 qt. (7.5 L, 6.6 Imp.qt.)
7.5 qt. (7.1 L, 6.2 Imp.qt.)
