2015 TOYOTA AVENSIS check engine

2074-1. Before driving
4
Driving
AVENSIS_OM_OM20C20E_(EE)■
Important points regarding stability
Vehicle movement resulting from uneven road surfaces and strong
crosswinds will affect handling. The vehicle may also be rocked by
passing buses or large trucks. Frequently check behind when mov-
ing alongside such vehicles. As soon as such vehicle movement
occurs, immediately start to decelerate smoothly by slowly applying
the brakes. Always steer the vehicle straight ahead while braking.
■Passing other vehicles
Consider the total combined length of your vehicle and trailer, and
ensure that the vehicle-to-vehicle distance is sufficient before exe-
cuting lane changes.
■Transmission information
XMultidrive
To maintain engine braking efficiency, when using engine braking,
do not use the transmission in D. Select an appropriate gear in M
mode.
XManual transmission
To maintain engine braking efficiency, when using engine braking,
do not use the transmission in 6.
■If the engine overheats
Towing a loaded trailer up a long steep incline in temperatures
exceeding 30 °C (85 °F) may result in the engine overheating. If the
engine coolant temperature gauge indicates that the engine is over-
heating, turn the air conditioning off immediately, leave the road and
stop the vehicle in a safe place. ( →P. 590)
■When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to P
for Multidrive, and 1 or R for manual transmission.
AVENSIS_OM_OM20C20E_(EE).book Page 207 Thursday, January 29, 2015 1:47 PM

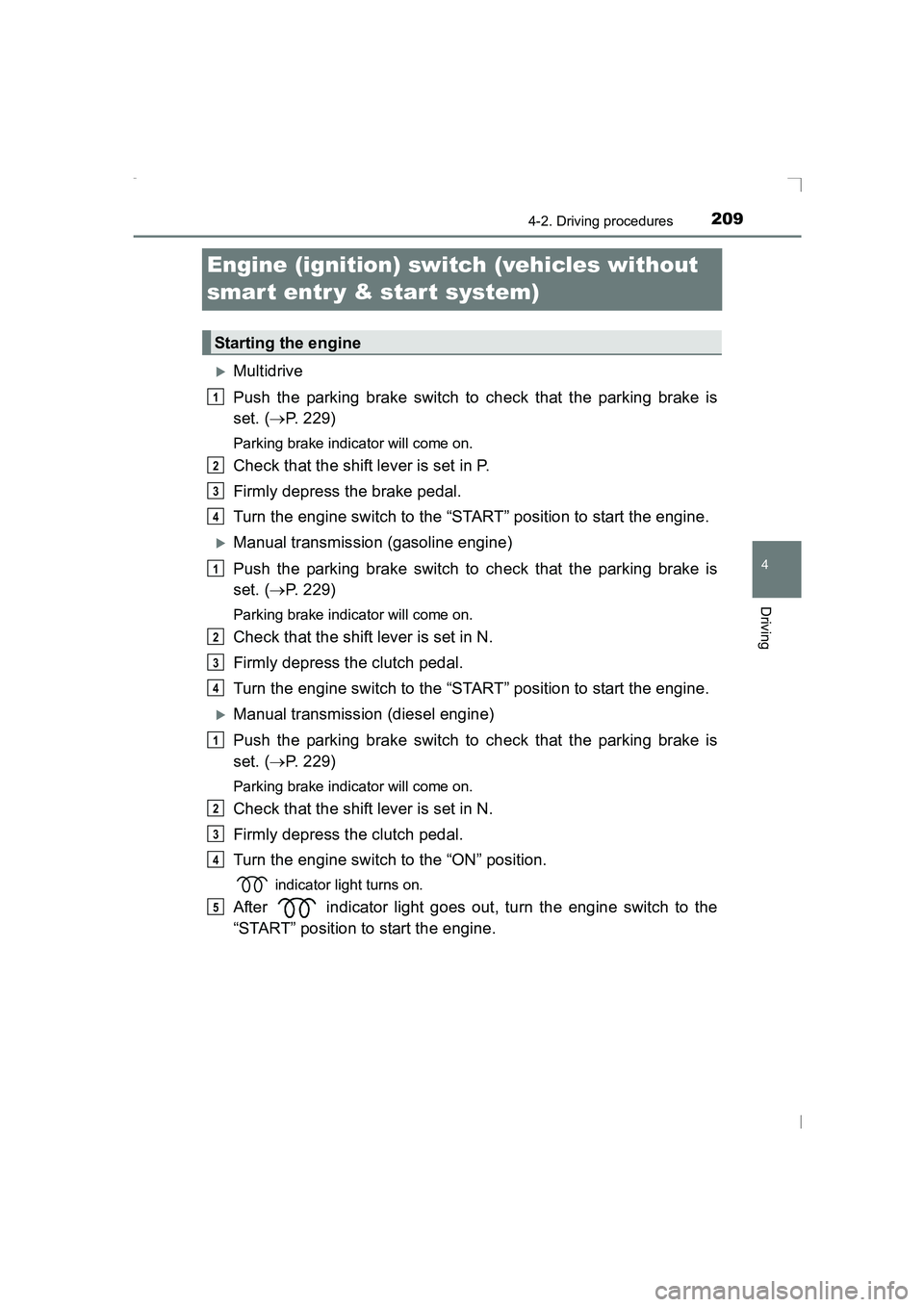

209
4
4-2. Driving procedures
Driving
AVENSIS_OM_OM20C20E_(EE)
Engine (ignition) switch (vehicles without
smar t entr y & start system)
XMultidrive
Push the parking brake switch to check that the parking brake is
set. (→P. 229)
Parking brake indicator will come on.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
Turn the engine switch to the “START” position to start the engine.
XManual transmission (gasoline engine)
Push the parking brake switch to check that the parking brake is
set. ( →P. 229)
Parking brake indicator will come on.
Check that the shift lever is set in N.
Firmly depress the clutch pedal.
Turn the engine switch to the “START” position to start the engine.
XManual transmission (diesel engine)
Push the parking brake switch to check that the parking brake is
set. ( →P. 229)
Parking brake indicator will come on.
Check that the shift lever is set in N.
Firmly depress the clutch pedal.
Turn the engine switch to the “ON” position.
indicator light turns on.
After indicator light goes out, turn the engine switch to the
“START” position to start the engine.
Starting the engine
1
2
3
4
1
2
3
4
1
2
3
4
5
AVENSIS_OM_OM20C20E_(EE).book Page 209 Thursday, January 29, 2015 1:47 PM

2114-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C20E_(EE)■
Key reminder function
A buzzer sounds if the driver’s door is opened, while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key.
WARNING
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn
the engine switch only to the “ACC” position to stop the engine. An accident
may result if the engine is stopped while driving. ( →P. 509)
NOTICE
■ To prevent battery discharge
Do not leave the engine switch in the “ACC” or “ON” position for long peri-
ods of time without the engine running.
■ When starting the engine
●Do not crank for more than 30 seconds at a time. This may overheat the
starter and wiring systems.
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
AVENSIS_OM_OM20C20E_(EE).book Page 211 Thursday, January 29, 2015 1:47 PM

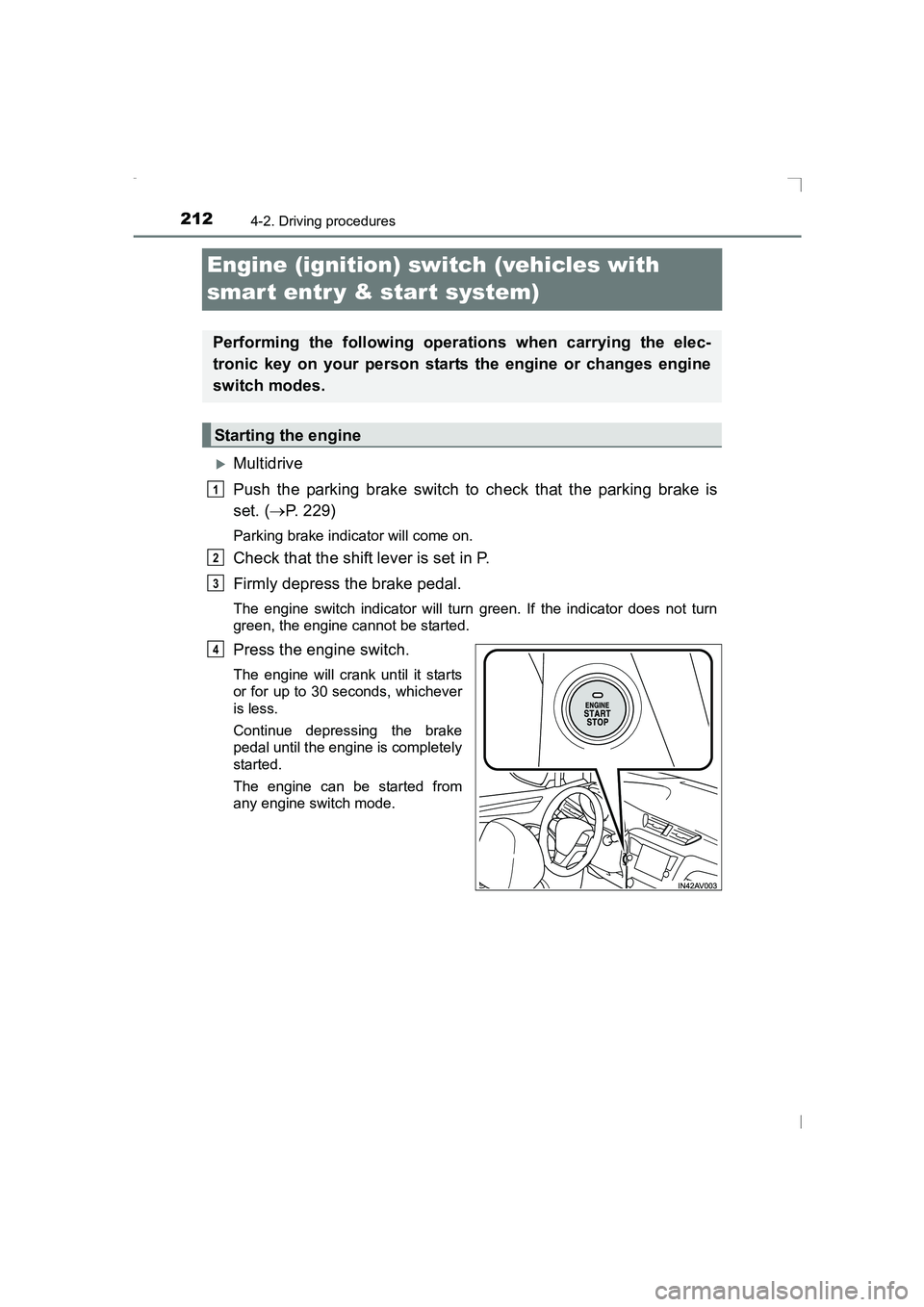

2124-2. Driving procedures
AVENSIS_OM_OM20C20E_(EE)
Engine (ignition) switch (vehicles with
smar t entr y & start system)
XMultidrive
Push the parking brake switch to check that the parking brake is
set. (→P. 229)
Parking brake indicator will come on.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
The engine switch indicator will turn green. If the indicator does not turn
green, the engine cannot be started.
Press the engine switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal until the engine is completely
started.
The engine can be started from
any engine switch mode.
Performing the following operations when carrying the elec-
tronic key on your person starts the engine or changes engine
switch modes.
Starting the engine
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 212 Thursday, January 29, 2015 1:47 PM

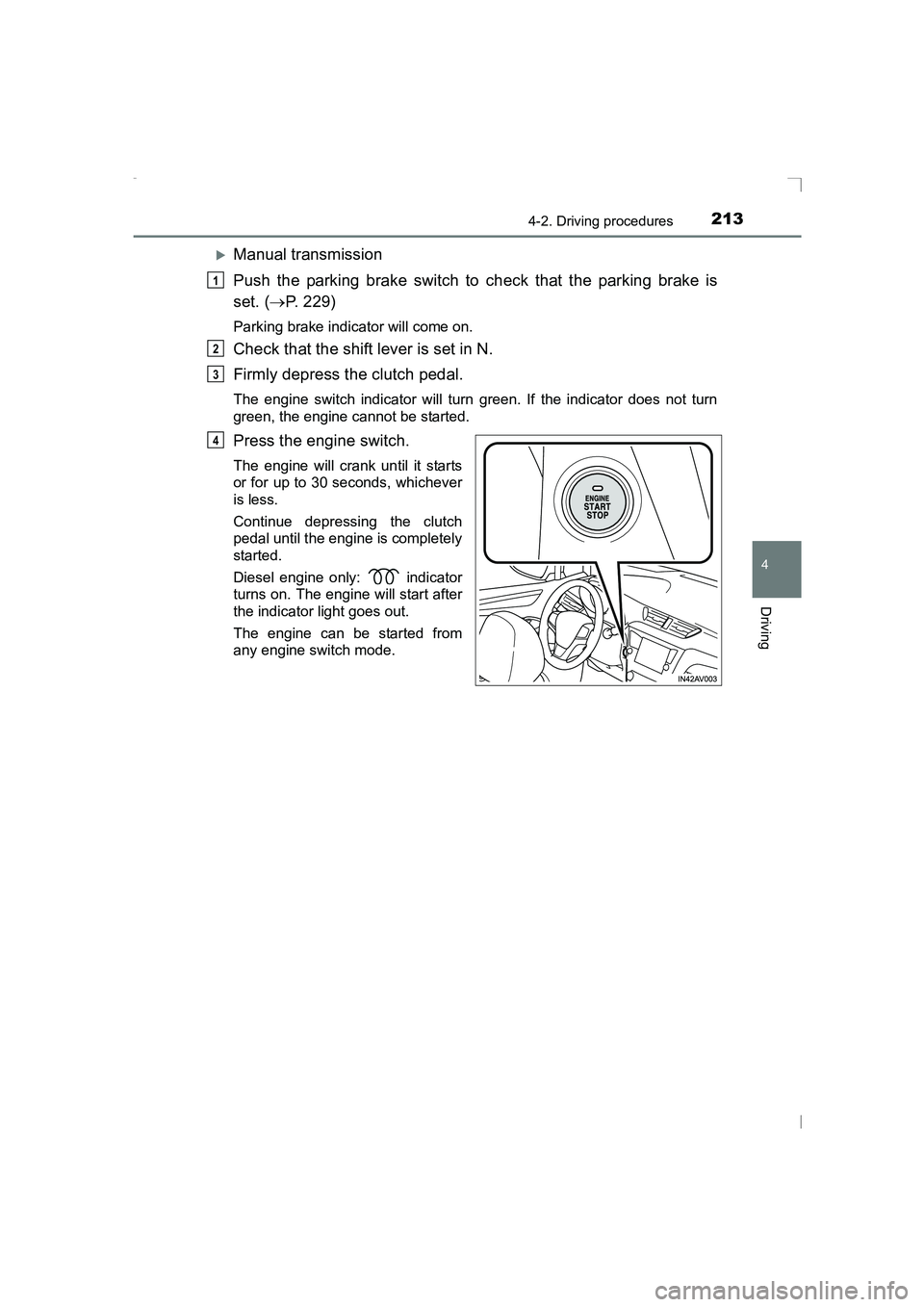

2134-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C20E_(EE)
XManual transmission
Push the parking brake switch to check that the parking brake is
set. (→P. 229)
Parking brake indicator will come on.
Check that the shift lever is set in N.
Firmly depress the clutch pedal.
The engine switch indicator will turn green. If the indicator does not turn
green, the engine cannot be started.
Press the engine switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the clutch
pedal until the engine is completely
started.
Diesel engine only: indicator
turns on. The engine will start after
the indicator light goes out.
The engine can be started from
any engine switch mode.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 213 Thursday, January 29, 2015 1:47 PM

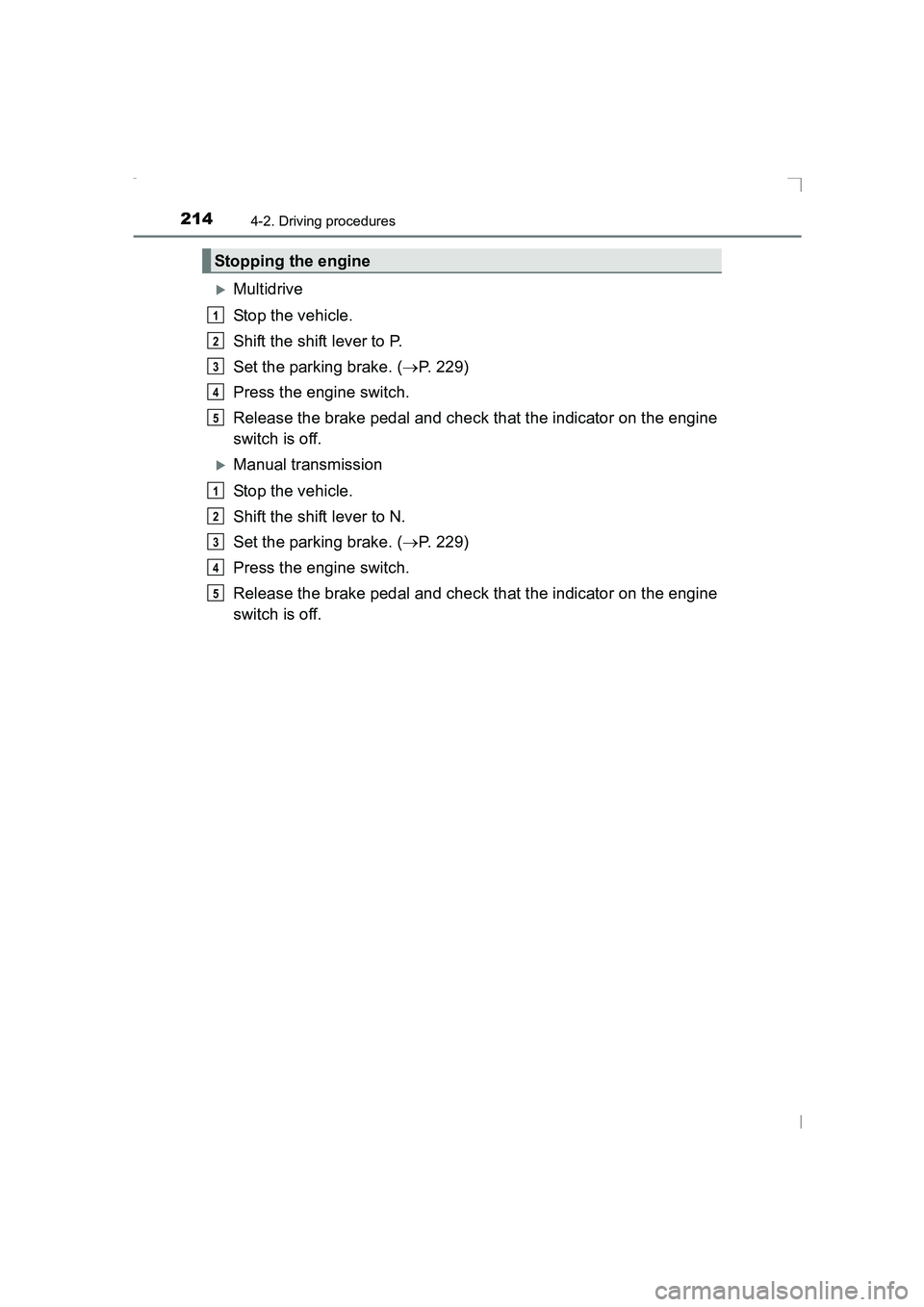

2144-2. Driving procedures
AVENSIS_OM_OM20C20E_(EE)
XMultidrive
Stop the vehicle.
Shift the shift lever to P.
Set the parking brake. (→P. 229)
Press the engine switch.
Release the brake pedal and check that the indicator on the engine
switch is off.
XManual transmission
Stop the vehicle.
Shift the shift lever to N.
Set the parking brake. ( →P. 229)
Press the engine switch.
Release the brake pedal and check that the indicator on the engine
switch is off.
Stopping the engine
1
2
3
4
5
1
2
3
4
5
AVENSIS_OM_OM20C20E_(EE).book Page 214 Thursday, January 29, 2015 1:47 PM

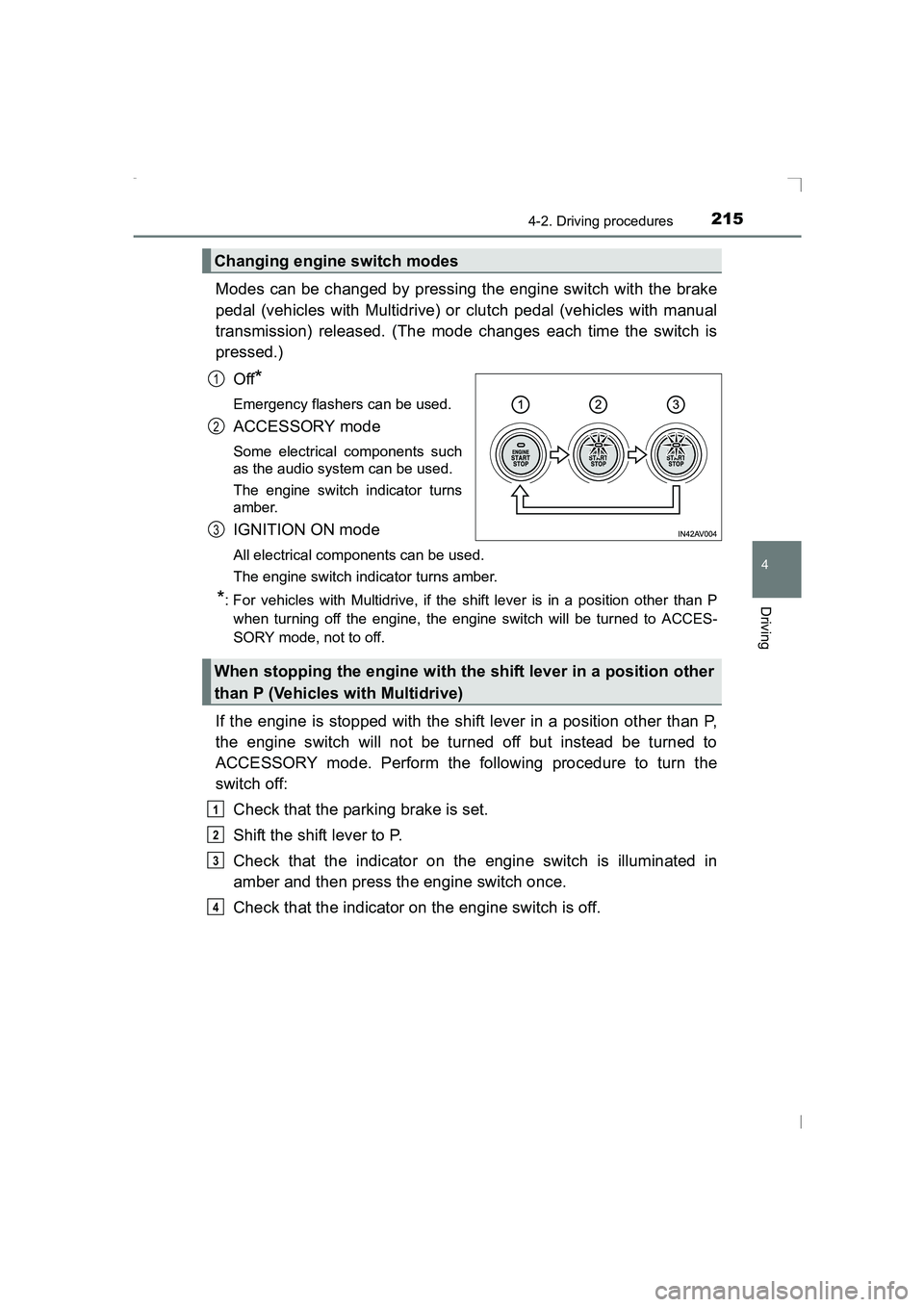

2154-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C20E_(EE)
Modes can be changed by pressing the engine switch with the brake
pedal (vehicles with Multidrive) or clutch pedal (vehicles with manual
transmission) released. (The mode changes each time the switch is
pressed.)Off
*
Emergency flashers can be used.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
The engine switch indicator turns
amber.
IGNITION ON mode
All electrical components can be used.
The engine switch indicator turns amber.
*: For vehicles with Multidrive, if the shift lever is in a position other than Pwhen turning off the engine, the engine switch will be turned to ACCES-
SORY mode, not to off.
If the engine is stopped with the shift lever in a position other than P,
the engine switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that the indicator on the engine switch is illuminated in
amber and then press the engine switch once.
Check that the indicator on the engine switch is off.
Changing engine switch modes
1
2
3
When stopping the engine with the shift lever in a position other
than P (Vehicles with Multidrive)
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 215 Thursday, January 29, 2015 1:47 PM

2184-2. Driving procedures
AVENSIS_OM_OM20C20E_(EE)NOTICE
■
To prevent battery discharge
●Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If the indicator on the engine switch is illuminated, the engine switch is not
off. When exiting the vehicle, always check that the engine switch is off.
● On vehicles with Multidrive, do not stop the engine when the shift lever is
in a position other than P. If the engine is stopped in another shift lever
position, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■ When starting the engine
●Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
