4467-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)

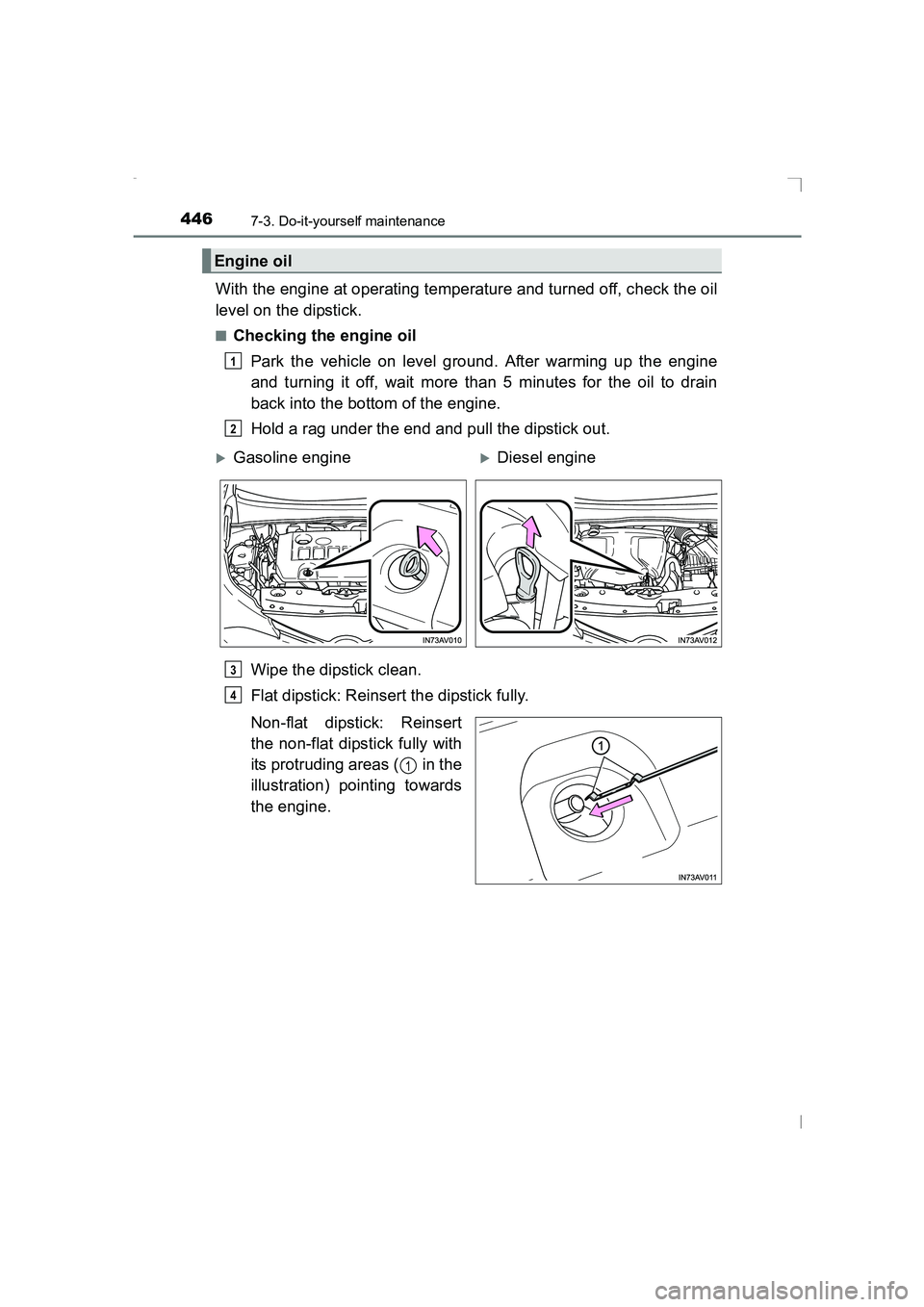

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oilPark the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Hold a rag under the end and pull the dipstick out.
Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully.
Non-flat dipstick: Reinsert
the non-flat dipstick fully with
its protruding areas ( in the
illustration) pointing towards
the engine.
Engine oil
1
2
XGasoline engineXDiesel engine
3
4
1
AVENSIS_OM_OM20C20E_(EE).book Page 446 Thursday, January 29, 2015 1:47 PM

4477-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

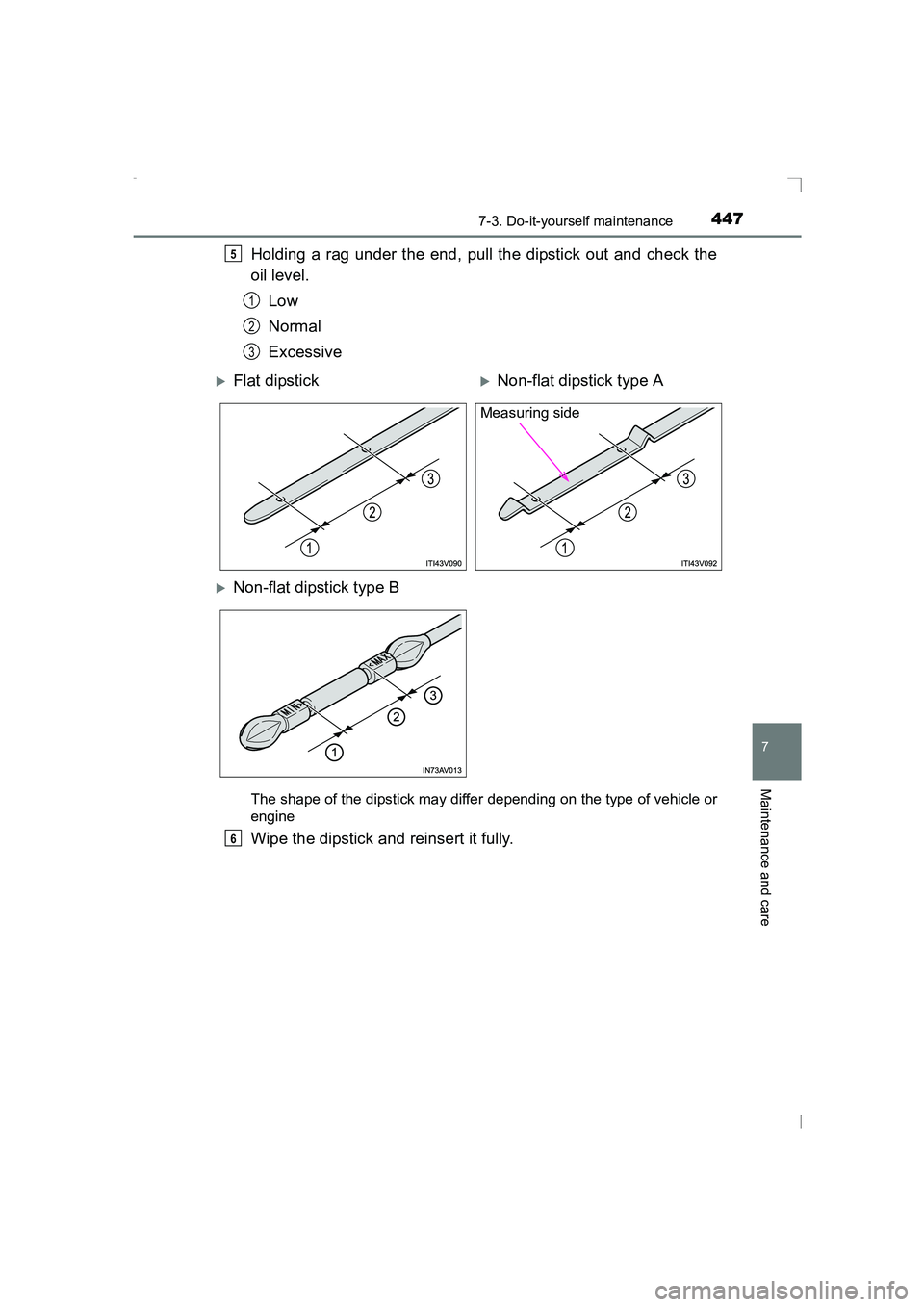

Holding a rag under the end, pull the dipstick out and check the
oil level.Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of vehicle or
engine
Wipe the dipstick and reinsert it fully.
5
1
2
3
XFlat dipstickXNon-flat dipstick type A
XNon-flat dipstick type B
Measuring side
6
AVENSIS_OM_OM20C20E_(EE).book Page 447 Thursday, January 29, 2015 1:47 PM

4487-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■

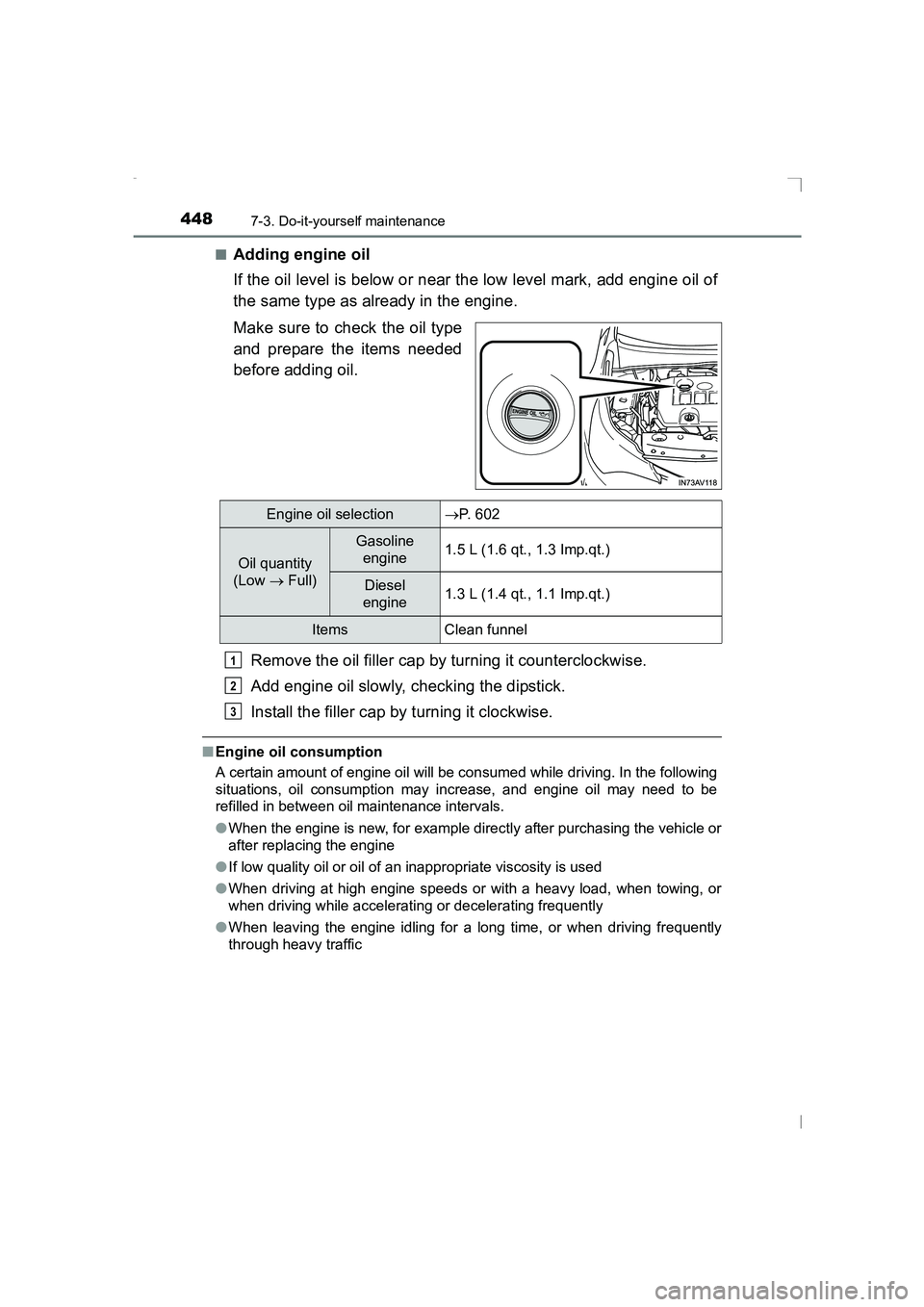

Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as already in the engine.
Make sure to check the oil type
and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
Engine oil selection →P. 602
Oil quantity
(Low → Full)
Gasoline
engine 1.5 L (1.6 qt., 1.3 Imp.qt.)
Diesel
engine 1.3 L (1.4 qt., 1.1 Imp.qt.)
Items Clean funnel
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 448 Thursday, January 29,
2015 1:47 PM

4507-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota deal er or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■ To prevent serious engine damage
Check the oil level on regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, as the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
■ Engine oil (diesel engine)
Using engine oil other than “Toyota G enuine Motor Oil 5W-30 Premium Fuel
Economy for 1WW/2WW engines” or any of the approved engine oils may
damage the engine.
If “Toyota Genuine Motor Oil 5W-30 Premium Fuel Economy for 1WW/2WW
engines” or any of the approved engine oils are not available at the time, up
to 1 L (1.1 qt., 0.9 Imp.qt.) of ACEA C3 can be used to refill. Only viscosity
grades 0W-30, 5W-30, 0W- 40, 5W-40 are permitted. (→P. 606)
AVENSIS_OM_OM20C20E_(EE).book Page 450 Thursday, January 29, 2015 1:47 PM

4527-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)

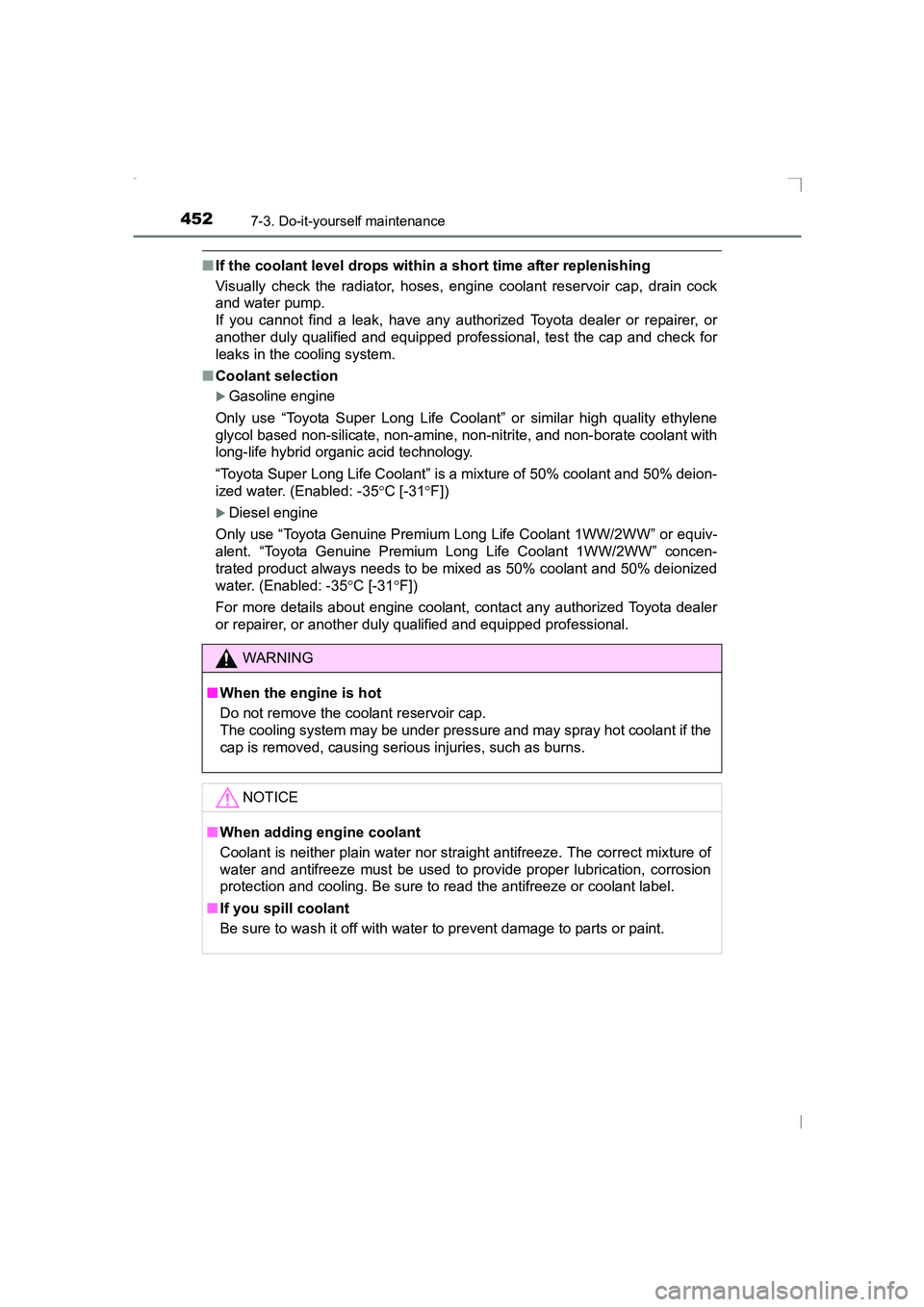

■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
■ Coolant selection
XGasoline engine
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Enabled: -35 °C [-31 °F])
XDiesel engine
Only use “Toyota Genuine Premium Long Life Coolant 1WW/2WW” or equiv-
alent. “Toyota Genuine Premium Long Life Coolant 1WW/2WW” concen-
trated product always needs to be mixed as 50% coolant and 50% deionized
water. (Enabled: -35 °C [-31 °F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
WARNING
■ When the engine is hot
Do not remove the coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■When adding engine coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent damage to parts or paint.
AVENSIS_OM_OM20C20E_(EE).book Page 452 Thursday, January 29, 2015 1:47 PM

4537-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

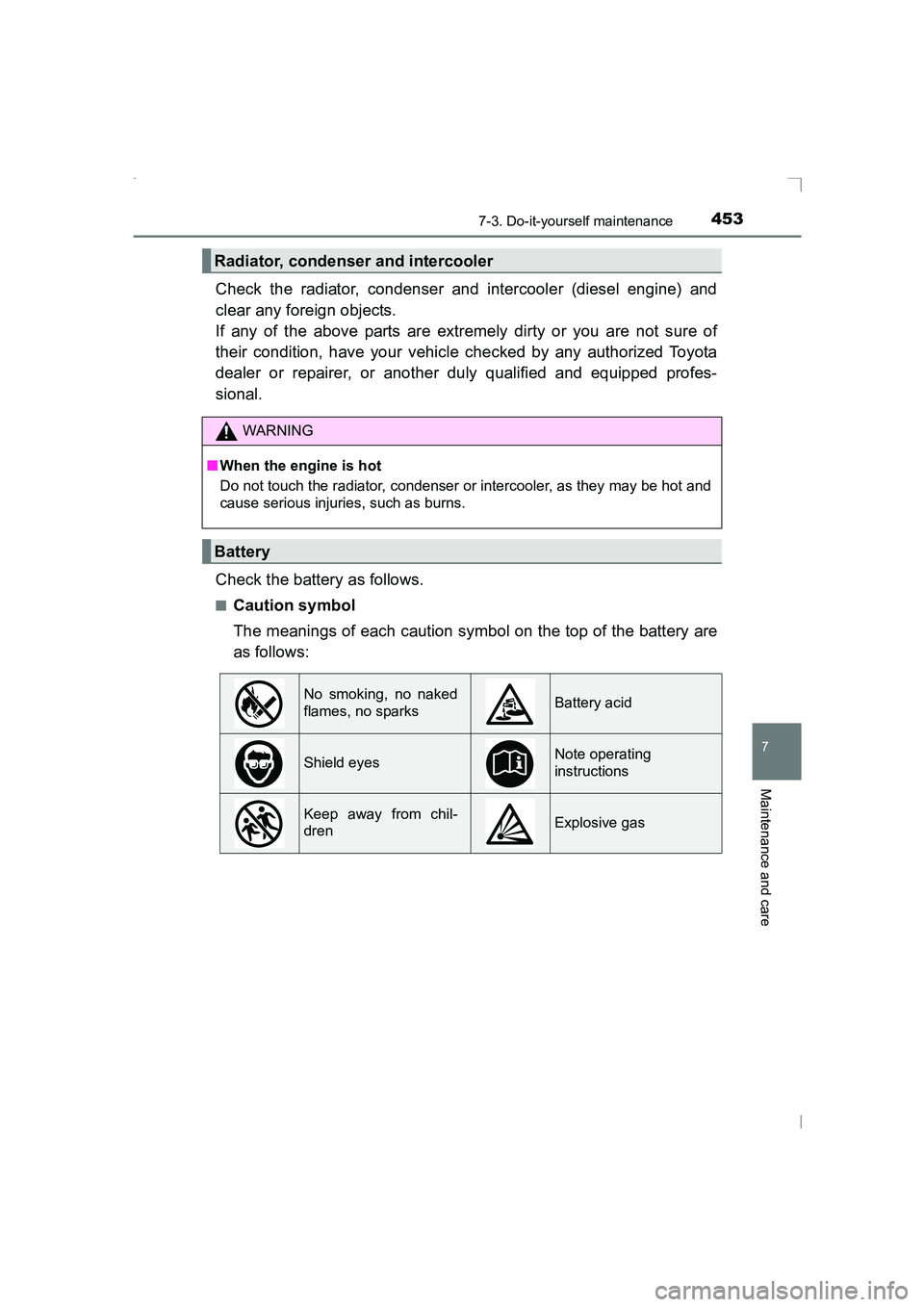

Check the radiator, condenser and intercooler (diesel engine) and
clear any foreign objects.
If any of the above parts are extremely dirty or you are not sure of
their condition, have your vehicle checked by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
Check the battery as follows.
■Caution symbol
The meanings of each caution symbol on the top of the battery are
as follows:
Radiator, condenser and intercooler
WARNING
■ When the engine is hot
Do not touch the radiator, condenser or intercooler, as they may be hot and
cause serious injuries, such as burns.
Battery
No smoking, no naked
flames, no sparksBattery acid
Shield eyesNote operating
instructions
Keep away from chil-
drenExplosive gas
AVENSIS_OM_OM20C20E_(EE).book Page 453 Thursday, January 29, 2015 1:47 PM

4567-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)

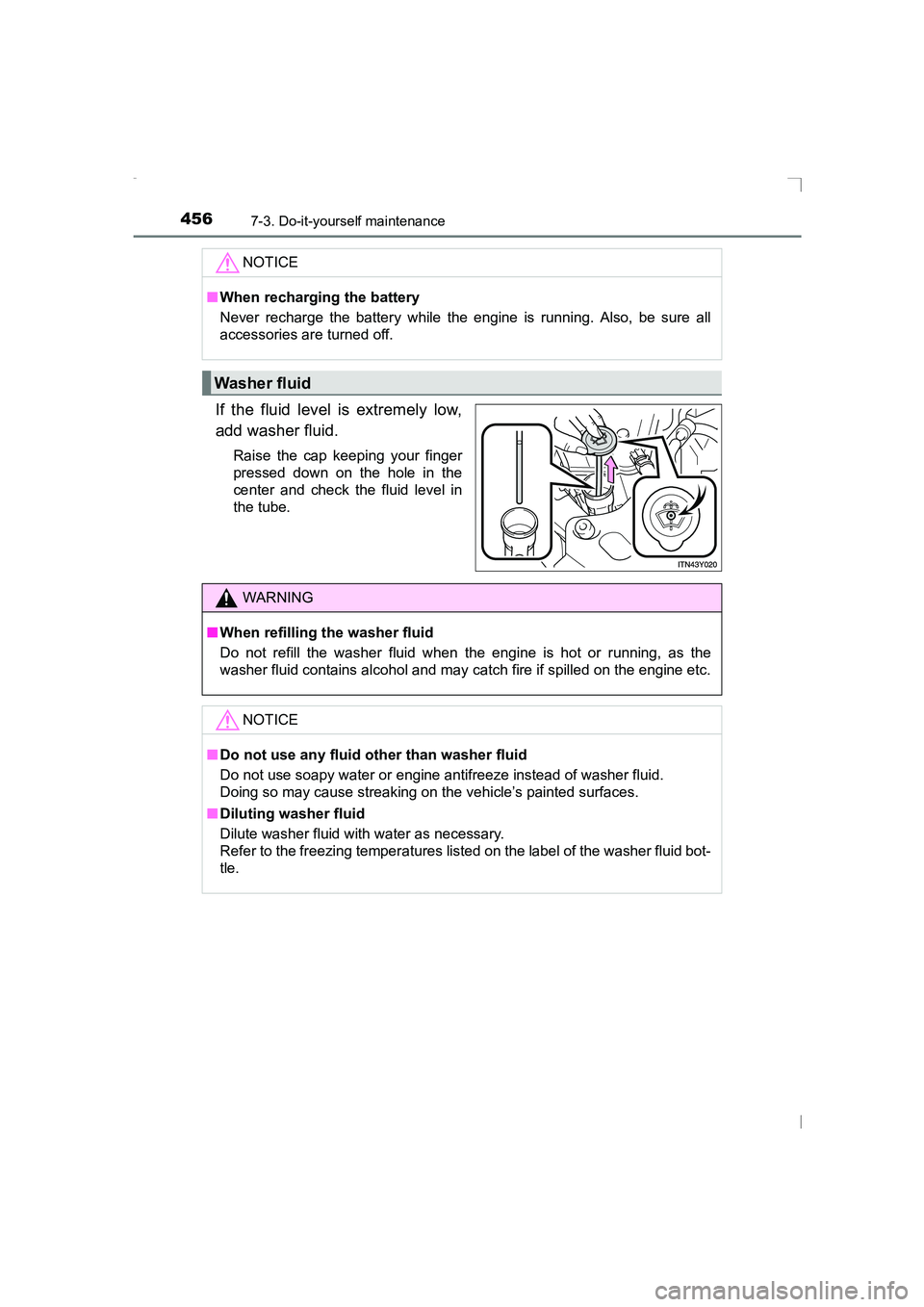

If the fluid level is extremely low,
add washer fluid.
Raise the cap keeping your finger
pressed down on the hole in the
center and check the fluid level in
the tube.NOTICE
■
When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.
Washer fluid
WARNING
■ When refilling the washer fluid
Do not refill the washer fluid when the engine is hot or running, as the
washer fluid contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures list ed on the label of the washer fluid bot-
tle.
AVENSIS_OM_OM20C20E_(EE).book Page 456 Thursday, January 29, 2015 1:47 PM

4857-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

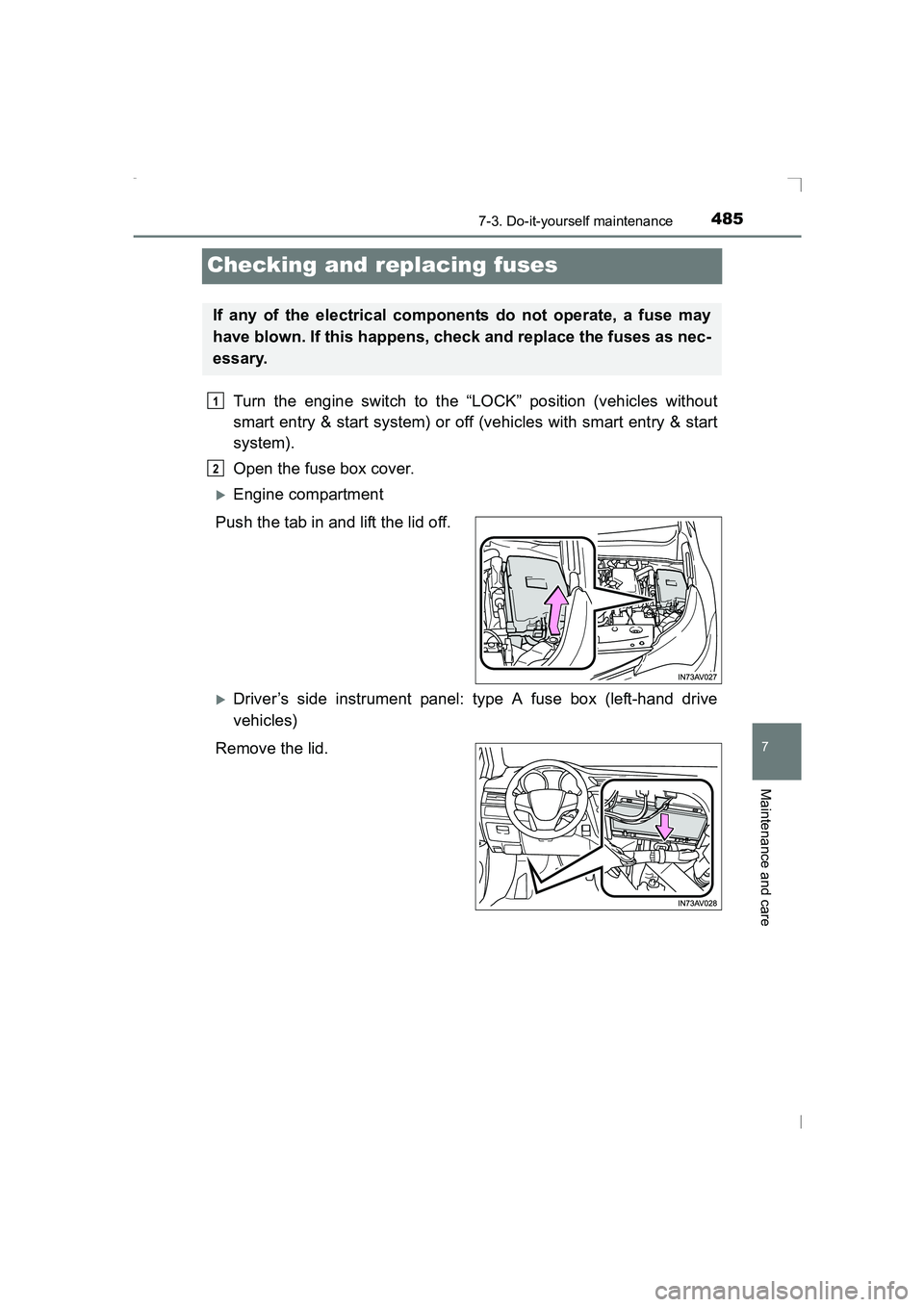

Checking and replacing fuses
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system).
Open the fuse box cover.
XEngine compartment
Push the tab in and lift the lid off.
XDriver’s side instrument panel: type A fuse box (left-hand drive
vehicles)
Remove the lid.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
