2015 TOYOTA AVENSIS light

6109-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Electrical system
Battery
Open voltage at 20°C (68 °F): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Multidrive
Fluid capacity
(reference)2ZR-FAE engine7.5 L (7.9 qt., 6.6 Imp.qt.)
3ZR-FAE engine7.2 L (7.6 qt., 6.3 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using transmission fluid other than “Toyota Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately dam age the transmission of your vehicle.
sec_09-01.fm Page 610 Friday, February 20, 2015 3:48 PM

6159-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
XCompact spare tire
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17
× 4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior Headlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
Interior
Personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbs E: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs
AVENSIS_OM_OM20C20E_(EE).book Page 615 Thursday, January 29, 2015 1:47 PM

6179-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
● Diesel engine:
Do not use a fuel that contains more than 10 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
● Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
AVENSIS_OM_OM20C20E_(EE).book Page 617 Thursday, January 29, 2015 1:47 PM

6219-2. Customization
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Vehicles with a navigation system or multimedia system: Settings
that can be changed using the navigation system or multimedia
system
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, - = Not available
■Gauges, meters and multi-information display ( →P. 108, 111)
XVehicles with monochrome display
Customizable features
1
2
3
Function*1Default settingCustomized
setting
Eco Driving Indicator Light On Off – O –
Language
*2English French
–O–
Spanish
German
Italian
Russian
Portuguese Turkish
Units
*2km (L/100 km) miles (MPG)*3
–O–
km (km/L)
° C (Celsius) °F (Fahrenheit) – O –
123
AVENSIS_OM_OM20C20E_(EE).book Page 621 Thursday, January 29, 2015 1:47 PM

6229-2. Customization
AVENSIS_OM_OM20C20E_(EE)
XVehicles with color display
Function*1Default settingCustomized setting
LDA (Lane Departure
Alert) sensitivity
*3High Standard – O –
RSA (Road Sign Assist)
*3On Off – O –
AFS (Adaptive Front-light-
ing System)
*3On Off – O –
RSA (Road Sign Assist)
*3
set up (Excess speed con-
dition method) Only visualNo notification
-O-
Visual and
audible
*4
RSA (Road Sign Assist)*3
set up (Excess speed noti-
fication level) 2 km/h (1 mph)
5 km/h (3 mph)
-O-10 km/h (5 mph)
RSA (Road Sign Assist)*3
set up (Other notifications
method
*5) Only visualNo notification
-O-
Visual and
audible
Stop & Start system
setup
*3Normal Extend – O –
123
AVENSIS_OM_OM20C20E_(EE).book Page 622 Thursday, January 29, 2015 1:47 PM

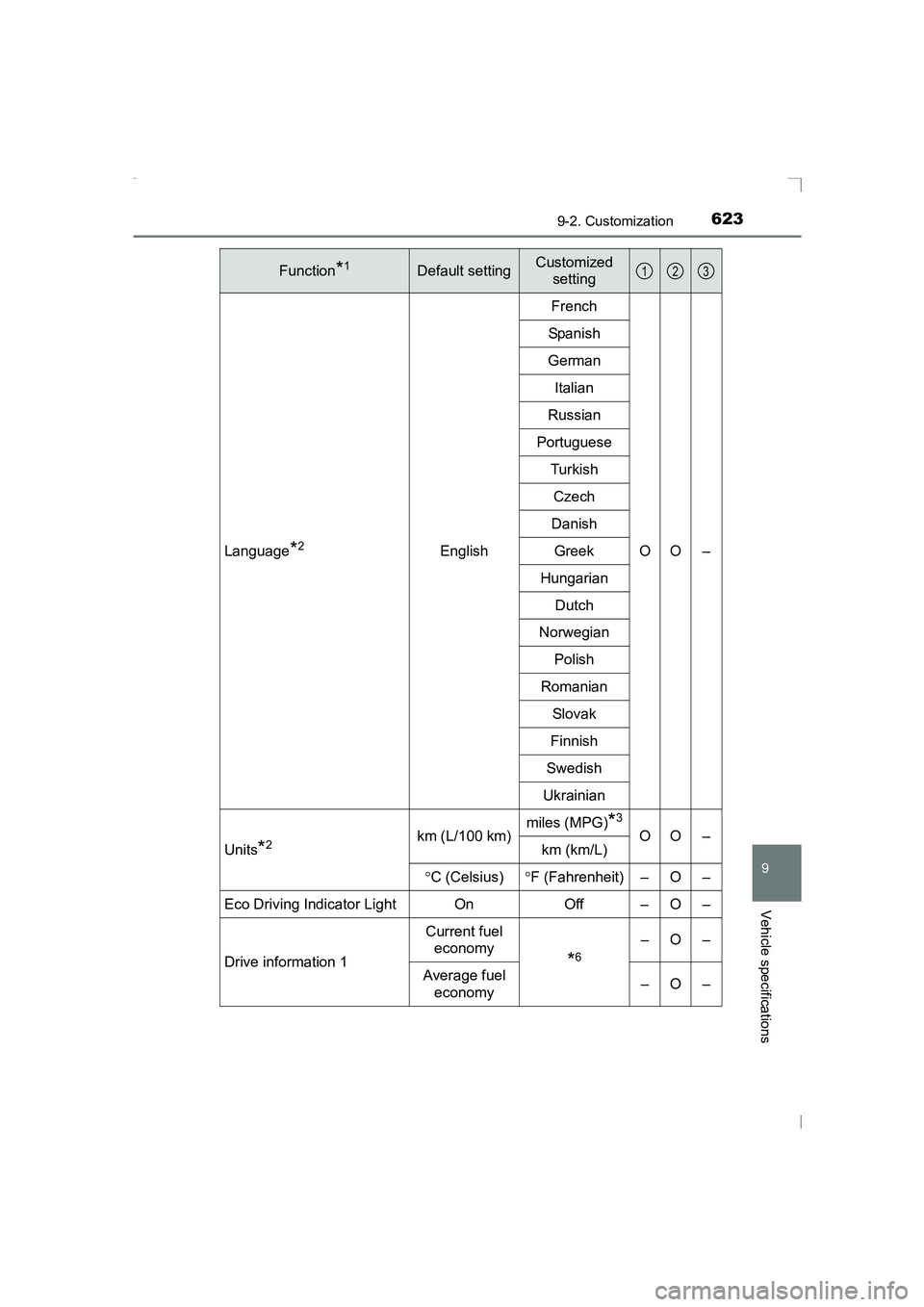

6239-2. Customization
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Language*2EnglishFrench
OO –
Spanish
German Italian
Russian
Portuguese Turkish
Czech
Danish Greek
Hungarian Dutch
Norwegian
Polish
Romanian Slovak
Finnish
Swedish
Ukrainian
Units
*2km (L/100 km) miles (MPG)*3
OO –
km (km/L)
° C (Celsius) °F (Fahrenheit) – O –
Eco Driving Indicator Light On Off – O –
Drive information 1 Current fuel
economy
*6
–O–
Average fuel economy –O–
Function*1Default settingCustomized
setting123
AVENSIS_OM_OM20C20E_(EE).book Page 623 Thursday, January 29, 2015 1:47 PM

6269-2. Customization
AVENSIS_OM_OM20C20E_(EE)■
Automatic light control system (
→P. 232)
*: If equipped
■
Illumination ( →P. 399)
*: Vehicles with smart entry & start system
FunctionDefault
settingCustomized setting
Light sensor sensitivityLevel 3Level 1 to 5O-O
Follow me home*
(Time elapsed before head-
lights automatically turn off)30
seconds
60
seconds
--
O90
seconds
120
seconds
123
FunctionDefault settingCustomized setting
Time period before lights turn
off 15 seconds7.5 seconds
O-O
30 seconds
Operation after the engine
switch is turned to the
“LOCK” position (vehicles
without smart entry & start
system) or off (vehicles with
smart entry & start system)
ONOFF - - O
Operation when the doors
are unlocked ON OFF - - O
Operation when you
approach the vehicle with the
electronic key on your person
(When the interior light
switch is in the door posi-
tion)
*
ONOFF - - O
Foot lightsONOFF - - O
123
AVENSIS_OM_OM20C20E_(EE).book Page 626 Thursday, January 29,
2015 1:47 PM

632What to do if... (Troubleshooting)
AVENSIS_OM_OM20C20E_(EE)
●Vehicles without smart entry & start system
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. (→P. 210)
●Vehicles with smart entry & start system
It is locked automatically to prevent theft of the vehicle. ( →P. 216)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( →P. 182)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( →P. 216)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 522)
●The brake system warning light is on
Is the parking brake released? ( →P. 229)
Depending on the situation, other types of warning buzzer may also sound.
( → P. 520, 527)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
