2015 TOYOTA AVENSIS light

4967-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the cornering/fog light on once
and visually confirm that no light
is leaking through the mounting.
Reinstall the fender liner with bolts and clip by conducting in
reverse.
3
4
5
6
71
AVENSIS_OM_OM20C20E_(EE).book Page 496 Thursday, January 29, 2015 1:47 PM

4977-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
■Front turn signal lightFor the left side only:
Remove the securing clip
and the upper part of the air
cleaner duct (if it is remov-
able).
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the bulb, reverse the steps and in reverse.
For the left side only: Install
the upper part of the air
cleaner duct and the secur-
ing clip by conducting in
reverse.
1
2
3
432
5
1
AVENSIS_OM_OM20C20E_(EE).book Page 497 Thursday, January 29, 2015 1:47 PM

4987-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■

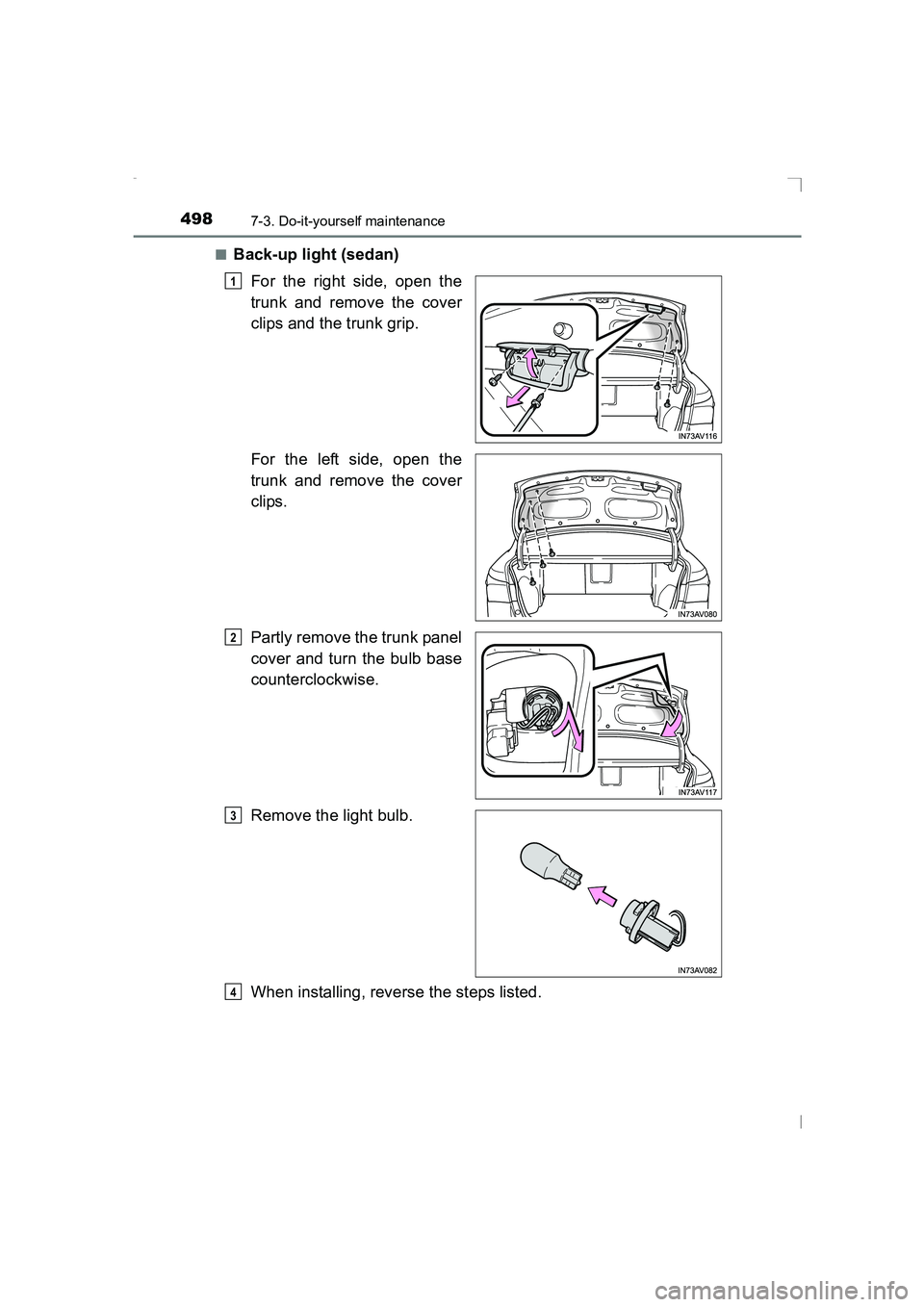

Back-up light (sedan)
For the right side, open the
trunk and remove the cover
clips and the trunk grip.
For the left side, open the
trunk and remove the cover
clips.
Partly remove the trunk panel
cover and turn the bulb base
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 498 Thursday, January 29, 2015 1:47 PM

4997-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

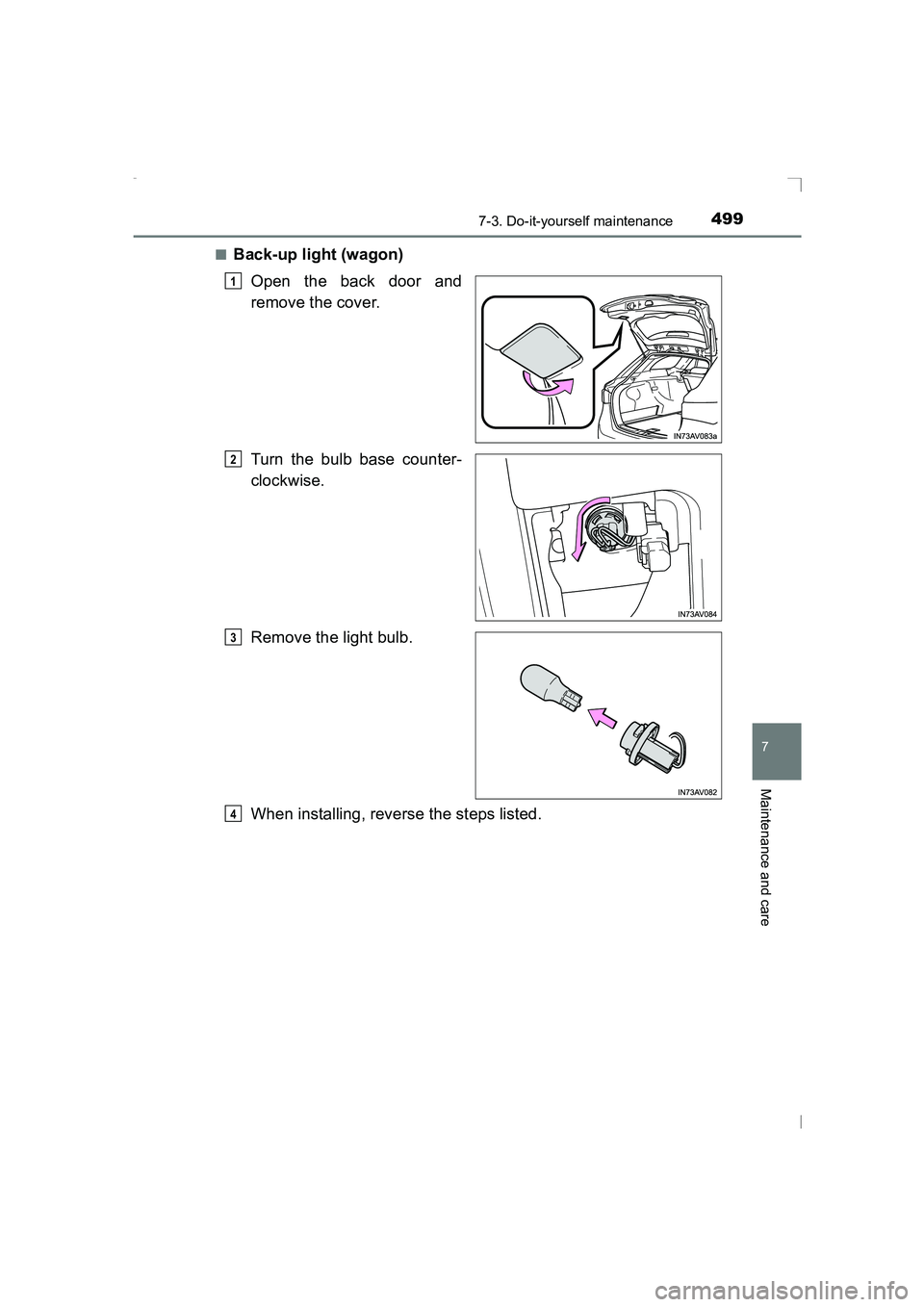

■Back-up light (wagon)Open the back door and
remove the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 499 Thursday, January 29, 2015 1:47 PM

5007-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■
Rear turn signal light (sedan)
Open the trunk and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 500 Thursday, January 29, 2015 1:47 PM

5017-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
■Rear turn signal light (wagon)Open the back door and
remove the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 501 Thursday, January 29, 2015 1:47 PM

5027-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■
License plate light
Remove the cover.
Insert a flathead screwdriver or
similar into the hole and remove
it as shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the light bulb.
When installing, reverse the steps listed.
■Side turn signal lights
Remove the cover.
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Press on the 2 clips and
remove the side turn signal
light from the visor housing.
1
2
3
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 502 Thursday, January 29, 2015 1:47 PM

5037-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
Remove the socket from the
side turn signal light housing.
Remove the bulb.
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
3
4
5
6
