2015 TOYOTA AVENSIS light

4737-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
WARNING
■ When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train, as well as
dangerous handling characteristics, which may lead to an accident resulting
in death or serious injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
● Do not use tire sizes other than those recommended by Toyota.
● Do not mix differently constructed tires (radial, bias-belted or bias-ply
tires).
● Do not mix summer, all season and snow tires.
● Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
● Vehicles with a compact spare tire: Do not tow if your vehicle has a com-
pact spare tire installed.
■ When initializing the tire pressu re warning system (if equipped)
Do not initialize tire inflation pressure without first adjusting the tire inflation
pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on
when the tire inflation pressure is actually normal.
NOTICE
■Repairing or replacing tires, wheels, tire pressure warning valves,
transmitters and tire valve caps (vehicles with the tire pressure warn-
ing system)
●When removing or fitting the wheels, ti res or the tire pressure warning
valves and transmitters, contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional as the tire pressure
warning valves and transmitters may be damaged if not handled correctly.
● Make sure to install the tire valve caps. If the tire valve caps are not
installed, water could enter the tire pressure warning valves and the tire
pressure warning valves may seize.
● When replacing tire valve caps, do not use tire valve caps other than those
specified. The cap may become stuck.
AVENSIS_OM_OM20C20E_(EE).book Page 473 Thursday, January 29, 2015 1:47 PM

4897-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 490)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, as soon as possible.
AVENSIS_OM_OM20C20E_(EE).book Page 489 Thursday, January 29, 2015 1:47 PM

4907-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 615)
→ P. 4 4 5
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Removing the engine compartment cover
Bulb locations
Headlights (halogen headlights)
Front fog light (if equipped)
Cornering/fog light (if equipped) Front turn signal light
Side turn signal light1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 490 Thursday, January 29,
2015 1:47 PM

4917-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
■Rear
XSedan
XWagon
Rear turn signal light
Back-up light (left-hand drive
vehicles)Back-up light (right-hand drive
vehicles)
License plate lights1
2
3
4
Rear turn signal light
Back-up light (left-hand drive
vehicles)Back-up light (right-hand drive
vehicles)
License plate lights1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 491 Thursday, January 29,
2015 1:47 PM

4927-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■
Headlights (halogen bulbs)
For the right side only:
Remove the securing clip
and turn and pull off the
washer fluid filler opener.
For the left side only:
Remove the securing clip
and the upper part of the air
cleaner duct (if it is remov-
able).
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 492 Thursday, January 29, 2015 1:47 PM

4937-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

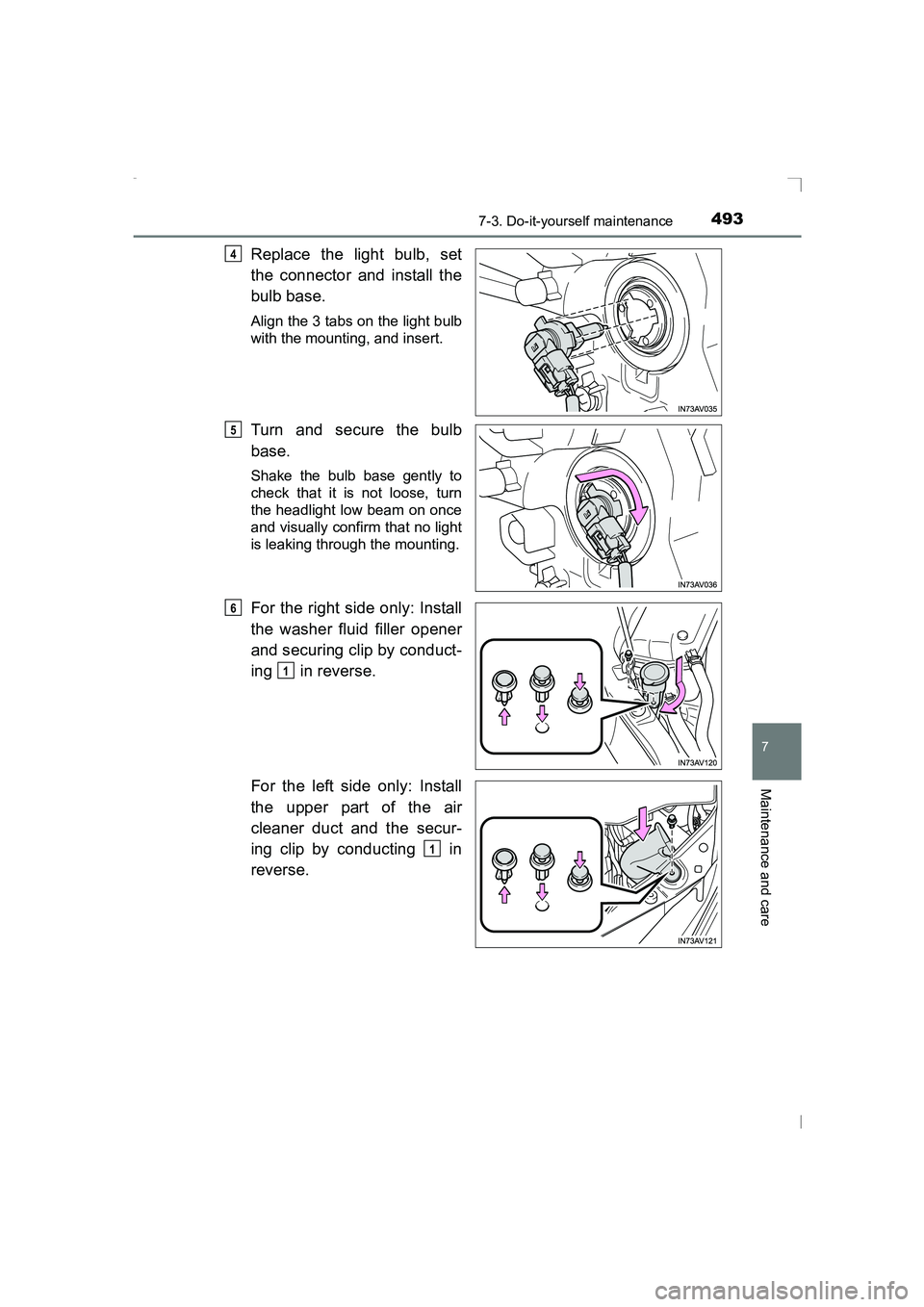

Replace the light bulb, set
the connector and install the
bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlight low beam on once
and visually confirm that no light
is leaking through the mounting.
For the right side only: Install
the washer fluid filler opener
and securing clip by conduct-
ing in reverse.
For the left side only: Install
the upper part of the air
cleaner duct and the secur-
ing clip by conducting in
reverse.
4
5
6
1
1
AVENSIS_OM_OM20C20E_(EE).book Page 493 Thursday, January 29, 2015 1:47 PM

4947-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■
Front fog light (if equipped)
Remove the fender liner bolts
and clip. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 494 Thursday, January 29, 2015 1:47 PM

4957-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner with bolts and clip by conducting in
reverse.
■Cornering/fog light (if equipped)Remove the fender liner bolts
and clip. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
5
6
71
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 495 Thursday, January 29, 2015 1:47 PM
