2015 TOYOTA AVENSIS light

381
6Interior features
AVENSIS_OM_OM20C20E_(EE)6-1. Using the air conditioning
system and defogger
Manual air conditioning system ............................. 382
Automatic air conditioning system ............................. 388
Power heater ..................... 395
Seat heaters ...................... 397
6-2. Using the interior lights Interior lights list................. 399
• Personal/interior light main switch.................... 400
• Personal/interior lights .............................. 400
• Personal lights ............... 400 6-3. Using the storage features
List of storage features ...... 402
• Glove box ...................... 403
• Console box .................. 404
• Overhead console ......... 404
• Cup holders/bottle holders........................... 405
• Coin box ........................ 407
Trunk features (sedan) ...... 408
Luggage compartment features (wagon).............. 410
6-4. Using the other interior features
Other interior features ........ 417
• Sun visors...................... 417
• Vanity mirror .................. 417
• Power outlet .................. 418
• Armrest .......................... 419
• Trunk/luggage compartment
storage extension .......... 420
• Panoramic roof shade (wagon) ......................... 421
• Coat hooks .................... 423
• Assist grips .................... 423
AVENSIS_OM_OM20C20E_(EE).book Page 381 Thursday, January 29, 2015 1:47 PM

3956-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)
6
Interior features

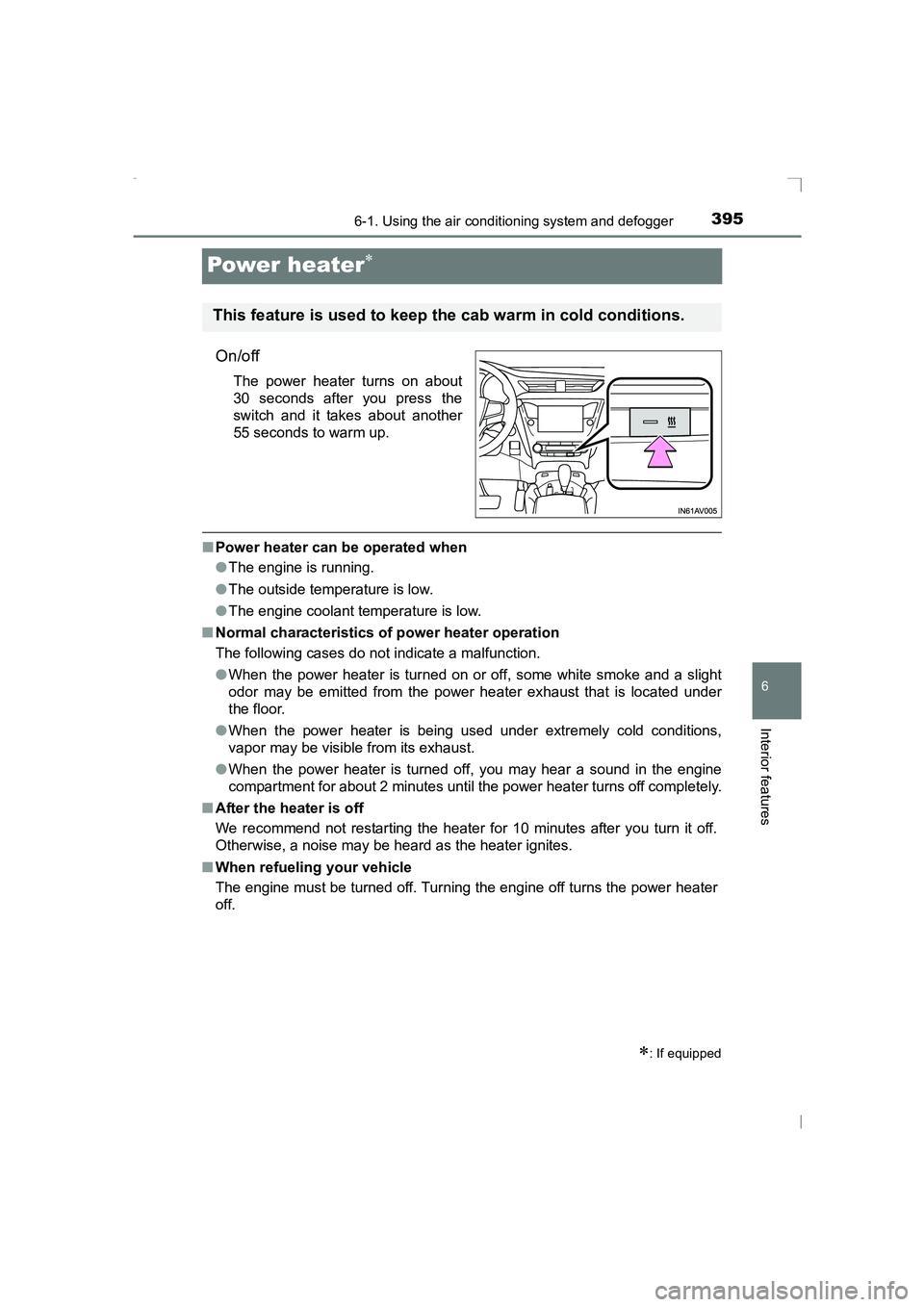

Power heater∗
On/off
The power heater turns on about
30 seconds after you press the
switch and it takes about another
55 seconds to warm up.
■Power heater can be operated when
●The engine is running.
● The outside temperature is low.
● The engine coolant temperature is low.
■ Normal characteristics of power heater operation
The following cases do not indicate a malfunction.
●When the power heater is turned on or off, some white smoke and a slight
odor may be emitted from the power heater exhaust that is located under
the floor.
● When the power heater is being used under extremely cold conditions,
vapor may be visible from its exhaust.
● When the power heater is turned off, you may hear a sound in the engine
compartment for about 2 minutes until the power heater turns off completely.
■ After the heater is off
We recommend not restarting the heater for 10 minutes after you turn it off.
Otherwise, a noise may be heard as the heater ignites.
■ When refueling your vehicle
The engine must be turned off. Turning the engine off turns the power heater
off.
∗: If equipped
This feature is used to keep the cab warm in cold conditions.
AVENSIS_OM_OM20C20E_(EE).book Page 395 Thursday, January 29, 2015 1:47 PM

3976-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Seat heaters∗
Left-hand drive vehicles: For
driver’s seat
Right-hand drive vehicles: For
front passenger’s seat
Left-hand drive vehicles: For
front passenger’s seat
Right-hand drive vehicles: For
driver’s seat
On
The indicator light comes on.
Adjusts the seat temperature
The further you turn the dial
upward, the warmer the seat
becomes.
■The seat heaters can be used when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
∗: If equipped
1
2
3
4
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat heater.
• Do not use seat heater more than necessary.
AVENSIS_OM_OM20C20E_(EE).book Page 397 Thursday, January 29, 2015 1:47 PM

3996-2. Using the interior lights
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Interior lights list
Personal lights (→P. 400)
Personal/interior lights ( →P. 400)
Engine switch light (if equipped)
Foot lights (if equipped)
Tray illumination
Front door courtesy lights1
2
3
4
5
6
AVENSIS_OM_OM20C20E_(EE).book Page 399 Thursday, January 29, 2015 1:47 PM

4006-2. Using the interior lights
AVENSIS_OM_OM20C20E_(EE)
Door position
The personal/interior lights come on when a door is opened. They turn off
when the doors are closed.
“OFF”
The personal/interior lights can be individually turned on or off.
On/off
The personal/interior lights turn on/
off if a door is opened/closed when
the personal/interior light main
switch is in the door position.
On/off
The personal lights turn on/off if a
door is opened/closed when the
personal/interior light main switch
is in the door position.
Personal/interior light main switch
XVehicles without intrusion sen-
sorXVehicles with intrusion sensor
Personal/interior lights
1
2
Personal lights
AVENSIS_OM_OM20C20E_(EE).book Page 400 Thursday, January 29, 2015 1:47 PM

4016-2. Using the interior lights
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
■Illuminated entry system
XVehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
XVehicles with smart entry & start system
The lights automatically turn on/off according to engine switch mode, the
presence of the electronic key, whet her the doors are locked/unlocked, and
whether the doors are open/closed.
■ To prevent the battery from being discharged
If the following lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes:
●Personal lights
● Personal/interior lights
■ Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features →P. 626)
NOTICE
To prevent battery discharge, do not leave the lights on longer than neces-
sary when the engine is not running.
AVENSIS_OM_OM20C20E_(EE).book Page 401 Thursday, January 29, 2015 1:47 PM

4026-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)

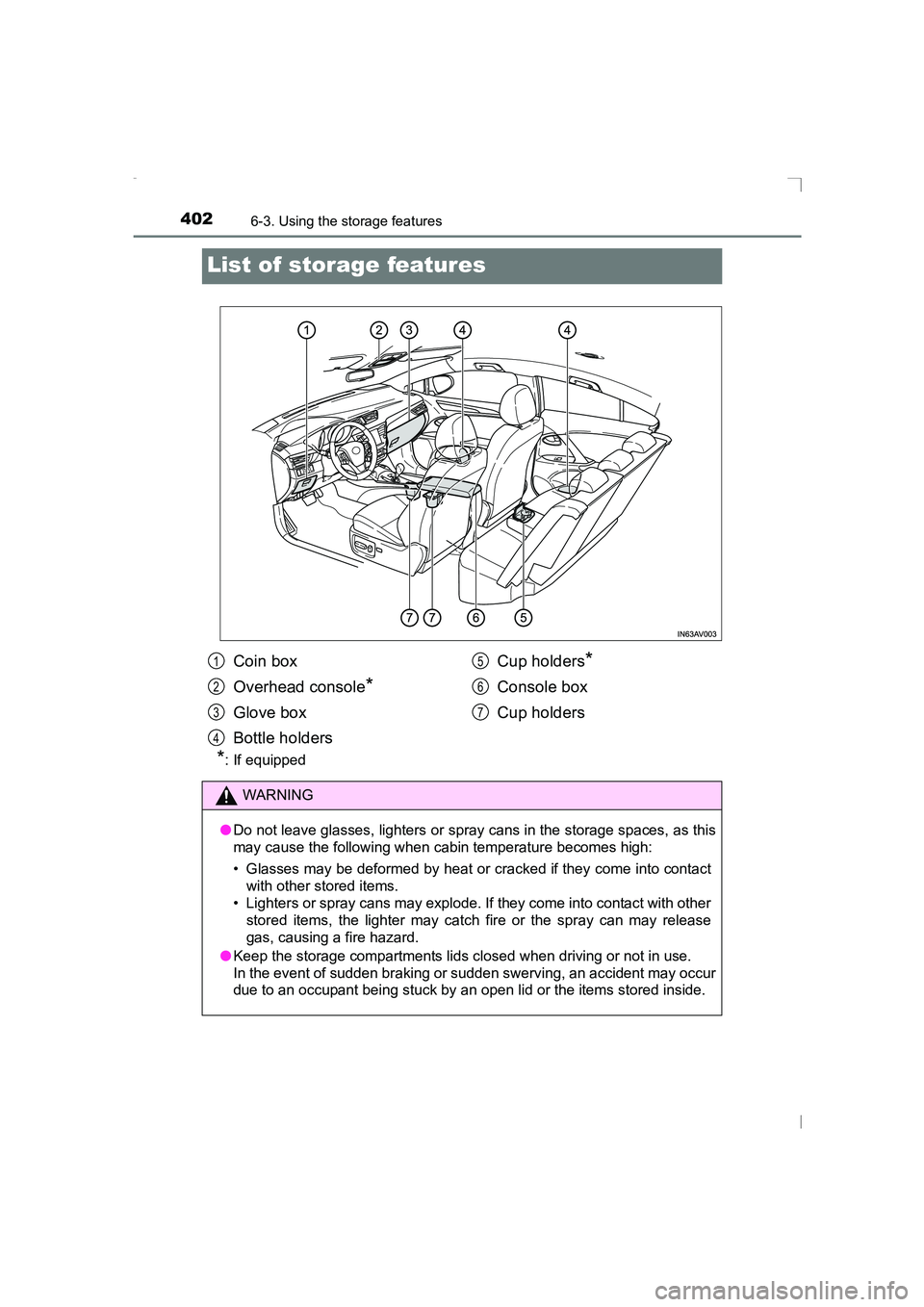

List of storage features
*: If equipped
Coin box
Overhead console
*
Glove box
Bottle holdersCup holders
*
Console box
Cup holders
WARNING
● Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● Keep the storage compartments lids cl osed when driving or not in use.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being stuck by an open lid or the items stored inside.
1
2
3
4
5
6
7
AVENSIS_OM_OM20C20E_(EE).book Page 402 Thursday, January 29, 2015 1:47 PM

4036-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
XLeft-hand drive vehicles
Pull up the lever to open the glove
box.
XRight-hand drive vehicles
The glove box can be opened by pulling the lever, locked and
unlocked by using the key.
Open
Lock
Unlock
The glove box light turns on when the tail lights are on.
Glove box
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 403 Thursday, January 29, 2015 1:47 PM
