2015 TOYOTA AVENSIS light

5248-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)

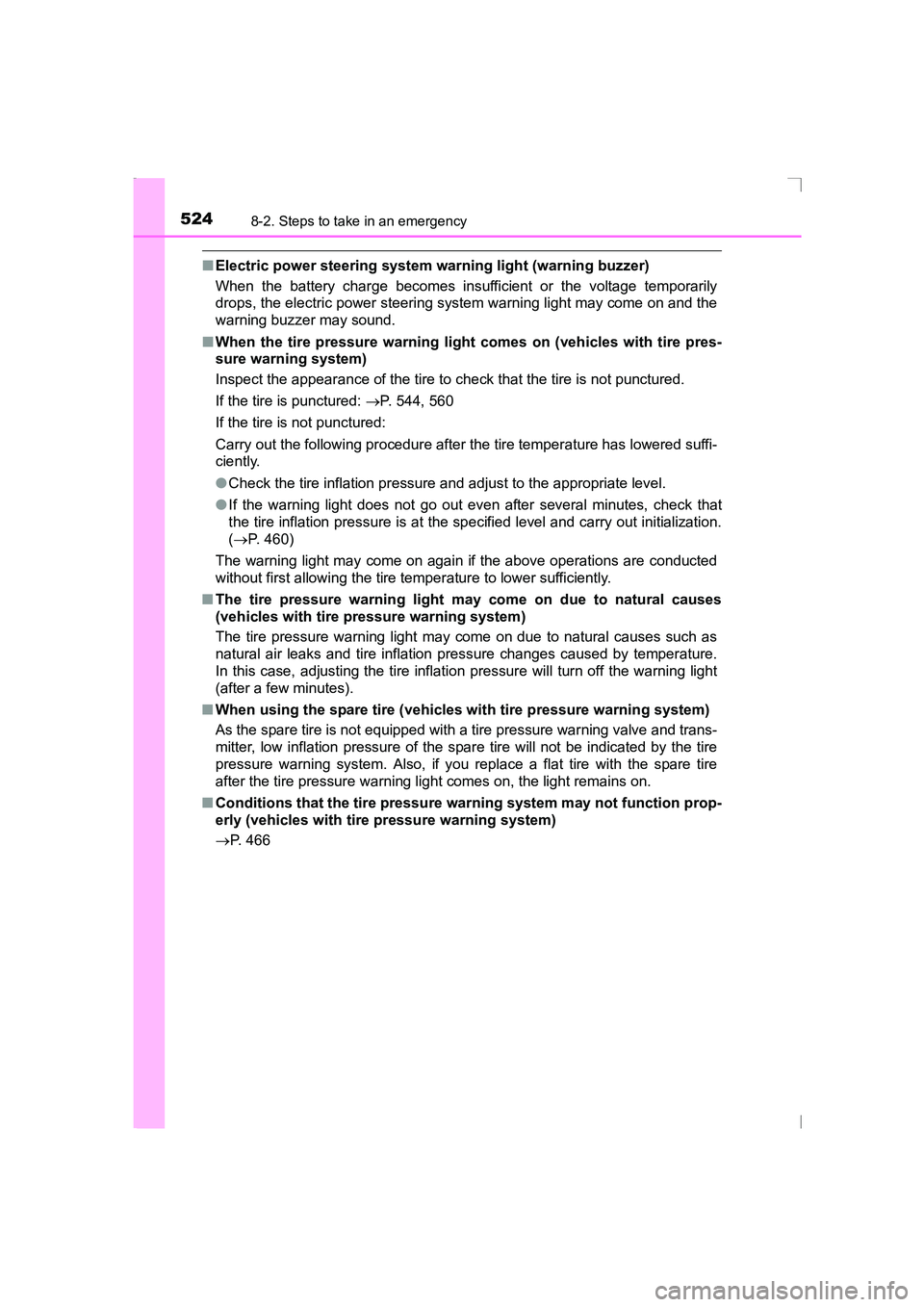

■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
■ When the tire pressure warning light comes on (vehicles with tire pres-
sure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: →P. 544, 560
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
(→ P. 460)
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When using the spare tire (vehicles with tire pressure warning system)
As the spare tire is not equipped with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you r eplace a flat tire with the spare tire
after the tire pressure warning light comes on, the light remains on.
■ Conditions that the tire pressure warning system may not function prop-
erly (vehicles with tire pressure warning system)
→ P. 466
AVENSIS_OM_OM20C20E_(EE).book Page 524 Thursday, January 29, 2015 1:47 PM

5258-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
■If the tire pressure warning light fre quently comes on after blinking for 1
minute (vehicles with tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch is turned to the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system), have it checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If the tire pressure warning light frequently comes on after blinking for 1
minute when you change between registered wheel sets, confirm the correct
wheel set has been selected.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
AVENSIS_OM_OM20C20E_(EE).book Page 525 Thursday, January 29, 2015 1:47 PM

5268-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, firmly
hold and operate it using more force than usual.
■ If the tire pressure warning light comes on (vehicles with tire pressure
warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warn ing system operates properly (vehi-
cles with tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
AVENSIS_OM_OM20C20E_(EE).book Page 526 Thursday, January 29, 2015 1:47 PM

5278-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
If a war ning message is displayed
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates abnormal engine oil pressure The warning light may come on if the engine oil
pressure is too low.
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact any authorized Toyota dealer
or repairer, or another duly qualified and
equipped professional.
Continuing to drive the vehicle may be dan-
gerous.
AVENSIS_OM_OM20C20E_(EE).book Page 527 Thursday, January 29, 2015 1:47 PM

5358-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Indicates a malfunction in:
• The automatic headlight leveling system;
• The Automatic High Beam system (ifequipped); or
• The LED headlight system (if equipped);
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
(If equipped)
Indicates that there is a high possibility of a fron-
tal collision, or that the pre-crash braking function
is operating
→Slow the vehicle by applying the brakes.
Indicates that the headlight have been left on A buzzer also sounds.
→ Turn off the headlights.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 50 km/h
(32 mph)
→Drive the vehicle at approximately 50 km/h
(32 mph) or higher.
Warning messageDetails/Actions
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 535 Thursday, January 29, 2015 1:47 PM

5428-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)Once

(Multidrive)
An attempt was made to turn
the engine switch off when the
shift lever was not in P.
→To turn off the engine, first
shift the shift lever to P
and then turn the engine
switch off.
 Power was turned off due to the
automatic power off function.
→
Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Once  The electronic key has a low
battery. (The message will be
shown for about 15 seconds.)
→
Replace the electronic key
battery. ( →P. 482)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 542 Thursday, January 29, 2015 1:47 PM

5518-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises

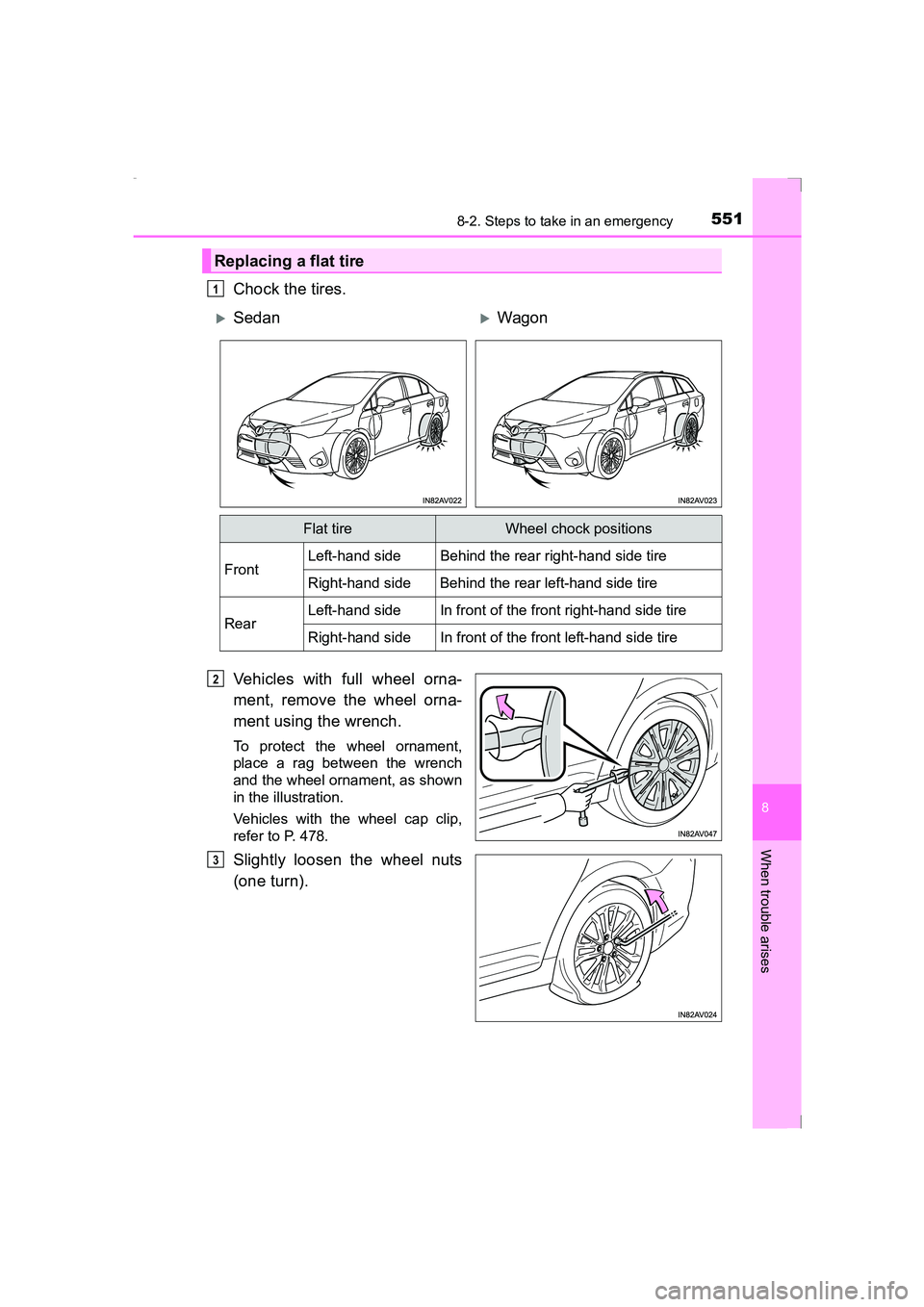

Chock the tires.
Vehicles with full wheel orna-
ment, remove the wheel orna-
ment using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as shown
in the illustration.
Vehicles with the wheel cap clip,
refer to P. 478.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
XSedanXWagon
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 551 Thursday, January 29,
2015 1:47 PM

5528-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)

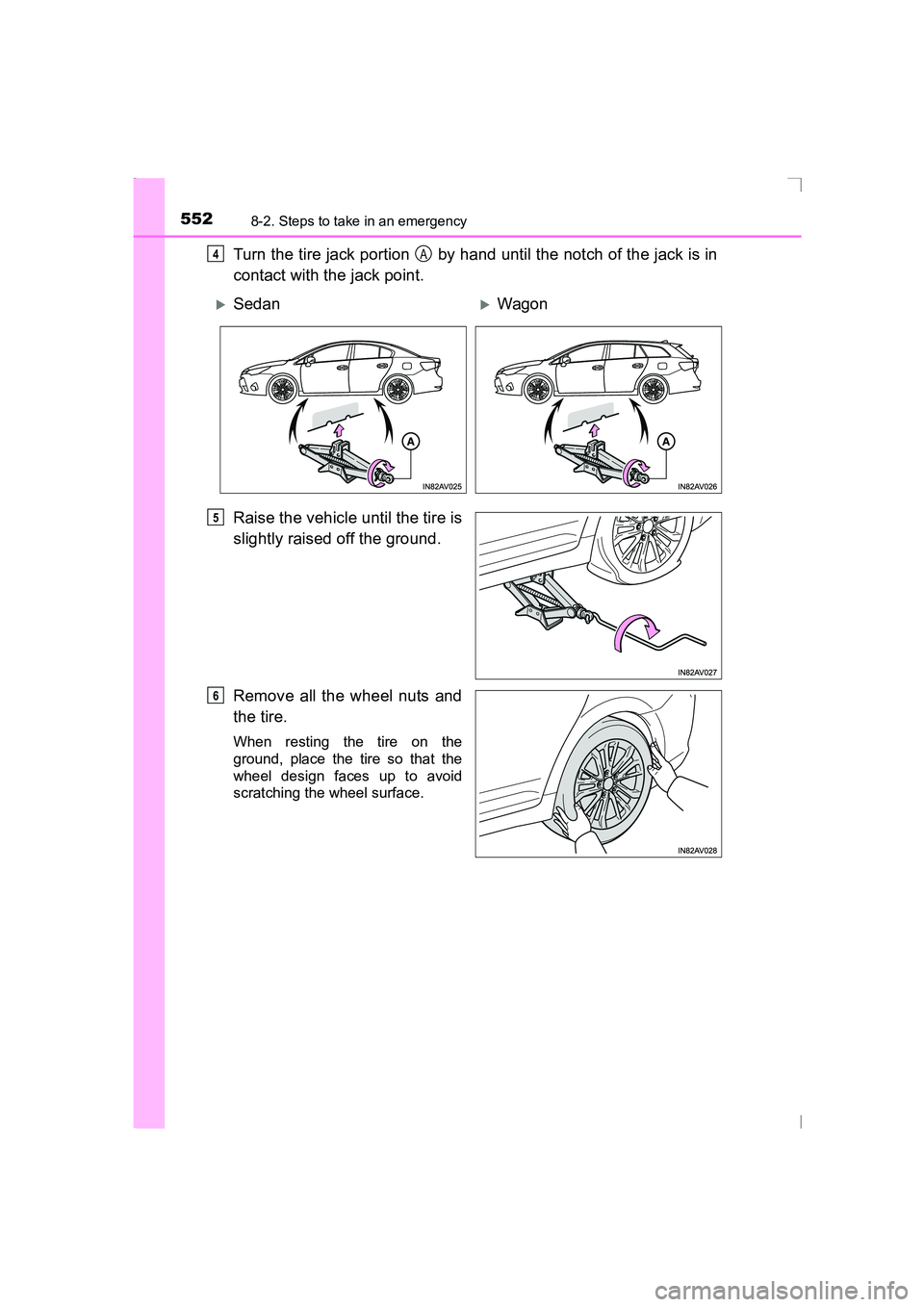

Turn the tire jack portion by hand until the notch of the jack is in
contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4A
XSedanXWagon
5
6
AVENSIS_OM_OM20C20E_(EE).book Page 552 Thursday, January 29, 2015 1:47 PM
