2015 SUBARU BRZ Owners Manual

5
When trouble arises
409
5-2. Steps to take in an emergency
If your vehicle overheats
If your engine overheats:Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from under the engine
hood.
If you see steam:
Stop the engine. Carefully lift the engine hood after the
steam subsides and then restart the engine.
If you do not see steam:
Leave the engine running and carefully lift the engine hood.
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the engine.
If the fan is not operating:
Stop the engine and call your SUBARU dealer. After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core (radi-
ator) for any leaks.
STEP 1
STEP 2
STEP 3
STEP 4

410
5-2. Steps to take in an emergency
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
●Steam is coming from under the engine hood.
WARNING
■To prevent an accident or injury when inspecting under the engine
hood of your vehicle
●If steam is seen coming from under the engine hood, do not open the
engine hood until the steam has subsided. The engine compartment may
be very hot, causing serious injury such as burns.
●Keep hands and clothing away from the fan and other belts while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable. ( →P. 422)
Have the vehicle checked at the nearest SUBARU dealer as soon
as possible.STEP 5

5
When trouble arises
411
5-2. Steps to take in an emergency

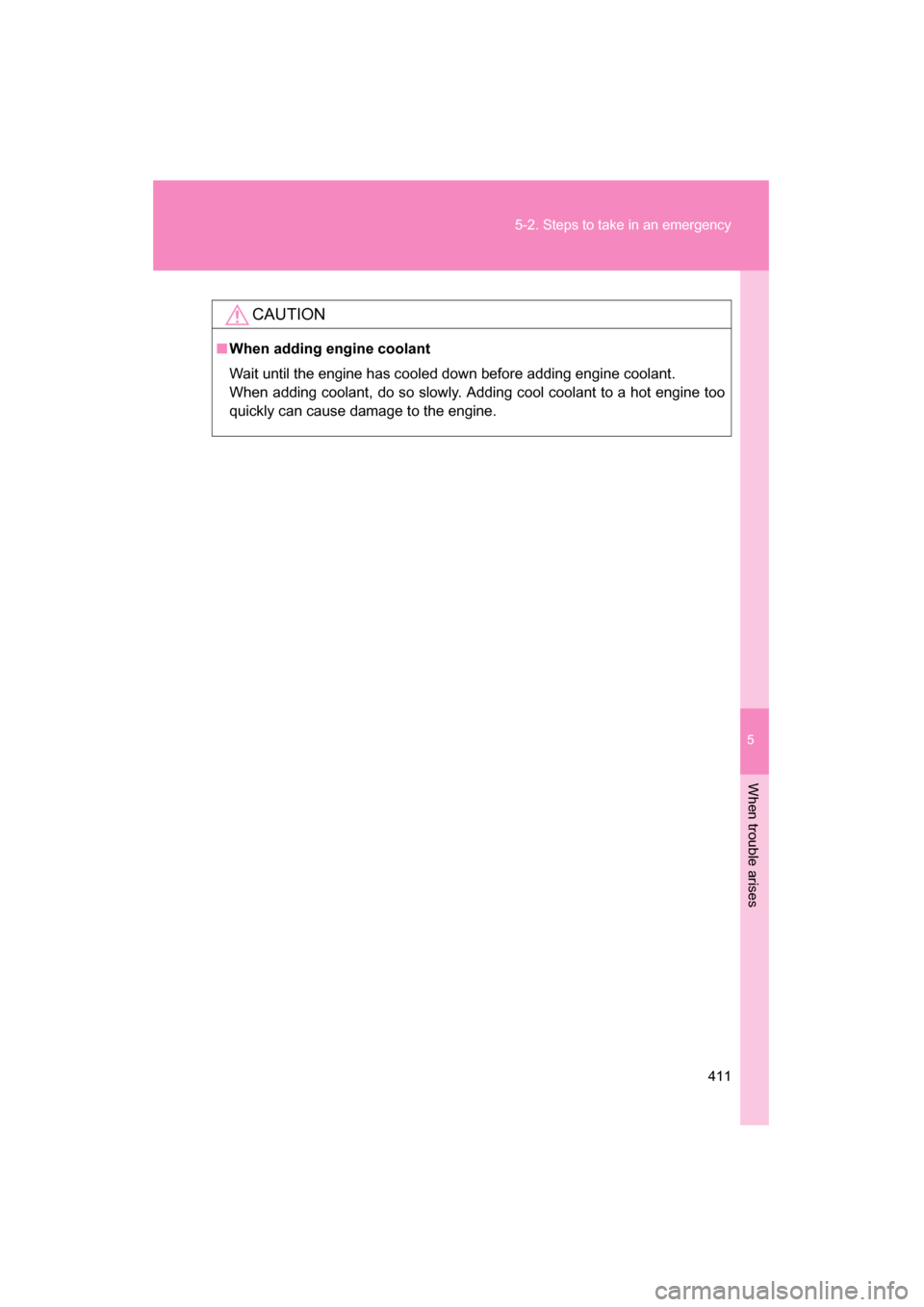

CAUTION
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

412
5-2. Steps to take in an emergency
If the vehicle becomes stuck
■When it is difficult to free the vehicle
Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow:
Stop the engine. Set the parking brake and shift the select
lever to P (vehicles with an automatic transmission) or shift
lever to neutral (vehicles with a manual transmission).
Remove the mud, snow or sand from around the rear
wheels.
Place wood, stones or some other material under the rear
wheels to help provide traction.
Restart the engine.
Shift the select lever to the D or R position (vehicles with an
automatic transmission) or shift lever to 1 or R position
(vehicles with a manual transmission) and release the park-
ing brake. Then, while exercising caution, depress the
accelerator pedal.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Press to turn off TRAC. ( →P. 218)

5
When trouble arises
413
5-2. Steps to take in an emergency
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■When shifting the select lever
For vehicles with an automatic transmission, be careful not to shift the select
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
CAUTION
■To avoid damage to the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more
than necessary.
●If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

414
5-2. Steps to take in an emergency

Vehicle specifications6
415
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 416
Fuel information ............... 428
Tire information ................ 432
6-2. Customization Customizable features .......................... 445

416
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
* : Unladen vehicle
Overall length 166.7 in. (4235 mm)
Overall width 69.9 in. (1775 mm)
Overall height
* 52.0 in. (1320 mm)
Wheelbase 101.2 in. (2570 mm)
TreadFront 59.8 in. (1520 mm)
Rear 60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage) Details are described on the tire and load-
ing information label. (
→P. 320)
