2015 SUBARU BRZ Owners Manual

289
4-2. Maintenance
4
Maintenance and care
General maintenance
Engine compartmentNOTE
SUBARU does not endorse the use of non-SUBARU approved flushing sys-
tems and strongly advises against performing these services on a SUBARU
vehicle. Non-SUBARU approved flushing systems use chemicals and/or sol-
vents which have not been tested or approved by SUBARU.
SUBARU warranties do not cover any part of the vehicle which is damaged
by adding or applying chemicals and/or solvents other than those approved
or recommended by SUBARU.
ItemsCheck points
Battery Check the connections.
(→ P. 306)
Brake fluid At the correct level? ( →P. 304)
Engine coolant At the correct level? ( →P. 302)
Engine oil At the correct level? ( →P. 299)
Exhaust system No fumes or strange sounds?
Radiator/condenser/hoses Not blocked with foreign matter? (
→P. 304)
Washer fluid At the correct level? ( →P. 310)
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Warranty and Maintenance
Booklet”. It is recommended that any problem you notice should be
brought to the attention of your SUBARU dealer or qualified service
shop for advice.

290
4-2. Maintenance

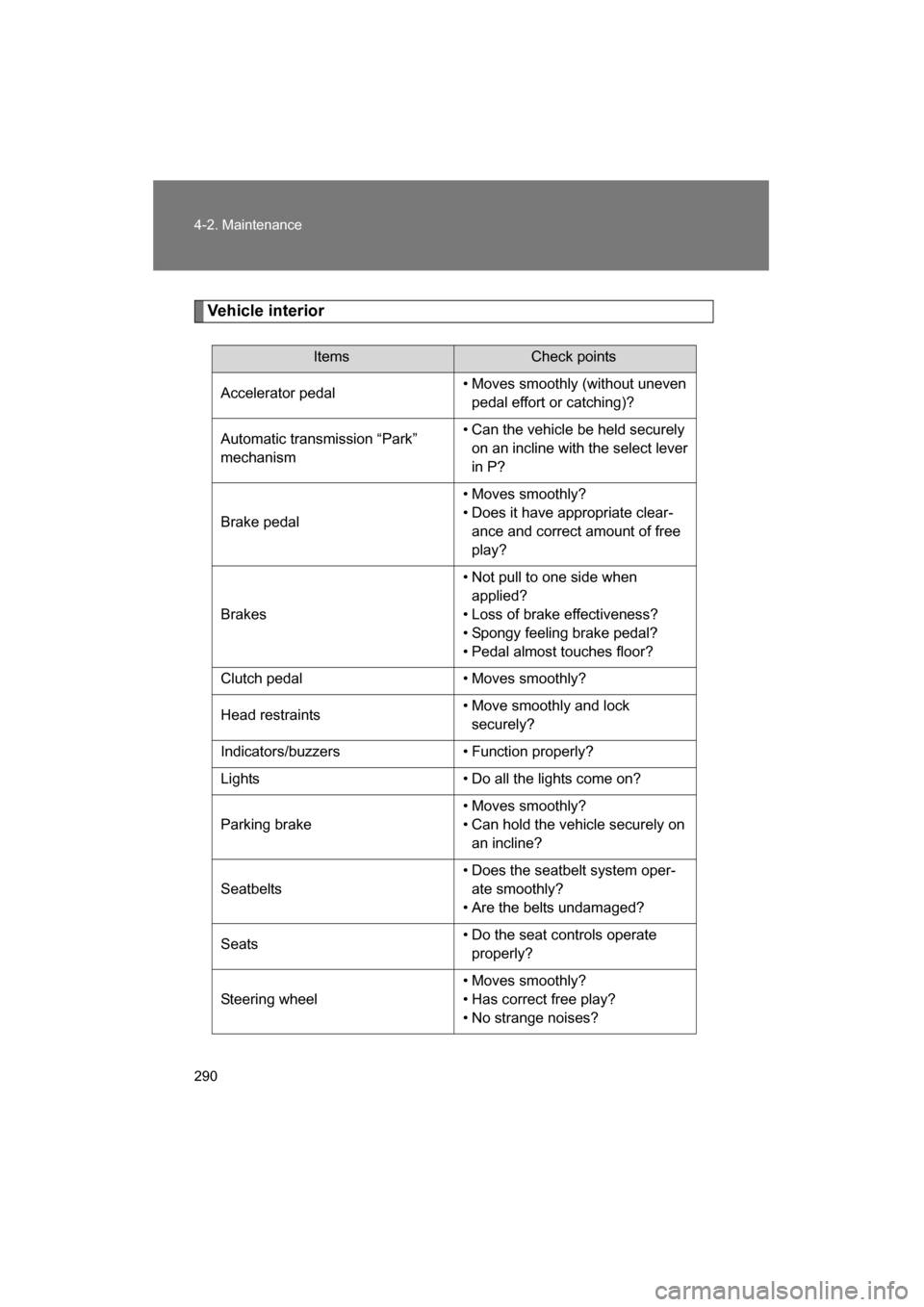

Vehicle interior
ItemsCheck points
Accelerator pedal

291
4-2. Maintenance
4
Maintenance and care
Vehicle exterior
ItemsCheck points
Door/trunk lid

292
4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your SUBARU
dealer to service the vehicle.
■Your vehicle may not pass the I/M test: ● When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■If your vehicle does not pass the I/M test
Contact your SUBARU dealer to prepare the vehicle for re-test-
ing.

293
4
Maintenance and care
4-3. Do-it-yourself maintenance

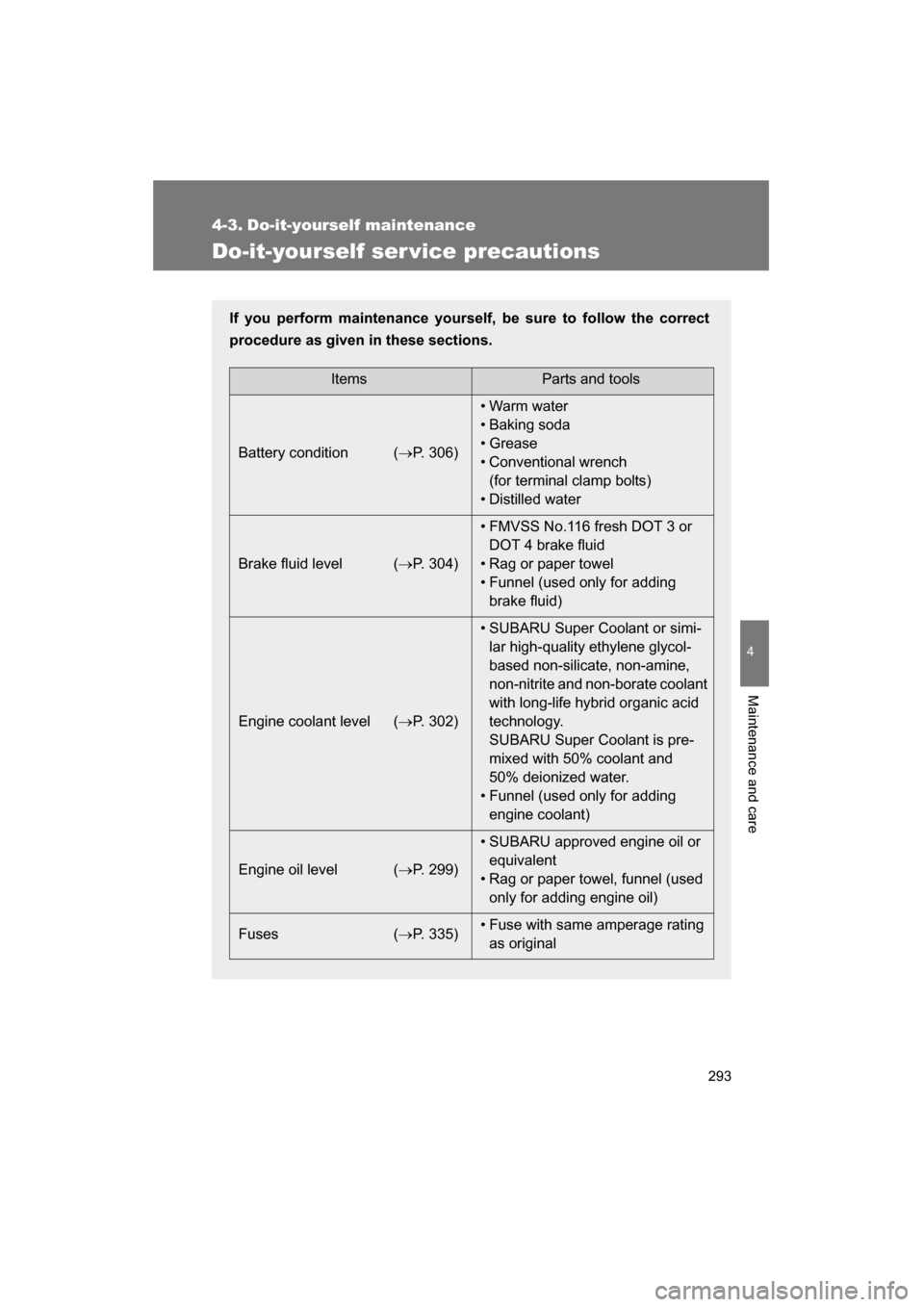

Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition ( →P. 306)

294
4-3. Do-it-yourself maintenance
ItemsParts and tools
Light bulbs ( →P. 343)

295
4-3. Do-it-yourself maintenance
4
Maintenance and care
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■When working in the engine compartment
●Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
■When working near the electric cooling fans or radiator grille
Vehicles without a keyless access with push button start system: Be sure the
engine switch is off. With the engine switch in the “ON” position, the electric
cooling fans may automatically start to run if the air conditioning is on and/or
the coolant temperature is high. ( →P. 304)
Vehicles with a keyless access with push button start system: Be sure the
push-button ignition switch is off. With the push-button ignition switch in
“ON” mode, the electric cooling fans may automatically start to run if the air
conditioning is on and/or the coolant temperature is high. ( →P. 304)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in the eyes.
CAUTION
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also a backfire could cause a fire in the engine compart-ment.

296
4-3. Do-it-yourself maintenance
Engine hood
Release the lock from the inside of the vehicle to open the engine
hood.Pull the engine hood release
lever.The engine hood will pop up
slightly.
Push the auxiliary catch lever
to the left and lift the engine
hood.
Hold the engine hood open by
inserting the supporting rod
into the slot.
STEP 1
STEP 2
STEP 3
