2015 SUBARU BRZ Owners Manual

233
2-5. Driving information
2
When driving
CAUTION
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from SUBARU dealers or
legitimate tire retailers.
This is because the removal and attachment of snow tires affects the
operation of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function cor-
rectly when tire chains are fitted.

234
2-5. Driving information
Trailer towing
Your vehicle is neither designed nor intended to be used for trailer
towing. Therefore, never tow a trailer with your vehicle.
SUBARU assumes no responsibility for injuries or vehicle damage
that may result from trailer towing, from any trailer towing equip-
ment or from any errors or omissions in the instructions accompa-
nying such equipment. SUBARU warranties do not apply to vehicle
damage or malfunction caused by trailer towing.

235
2-5. Driving information
2
When driving
Dinghy towing
Your vehicle is not designed to be dinghy towed behind a motor
home or other vehicle with the wheels (2 or 4) on the ground. Serious
damage can result.

236
2-5. Driving information

Interior features3
237
3-1. Using the air conditioning system and defogger
Manual air conditioning system ........................... 238
Automatic air conditioning system ....... 245
Rear window and outside rear view
mirror defoggers ............ 254
3-2. Using the audio system Using the AUX/USB port................................. 256
Using the microphone ...... 257 3-3. Using the interior lights
Interior lights list ............... 258

238
3-1. Using the air conditioning system and defogger
Manual air conditioning system∗
Adjusting the settings
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
dial clockwise (warm) or counterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
∗ : If equipped
Fan speed control dial
Air outlet selection dial
Air conditioning on/off buttonTemperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2
STEP 3

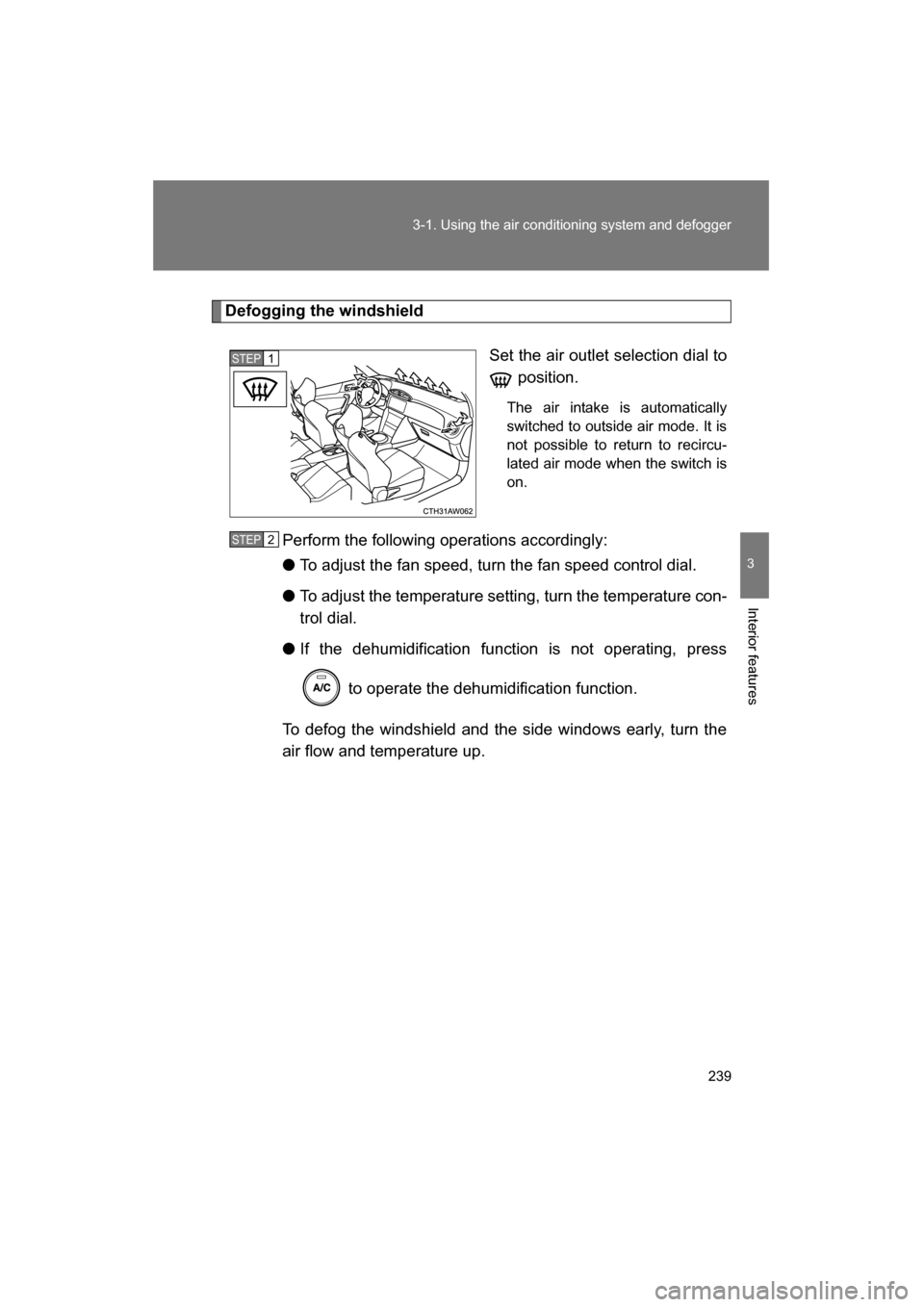

239
3-1. Using the air conditioning system and defogger
3
Interior features
Defogging the windshieldSet the air outlet selection dial to position.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch ison.
Perform the following operations accordingly: ● To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature con-
trol dial.
● If the dehumidification function is not operating, press
to operate the dehumidification function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.
STEP 1
STEP 2

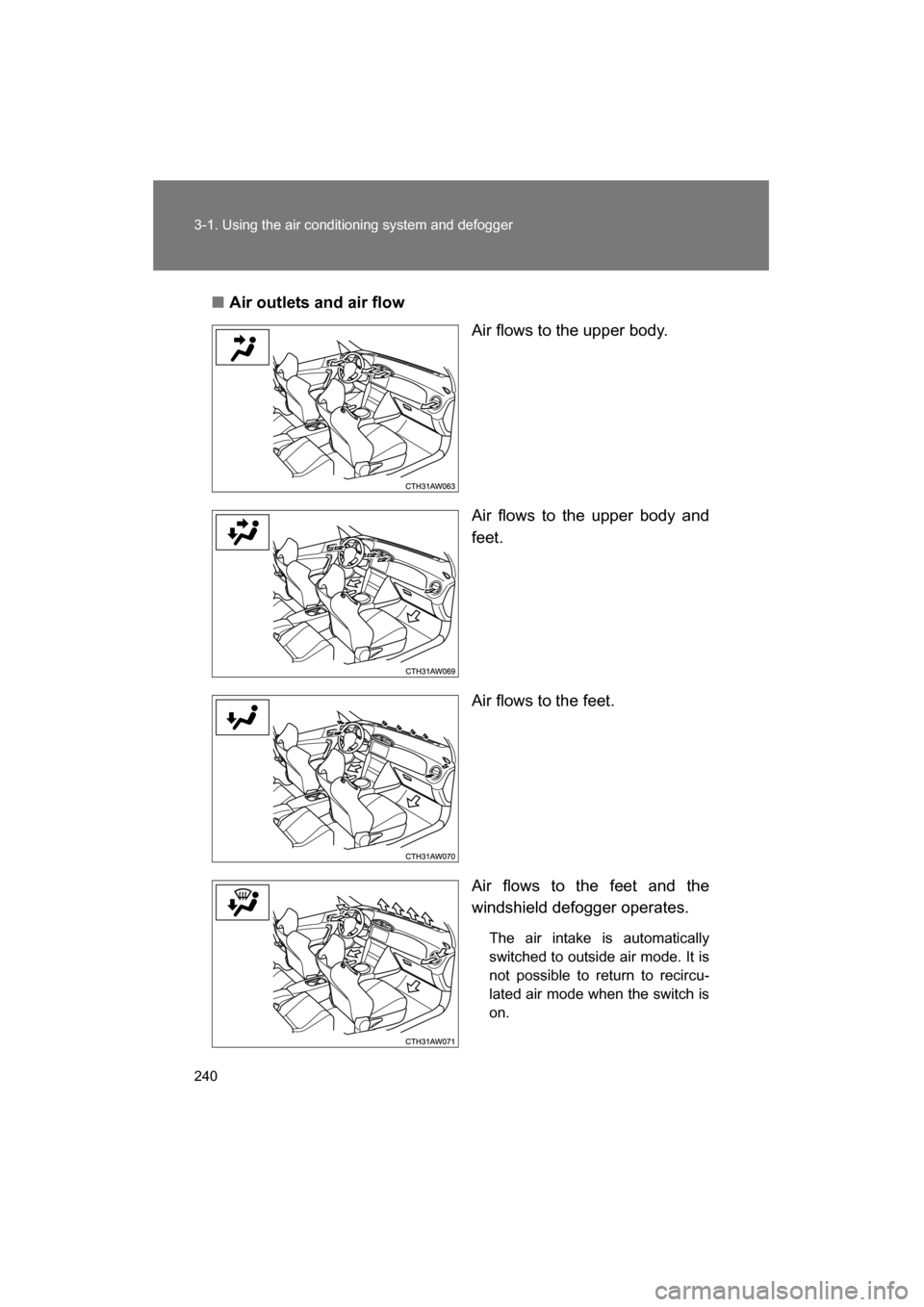

240
3-1. Using the air conditioning system and defogger
■Air outlets and air flowAir flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch ison.
