2015 Peugeot 208 ESP

126
208_en_Chap05_conduite_ed01-2015

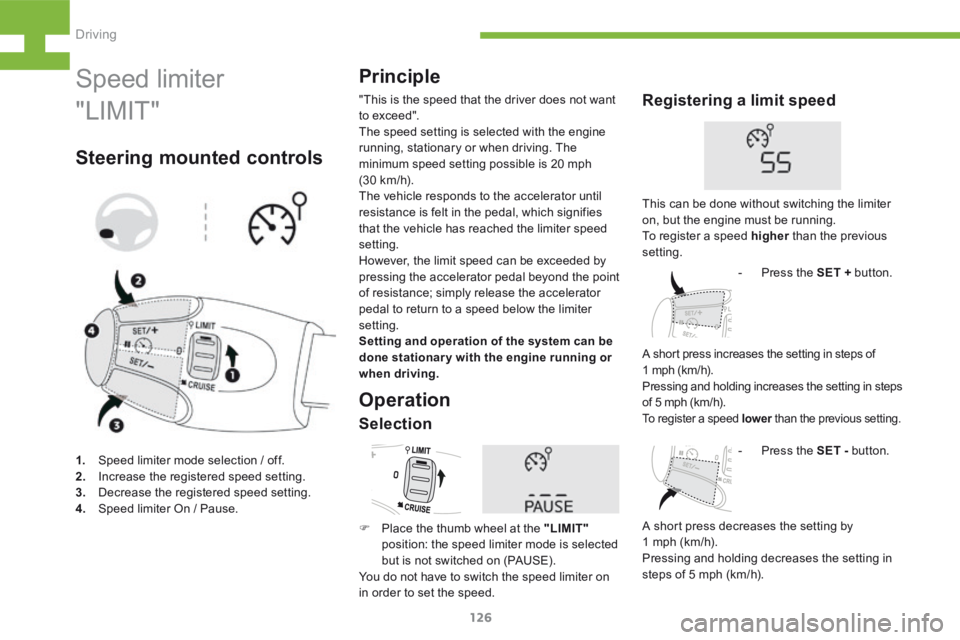

Speed limiter
"LIMIT"
Steering mounted controlsPrinciple
"This is the speed that the driver does not want
to exceed".
The speed setting is selected with the engine
running, stationary or when driving. The
minimum speed setting possible is 20 mph
(30
km/h).
The vehicle responds to the accelerator until
resistance is felt in the pedal, which signifies
that the vehicle has reached the limiter speed
setting.
However, the limit speed can be exceeded by
pressing the accelerator pedal beyond the point
of resistance; simply release the accelerator
pedal to return to a speed below the limiter
setting.
Setting and operation of the system can be
done stationar y with the engine running or
when driving .
Operation
F Place the thumb wheel at the "LIMIT"
position: the speed limiter mode is selected
but is not switched on (PAUSE).
You do not have to switch the speed limiter on
in order to set the speed.
Selection
1. Speed limiter mode selection / off.
2. Increase the registered speed setting.
3. Decrease the registered speed setting.
4. Speed limiter On / Pause.
Registering a limit speed
This can be done without switching the limiter
on, but the engine must be running.
To register a speed higher than the previous
setting.
- Press the SET + button.
A short press increases the setting in steps of
1 mph (km/h).
Pressing and holding increases the setting in steps
of 5 mph (km/h).
To register a speed lower than the previous setting.
- Press the SET - button.
A short press decreases the setting by
1 mph (km/h).
Pressing and holding decreases the setting in
steps of 5 mph (km/h).
Driving

144
208_en_Chap06_Feux-Signalisations_ed01-2015

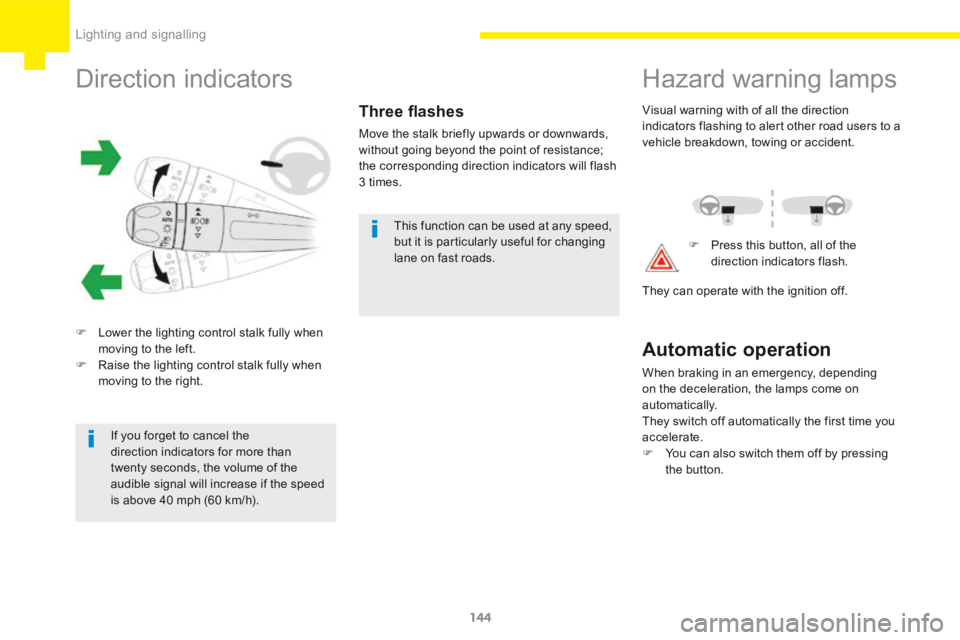

Direction indicators
F Lower the lighting control stalk fully when
moving to the left.
F Raise the lighting control stalk fully when
moving to the right.
Three flashes
Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash
3 times.
If you forget to cancel the
direction indicators for more than
twenty seconds, the volume of the
audible signal will increase if the speed
is above 40 mph (60 km/h). This function can be used at any speed,
but it is particularly useful for changing
lane on fast roads.
Hazard warning lamps
Automatic operation
When braking in an emergency, depending
on the deceleration, the lamps come on
automatically.
They switch off automatically the first time you
accelerate.
F
You can also switch them off by pressing
the button.F
Press this button, all of the
direction indicators flash.
Visual warning with of all the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
They can operate with the ignition off.
Lighting and signalling

146
208_en_Chap06_Feux-Signalisations_ed01-2015

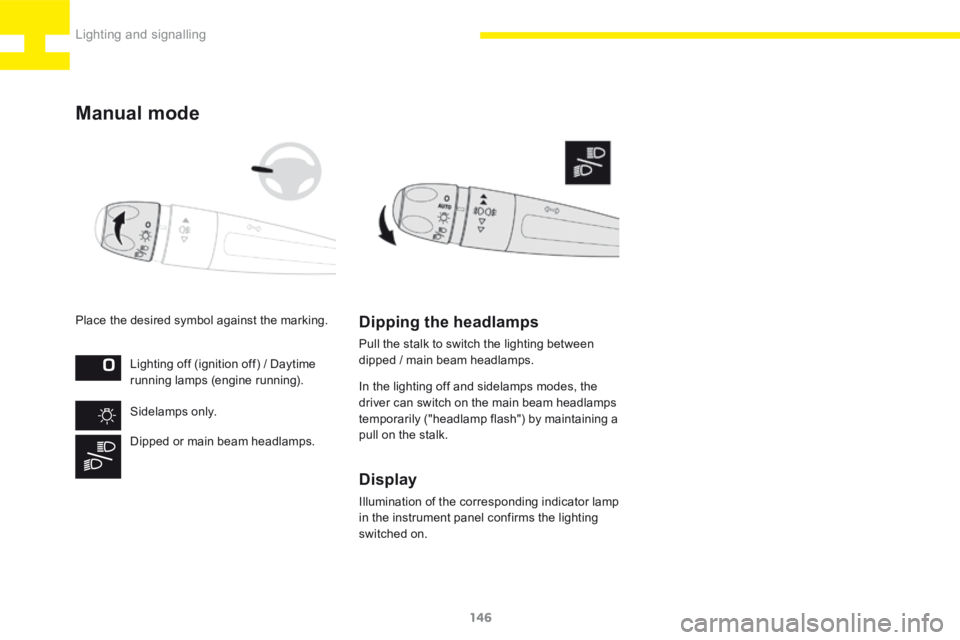

Manual mode
Lighting off (ignition off) / Daytime
running lamps (engine running).
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
Pull the stalk to switch the lighting between
dipped / main beam headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Display
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.
Place the desired symbol against the marking.
Lighting and signalling

148
208_en_Chap06_Feux-Signalisations_ed01-2015

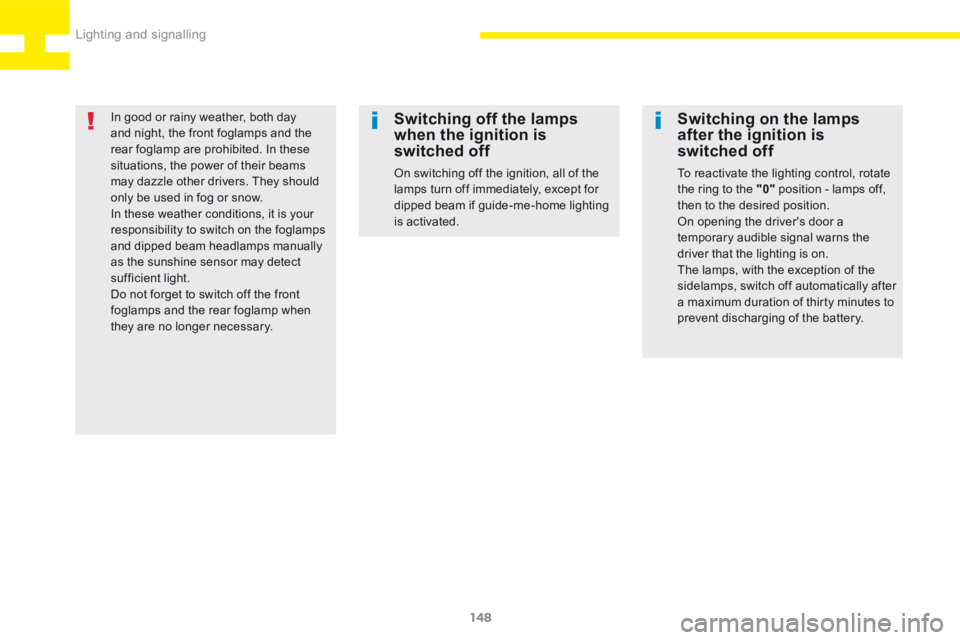

In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of thirty minutes to
prevent discharging of the battery.
Switching off the lamps
when the ignition is
switched off
On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.
Lighting and signalling

151
208_en_Chap06_Feux-Signalisations_ed01-2015

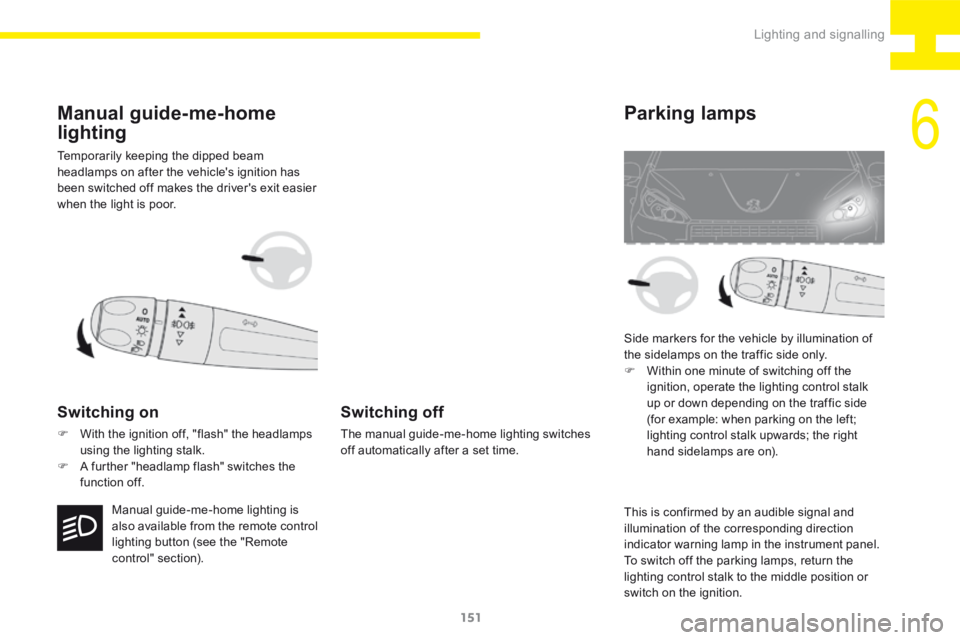

Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the driver's exit easier
when the light is poor.
Manual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F A further "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F Within one minute of switching off the
ignition, operate the lighting control stalk
up or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
Manual guide-me-home lighting is
also available from the remote control
lighting button (see the "Remote
control" section). This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.
6
Lighting and signalling

153
208_en_Chap06_Feux-Signalisations_ed01-2015

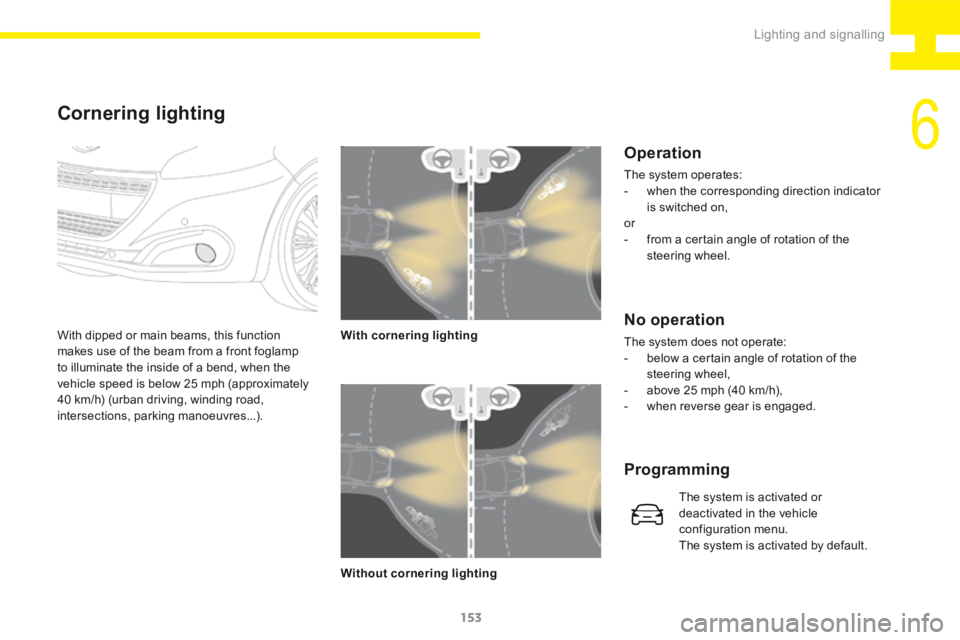

With dipped or main beams, this function
makes use of the beam from a front foglamp
to illuminate the inside of a bend, when the
vehicle speed is below 25 mph (approximately
40 km/h) (urban driving, winding road,
intersections, parking manoeuvres...).
Cornering lighting
With cornering lighting
Without cornering lighting
Operation
The system operates:
- when the corresponding direction indicator
is switched on,
or
- from a certain angle of rotation of the
steering wheel.
Programming
The system is activated or
deactivated in the vehicle
configuration menu.
The system is activated by default.
No operation
The system does not operate:
- below a certain angle of rotation of the
steering wheel,
- above 25 mph (40 km/h),
- when reverse gear is engaged.
6
Lighting and signalling

159
208_en_Chap06_Feux-Signalisations_ed01-2015
Changing reversing lamp and
direction indicator bulbs
These two bulbs are changed from inside the
boot:
F open the boot,
F remove the access grille from the
corresponding side trim panel,
F slacken and remove the nut,
F disconnect the lamp unit connector,
F unclip the lamp unit carefully extract it
pulling in line towards the outside, F
press the four tabs and remove the bulb
h o l d e r,
F turn the bulb a quarter of a turn and
change it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp.
Light emitting diodes-LEDs
For replacement, contact a PEUGEOT dealer
or qualified workshop.
6
Lighting and signalling

160
208_en_Chap06_Feux-Signalisations_ed01-2015

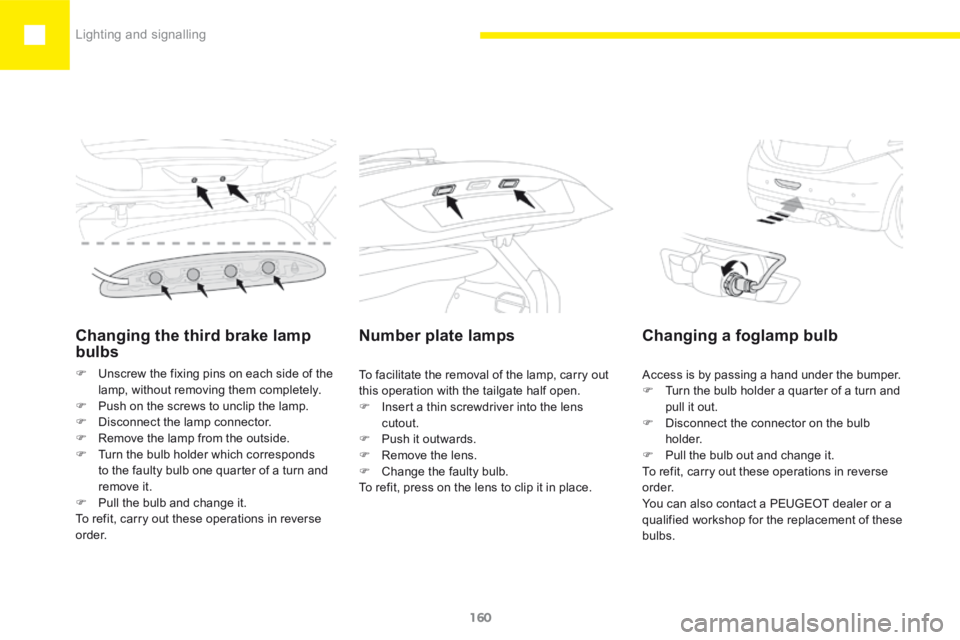

Changing the third brake lamp
bulbs
F Unscrew the fixing pins on each side of the
lamp, without removing them completely.
F Push on the screws to unclip the lamp.
F Disconnect the lamp connector.
F Remove the lamp from the outside.
F Turn the bulb holder which corresponds
to the faulty bulb one quarter of a turn and
remove it.
F Pull the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Number plate lamps
To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F Insert a thin screwdriver into the lens
cutout.
F Push it outwards.
F Remove the lens.
F Change the faulty bulb.
To refit, press on the lens to clip it in place. Access is by passing a hand under the bumper.
F
Turn the bulb holder a quarter of a turn and
pull it out.
F Disconnect the connector on the bulb
h o l d e r.
F Pull the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
You can also contact a PEUGEOT dealer or a
qualified workshop for the replacement of these
bulbs.
Changing a foglamp bulb
Lighting and signalling
