Resetting the trip odometer:
Press the change/reset button
3for more than
1 second to reset the currently displayed trip
odometer to zero.
Loose fuel cap warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage after the fuel cap has been tightened. For
additional information, refer to “Fuel-filler cap” in
the “Pre-driving checks and adjustments” section
of this manual.
Type A (if so equipped)
LPD2025
Type B (if so equipped)
LIC2836
2-6Instruments and controls

Check tire pressure warning message
(if so equipped)
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warning
light is illuminated and low tire pressure is de-
tected. Check and adjust the tire pressure to the
recommended COLD tire pressure shown on the
Tire and Loading Information label.
Type A:The CHECK TIRE PRES warning mes-
sage can be turned off using the reset button
A
on the meter, the low tire pressure warning light
will not be turned off. Type B:
The check tire pressure warning mes-
sage is displayed when the low tire pressure
warning light is illuminated and low tire pressure
is detected; the corresponding tire with low pres-
sure will appear blinking. Check and adjust the
tire pressure to the recommended COLD tire
pressure shown on the tire and Loading Informa-
tion label. TPMS Sensor ID Matching Process After
Tire Rotation (if so equipped)
Each TPMS sensor has a unique identification
code. Any time you rotate your vehicle’s tires or
replace one or more of the TPMS sensors, these
identification codes need to be matched to the
new tire/wheel position to make sure that the low
tire pressure display in the meter is correct. The
identification codes are matched to their posi-
tions using a TPMS diagnostic tool. See your
NISSAN dealer for service.
The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure.
Type A Only: The
CHECK TIRE PRES warning message is dis-
played each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. For additional information, refer to “Low
tire pressure warning light” in this section, “Tire
Pressure Monitoring System (TPMS)” in “Start-
ing and driving” and “Wheels and tires” in “Main-
tenance and do-it-yourself” section of this Own-
er’s Manual.
Type A (if so equipped)
LPD2128
Type B (if so equipped)
LIC2760
Instruments and controls2-7

TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) .
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
ENGINE COOLANT TEMPERATURE
GAUGE
NOTE:
The ignition switch must be placed in the
ON position for the gauge to give a reading.
The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature will vary
with the outside air temperature and driving con-
ditions.
Type A (if so equipped)
LIC2151
Type B (if so equipped)
LIC2761
Type A (if so equipped)
LIC2501
2-8Instruments and controls

CAUTION
If the gauge indicates a coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
the temperature. If the gauge is over the
normal range, stop the vehicle as soon as
safely possible. If the engine is over-
heated, continued operation of the vehicle
may seriously damage the engine. For ad-
ditional information, refer to “If your ve-
hicle overheats” in the “In case of emer-
gency” section for immediate action
required.
FUEL GAUGE
The gauge indicatesAtheapproximate fuel
level in the tank when the ignition switch is placed
in the ON position.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The low fuel warning light will turn on when the
amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge regis-
ters E (Empty) . The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.Type A (if so equipped)
LIC2287
Type B (if so equipped)
LIC2762
Instruments and controls2-9

CAUTION
●If the vehicle runs out of fuel, thecheck engine light may come on. Refuel
as soon as possible. After a few driving
trips, the
light should turn off. If
the light remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.
● For additional information, refer to
“Malfunction Indicator Light (MIL)” in
this section.
TRIP COMPUTER
Type A: When the ignition switch is placed in the
ON position, modes of the trip computer can be
selected by pushing the trip computer change
button
Aon the instrument panel located near
the speedometer.
The following modes can be selected in the dis-
play
B:
● Instant fuel consumption
● Average fuel consumption
● Distance to empty Type B:
When the ignition switch is placed in the
ON position, modes of the trip computer can be
selected by pushing the menu button
on
the steering wheel.
The following modes can be selected in the dis-
play
B:
● Instant fuel consumption
● Average fuel consumption
● Distance to empty
● Average speed
● Travel time
Type A (if so equipped)
LIC2138
Type B (if so equipped)
LIC2764
2-10Instruments and controls

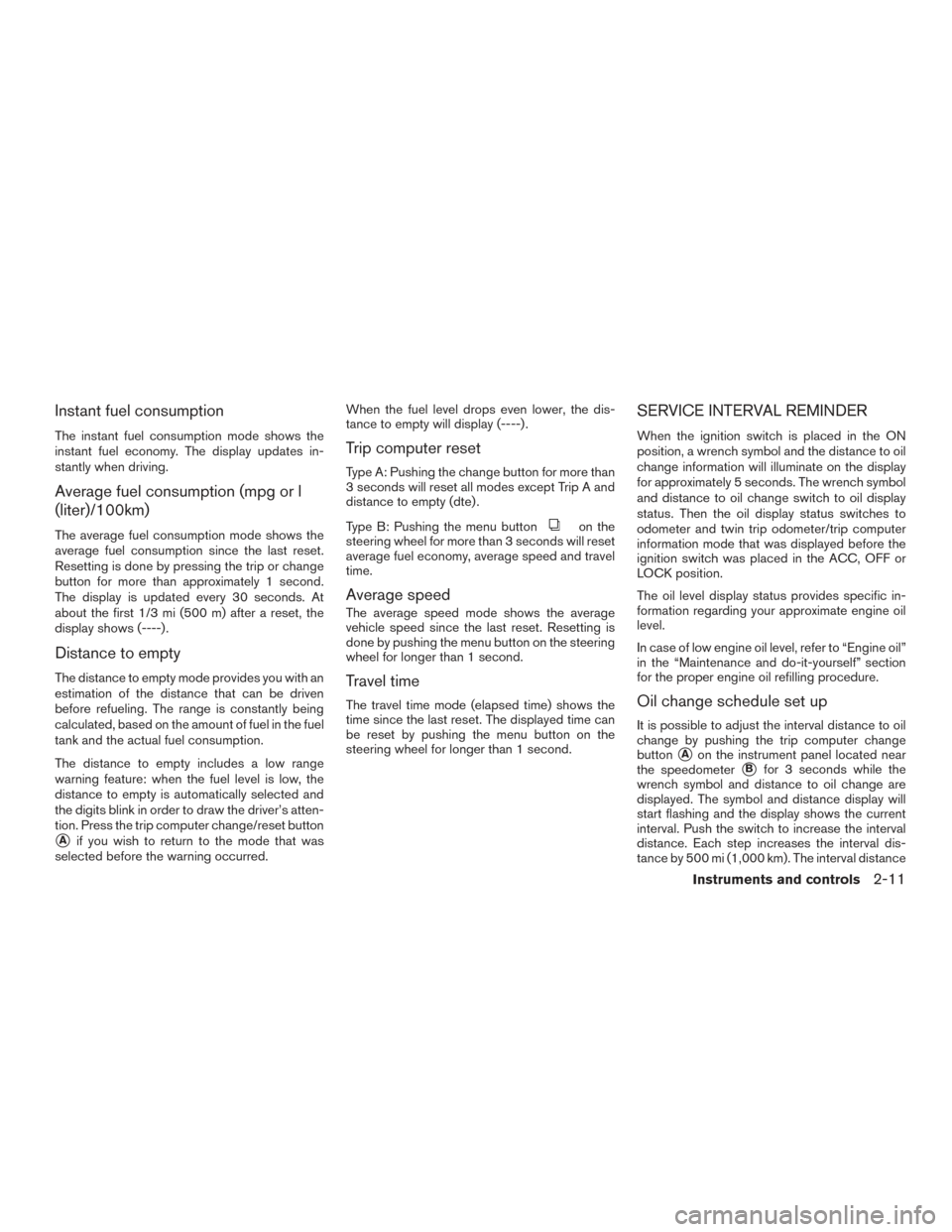

Instant fuel consumption
The instant fuel consumption mode shows the
instant fuel economy. The display updates in-
stantly when driving.
Average fuel consumption (mpg or l
(liter)/100km)
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the trip or change
button for more than approximately 1 second.
The display is updated every 30 seconds. At
about the first 1/3 mi (500 m) after a reset, the
display shows (----) .
Distance to empty
The distance to empty mode provides you with an
estimation of the distance that can be driven
before refueling. The range is constantly being
calculated, based on the amount of fuel in the fuel
tank and the actual fuel consumption.
The distance to empty includes a low range
warning feature: when the fuel level is low, the
distance to empty is automatically selected and
the digits blink in order to draw the driver’s atten-
tion. Press the trip computer change/reset button
Aif you wish to return to the mode that was
selected before the warning occurred. When the fuel level drops even lower, the dis-
tance to empty will display (----) .
Trip computer reset
Type A: Pushing the change button for more than
3 seconds will reset all modes except Trip A and
distance to empty (dte) .
Type B: Pushing the menu button
on the
steering wheel for more than 3 seconds will reset
average fuel economy, average speed and travel
time.
Average speed
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the menu button on the steering
wheel for longer than 1 second.
Travel time
The travel time mode (elapsed time) shows the
time since the last reset. The displayed time can
be reset by pushing the menu button on the
steering wheel for longer than 1 second.
SERVICE INTERVAL REMINDER
When the ignition switch is placed in the ON
position, a wrench symbol and the distance to oil
change information will illuminate on the display
for approximately 5 seconds. The wrench symbol
and distance to oil change switch to oil display
status. Then the oil display status switches to
odometer and twin trip odometer/trip computer
information mode that was displayed before the
ignition switch was placed in the ACC, OFF or
LOCK position.
The oil level display status provides specific in-
formation regarding your approximate engine oil
level.
In case of low engine oil level, refer to “Engine oil”
in the “Maintenance and do-it-yourself” section
for the proper engine oil refilling procedure.
Oil change schedule set up
It is possible to adjust the interval distance to oil
change by pushing the trip computer change
button
Aon the instrument panel located near
the speedometer
Bfor 3 seconds while the
wrench symbol and distance to oil change are
displayed. The symbol and distance display will
start flashing and the display shows the current
interval. Push the switch to increase the interval
distance. Each step increases the interval dis-
tance by 500 mi (1,000 km). The interval distance
Instruments and controls2-11

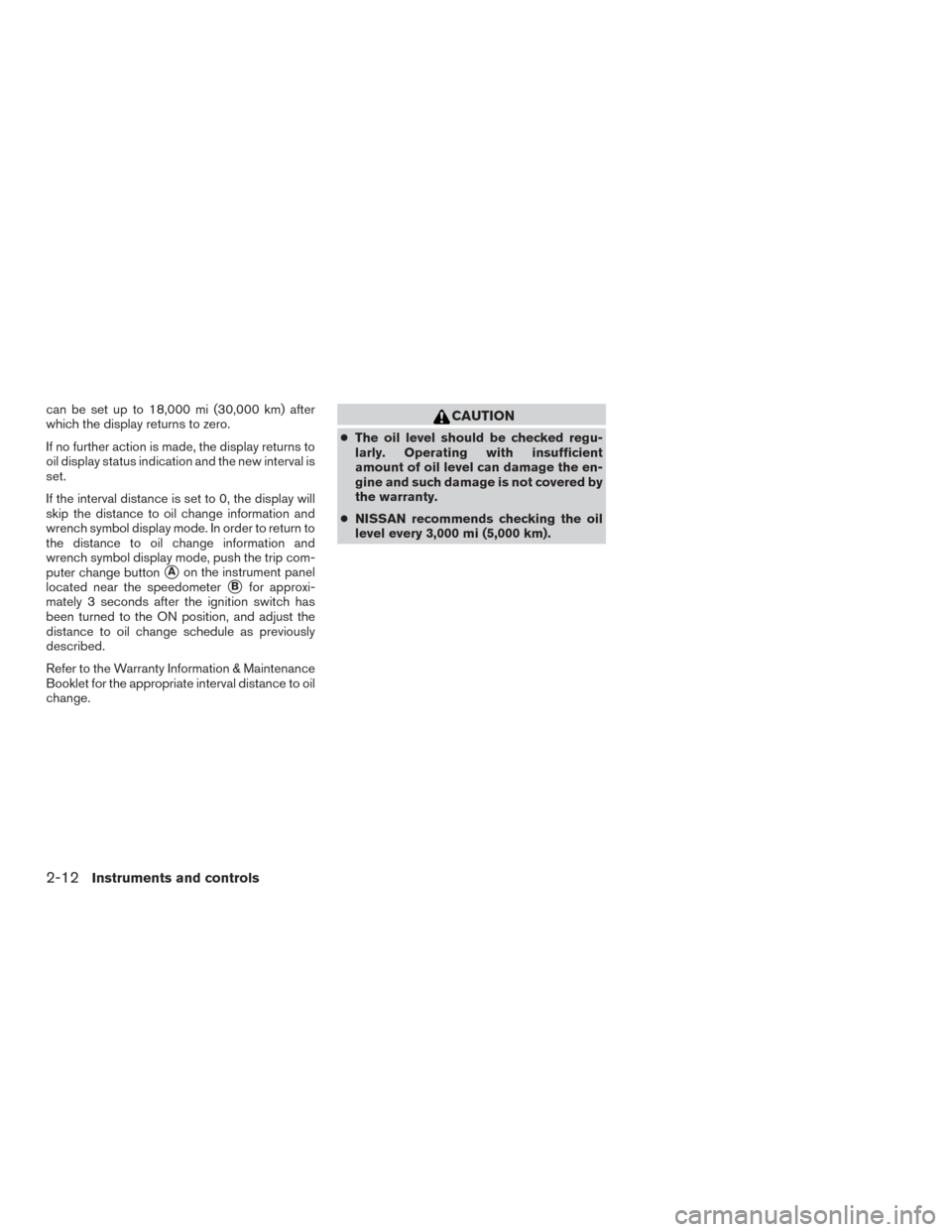

can be set up to 18,000 mi (30,000 km) after
which the display returns to zero.
If no further action is made, the display returns to
oil display status indication and the new interval is
set.
If the interval distance is set to 0, the display will
skip the distance to oil change information and
wrench symbol display mode. In order to return to
the distance to oil change information and
wrench symbol display mode, push the trip com-
puter change button
Aon the instrument panel
located near the speedometer
Bfor approxi-
mately 3 seconds after the ignition switch has
been turned to the ON position, and adjust the
distance to oil change schedule as previously
described.
Refer to the Warranty Information & Maintenance
Booklet for the appropriate interval distance to oil
change.
CAUTION
● The oil level should be checked regu-
larly. Operating with insufficient
amount of oil level can damage the en-
gine and such damage is not covered by
the warranty.
● NISSAN recommends checking the oil
level every 3,000 mi (5,000 km).
2-12Instruments and controls

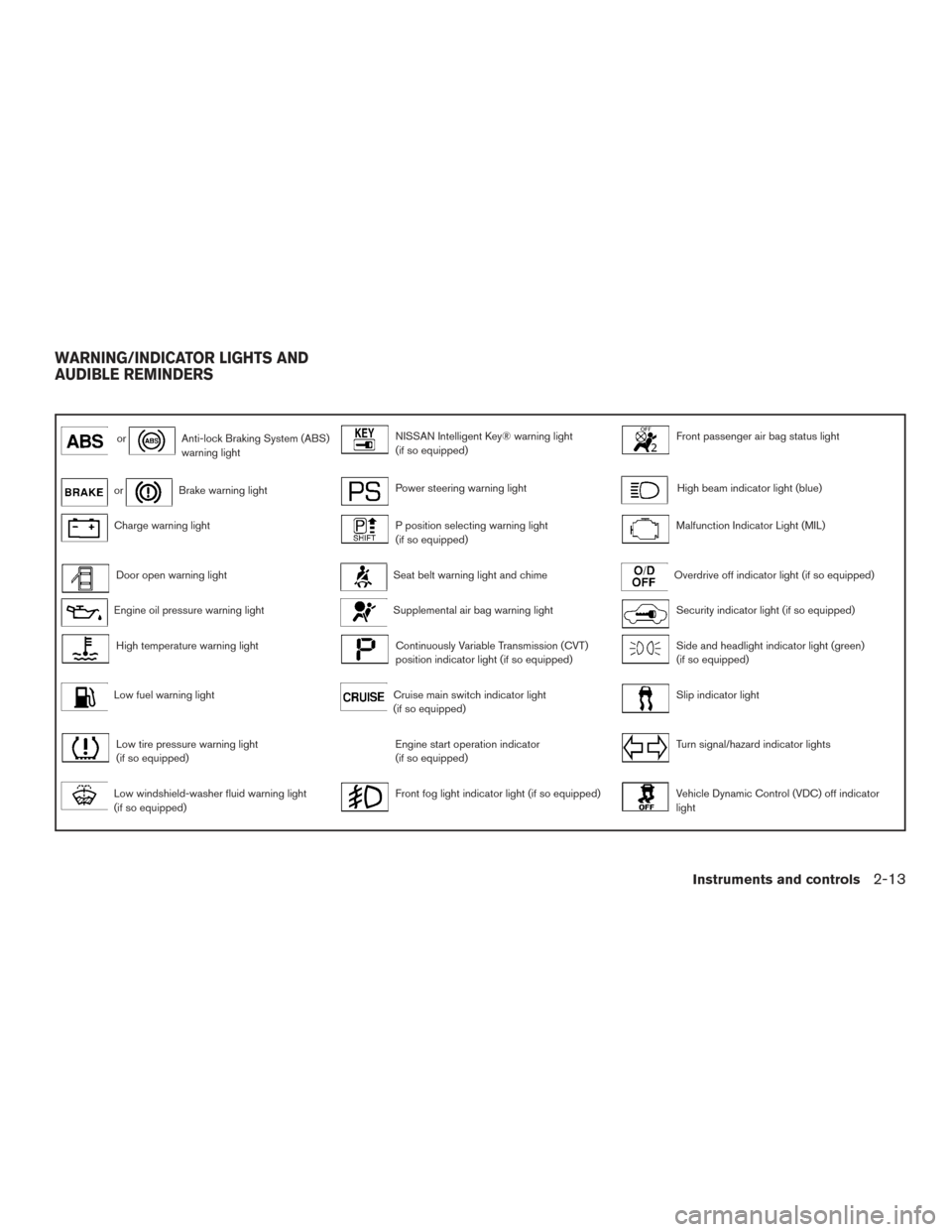

orAnti-lock Braking System (ABS)
warning lightNISSAN Intelligent Key® warning light
(if so equipped)Front passenger air bag status light
orBrake warning lightPower steering warning lightHigh beam indicator light (blue)
Charge warning lightP position selecting warning light
(if so equipped)Malfunction Indicator Light (MIL)
Door open warning lightSeat belt warning light and chimeOverdrive off indicator light (if so equipped)
Engine oil pressure warning lightSupplemental air bag warning lightSecurity indicator light (if so equipped)
High temperature warning lightContinuously Variable Transmission (CVT)
position indicator light (if so equipped)Side and headlight indicator light (green)
(if so equipped)
Low fuel warning lightCruise main switch indicator light
(if so equipped)Slip indicator light
Low tire pressure warning light
(if so equipped)Engine start operation indicator
(if so equipped)Turn signal/hazard indicator lights
Low windshield-washer fluid warning light
(if so equipped)Front fog light indicator light (if so equipped)Vehicle Dynamic Control (VDC) off indicator
light
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
