2015 NISSAN VERSA NOTE Owners Manual

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
1
while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning message
The LOOSE FUEL CAP warning message dis-
plays in the odometer when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. It may take a few driving trips for the
message to be displayed. To turn off the warning
message, perform the following:
1. Remove and install the fuel-filler cap as pre- viously described as soon as possible.
2. Tighten the fuel-filler cap until it clicks. 3. Press the loose fuel cap warning reset but-
tonAin the meter for about 1 second to
turn off the LOOSE FUEL CAP warning
message after tightening the fuel-filler cap.
LPD2172
Type A (if so equipped)
LPD2025
Type B (if so equipped)
LIC2767
3-28Pre-driving checks and adjustments

TILT OPERATION
Push the lock lever1down and adjust the
steering wheel up or down
2to the desired
position.
Pull the lock lever
1up to lock the steering
wheel in place.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.1To block glare from the front, swing down the
sun visor.
2To block glare from the side, remove the sun
visor from the center mount and swing the
visor to the side.
3Slide the extension sun visor in or out as
needed.
CAUTION
● Do not store the sun visor before return-
ing the extension to its original
position.
● Do not pull the extension sun visor forc-
ibly downward.
LPD0355
WPD0435
STEERING WHEEL SUN VISORS
Pre-driving checks and adjustments3-29

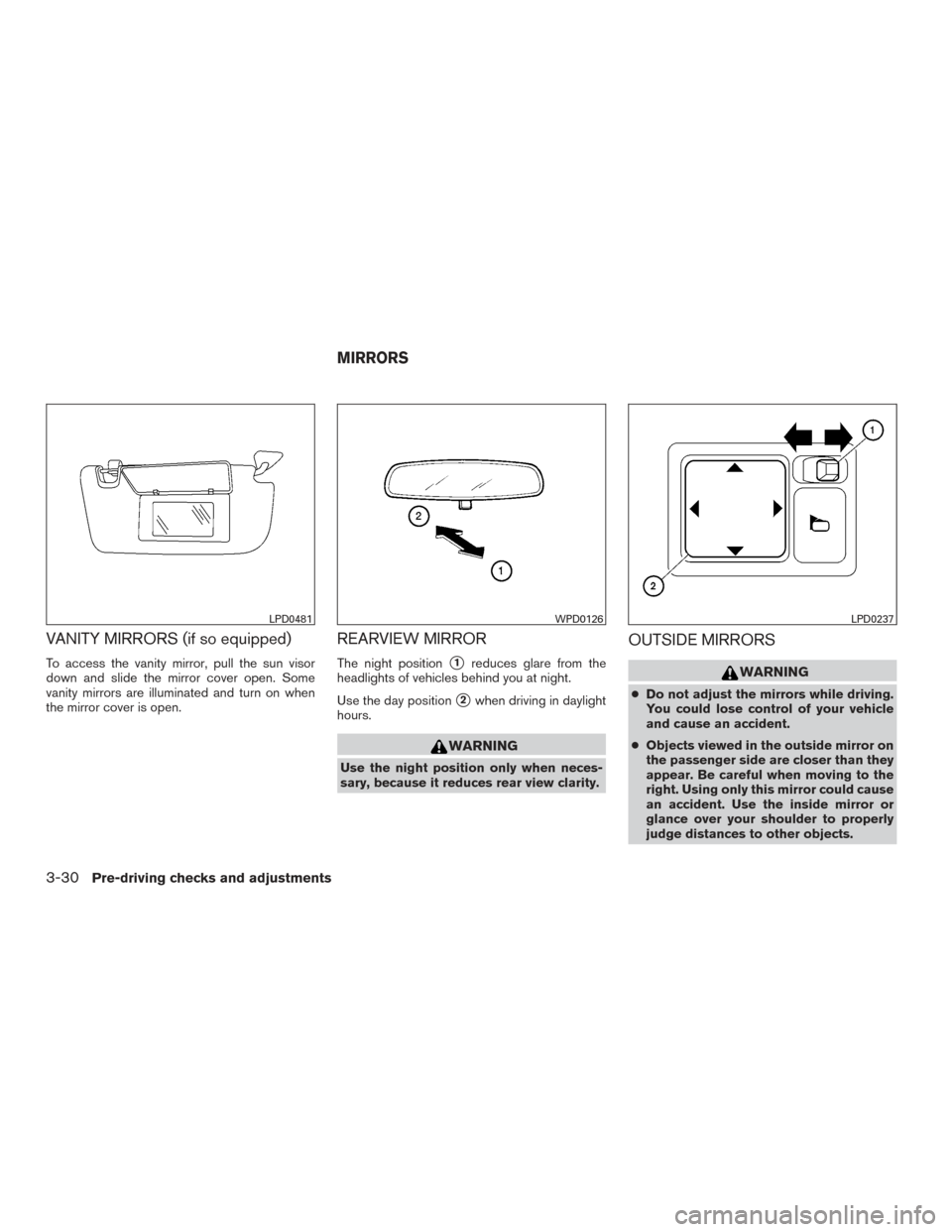

VANITY MIRRORS (if so equipped)
To access the vanity mirror, pull the sun visor
down and slide the mirror cover open. Some
vanity mirrors are illuminated and turn on when
the mirror cover is open.
REARVIEW MIRROR
The night position1reduces glare from the
headlights of vehicles behind you at night.
Use the day position
2when driving in daylight
hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.
OUTSIDE MIRRORS
WARNING
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
● Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
LPD0481WPD0126LPD0237
MIRRORS
3-30Pre-driving checks and adjustments

The outside mirror remote control only operates
when the ignition switch is placed in the ACC or
ON position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
Manual folding outside mirrors
Pull the outside mirror toward the door to fold it.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, refer to “Rear window and
outside mirror (if so equipped) defroster switch”
in the “Instruments and controls” section of this
manual.
LPD0259
Pre-driving checks and adjustments3-31

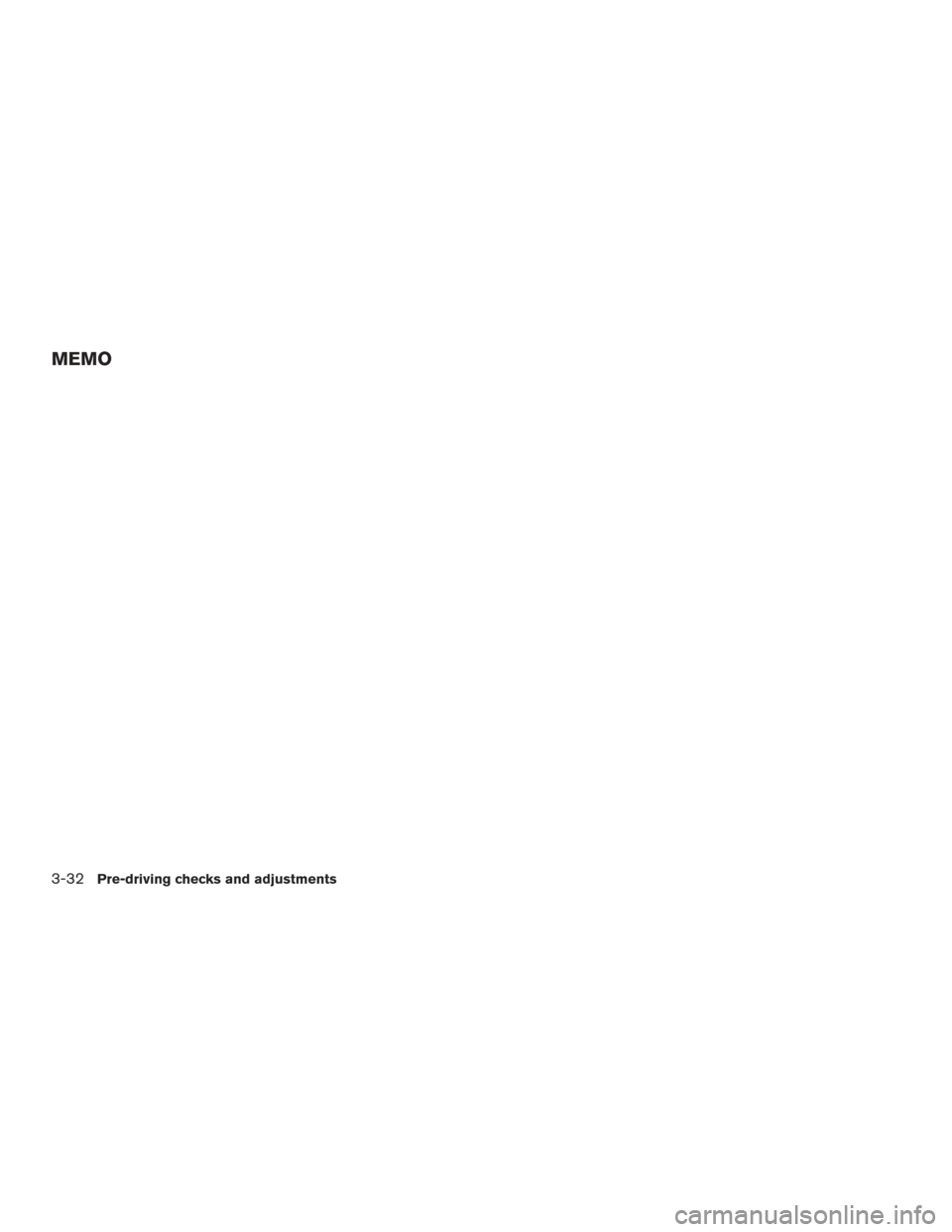

MEMO
3-32Pre-driving checks and adjustments

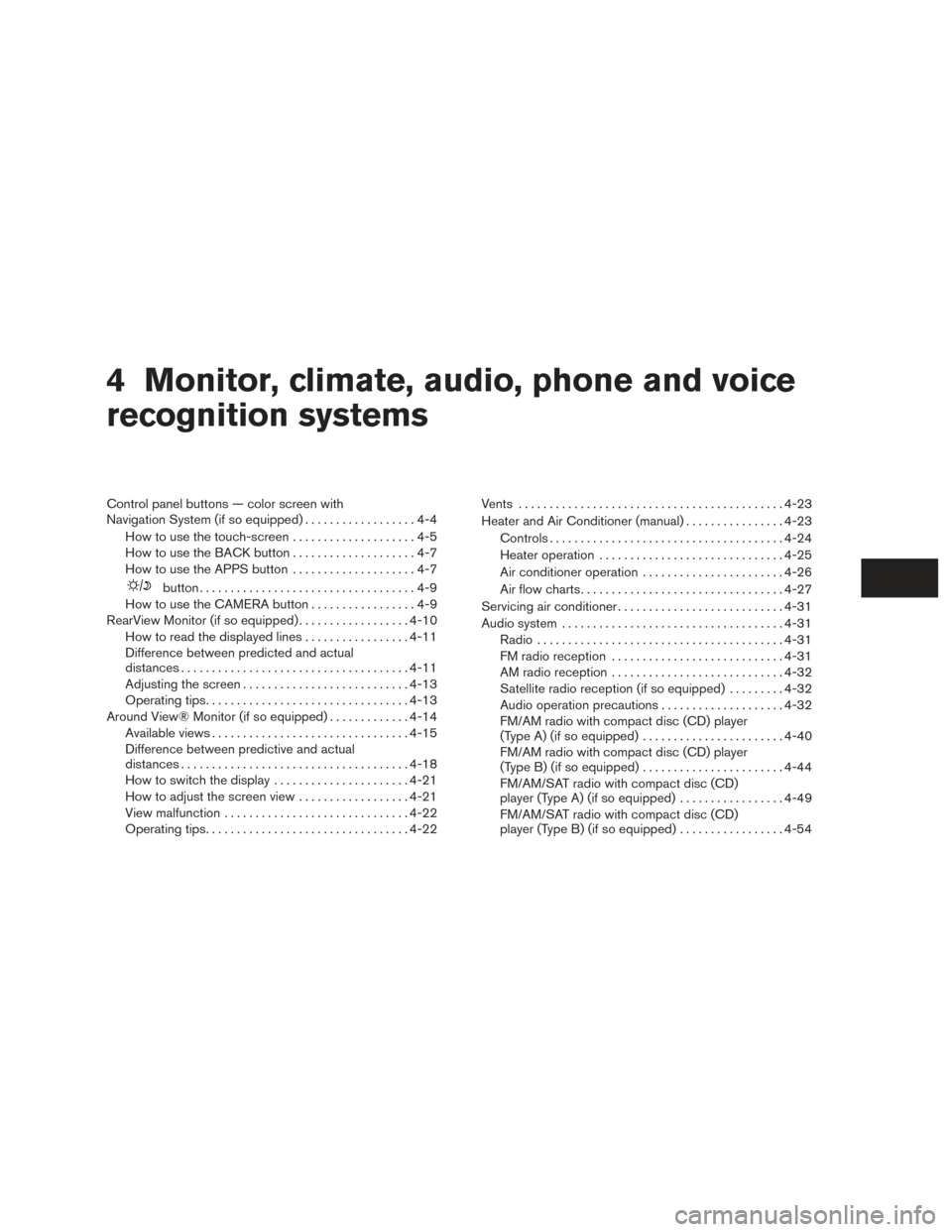

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-4
How to use the touch-screen . . ..................4-5
How to use the BACK button ....................4-7
How to use the APPS button ....................4-7
button...................................4-9
How to use the CAMERA button .................4-9
RearView Monitor (if so equipped) ..................4-10
How to read the displayed lines .................4-11
Difference between predicted and actual
distances ..................................... 4-11
Adjusting the screen ........................... 4-13
Operating tips ................................. 4-13
Around View® Monitor (if so equipped) .............4-14
Available views ................................ 4-15
Difference between predictive and actual
distances ..................................... 4-18
How to switch the display ......................4-21
How to adjust the screen view ..................4-21
View malfunction .............................. 4-22
Operating tips ................................. 4-22Vents
........................................... 4-23
Heater and Air Conditioner (manual) ................4-23
Controls ...................................... 4-24
Heater operation .............................. 4-25
Air conditioner operation .......................4-26
Air flow charts ................................. 4-27
Servicing air conditioner ........................... 4-31
Audio system .................................... 4-31
Radio ........................................ 4-31
FM radio reception ............................ 4-31
AM radio reception ............................ 4-32
Satellite radio reception (if so equipped) .........4-32
Audio operation precautions ....................4-32
FM/AM radio with compact disc (CD) player
(Type A) (if so equipped) .......................4-40
FM/AM radio with compact disc (CD) player
(Type B) (if so equipped) .......................4-44
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-49
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-54

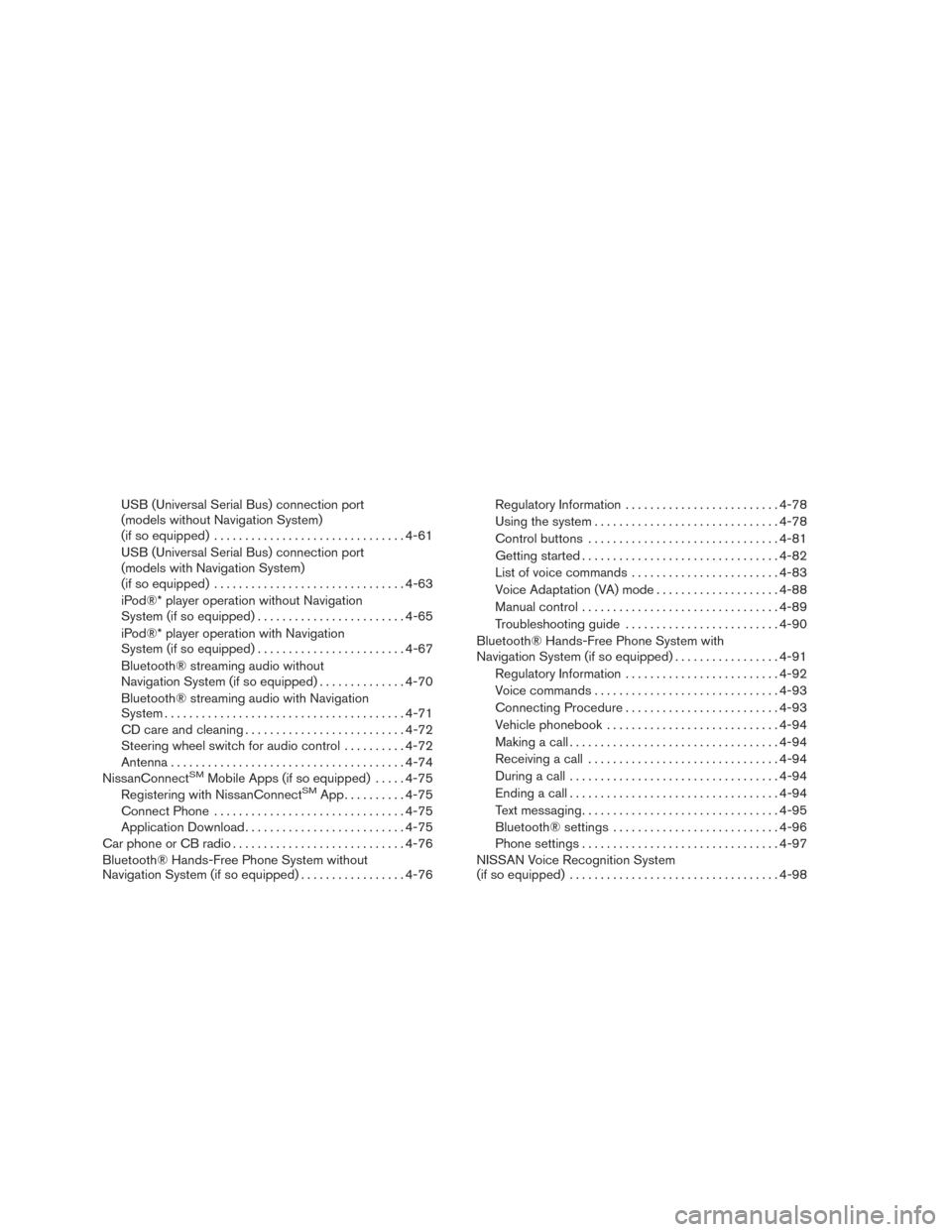

USB (Universal Serial Bus) connection port
(models without Navigation System)
(if so equipped)............................... 4-61
USB (Universal Serial Bus) connection port
(models with Navigation System)
(if so equipped) ............................... 4-63
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-65
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-67
Bluetooth® streaming audio without
Navigation System (if so equipped) ..............4-70
Bluetooth® streaming audio with Navigation
System ....................................... 4-71
CD care and cleaning .......................... 4-72
Steering wheel switch for audio control ..........4-72
Antenna ...................................... 4-74
NissanConnect
SMMobile Apps (if so equipped) .....4-75
Registering with NissanConnectSMApp.......... 4-75
Connect Phone ............................... 4-75
Application Download .......................... 4-75
Car phone or CB radio ............................ 4-76
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) .................4-76Regulatory Information
......................... 4-78
Using the system .............................. 4-78
Control buttons ............................... 4-81
Getting started ................................ 4-82
List of voice commands ........................ 4-83
Voice Adaptation (VA) mode ....................4-88
Manual control . . .............................. 4-89
Troubleshooting guide ......................... 4-90
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) .................4-91
Regulatory Information ......................... 4-92
Voice commands .............................. 4-93
Connecting Procedure ......................... 4-93
Vehicle phonebook ............................ 4-94
Making a call . ................................. 4-94
Receiving a call ............................... 4-94
During a call .................................. 4-94
Ending a call .................................. 4-94
Text messaging. . .............................. 4-95
Bluetooth® settings ........................... 4-96
Phone settings ................................ 4-97

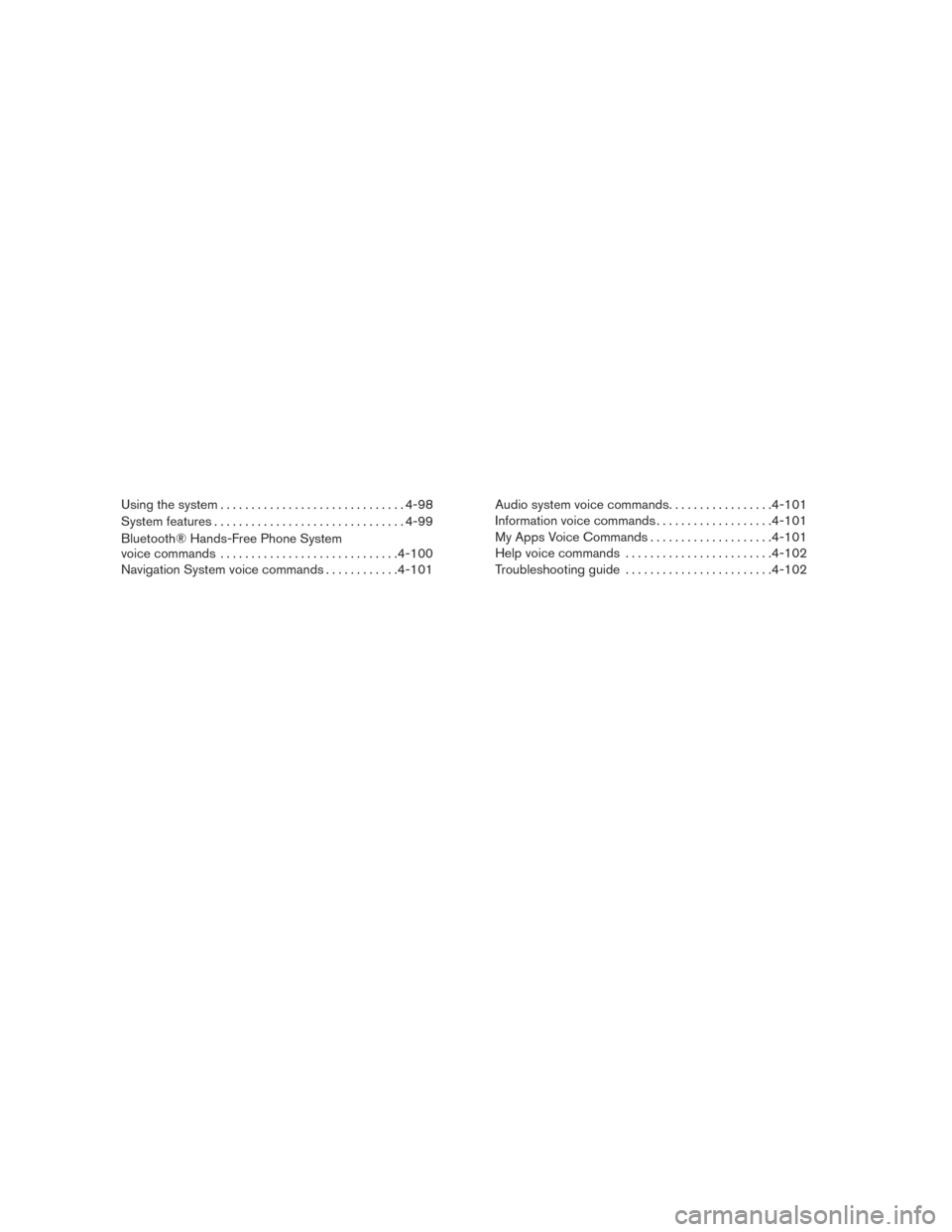

NISSAN Voice Recognition System
(if so equipped) .................................. 4-98

Using the system.............................. 4-98
System features ............................... 4-99
Bluetooth® Hands-Free Phone System
voice commands ............................. 4-100
Navigation System voice commands ............4-101 Audio system voice commands
.................4-101
Information voice commands ...................4-101
My Apps Voice Commands ....................4-101
Help voice commands ........................ 4-102
Troubleshooting guide ........................ 4-102
