2015 NISSAN JUKE ECO mode


> (GLW   0RGHO )'@
Clock TimeSetting
GUID-281 2E6D3-793 3-4DFF-89C0 -F87C59706668
NO TE:
Clock TimeSetting isused fordisplaying
the ECO information. SeeªEco informa-
tionº (P.2-27)
.
SIC4558
1. Press theDrive Mode Select button.
2. Press theSETUP button.
3. Turn theSelection dialtoªClock Time
Settingº ,then press theENTER
button.
SIC4559
4. Turn theSelection dialtoselect theday of
the week, thenpress theENTER buttonto
apply theselection.
5. Turn theSelection dialtoselect thehour and
AM orPM, then press theENTER buttonto
apply theselection.
6. Turn theSelection dialtoselect theminutes,
then press theENTER buttontoapply the
selection.
Instrume ntsand controls
2-23
&RQGLWLRQ


> (GLW   0RGHO )'@
JVI0324X

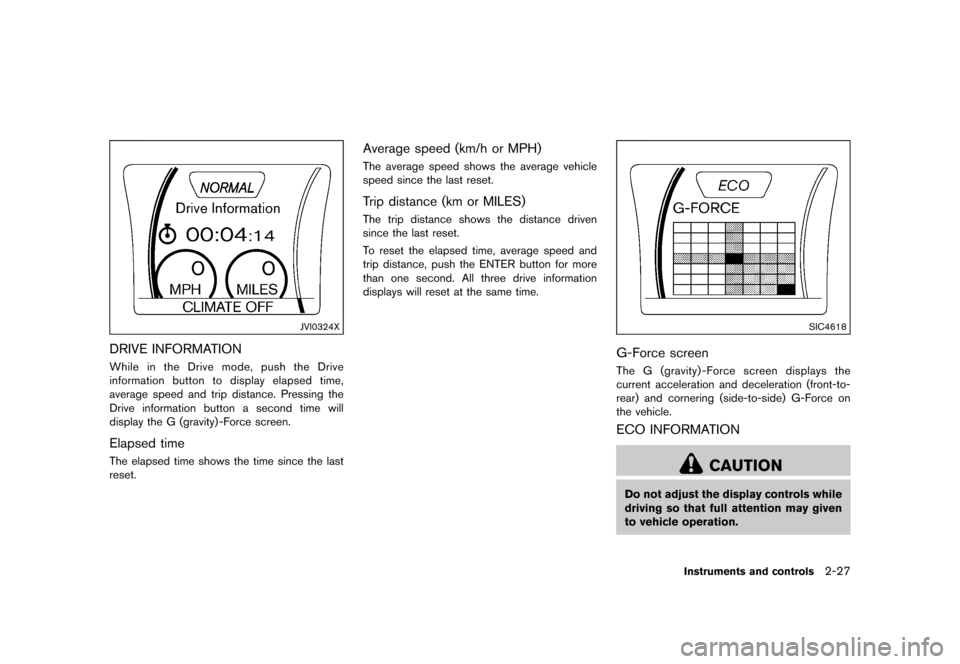

DRIVE INFORMA TION
GUID-44 3C1D2D-7D 0F-41E4-987B -D7415D0970E8
While inthe Drive mode, pushtheDrive
information buttontodisplay elapsed time,
average speedandtripdistance. Pressingthe
Drive information buttonasecond timewill
display theG(gravity) -Forcescreen.
Elapsed time
GUID-55BB 1392-875D-4CF0-9E85 -7CCFF5D0F10E
The elapsed timeshows thetime since thelast
reset.
Average speed(km/horMPH)
GUID-9C3 C1498-7E0 6-42C4-96D5 -12BCDDAA68EB
The average speedshows theaverage vehicle
speed sincethelast reset.
T rip distance (kmorMILES)
GUID-FE 7A52DC-0 3FE-40C7-8 350-CD409A5 F214F
The tripdistance showsthedistance driven
since thelast reset.
T o reset theelapsed time,average speedand
trip distance, pushtheENTER buttonformore
than onesecond. Allthree driveinformation
displays willreset atthe same
time.
SIC4618
G-Force screen
GUID-7CA54 F31-AFA0-446D -97A9-40A1 CD8D276A
The G(gravity) -Forcescreen displays the
current acceleration anddeceleration (front-to-
rear) andcornering (side-to-side) G-Forceon
the vehicle.
ECO INFORMA TION
GUID-FF86 F9FC-E590-4E56-85D 1-34E86F1F19FD
CAUTION
Do not adjust thedisplay controls while
driving sothat fullattention maygiven
to vehicle operation.
Instrume ntsand controls
2-27
&RQGLWLRQ


> (GLW   0RGHO )'@
2-28
Instrument sand controls

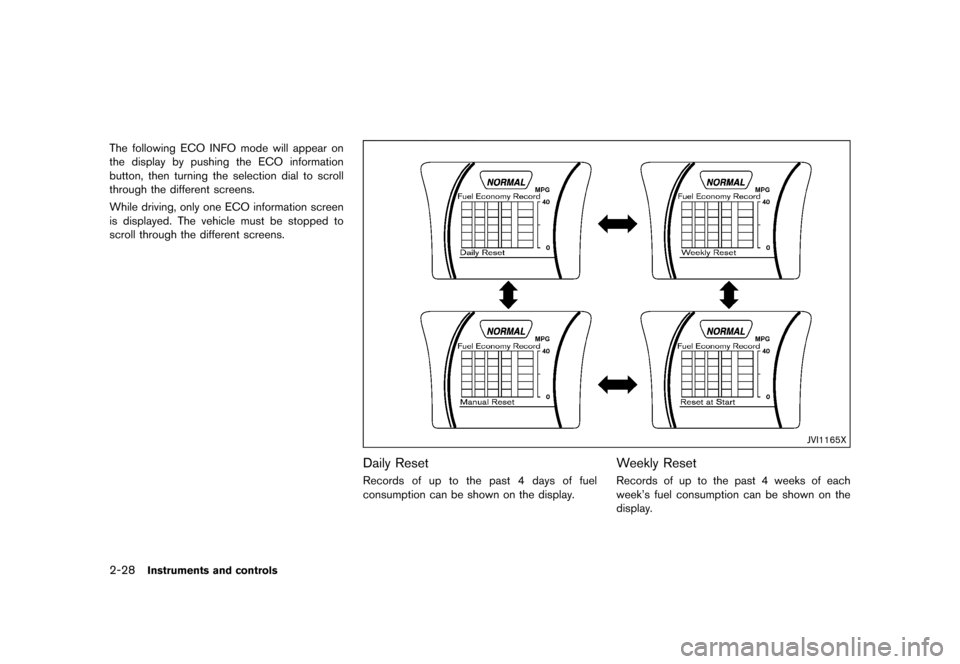

The following ECOINFO mode willappear on
the display bypushing theECO information
button, thenturning theselection dialtoscroll
through thedifferent screens.
While driving, onlyoneECO information screen
is displayed. Thevehicle mustbestopped to
scroll through thedifferent
screens.
JVI1165X
Daily Reset
GUID-9E85 2481-4855-4C98-AD8 C-A7AF08E 10E28
Records ofup tothe past 4days offuel
consumption canbeshown onthe display .
W eekly Reset
GUID-EB7 B5C4A-19C 8-433E-AFD3-A165E5 C4C2E8
Records ofup tothe past 4weeks ofeach
week's fuelconsumption canbeshown onthe
display .
&RQGLWLRQ


> (GLW   0RGHO )'@
SIC3664
T ype A(if so equipped)
JVI1010X
T ype B(if so equipped)
The windshield wiperandwasher operates
when theignition switchisin the ON position.
Push thelever down tooperate thewiper atthe
following speed:
*
1
Intermittent Ðintermittent operationcanbe
adjusted byturning theknob toward
*
A
(Slower) or
*
B
(Faster) .
*
2
Low Ðcontinuous lowspeed operation
*
3
High Ðcontinuous highspeed operation
Push thelever up
*
4
to have onesweep
operation ofthe wiper.
Pull thelever toward you
*
5
to operate the
washer. Thenthewiper willalso operate several
times.
Pulling upthe wiper arm:
The windshield wipersmustbeinthe service
position inorder toreplace thewiper blades.
T o move thewiper blades tothe service position,
follow thisprocedure:
. When theignition switchisin the ªONº
position orwithin 60seconds ofplacing the
ignition switchtothe ªOFFº position, liftthe
lever up
*
4
two times inless than 0.5
seconds. Thewindshield wiperswillmove to
the service position automatically ,and the
wiper blades cannow bereplaced. To
replace thewiper blades, seeªWindshield
wiper bladesº (P.8-18) . T
o move thewiper blades backtothe original
position:
. Liftthe lever up
*
4
or push thelever down
to operate atany wiper speed.
CAUTION
. This function canbeoperated even
if the ignition switchisin the ªONº
position. However, toprevent an
accident ordamage whenpulling
up the wiper arm,besure toobserve
the following precautions.
Ð Make suretheshift lever isin
the P(Park) position (Continu-
ously Variable Transmission
models) .
Ð Make suretheshift lever isin
the N(Neutral) position,withthe
parking brakefullyapplied
(Manual Transmission models).
Ð Never allowthepassengers to
operate thewindshield wiper
switch inadvertently.
. Donot operate thewindshield wiper
while thewiper armispulled up.The
wiper armmay bedamaged.
Instrume ntsand controls
2-33
&RQGLWLRQ


> (GLW   0RGHO )'@
2-36
Instrument sand controls
tion. Itis generally desirable nottoturn
off the headlights forshort intervals
(for example, whenthevehicle stopsat
a traffic signal) .
. Ifthe xenon headlight bulbisclose to
burning out,thebrightness willdrasti-
cally decrease, thelight willstart
blinking, orthe color ofthe light will
become reddish. Ifone ormore ofthe
above signsappear, contactaNISSAN
dealer.
SIC3668
HEADLIGH TSWIT CH
GUID-78 F7386F-88AF- 48CA-8EC4-39D87DBF EDF9
Lighting
GUID-C7E4F4 F1-DC4D-4024-8FF6-AC24A3D2B1F5
*
1
T urn theswitch tothe
position:
The front parking, sidemarker, tail,license plate,
instrument lightswillcome on.However, the
daytime runninglight(forNISMO modelsand
Canada) willturn off.
*
2
T urn theswitch tothe
position:
Headlights willcome onand allthe other lights
remain on.However, thedaytime runninglight
(for NISMO modelsandCanada) willturn
off.
SIC3669
Autolight system(ifso equipped)
GUID-2F 769165-63 29-45F4-95D B-2F94DB2FE66C
The autolight systemallowstheheadlights tobe
set sothey turnonand offautomatically .
T o set the autolight system:
1. Make suretheheadlight switchisin the
AUT Oposition
*
1
.
2. Place theignition switchinthe ON position.
3. The autolight systemautomatically turnsthe
headlights onand off.
T o turn theautolight systemoff,turn theswitch
to the OFF ,
or
position.
The autolight systemcanturn onthe headlights
automatically whenitis dark andturn offthe
&RQGLWLRQ


> (GLW   0RGHO )'@
headlights whenitis light.
For USmodels (ifso equipped): Theheadlights
will also beturned onautomatically attwilight or
in rainy weather (whenthewindshield wiperis
operated continuously) .
If the ignition switchisplaced inthe OFF
position andoneofthe doors isopened andthis
condition iscontinued, theheadlights remainon
for 5
minutes.
SAA1232
Be sure nottoput anything ontop ofthe
photo sensor
*
1
located onthe top ofthe
instrument panel.Thephoto sensor con-
trols theautolight ;if it is covered, the
photo sensor reactsasifitis dark andthe
headlights willilluminate.
Automatic headlights offdelay
GUID-CFAAEF09-71A1-4057 -9F7B-96D46980C786
Y ou can keep theheadlights onfor upto45
seconds afteryouplace theignition switchinthe
OFF position andopen anydoor thenclose all
the
doors.
SIC3670
Headlight beamselect
GUID-65 D36B20-DA E3-4840-AD1 0-0068CB054884
*
1
T o select thelow beam, putthelever inthe
neutral position asshown.
*
2
T o select thehigh beam, pushthelever forward
while theswitch isin the
position. Pullit
back toselect thelow beam.
*
3
Pulling thelever toward youwillflash the
headlight highbeam evenwhen theheadlight
switch isin the OFF position.
Instrume ntsand controls
2-37
&RQGLWLRQ


> (GLW   0RGHO )'@
TROUBLESH OOTING GUIDE
GUID-FD 003181-72 3A-472E-84F 6-40154676082B
Symptom Possible cause Action
totake
When pushing theignition switch
to stop theengine The
Pposition selecting warninglightinthe
meter illuminates andtheinside warning chime
sounds continuously (Continuously Variable
T ransmission models). The
shift lever isnot inthe P(Park)
position. Shift
theshift lever tothe P(Park) position.
When shifting theshift lever tothe
P (Park) position. The
inside warning chimesounds continuously
(Continuously Variable Transmission models).The
ignition switchisin the ACC orON
position. Push
theignition switchtothe OFF posi-
tion.
When opening thedriver's door
to get outofthe vehicle The
inside warning chimesounds continuously .The
ignition switchisin the ACC
position. Push
theignition switchtothe OFF posi-
tion.
When closing thedoor afterget-
ting outofthe vehicle The
Intelligent Key system warning lightinthe
meter blinks inyellow ,and theoutside chime
sounds 3times andtheinside warning chime
sounds forafew seconds. The
ignition switchisin the ACC orON
position. Push
theignition switchtothe OFF posi-
tion.
The Pposition selecting warninglightinthe
meter illuminates andtheoutside chime
sounds continuously (Continuously Variable
T ransmission models). The
ignition switchisin the ACC orOFF
position andtheshift lever isnot inthe P
(Park) position. Move
theshift lever tothe P(Park) position
and push theignition switchtothe OFF
position.
When closing thedoor withthe
inside lockknob turned toLOCK The
outside chimesounds forafew seconds
and allthe doors unlock. The
Intelligent Key isinside thevehicle. Carry
theIntelligent Key with you.
When pushing therequest switch
or the LOCK
button onthe
Intelligent Key tolock thedoor The
outside chimesounds forafew seconds. The
Intelligent Key isinside thevehicle. Carry
theIntelligent Key with you.
A door isnot closed securely . Close
thedoor securely .
When pushing theignition switch
to start theengine The
Intelligent Key system warning lightinthe
meter blinks ingreen. The
battery charge islow . Replace
thebattery withanew one. (See
ªIntelligent Key battery replacementº (P.8-
23) .)
The Intelligent Key system warning lightinthe
meter blinks inyellow andtheinside warning
chime sounds forafew seconds. The
Intelligent Key isnot inthe vehicle. Carry
theIntelligent Key with you.
When pushing theignition switch The
Intelligent Key system warning lightinthe
meter illuminates inyellow . It
warns ofamalfunction withthe
Intelligent Key system. Contact
aNISSAN dealer.
Pre-d riving checks andadjustments
3-11
&RQGLWLRQ


> (GLW   0RGHO )'@

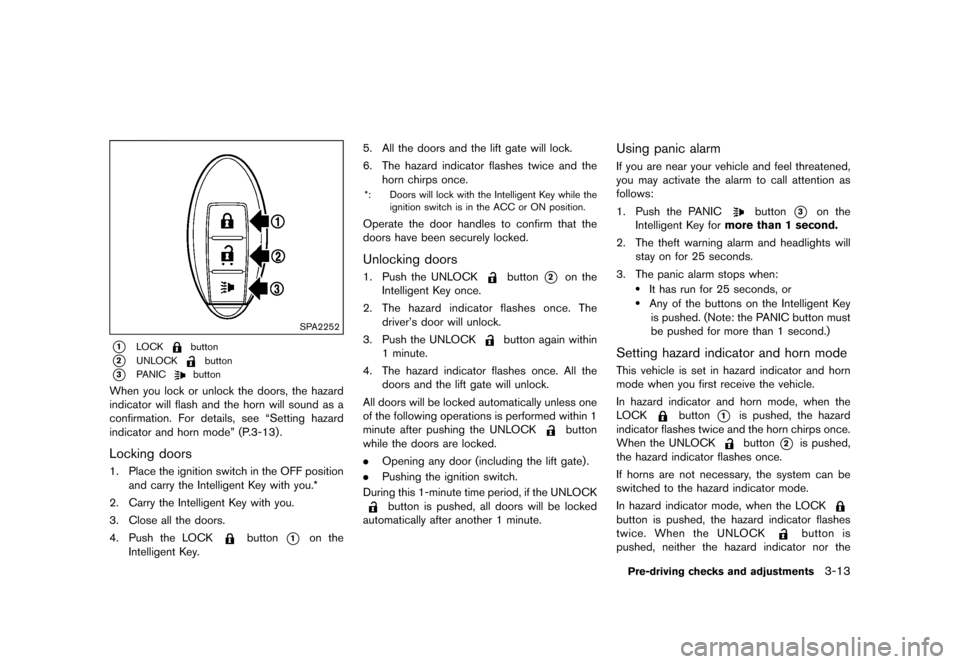

SP A2252
*
1
L OCK
button
*
2
UNL OCK
button
*
3
P ANIC
button
When youlock orunlock thedoors, thehazard
indicator willflash andthehorn willsound asa
confirmation. Fordetails, seeªSetting hazard
indicator andhorn modeº (P.3-13) .
Locking doors
GUID-D5 262080-ABD 1-4D76-9C95-01FC9F73DFE8
1. Place theignition switchinthe OFF position
and carry theIntelligent Key with you.*
2. Carry theIntelligent Key with you.
3. Close allthe doors.
4. Push theLOCK
button
*
1
on the
Intelligent Key . 5.
Allthe doors andtheliftgate willlock.
6. The hazard indicator flashestwiceandthe
horn chirps once.
*: Doors willlock with theIntelligent Key while the
ignition switchisin the ACC orON position.
Operate thedoor handles toconfirm thatthe
doors havebeen securely locked.
Unlocking doors
GUID-A 93EF8B5-C 1CC-498F-9 1E8-A405D4 27718F
1. Push theUNL OCK
button
*
2
on the
Intelligent Key once.
2. The hazard indicator flashesonce.The
driver's doorwillunlock.
3. Push theUNL OCK
button againwithin
1 minute.
4. The hazard indicator flashesonce.Allthe
doors andtheliftgate willunlock.
All doors willbelocked automatically unlessone
of the following operations isperformed within1
minute afterpushing theUNL OCK
button
while thedoors arelocked.
. Opening anydoor (including theliftgate) .
. Pushing theignition switch.
During this1-minute timeperiod, ifthe UNL OCK
button ispushed, alldoors willbelocked
automatically afteranother 1minute.
Using panicalarm
GUID-51 3ECE9A-40 D5-44E1-AED9-89539 DD3CB29
If you arenear yourvehicle andfeelthreatened,
you may activate thealarm tocall attention as
follows:
1. Push thePANIC
button
*
3
on the
Intelligent Key for more than1second.
2. The theft warning alarmandheadlights will
stay onfor 25 seconds.
3. The panic alarmstops when:
.
It has runfor25 seconds, or
.
Any ofthe buttons onthe Intelligent Key
is pushed. (Note:thePANIC button must
be pushed formore than1second.)
Setting hazardindicator andhorn mode
GUID-3F B89421-3312 -403E-A809-6994604156A 8
This vehicle isset inhazard indicator andhorn
mode whenyoufirst receive thevehicle.
In hazard indicator andhorn mode, whenthe
L OCK
button
*
1
is pushed, thehazard
indicator flashestwiceandthehorn chirps once.
When theUNL OCK
button
*
2
is pushed,
the hazard indicator flashesonce.
If horns arenot necessary ,the system canbe
switched tothe hazard indicator mode.
In hazard indicator mode,whentheLOCK
button ispushed, thehazard indicator flashes
twice. When theUNLOCK
button is
pushed, neitherthehazard indicator northe
Pre-d riving checks andadjustments
3-13
&RQGLWLRQ
