2015 MITSUBISHI LANCER EVOLUTION MMCS Manual

This Product
17
Introduction Basic Operation
Remove the SD Card
Map Card
The map card that contains the map data
for the navigation functions is inserted. This
device cannot be used if the map card is
removed.
Audio SD Card
Eject the audio SD card used for the audio
functions.
1Press the OPEN key.
2Touch Monitor OPEN .
▼
The monitor panel opens.
3Push the audio SD card in the
user slot
until you hear a “click”.
1
2 "VEJP
4%
$BSE
"VEJP
4%
$BSE"VEJP
4%
$BSE
The audio SD card jumps out and can
now be removed. Gently remove it.
4Press the OPEN key to close
the monitor panel.

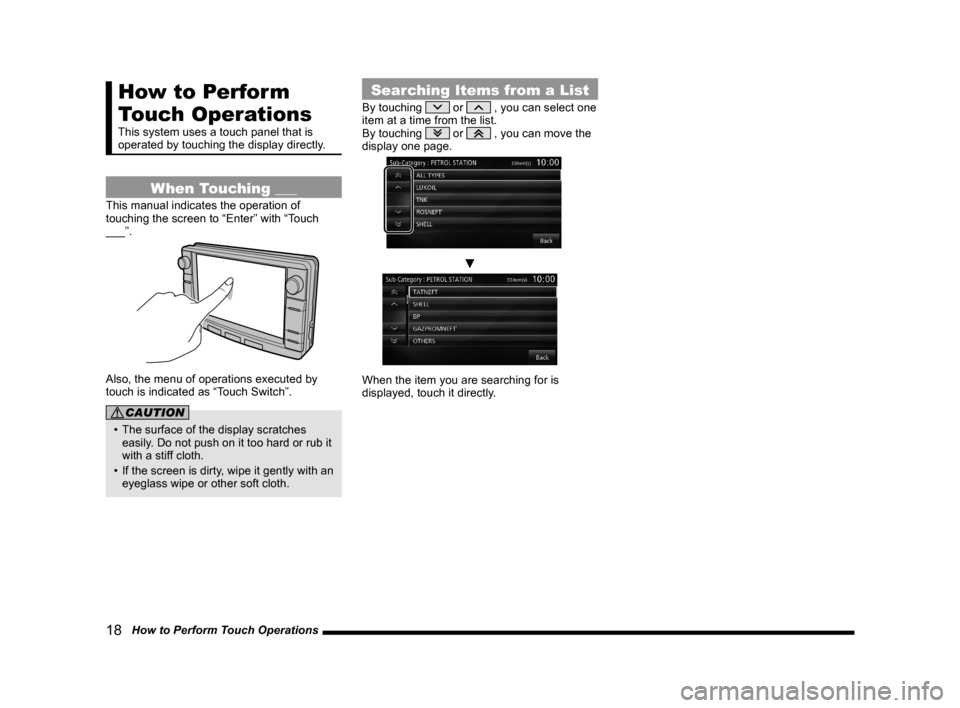

18 How to Perform Touch Operations
How to Perform
Touch Operations
This system uses a touch panel that is
operated by touching the display directly.
When Touching ___
This manual indicates the operation of
touching the screen to “Enter” with “Touch
___”.
Also, the menu of operations executed by
touch is indicated as “Touch Switch”.
CAUTION
• The surface of the display scratches
easily. Do not push on it too hard or rub it
with a stiff cloth.
• If the screen is dirty, wipe it gently with an
eyeglass wipe or other soft cloth.
Searching Items from a List
By touching or , you can select one
item at a time from the list.
By touching
or , you can move the
display one page.
▼
When the item you are searching for is
displayed, touch it directly.

How to Input Characters
19
Introduction Basic Operation
How to Input Characters
This section explains the menu items for the character input keyboard.
Keyboard for Character Input
6) 2)
3)
4) 1)
7)
9)
8)
5)
1) Input character display section
Displays the input characters.
2) The cursor
is displayed with and to the left of ,
characters are input.
3) Input keyboard
Displayed characters can be input by
touch.
4)
Set
This fi nalizes all the input characters and
ends character input mode.
5)
A/a
Switches the characters displayed on
the input keyboard in the order of capital
letters, small letters, and Capital letters.6)

Clears one character among the
characters being input.
7)
Clear All
Clears all the characters being input.
8)
More
Switches the characters displayed on
the input keyboard to “Numbers” and
“Symbols”.
9)
Back
Returns to the previous screen.
ADVICE
• For some functions and character types,
some touch switches may either not be
displayed or changed into some other
touch switch. For details, refer to the
explanations of individual functions.

20 How to Input Characters
Types of Characters That Can
Be Input
The input keyboard is capable of inputting
various characters.
Character input is displayed when it becomes
necessary during the operation of functions.
However, some functions limit the characters
that can be input.
Letters/numbers
Symbols
Keyboard for Number Input
The input keyboard makes it possible to input
house numbers and latitude/longitude.
Input assist for searches
4)5) 1) 3)2)
1)
Displays the previous candidate list.
2) Search candidate list
Displays characters and candidates that
follow the input characters.
Touching this completes the input.
3)

Displays the next candidate list.
4)
List
Displays the search results for the input
characters.
5)
Keyword
Keywords can be input.

Top Menu
21
Introduction Basic Operation
Top Menu
By pressing the corresponding key, you can
use various functions from the top menus.
Display Types
The top menus have a number of display
methods. You can use the one you like best.
You can switch by touching the display switch
menu at the top of each top menu.
Touch
switchDisplay contents
NOTE
• The types that can be displayed depend
on the top menu. There are also menus
that do not allow you to switch the display
type.

22 Top Menu
Destination Menu
This section explains the destination menu displayed when you press the DEST key.
This may be the key depending on the model.
2)3)
4)
5)6) 1)
14) 8)
9)10)11)
12)13)
7)
1) Display switch menu
(P21)
Allows you to switch the menu display
type.
2)
Go Home
Allows you to register a home location.
(P68) Also allows you to set your
registered home as the destination.
(P47)
3) Address/Intersection
(P50)
Allows you to search for a location from
an address.
4)
Point of Interest
(P51)
Allows you to input the name of
an establishment to search for the
establishment.
5)
Zip Code
(P95)
Allows you to input the zip code to search
for its location.6)
Phone Number
(P55)
Allows you to input the telephone number
to search for its location.
7)
▲
Displays the numbers for frequently used
locations
(P49).
8) Clock
Displays the current time using 12- or 24-
hour time.
9)
Latitude/Longitude
(P56)
Allows you to input the latitude and
longitude to search for its location.
10)
Return Trip
(P56)
Sets the start location as the destination.
11)
Previous 50
(P50)
Allows you to select a location for which
a map of the surroundings has been
displayed by using the search function.12)
Address Book
(P49)
Allows you to select a location from the
address book.
13)
Advanced Search
(P53)
Allows you to search for an establishment
around the current location or destination,
along the route, etc.
14)
Delete Route
(P65)
Deletes the set route.

Top Menu
23
Introduction Basic Operation
Navi Menu
This section explains the navigation menu displayed when you press the NAVI MENU key.
2)3)
4) 1)
5)6)7)8)
1) Route Menu
(P58)
Allows you to check and edit the set route.
2)
Guidance
(P197)
Allows you to set up the guidance display.
3)
Screen
(P199)
Allows you to set up the navigation
display.
4)
RTT
(P77)
Allows you to set up the RTT.
5)
Route Options
(P203)
Allows you to set up the default values for
route search conditions.6)
Navi Voice/Others
(P204)
Allows you to set up the navigation audio
guidance. Also allows you to check vehicle
signals.
(P205)
7) Personal
(P206)
Allows you to manage address book,
home location, and other information.
8)
Start Demo
(P60)
Starts a demo trip.

24 Top Menu
Mode
This section explains the Mode displayed when you press the MODE key.
2)
3)
4)
5) 1)
6)
7)
8)
9)
1) Display switch menu
(P21)
Allows you to switch the menu display
type.
2)
AM
(P93)
Allows you to use the AM radio function.
3)
FM
(P93)
Allows you to use the FM radio function.
4)
SD
(P119)
Allows you to play back audio fi les (MP3/
WMA/AAC/WAV) on an SD card.5) USB/iPod menu
*1
When an iPod is connected to this
product,
iPod is displayed. When you
touch it, the iPod screen is displayed.
(→ P114)
When a USB memory is connected to this
product,
USB is displayed. When you
touch it, the USB screen is displayed.
(→ P119)
When nothing is connected to this product,
USB/iPod is displayed.
6)
SIRIUS *4 (P99)
Allows you to use satellite radio.
7)
CD
Plays media inserted into this product.
Audio CD
(→ P107)
Audio fi les (MP3/WMA/AAC/WAV) (→ P110)
8) AUX *1, *2 (P130)
When an external input device is
connected to this product, the audio from
the external input device is played.
9)
Bluetooth Audio *3(P125)
When a Bluetooth-capable audio device
is connected to this product, the Bluetooth
audio function can be used.
*1 This is equipment that only some vehicle types have. This
also requires the external input device and a cable.
*2 [AUX] is displayed even if no separately-purchased
external input/output cable and external input device is
connected to this product.
*3 This is equipment that only some vehicle types have. This
requires an audio device that is Bluetooth capable. No
cable is required.
*4 This is equipment that only some vehicle types have.
Requires satellite tuner connection.
