2015 MERCEDES-BENZ GLK-CLASS SUV stop start

XTo display menu bar ;: press the =
or ; button on the steering wheel.
Menu bar ; disappears after a few sec-
onds.
Text field : shows the selected menu or
submenu as well as display messages.
iYou can set the time using the Audio sys-
tem or COMAND (see the separate operat-
ing instructions).
The following messages may appear in the
multifunction display: Z Gearshift recommendation when
shifting manually ( Y page 160)
X j Y
Active Parking Assist ( Y page 189)
CRUISECruise control ( Y page 175)
¤ ECO start/stop function
(Y page 152)
ë HOLD function ( Y page 184)
Menus and submenus
Menu overview
Operating the on-board computer
(Y page 221).
Depending on the equipment installed in the
vehicle, you can call up the following menus:
R
Trip menu ( Y page 223)
R
Navi menu (navigation instructions)
( Y page 225)
R
Audio menu ( Y page 226)
R
Tel menu (telephone) ( Y page 227)
R
DriveAssist menu (assistance)
( Y page 228)
R
Serv. menu ( Y page 230)
R
Sett. menu (settings) ( Y page 230)
The
Audio, Navi and Tel menus differ slightly
in vehicles with an audio system and in vehi-
cles with COMAND. The examples given in
this Operator's Manual apply to vehicles
equipped with COMAND.
Trip menu
Standard display
X Press and hold the % button on the
steering wheel until the
Trip menu with
trip odometer : and odometer ; is
shown.
Trip computer "From Start" or "From
Reset"
Example: trip computer "From Start" :
Distance
;Driving time
=Average speed
?Average fuel consumption
X Press the = or ; button on the steer-
ing wheel to select the
Trip menu.
X Press the 9 or : button to select
From Start or From Reset.
The values in the
From Start submenu are
calculated from the start of a journey,
whereas the values in the
From Reset sub-
menu are calculated from the last time the
submenu was reset ( Y page 224).
The
From Start trip computer is automati-
cally reset if:
R the ignition has been switched off for more
than four hours.
R 999 hours have been exceeded.
R 9,999 miles have been exceeded.
Menus and submenus223
On-board computer and displays
Z

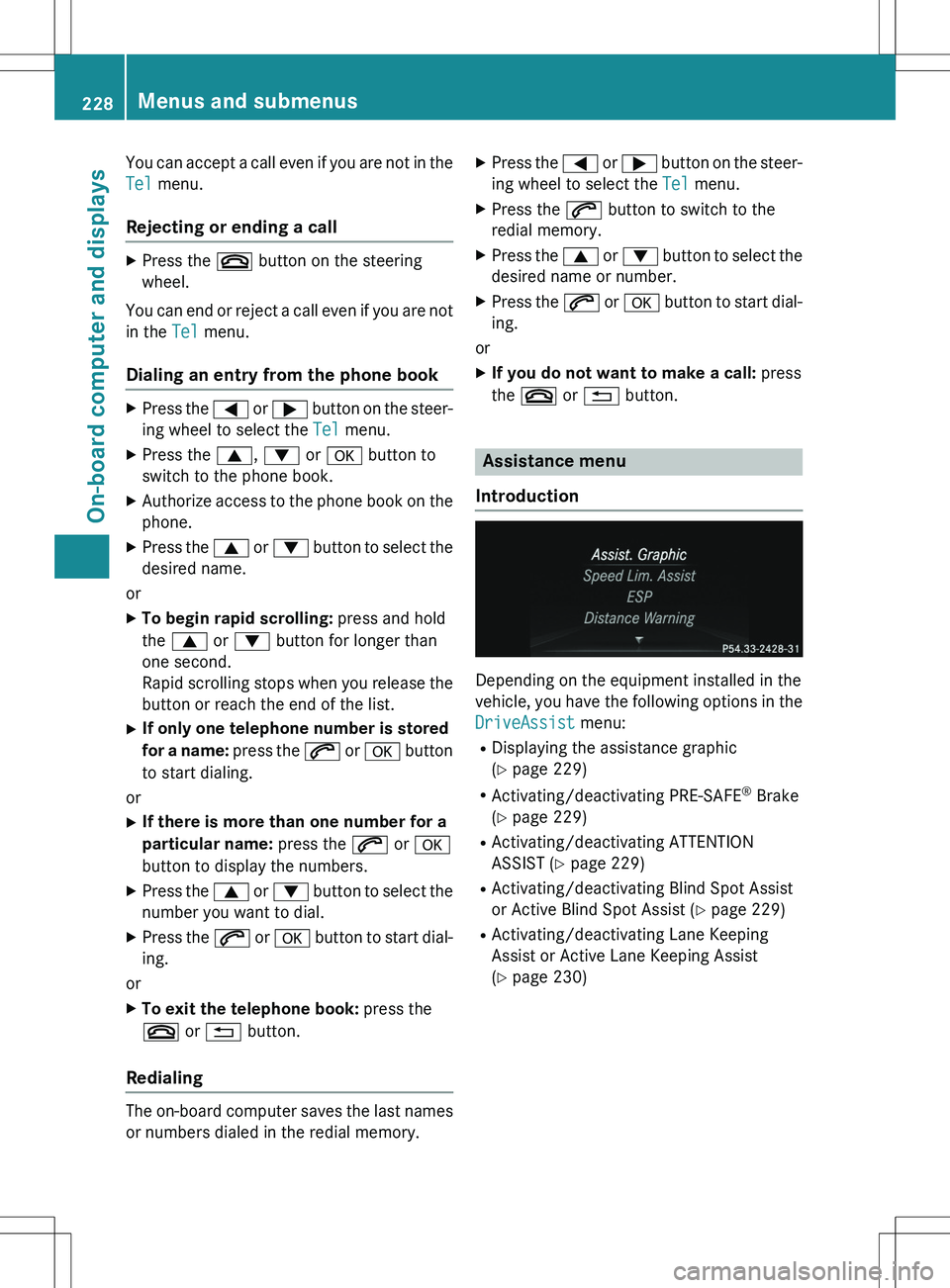

You can accept a call even if you are not in the
Tel menu.
Rejecting or ending a call
XPress the ~ button on the steering
wheel.
You can end or reject a call even if you are not
in the
Tel menu.
Dialing an entry from the phone book
X Press the = or ; button on the steer-
ing wheel to select the
Tel menu.
X Press the 9, : or a button to
switch to the phone book.
X Authorize access to the phone book on the
phone.
X Press the 9 or : button to select the
desired name.
or
X To begin rapid scrolling: press and hold
the 9 or : button for longer than
one second.
Rapid scrolling stops when you release the
button or reach the end of the list.
X If only one telephone number is stored
for a name: press the 6 or a button
to start dialing.
or
X If there is more than one number for a
particular name: press the 6 or a
button to display the numbers.
X Press the 9 or : button to select the
number you want to dial.
X Press the 6 or a button to start dial-
ing.
or X To exit the telephone book: press the
~ or % button.
Redialing
The on-board computer saves the last names
or numbers dialed in the redial memory. X
Press the = or ; button on the steer-
ing wheel to select the
Tel menu.
X Press the 6 button to switch to the
redial memory.
X Press the 9 or : button to select the
desired name or number.
X Press the 6 or a button to start dial-
ing.
or X If you do not want to make a call: press
the ~ or % button.
Assistance menu
Introduction
Depending on the equipment installed in the
vehicle, you have the following options in the
DriveAssist menu:
R Displaying the assistance graphic
(Y page 229)
R Activating/deactivating PRE-SAFE ®
Brake
( Y page 229)
R Activating/deactivating ATTENTION
ASSIST ( Y page 229)
R Activating/deactivating Blind Spot Assist
or Active Blind Spot Assist ( Y page 229)
R Activating/deactivating Lane Keeping
Assist or Active Lane Keeping Assist
(Y page 230)
228Menus and submenus
On-board computer and displays

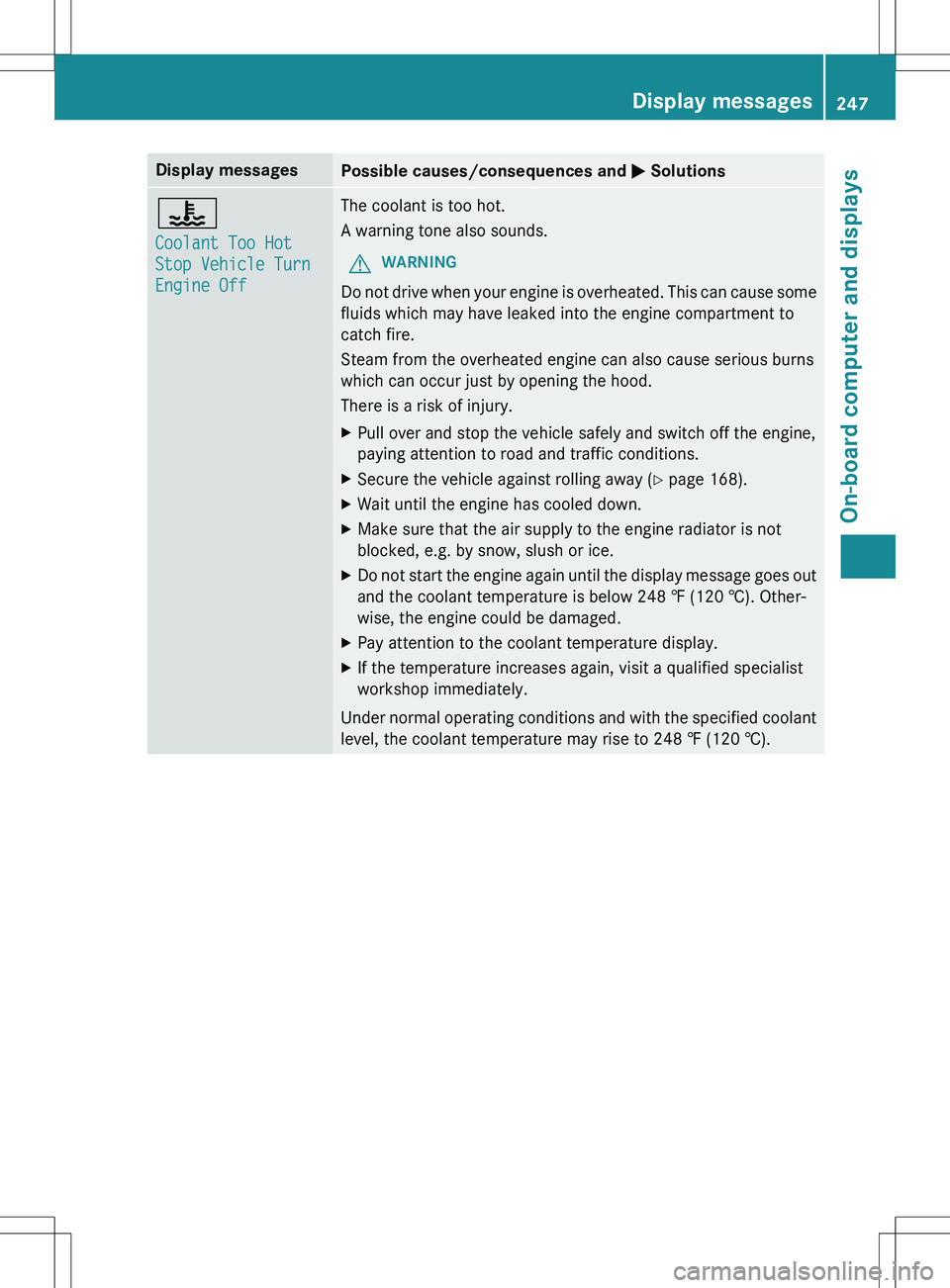

Display messagesPossible causes/consequences and M Solutions
?
Coolant Too Hot
Stop Vehicle Turn
Engine Off
The coolant is too hot.
A warning tone also sounds.
GWARNING
Do not drive when your engine is overheated. This can ca use some
fluids which may have leaked into the engine compartment to
catch fire.
Steam from the overheated engine can also cause serious burns
which can occur just by opening the hood.
There is a risk of injury. X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Y page 168).
X Wait until the engine has cooled down.
X Make sure that the air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
X Do not start the engine again until the display message g oes out
and the coolant temperature is below 248 ‡ (120 †). Other-
wise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X If the temperature increases again, visit a qualified specialist
workshop immediately.
Under normal operating conditions and with the specified coolant
level, the coolant temperature may rise to 248 ‡ (120 †).
Display messages247
On-board computer and displays
Z

Display messagesPossible causes/consequences and M Solutions
Blind Spot Assist
Currently UnavailZ
able See OperaZ
tor's ManZ
ual or Active Blind
Spot Assist CurZ
rently Unavailable
See Operator's ManZ
ual
Blind Spot Assist or Active Blind Spot Assist is temporarily inop-
erative. Possible causes are:
R the sensors are dirty.
R function is impaired due to heavy rain or snow.
R the radar sensor system is outside the operating temperature
range.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
The yellow 9 indicator lamps also light up in the exterior mir-
rors.
When the causes stated above no longer apply, the display mes-
sage disappears.
Blind Spot Assist or Active Blind Spot Assist is operational again.
If the display message does not disappear:
X Pull over and stop the vehicle safely as soon as possible, p aying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Y page 168).
X Clean the sensors ( Y page 309).
X Restart the engine.
Blind Spot Assist
InoperaZ
tive or Active
Blind Spot Assist
Inoperative
Blind Spot Assist or Active Blind Spot Assist is defective.
The yellow 9 indicator lamps also light up in the exterior mir-
rors. X Visit a qualified specialist workshop.
Park Assist CanZ
celed
The driver's door is open and the driver's seat belt has not been
fastened. X Repeat the parking process with the seat belt fastened and the
driver's door closed.
You have inadvertently touched the multifunction steering wheel
while steering intervention was active.
X While steering intervention is active, make sure that the multi-
function steering wheel is not touched unintentionally.
The vehicle has started to skid and ESP ®
has intervened.
X Use Active Parking Assist again later ( Y page 189).
252Display messages
On-board computer and displays

Display messagesPossible causes/consequences and M Solutions
Park Assist InoperZ
ative
You have just carried out a large number of turning or parking
maneuvers.
Active Parking Assist will become available again after approx -
imately ten minutes ( Y page 189).
X Pull over and stop the vehicle safely as soon as possible, p aying
attention to road and traffic conditions.
X Switch off and restart the engine.
If the display message continues to be displayed: X Visit a qualified specialist workshop.
PARKTRONIC is defective.
X Visit a qualified specialist workshop.
Park Assist FinZ
ished
The vehicle is parked. A warning tone also sounds.
The display message disappears automatically.
DISTRONIC PLUS OffDISTRONIC PLUS has been deactivated ( Y page 176). If it was
deactivated automatically, a warning tone also sounds.
DISTRONIC PLUS Now
Available
DISTRONIC PLUS is operational again after having been tempo-
rarily unavailable. You can now reactivate DISTRONIC PLUS
( Y page 176).
DISTRONIC PLUS CurZ
rently Unavailable
See Operator's ManZ
ual
DISTRONIC PLUS is temporarily inoperative. Possible cause s are:
R function is impaired due to heavy rain or snow.
R the sensors in the radiator trim and the bumper are dirty.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
R the system is outside the operating temperature range.
R the on-board voltage is too low.
A warning tone also sounds.
When the causes stated above no longer apply, the display mes-
sage disappears.
DISTRONIC PLUS is operational again.
If the display message does not disappear:
X Pull over and stop the vehicle safely as soon as possible, p aying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Y page 168).
X Clean the sensors in the radiator grill and the bumper
(Y page 309).
X Restart the engine.
Display messages253
On-board computer and displays
Z

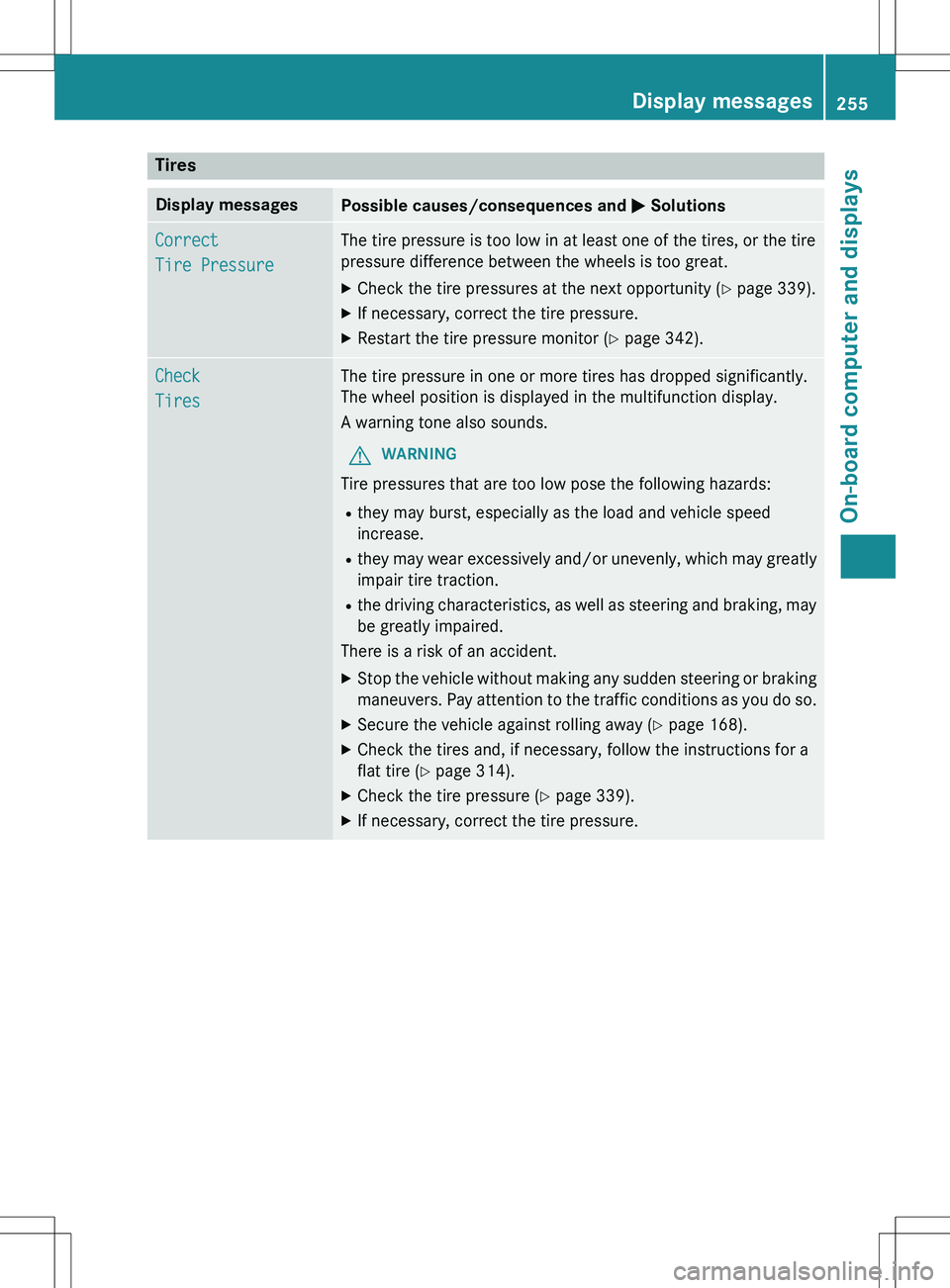

Tires
Display messagesPossible causes/consequences and M Solutions
Correct
Tire Pressure
The tire pressure is too low in at least one of the tires, or the tire
pressure difference between the wheels is too great.
X Check the tire pressures at the next opportunity ( Y page 339).
X If necessary, correct the tire pressure.
X Restart the tire pressure monitor ( Y page 342).
Check
Tires
The tire pressure in one or more tires has dropped significantly.
The wheel position is displayed in the multifunction display.
A warning tone also sounds.
GWARNING
Tire pressures that are too low pose the following hazards:
R they may burst, especially as the load and vehicle speed
increase.
R they may wear excessively and/or unevenly, which may gre atly
impair tire traction.
R the driving characteristics, as well as steering and braki ng, may
be greatly impaired.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or b raking
maneuvers. Pay attention to the traffic conditions as y ou do so.
X Secure the vehicle against rolling away ( Y page 168).
X Check the tires and, if necessary, follow the instructions for a
flat tire ( Y page 314).
X Check the tire pressure ( Y page 339).
X If necessary, correct the tire pressure.
Display messages255
On-board computer and displays
Z

Display messagesPossible causes/consequences and M Solutions
Warning
Tire Malfunction
The tire pressure in one or more tires has dropped suddenly. The
wheel position is shown in the multifunction display.
GWARNING
Driving with a flat tire poses a risk of the following hazards:
R a flat tire affects the ability to steer or brake the vehicle.
R you could lose control of the vehicle.
R continued driving with a flat tire will cause excessive heat build-
up and possibly a fire.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or b raking
maneuvers. Pay attention to the traffic conditions as y ou do so.
X Secure the vehicle against rolling away ( Y page 168).
X Check the tires and, if necessary, follow the instructions for a
flat tire ( Y page 314).
Tire Press. Monitor
Currently UnavailZ
able
Because there is interference from a strong source of ra dio waves,
no signals from the tire pressure sensors are detected. The tire
pressure monitor is temporarily malfunctioning.
X Drive on.
The tire pressure monitor restarts automatically as soon a s the
problem has been resolved.
TirePress. SenZ
sor(s) Missing
There is no signal from the tire pressure sensor of one or several
wheels. The pressure of the affected tire is not displayed in the
multifunction display. X Have the faulty tire pressure sensor replaced at a quali fied spe-
cialist workshop.
Tire Pressure MonZ
itor Inoperative
No Wheel Sensors
The wheels mounted do not have a suitable tire pressure sensor.
The tire pressure monitor is deactivated.
X Mount wheels with suitable tire pressure sensors.
The tire pressure monitor is activated automatically af ter driving
for a few minutes.
Tire pressure monZ
itor
Inoperative
The tire pressure monitor is faulty.
X Visit a qualified specialist workshop.
256Display messages
On-board computer and displays

Vehicle
Display messagesPossible causes/consequences and M Solutions
Shift to 'P' or 'N'
to Start Engine
You have attempted to start the engine with the transmission in
position R or D.
X Shift the transmission to position P or N.
Risk of Rolling
Transmission Not
in P
You have attempted to stop the engine with the Start/Sto p button
while the transmission was not in position P.
GWARNING
The vehicle may roll away.
There is a risk of an accident.
X Shift the transmission to position P.
X Secure the vehicle against rolling away ( Y page 168).
AThe tailgate is open.
GWARNING
When the engine is running, exhaust gases can enter the vehicle
interior if the tailgate is open.
There is a risk of poisoning.
X Close the tailgate.
?The hood is open.
GWARNING
The open hood may block your view when the vehicle is in motion.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, p aying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Y page 168).
X Close the hood.
CAt least one door is open.
X Close all the doors.
Display messages257
On-board computer and displays
Z
