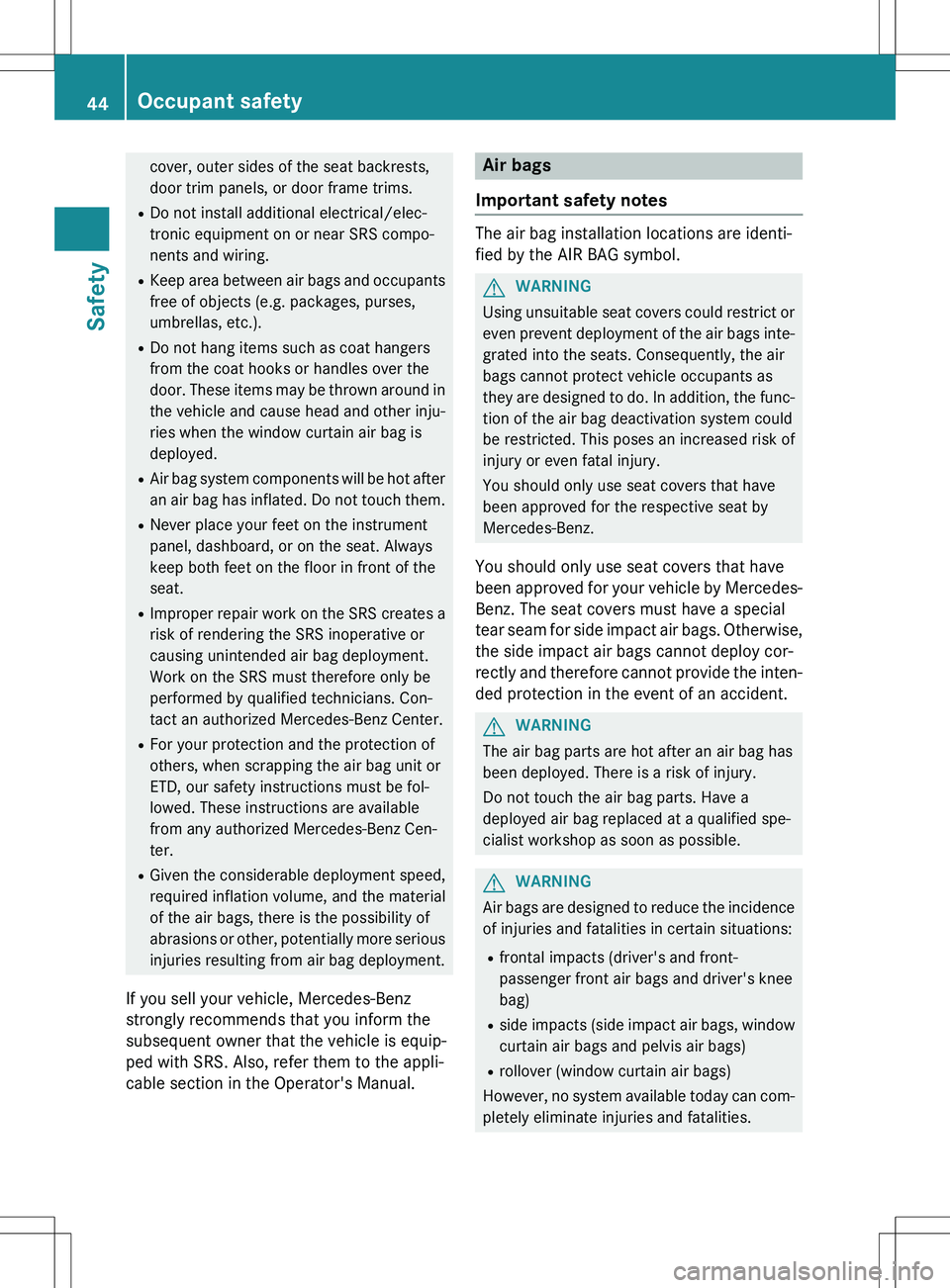

cover, outer sides of the seat backrests,
door trim panels, or door frame trims.
R Do not install additional electrical/elec-
tronic equipment on or near SRS compo-
nents and wiring.
R Keep area between air bags and occupants
free of objects (e.g. packages, purses,
umbrellas, etc.).
R Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may be thrown around in
the vehicle and cause head and other inju-
ries when the window curtain air bag is
deployed.
R Air bag system components will be hot after
an air bag has inflated. Do not touch them.
R Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.
R Improper repair work on the SRS creates a
risk of rendering the SRS inoperative or
causing unintended air bag deployment.
Work on the SRS must therefore only be
performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
R For your protection and the protection of
others, when scrapping the air bag unit or
ETD, our safety instructions must be fol-
lowed. These instructions are available
from any authorized Mercedes-Benz Cen-
ter.
R Given the considerable deployment speed,
required inflation volume, and the material
of the air bags, there is the possibility of
abrasions or other, potentially more seriousinjuries resulting from air bag deployment.
If you sell your vehicle, Mercedes-Benz
strongly recommends that you inform the
subsequent owner that the vehicle is equip-
ped with SRS. Also, refer them to the appli-
cable section in the Operator's Manual.Air bags
Important safety notes
The air bag installation locations are identi-
fied by the AIR BAG symbol.
GWARNING
Using unsuitable seat covers could restrict or even prevent deployment of the air bags inte- grated into the seats. Consequently, the air
bags cannot protect vehicle occupants as
they are designed to do. In addition, the func-
tion of the air bag deactivation system could
be restricted. This poses an increased risk of
injury or even fatal injury.
You should only use seat covers that have
been approved for the respective seat by
Mercedes-Benz.
You should only use seat covers that have
been approved for your vehicle by Mercedes- Benz. The seat covers must have a special
tear seam for side impact air bags. Otherwise,
the side impact air bags cannot deploy cor-
rectly and therefore cannot provide the inten- ded protection in the event of an accident.
GWARNING
The air bag parts are hot after an air bag has
been deployed. There is a risk of injury.
Do not touch the air bag parts. Have a
deployed air bag replaced at a qualified spe-
cialist workshop as soon as possible.
GWARNING
Air bags are designed to reduce the incidenceof injuries and fatalities in certain situations: R frontal impacts (driver's and front-
passenger front air bags and driver's knee
bag)
R side impacts (side impact air bags, window
curtain air bags and pelvis air bags)
R rollover (window curtain air bags)
However, no system available today can com- pletely eliminate injuries and fatalities.
44Occupant safety
Safety

Driving safety systems
Overview of driving safety systems
In this section, you will find information aboutthe following driving safety systems:
R ABS ( Anti-lock Braking System)
( Y page 68)
R BAS ( Brake Assist System) ( Y page 69)
R BAS PLUS ( Brake Assist System Plus)
( Y page 69)
R ESP ®
(E lectronic Stability Program)
( Y page 70)
R EBD ( Electronic Brake force Distribution)
( Y page 73)
R PRE-SAFE ®
Brake ( Y page 73)
Important safety notes
If you fail to adapt your driving style or if you
are inattentive, the driving safety systems can
neither reduce the risk of an accident nor
override the laws of physics. Driving safety
systems are merely aids designed to assist
driving. You are responsible for the distance
to the vehicle in front, for vehicle speed and
for braking in good time. Always adapt your
driving style to suit the prevailing road,
weather and traffic conditions and maintain a
safe distance from the vehicle in front. Drive
carefully.
The driving safety systems described only
work as effectively as possible when there is
adequate contact between the tires and the
road surface. Please pay special attention to
the notes on tires, recommended minimum
tire tread depths, etc. ( Y page 332).
In wintry driving conditions, always use winter
tires (M+S tires) and if necessary, snow
chains. Only in this way will the driving safety
systems described in this section work as
effectively as possible.
ABS (Anti-lock Braking System)
General information
ABS regulates brake pressure in such a way
that the wheels do not lock when you brake.
This allows you to continue steering the vehi- cle when braking.
The yellow ! ABS warning lamp in the
instrument cluster lights up when the ignition is switched on. It goes out when the engine is
running.
Important safety notes
iObserve the "Important safety notes" sec-
tion ( Y page 68).
GWARNING
If ABS is faulty, the wheels could lock when
braking. The steerability and braking charac-
teristics may be severely impaired. Addition-
ally, further driving safety systems are deac-
tivated. There is an increased danger of skid-
ding and accidents.
Drive on carefully. Have ABS checked imme-
diately at a qualified specialist workshop.
When ABS is malfunctioning, other systems,
including driving safety systems, will also
become inoperative. Observe the information on the ABS warning lamp ( Y page 262) and
display messages which may be shown in the
instrument cluster ( Y page 236).
ABS works from a speed of about 5 mph
(8 km/h), regardless of road-surface condi-
tions. ABS works on slippery surfaces, even if
you only brake gently.
Brakes
X If ABS intervenes: continue to depress the
brake pedal vigorously until the braking sit-
uation is over.
X To make a full brake application:
depress the brake pedal with full force.
If ABS intervenes when braking, you will feel a pulsing in the brake pedal.
68Driving safety systems
Safety

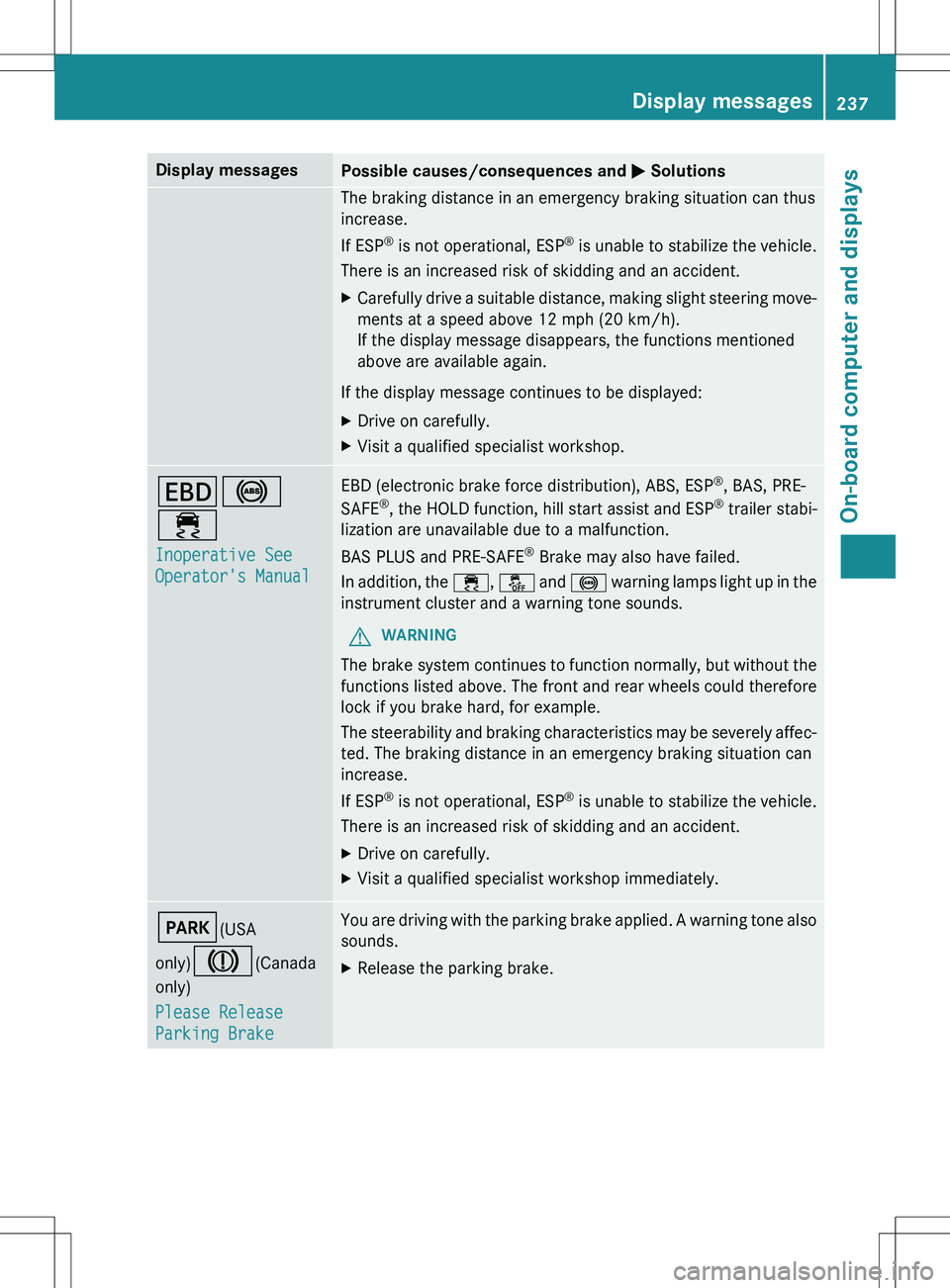

Display messagesPossible causes/consequences and M Solutions
The braking distance in an emergency braking situation can thus
increase.
If ESP®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Carefully drive a suitable distance, making slight steer ing move-
ments at a speed above 12 mph (20 km/h).
If the display message disappears, the functions mentioned
above are available again.
If the display message continues to be displayed:
X Drive on carefully.
X Visit a qualified specialist workshop.
T !
÷
Inoperative See
Operator's Manual
EBD (electronic brake force distribution), ABS, ESP ®
, BAS, PRE-
SAFE ®
, the HOLD function, hill start assist and ESP ®
trailer stabi-
lization are unavailable due to a malfunction.
BAS PLUS and PRE

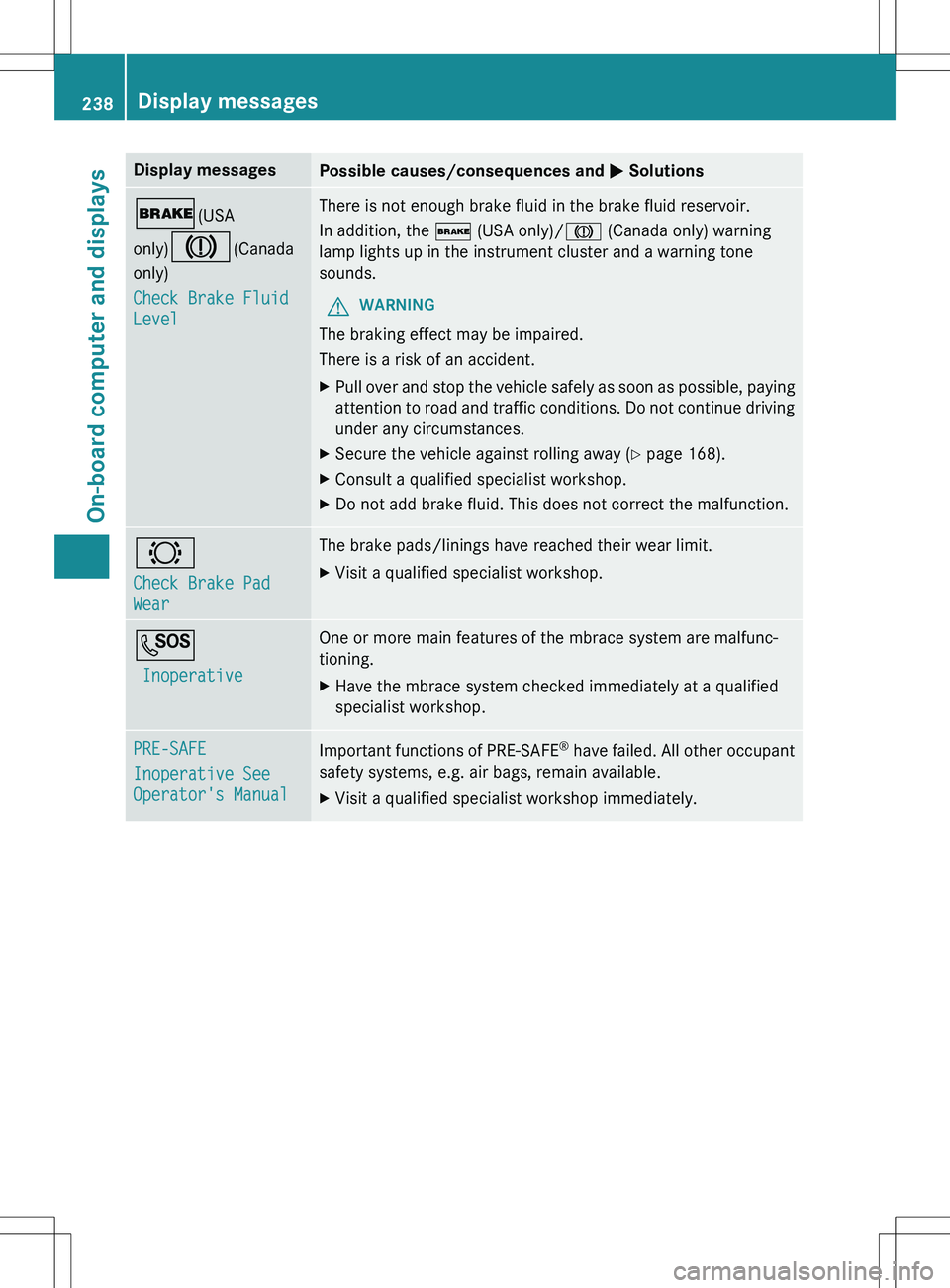

Display messagesPossible causes/consequences and M Solutions
$(USA
only)
J(Canada
only)
Check Brake Fluid
Level
There is not enough brake fluid in the brake fluid reservoir.
In addition, the $ (USA only)/ J (Canada only) warning
lamp lights up in the instrument cluster and a warning tone
sounds.
GWARNING
The braking effect may be impaired.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, p aying
attention to road and traffic conditions. Do not con tinue driving
under any circumstances.
X Secure the vehicle against rolling away ( Y page 168).
X Consult a qualified specialist workshop.
X Do not add brake fluid. This does not correct the malfunction.
#
Check Brake Pad
Wear
The brake pads/linings have reached their wear limit.
X Visit a qualified specialist workshop.
G
Inoperative
One or more main features of the mbrace system are malfunc-
tioning.
X Have the mbrace system checked immediately at a qualified
specialist workshop.
PRE-SAFE
Inoperative See
Operator's Manual
Important functions of PRE-SAFE ®
have failed. All other occupant
safety systems, e.g. air bags, remain available.
X Visit a qualified specialist workshop immediately.
238Display messages
On-board computer and displays

Display messagesPossible causes/consequences and M Solutions
PRE-SAFE
Functions CurZ
rently Limited See
Operator's Manual
PRE-SAFE®
Brake is temporarily inoperative. Possible causes are:
R function is impaired due to heavy rain or snow.
R the sensors in the radiator trim and the bumper are dirty.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
R the system is outside the operating temperature range.
R the on-board voltage is too low.
When the causes stated above no longer apply, the display mes-
sage disappears.
PRE

Display messagesPossible causes/consequences and M Solutions
b
Check Left Daytime
Running
Light or Check
Right Daytime RunZ
ning Light
The left or right-hand daytime running lamp is faulty.
X Visit a qualified specialist workshop.
b
Active Light SysZ
tem Inoperative
The active light function is faulty.
X Visit a qualified specialist workshop.
b
Malfunction See
Operator's Manual
The exterior lighting is defective.
X Visit a qualified specialist workshop.
b
Auto Lamp Function
Inoperative
The light sensor is defective.
X Visit a qualified specialist workshop.
b
Switch Off Lights
The lights are still switched on when you leave the vehicle. A
warning tone also sounds.
X Turn the light switch to Ã.
Engine
Display messagesPossible causes/consequences and M Solutions
+
Check Coolant
Level See OperaZ
tor's Manual
The coolant level is too low.
! Avoid making long journeys with too little coolant in the engine
cooling system. The engine will otherwise be damaged.
X Add coolant, observing the warning notes before doing so
(Y page 303).
X If coolant needs to be added more often than usual, have the
engine coolant system checked at a qualified specialist work-
shop.
?The fan motor is faulty. XAt coolant temperatures below 248 ‡ (120 †), drive to the
nearest qualified specialist workshop.
X Avoid subjecting the engine to heavy loads, e.g. drivin g in moun-
tainous terrain, and stop-and-go traffic.
246Display messages
On-board computer and displays

Display messagesPossible causes/consequences and M Solutions
¯
Eng. Start Not PosZ
sible In ..km
The DEF system is malfunctioning. A warning tone also sounds.
X Visit a qualified specialist workshop immediately.
¯
Eng. Start Not PosZ
sible
The DEF system is malfunctioning. A warning tone also sounds.
You can no longer start the engine.
X Consult a qualified specialist workshop immediately.
Driving systems
Display messagesPossible causes/consequences and M Solutions
À
Attention Assist:
Take a Break!
Based on certain criteria, ATTENTION ASSIST has detecte d fatigue
or a lack of concentration on the part of the driver. A warning tone
also sounds.
X If necessary, take a break.
During long journeys, take regular breaks in good tim e so you get
enough rest.
À
Attention Assist
Inoperative
ATTENTION ASSIST is inoperative.
X Visit a qualified specialist workshop.
ë
Off
The HOLD function is deactivated. The vehicle is skidding.
A warning tone also sounds.
X Reactivate the HOLD function later ( Y page 184).
The HOLD function is deactivated. When the brake pedal i s firmly
depressed, an activation condition is not fulfilled.
A warning tone also sounds.
X Check the activation conditions for the HOLD function
(Y page 184).
Radar Sensors DeacZ
tivated See OperaZ
tor's Manual
The radar sensor system is deactivated.
X Switch on the radar sensor system ( Y page 233).
250Display messages
On-board computer and displays

Display messagesPossible causes/consequences and M Solutions

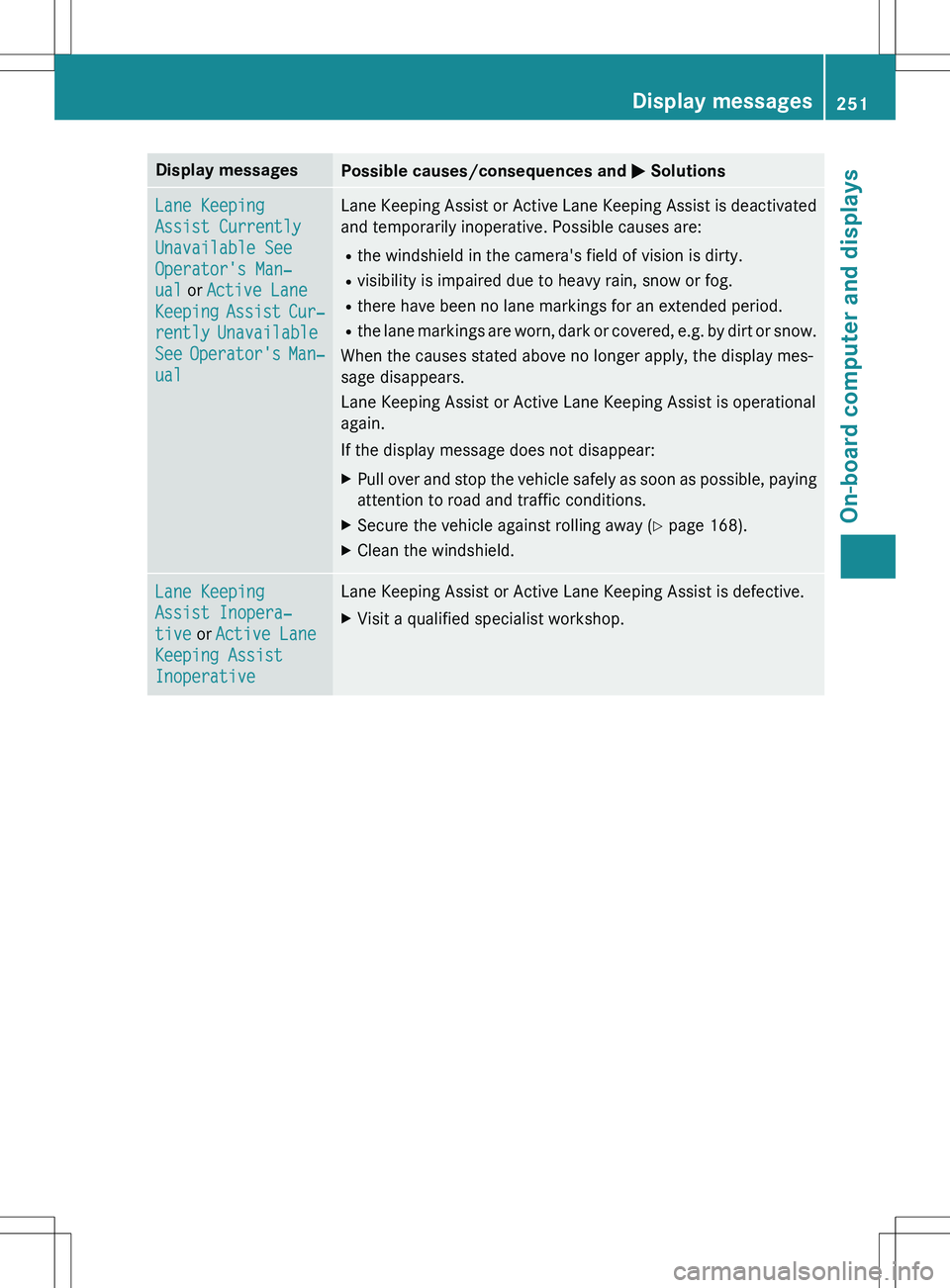

Lane Keeping
Assist Currently
Unavailable See
Operator's ManZ
ual or Active Lane
Keeping Assist CurZ
rently Unavailable
See Operator's ManZ
ual
Lane Keeping Assist or Active Lane Keeping Assist is deact ivated
and temporarily inoperative. Possible causes are:
R the windshield in the camera's field of vision is dirty.
R visibility is impaired due to heavy rain, snow or fog.
R there have been no lane markings for an extended period.
R the lane markings are worn, dark or covered, e.g. by dirt or snow.
When the causes stated above no longer apply, the display mes-
sage disappears.
Lane Keeping Assist or Active Lane Keeping Assist is operational
again.
If the display message does not disappear:
X Pull over and stop the vehicle safely as soon as possible, p aying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Y page 168).
X Clean the windshield.
Lane Keeping
Assist InoperaZ
tive or Active Lane
Keeping Assist
Inoperative
Lane Keeping Assist or Active Lane Keeping Assist is defective.
X Visit a qualified specialist workshop.
Display messages251
On-board computer and displays
Z
