2015 MERCEDES-BENZ B-CLASS SPORTS display

Display messagesPossible causes/consequences andMSolutions
÷
Inoperative See
Operator's Manual
ESP®
, BAS, the HOLD function and hill start assist are unavailable
due to a malfunction.
COLLISION PREVENTION ASSIST PLUS may also have failed.
In addition, the ÷andå warning lamps may light up in the
instrument cluster.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listed above.
The braking distance in an emergency braking situation can thus
increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit a qualified specialist workshop.
T !
÷
Inoperative See
Operator's Manual
EBD (electronic brake force distribution), ABS, BAS, ESP ®
, the
HOLD function and hill start assist are not available due to a mal- function.
COLLISION PREVENTION ASSIST PLUS may also have failed.
A warning tone sounds.
In addition, the ÷,å and! warning lamps may light up
in the instrument cluster.
GWARNING
The brake system continues to function normally, but without the functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely affec-ted. The braking distance in an emergency braking situation can
increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit a qualified specialist workshop immediately.
210Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions

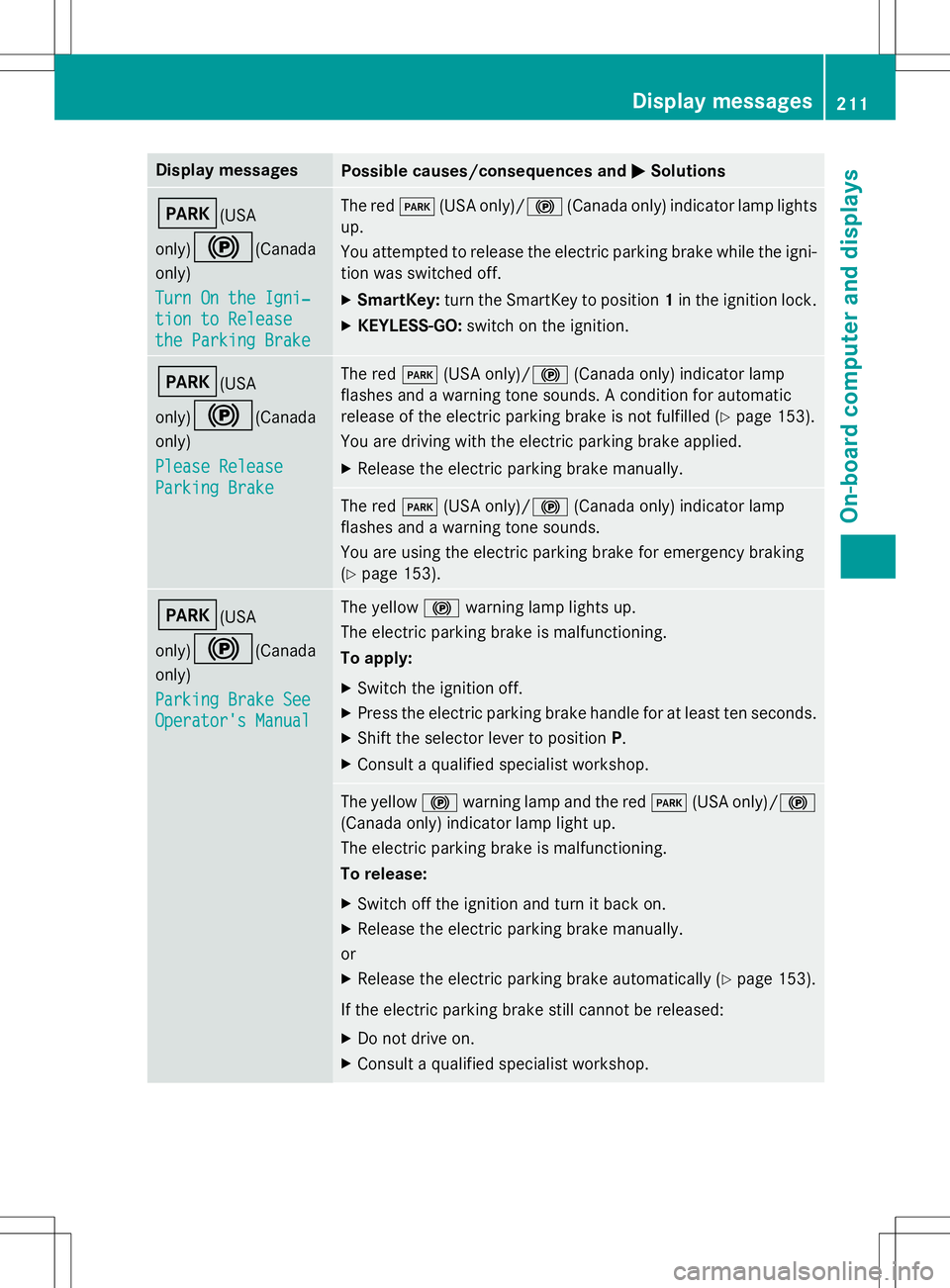

F(USA
only)
!(Canada
only)
Turn On the IgniZ
tion to Release
the Parking Brake
The red F(USA only)/ !(Canada only) indicator lamp lights
up.
You attempted to release the electric parking brake while the igni-
tion was switched off.
X SmartKey: turn the SmartKey to position 1in the ignition lock.
X KEYLESS-GO: switch on the ignition.
F(USA
only)
!(Canada
only)
Please Release
Parking Brake
The red F(USA only)/ !(Canada only) indicator lamp
flashes and a warning tone sounds. A condition for automatic
release of the electric parking brake is not fulfilled ( Ypage 153).
You are driving with the electric parking brake applied.
X Release the electric parking brake manually.
The red F(USA only)/ !(Canada only) indicator lamp
flashes and a warning tone sounds.
You are using the electric parking brake for emergency braking ( Y page 153).
F(USA
only)
!(Canada
only)
Parking Brake See
Operator's Manual
The yellow !warning lamp lights up.
The electric parking brake is malfunctioning.
To apply:
X Switch the ignition off.
X Press the electric parking brake handle for at least ten seconds.
X Shift the selector lever to position P.
X Consult a qualified specialist workshop.
The yellow !warning lamp and the red F(USA only)/ !
(Canada only) indicator lamp light up.
The electric parking brake is malfunctioning.
To release:
X Switch off the ignition and turn it back on.
X Release the electric parking brake manually.
or X Release the electric parking brake automatically ( Ypage 153).
If the electric parking brake still cannot be released: X Do not drive on.
X Consult a qualified specialist workshop.
Display messages211
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions

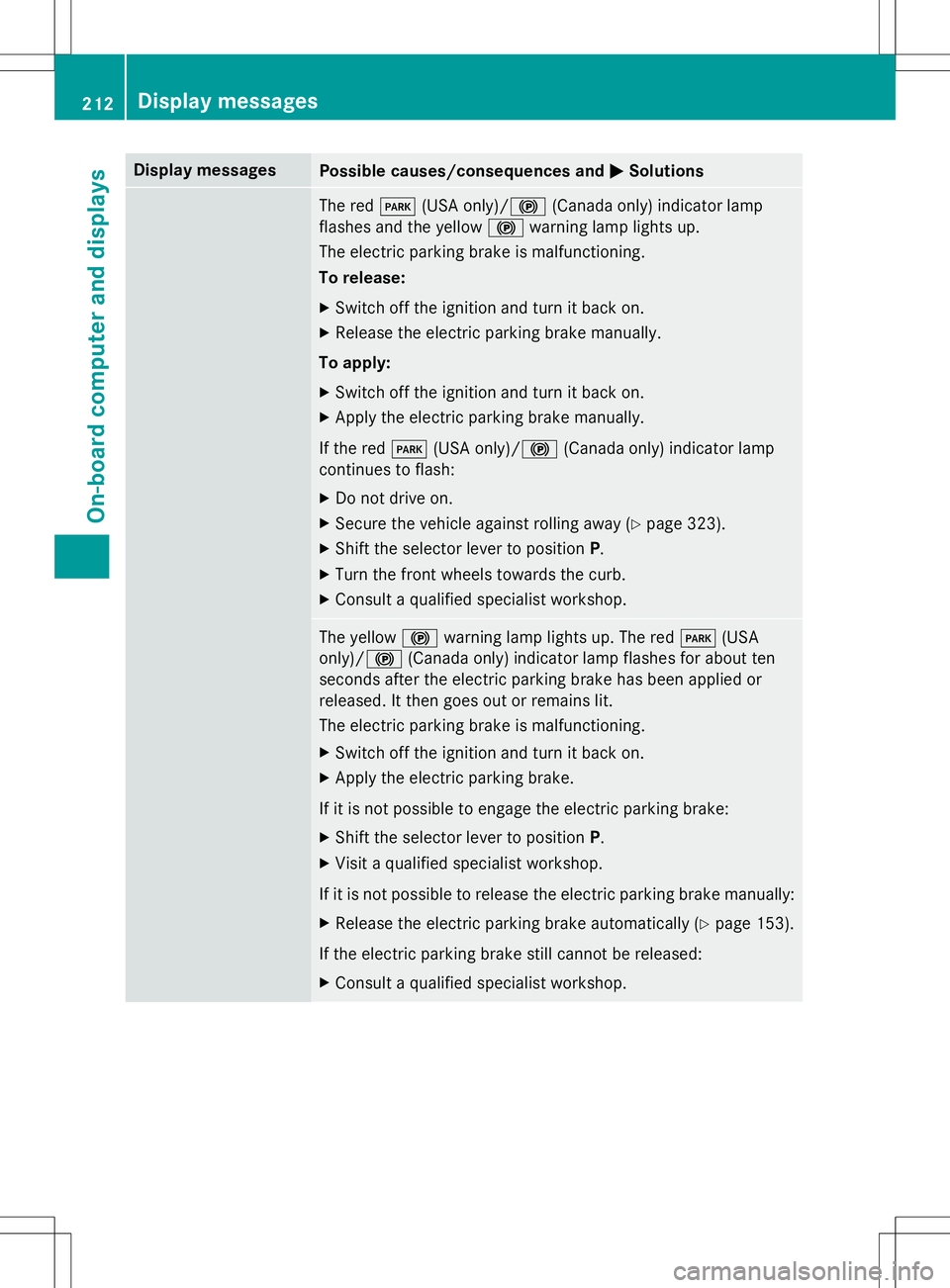

The redF(USA only)/ !(Canada only) indicator lamp
flashes and the yellow !warning lamp lights up.
The electric parking brake is malfunctioning.
To release:
X Switch off the ignition and turn it back on.
X Release the electric parking brake manually.
To apply: X Switch off the ignition and turn it back on.
X Apply the electric parking brake manually.
If the red F(USA only)/ !(Canada only) indicator lamp
continues to flash:
X Do not drive on.
X Secure the vehicle against rolling away ( Ypage 323).
X Shift the selector lever to position P.
X Turn the front wheels towards the curb.
X Consult a qualified specialist workshop.
The yellow !warning lamp lights up. The red F(USA
only)/ !(Canada only) indicator lamp flashes for about ten
seconds after the electric parking brake has been applied or
released. It then goes out or remains lit.
The electric parking brake is malfunctioning. X Switch off the ignition and turn it back on.
X Apply the electric parking brake.
If it is not possible to engage the electric parking brake:
X Shift the selector lever to position P.
X Visit a qualified specialist workshop.
If it is not possible to release the electric parking brake manually:
X Release the electric parking brake automatically ( Ypage 153).
If the electric parking brake still cannot be released: X Consult a qualified specialist workshop.
212Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions

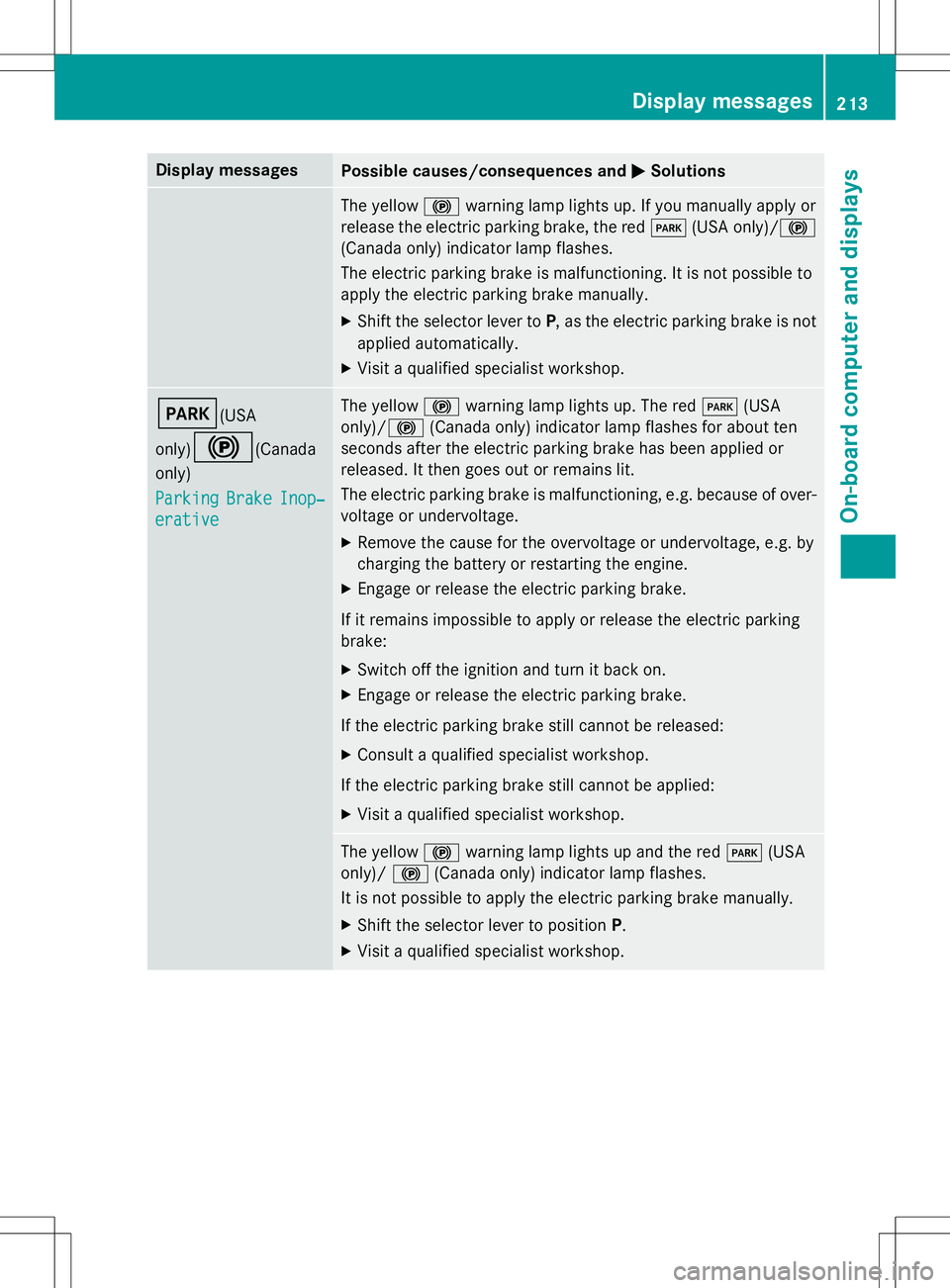

The yellow!warning lamp lights up. If you manually apply or
release the electric parking brake, the red F(USA only)/ !
(Canada only) indicator lamp flashes.
The electric parking brake is malfunctioning. It is not possible to
apply the electric parking brake manually.
X Shift the selector lever to P, as the electric parking brake is not
applied automatically.
X Visit a qualified specialist workshop.
F(USA
only)
!(Canada
only)
ParkingBrakeInopZ
erative
The yellow !warning lamp lights up. The red F(USA
only)/ !(Canada only) indicator lamp flashes for about ten
seconds after the electric parking brake has been applied or
released. It then goes out or remains lit.
The electric parking brake is malfunctioning, e.g. because of over-
voltage or undervoltage.
X Remove the cause for the overvoltage or undervoltage, e.g. by
charging the battery or restarting the engine.
X Engage or release the electric parking brake.
If it remains impossible to apply or release the electric parking
brake:
X Switch off the ignition and turn it back on.
X Engage or release the electric parking brake.
If the electric parking brake still cannot be released: X Consult a qualified specialist workshop.
If the electric parking brake still cannot be applied: X Visit a qualified specialist workshop.
The yellow !warning lamp lights up and the red F(USA
only)/ !(Canada only) indicator lamp flashes.
It is not possible to apply the electric parking brake manually.
X Shift the selector lever to position P.
X Visit a qualified specialist workshop.
Display messages213
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions
$(USA
only)
J(Canada
only)
Check Brake Fluid
Level
There is not enough brake fluid in the brake fluid reservoir.
A warning tone sounds. The $(USA only)/ J(Canada only)
warning lamps in the instrument cluster may also light up.
GWARNING
The braking effect may be impaired.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away ( Ypage 152).
X Consult a qualified specialist workshop.
X Do not add brake fluid. This does not correct the malfunction.
#
Check Brake Pad
Wear
The brake pads/linings have reached their wear limit.
X Visit a qualified specialist workshop.
G
Inoperative
One or more main features of the mbrace system are malfunc-
tioning.
X Have the mbrace system checked immediately at a qualified
specialist workshop.
Collision PrevenZ
tion Assist Plus
Currently UnavailZ
able See OperaZ
tor's Manual
COLLISION PREVENTION ASSIST PLUS is temporarily not opera-
tional.
Possible causes are: R
the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
R the system is outside the operating temperature range.
R the on-board voltage is too low.
When the causes stated above no longer apply, the display mes-
sage disappears.
COLLISION PREVENTION ASSIST PLUS is operational again.
If the display message does not disappear:
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Restart the engine.
214Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions
Collision PrevenZ
tion Assist Plus
Inoperative
COLLISION PREVENTION ASSIST PLUS is temporarily inoperative
due to a malfunction. Adaptive Brake Assist may also have failed.
X Visit a qualified specialist workshop.
Radar Sensors
Dirty See OperaZ
tor's Manual
At least one of the following driving systems or driving safety sys-
tems is temporarily restricted or inoperative:
R COLLISION PREVENTION ASSIST PLUS
R DISTRONIC PLUS
Possible causes are:
R the sensors in the radiator trim and/or in the bumpers are dirty.
R the function of the driving system and/or driving safety system
is impaired due to heavy rain or snow.
A warning tone also sounds.
When the causes stated above no longer apply, the display mes-
sage disappears. All driving systems/driving safety systems are
operative again.
If the display message does not disappear:
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Switch off the engine.
X Clean the sensors in the following locations ( Ypage 279):
R in the radiator trim
R in the front bumper
R in the rear bumper, particularly in the middle of the rear
bumper
X Restart the engine.
The display message disappears.
6
SRS Malfunction
Service Required
The restraint system is faulty. The 6warning lamp also lights
up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
For further information about the restraint system, see ( Y page 38).
Display messages215
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions

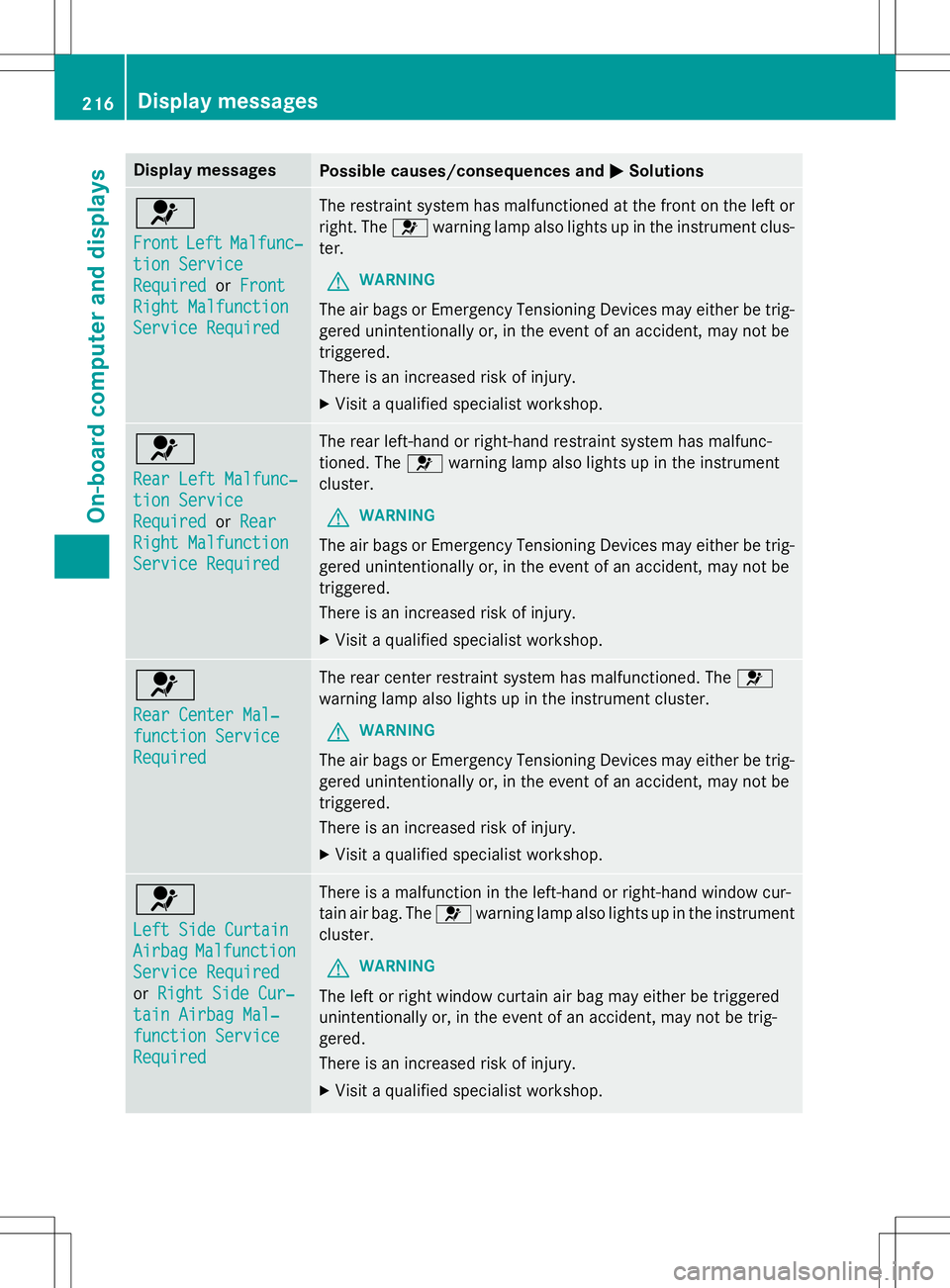

6
FrontLeftMalfuncZ
tion Service
RequiredorFront
Right Malfunction
Service Required
The restraint system has malfunctioned at the front on the left or
right. The 6warning lamp also lights up in the instrument clus-
ter.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
6
Rear Left MalfuncZ
tion Service
RequiredorRear
Right Malfunction
Service Required
The rear left-hand or right-hand restraint system has malfunc-
tioned. The 6warning lamp also lights up in the instrument
cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
6
Rear Center MalZ
function Service
Required
The rear center restraint system has malfunctioned. The 6
warning lamp also lights up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
6
Left Side Curtain
AirbagMalfunction
Service Required
orRight Side CurZ
tain Airbag MalZ
function Service
Required
There is a malfunction in the left-hand or right-hand window cur-
tain air bag. The 6warning lamp also lights up in the instrument
cluster.
GWARNING
The left or right window curtain air bag may either be triggered
unintentionally or, in the event of an accident, may not be trig-
gered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
216Display messages
On-board computer and displays

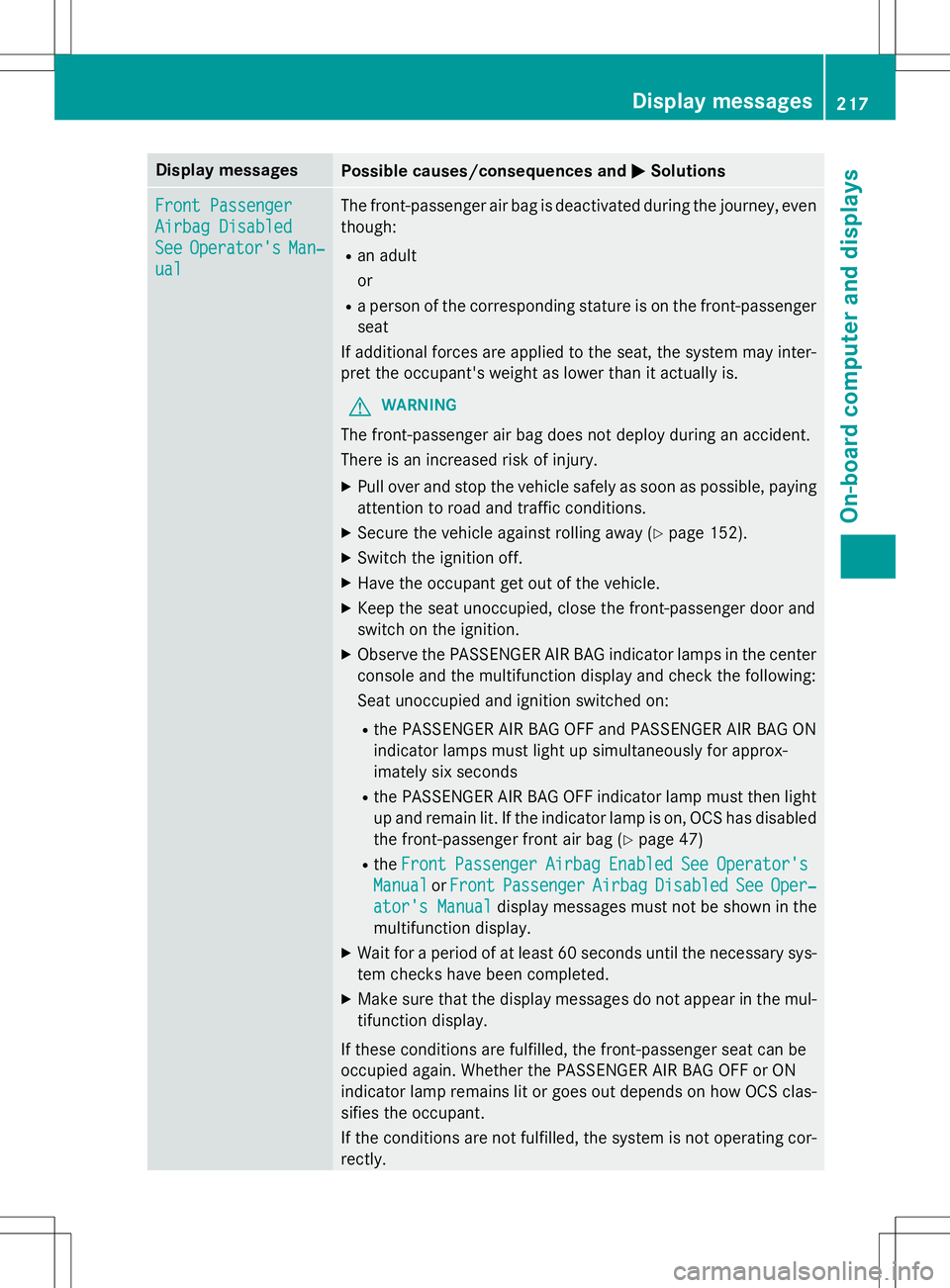

Display messagesPossible causes/consequences andMSolutions
Front Passenger
Airbag Disabled
SeeOperator'sManZ
ual
The front-passenger air bag is deactivated during the journey, even
though:
R an adult or
R a person of the corresponding stature is on the front-passenger
seat
If additional forces are applied to the seat, the system may inter-
pret the occupant's weight as lower than it actually is.
GWARNING
The front-passenger air bag does not deploy during an accident.
There is an increased risk of injury.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Switch the ignition off.
X Have the occupant get out of the vehicle.
X Keep the seat unoccupied, close the front-passenger door and
switch on the ignition.
X Observe the PASSENGER AIR BAG indicator lamps in the center
console and the multifunction display and check the following:
Seat unoccupied and ignition switched on:
R the PASSENGER AIR BAG OFF and PASSENGER AIR BAG ON
indicator lamps must light up simultaneously for approx-
imately six seconds
R the PASSENGER AIR BAG OFF indicator lamp must then light
up and remain lit. If the indicator lamp is on, OCS has disabled
the front-passenger front air bag ( Ypage 47)
R the
FrontPassengerAirbagEnabledSeeOperator's
ManualorFrontPassengerAirbagDisabledSeeOperZ
ator's Manualdisplay messages must not be shown in the
multifunction display.
X Wait for a period of at least 60 seconds until the necessary sys-
tem checks have been completed.
X Make sure that the display messages do not appear in the mul-
tifunction display.
If these conditions are fulfilled, the front-passenger seat can be
occupied again. Whether the PASSENGER AIR BAG OFF or ON
indicator lamp remains lit or goes out depends on how OCS clas- sifies the occupant.
If the conditions are not fulfilled, the system is not operating cor-
rectly.
Display messages217
On-board computer and displays
Z
