2015 MERCEDES-BENZ B-CLASS SPORTS display

Display messagesPossible causes/consequences andMSolutions
X
Visit a qualified specialist workshop immediately.

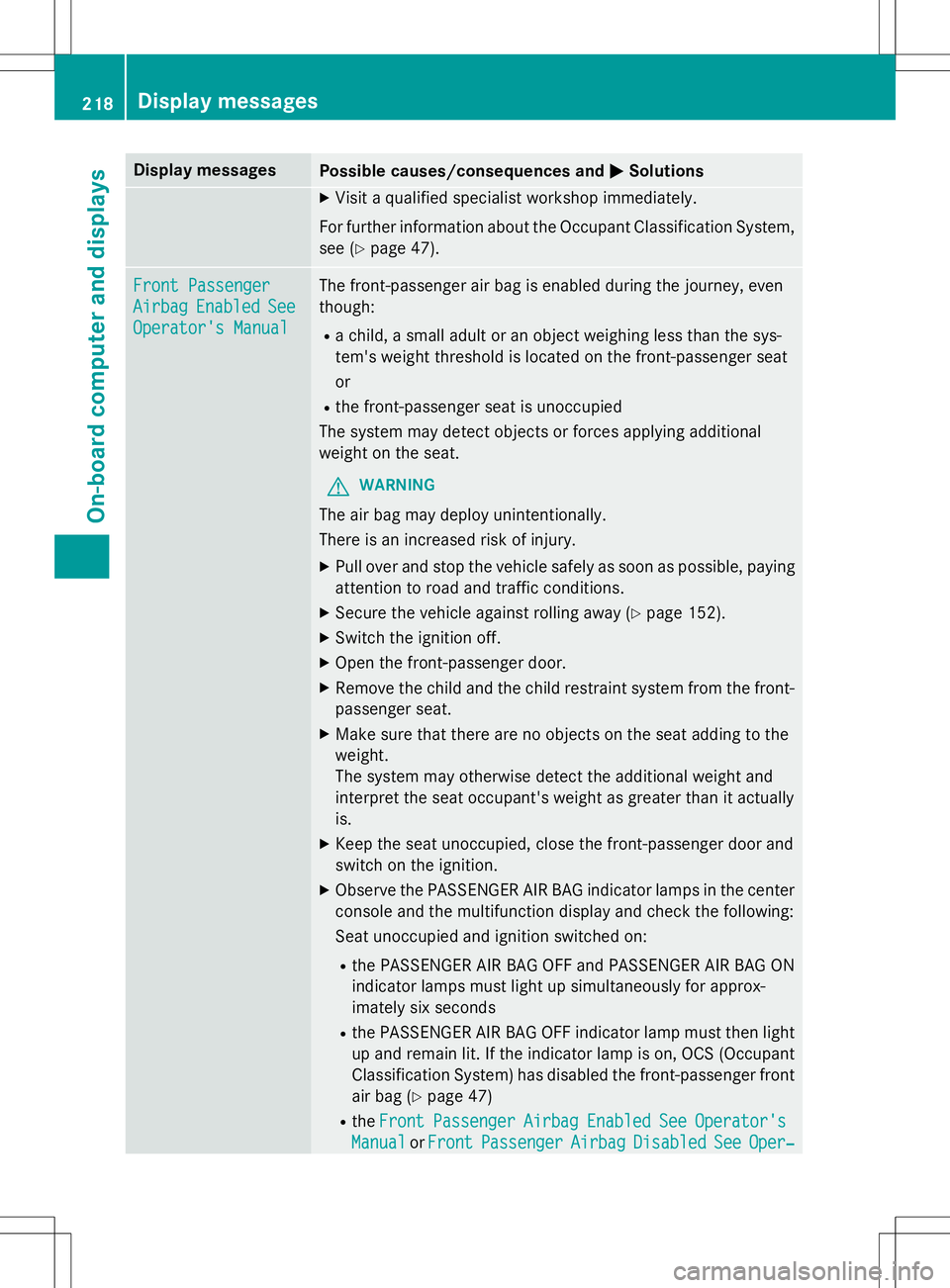

For further information about the Occupant Classification System, see ( Ypage 47).
Front Passenger
AirbagEnabledSee
Operator's Manual
The front-passenger air bag is enabled during the journey, even
though:
R a child, a small adult or an object weighing less than the sys-
tem's weight threshold is located on the front-passenger seat or
R the front-passenger seat is unoccupied
The system may detect objects or forces applying additional
weight on the seat.
GWARNING
The air bag may deploy unintentionally.
There is an increased risk of injury.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Switch the ignition off.
X Open the front-passenger door.
X Remove the child and the child restraint system from the front-
passenger seat.
X Make sure that there are no objects on the seat adding to the
weight.
The system may otherwise detect the additional weight and
interpret the seat occupant's weight as greater than it actuallyis.
X Keep the seat unoccupied, close the front-passenger door and
switch on the ignition.
X Observe the PASSENGER AIR BAG indicator lamps in the center
console and the multifunction display and check the following:
Seat unoccupied and ignition switched on:
R the PASSENGER AIR BAG OFF and PASSENGER AIR BAG ON
indicator lamps must light up simultaneously for approx-
imately six seconds
R the PASSENGER AIR BAG OFF indicator lamp must then light
up and remain lit. If the indicator lamp is on, OCS (Occupant
Classification System) has disabled the front-passenger front air bag ( Ypage 47)
R the
FrontPassengerAirbagEnabledSeeOperator's
ManualorFrontPassengerAirbagDisabledSeeOperZ
218Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions
ator's Manualdisplay messages must not be shown in the
multifunction display.
X Wait for a period of at least 60 seconds until the necessary sys-
tem checks have been completed.
X Make sure that the display messages do not appear in the mul-
tifunction display.
If these conditions are fulfilled, the front-passenger seat can be
occupied again. Whether the PASSENGER AIR BAG OFF or ON
indicator lamp remains lit or goes out depends on how OCS clas-
sifies the occupant.
If the conditions are not fulfilled, the system is not operating cor- rectly.
X Visit a qualified specialist workshop immediately.
For further information about the Occupant Classification System, see ( Ypage 47).
Lights
iVehicles with LED bulbs in the light clusters:
The display message for the corresponding light will only appear if all the LEDs have failed.
Display messagesPossible causes/consequences and MSolutions
b
Check Left Low
BeamorCheck
Right Low Beam
The left or right-hand low-beam headlamp is defective.
X Halogen headlamp: replace the bulb (Ypage 109).
X LED headlamps: consult a qualified specialist workshop.
b
Check Rear Left
Turn Signalor
Check Rear Right
Turn Signal
The rear left-hand or rear right-hand turn signal is defective.
X Tail lamps (vehicles with halogen headlamps): replace the
bulb ( Ypage 109).
X Tail lamps (vehicles with LED headlamps): visit a qualified
specialist workshop.
b
Check Front Left
Turn Signalor
Check Front Right
Turn Signal
The front left-hand or front right-hand turn signal is defective.
X Halogen headlamp: replace the bulb (Ypage 109).
X LED headlamps: consult a qualified specialist workshop.
Displaymessages219
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions
b
Check Left Mirror
Turn Signalor
CheckRightMirror
Turn Signal
The turn signal in the left-hand or right-hand exterior mirror is
defective.
X Visit a qualified specialist workshop.
b
CheckCenterBrake
Lamp
The high-mounted brake lamp is faulty. XVisit a qualified specialist workshop.
b
Check Left Brake
LamporCheck
Right Brake Lamp
The left or right-hand brake lamp is defective. XVisit a qualified specialist workshop.
b
Check Left Tail
and Brake Lampsor
Check Right Tail
and Brake Lamps
The left or right-hand tail lamp/brake lamp is defective.
X Visit a qualified specialist workshop.
b
Check Left High
BeamorCheck
Right High Beam
The left or right-hand high beam is defective.
X Halogen headlamp: replace the bulb (Ypage 109).
X LED headlamps: consult a qualified specialist workshop.
b
License Plate Lamp
The left or right-hand license plate lamp is faulty.
X Check whether you are permitted to replace the bulb yourself (Y page 109).
or
X Visit a qualified specialist workshop.
b
Check Left Fog
LamporCheck Right
Fog Lamp
The left or right-hand fog lamp is faulty.
X Visit a qualified specialist workshop.
b
Rear Fog Lamp
The rear fog lamp is faulty.
X Tail lamps (vehicles with halogen headlamps): replace the
bulb ( Ypage 109).
X Tail lamps (vehicles with LED headlamps): visit a qualified
specialist workshop.
220Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions
b
Check Front Left
Parking lampor
Check Front Right
Parking Lamp
The front left or front right parking or standing lamp is defective. X
Visit a qualified specialist workshop.
b
Backup Light
The backup lamp is defective.
X Tail lamps (vehicles with halogen headlamps): replace the
bulb ( Ypage 109).
X Tail lamps (vehicles with LED headlamps): visit a qualified
specialist workshop.
b
Check Left Tail
LamporCheck
Right Tail Lamp
The left or right-hand tail lamp is defective.
X Visit a qualified specialist workshop.
b
Check Front Left
Sidemarker Lampor
Check Front Right
Sidemarker Lamp
The front left-hand or front right-hand side marker lamp is faulty.
X Visit a qualified specialist workshop.
b
Check Rear Left
Sidemarker Lampor
Check Rear Right
Sidemarker Lamp
The rear left-hand or rear right-hand side marker lamp is faulty.
X Visit a qualified specialist workshop.
b
CheckLeftDaytime
Running Lightor
Check Right DayZ
time Running Light
The left or right-hand daytime running lamp is faulty.
X Visit a qualified specialist workshop.
b
Active Headlamps
Inoperative
The active light function is faulty.
X Visit a qualified specialist workshop.
b
Malfunction See
Operator's Manual
The exterior lighting is defective.
X Visit a qualified specialist workshop.
Display messages221
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions
b
Active Headlamps
Inoperative
The light sensor is defective.
X Visit a qualified specialist workshop.
b
Switch Off Lights
The lights are still switched on when you leave the vehicle. A
warning tone also sounds.
X Turn the light switch to Ã.
Engine
Display messagesPossible causes/consequences and MSolutions
+
Check Coolant
Level See OperaZ
tor's Manual
The coolant level is too low.
!Avoid making long journeys with too little coolant in the engine
cooling system. The engine will otherwise be damaged.
X Add coolant, observing the warning notes before doing so (Y page 273).
X If coolant needs to be added more often than usual, have the
engine coolant system checked at a qualified specialist work-
shop.
?The fan motor is faulty. XAt coolant temperatures below 248 ‡ (120 †), drive to the
nearest qualified specialist workshop.
X Avoid subjecting the engine to heavy loads, e.g. driving in moun-
tainous terrain, and stop-and-go traffic.
222Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions
?
Coolant Too Hot
Stop Vehicle Turn
Engine Off
The coolant is too hot.
A warning tone also sounds.
GWARNING
Do not drive when your engine is overheated. This can cause some
fluids which may have leaked into the engine compartment to
catch fire.
Steam from the overheated engine can also cause serious burns
which can occur just by opening the hood.
There is a risk of injury. X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Wait until the engine has cooled down.
X Make sure that the air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
X Do not start the engine again until the display message goes out
and the coolant temperature is below 248 ‡ (120 †). Other-
wise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X If the temperature increases again, visit a qualified specialist
workshop immediately.
Under normal operating conditions and with the specified coolant
level, the coolant temperature may rise to 248 ‡ (120 †).
#
SeeOperator'sManZ
ual
The battery is not being charged.
A warning tone also sounds.
Possible causes are: R a defective alternator
R a torn poly-V-belt
R a malfunction in the electronics
!Do not continue driving. The engine could otherwise overheat.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Consult a qualified specialist workshop.
Display messages223
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions
#

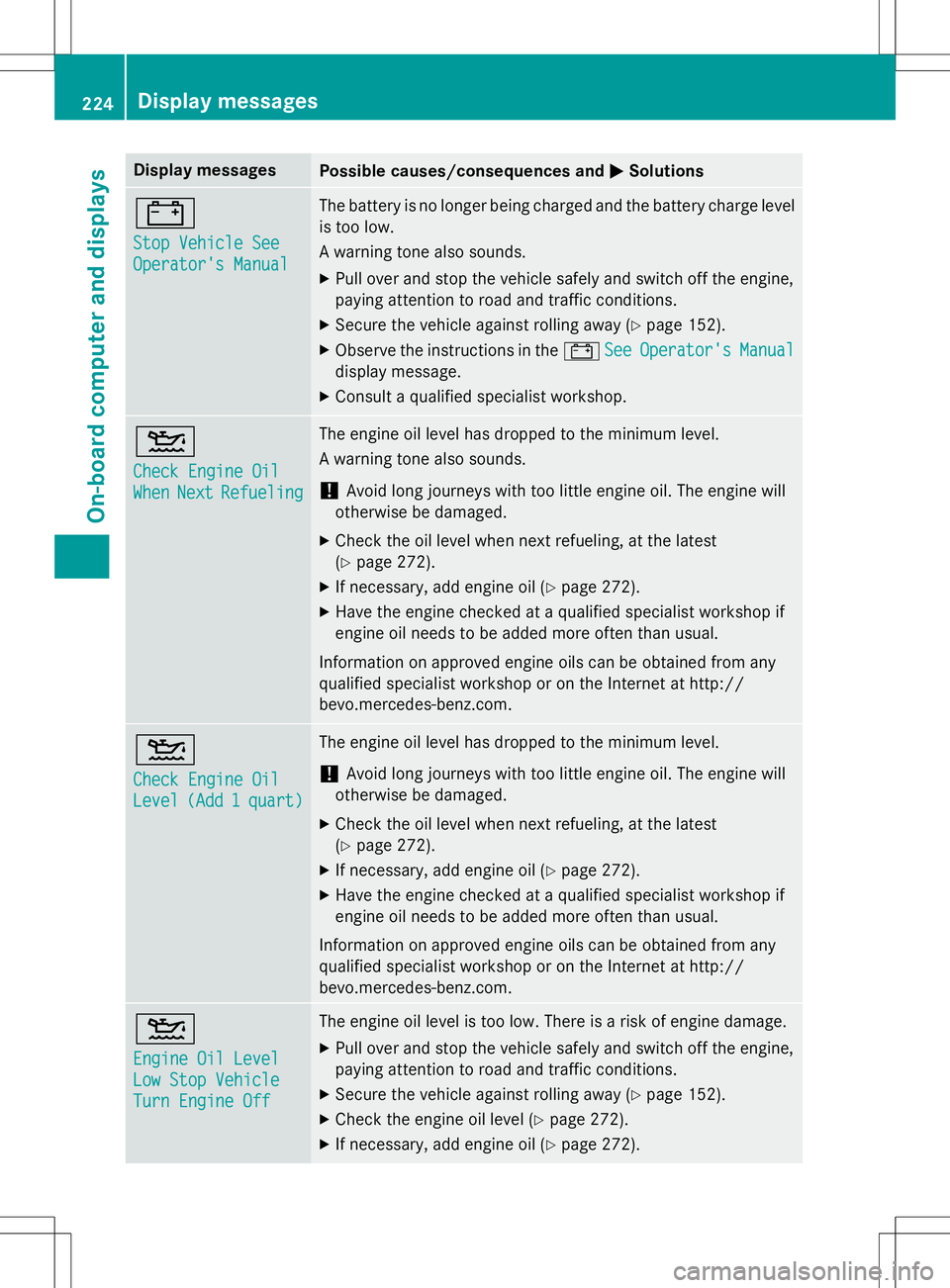

Stop Vehicle See
Operator's Manual
The battery is no longer being charged and the battery charge level
is too low.
A warning tone also sounds.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Observe the instructions in the #
SeeOperator'sManual
display message.
X Consult a qualified specialist workshop.
4
Check Engine Oil
WhenNextRefueling
The engine oil level has dropped to the minimum level.
A warning tone also sounds.
!Avoid long journeys with too little engine oil. The engine will
otherwise be damaged.
X Check the oil level when next refueling, at the latest (Y page 272).
X If necessary, add engine oil ( Ypage 272).
X Have the engine checked at a qualified specialist workshop if
engine oil needs to be added more often than usual.
Information on approved engine oils can be obtained from any
qualified specialist workshop or on the Internet at http://
bevo.mercedes-benz.com.
4
Check Engine Oil
Level(Add1quart)
The engine oil level has dropped to the minimum level.
!Avoid long journeys with too little engine oil. The engine will
otherwise be damaged.
X Check the oil level when next refueling, at the latest (Y page 272).
X If necessary, add engine oil ( Ypage 272).
X Have the engine checked at a qualified specialist workshop if
engine oil needs to be added more often than usual.
Information on approved engine oils can be obtained from any
qualified specialist workshop or on the Internet at http://
bevo.mercedes-benz.com.
4
Engine Oil Level
Low Stop Vehicle
Turn Engine Off
The engine oil level is too low. There is a risk of engine damage.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 152).
X Check the engine oil level ( Ypage 272).
X If necessary, add engine oil ( Ypage 272).
224Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions
æ
Fuel Level Low
The fuel level has dropped into the reserve range.
X Refuel at the nearest gas station.
çThere is only a very small amount of fuel in the fuel tank.
X Refuel at the nearest gas station without fail.
æ
Gas Cap Loose
The fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.
X Check that the fuel filler cap is correctly closed.
If the fuel filler cap is not correctly closed: X Close the fuel filler cap.
If the fuel filler cap is correctly closed: X Visit a qualified specialist workshop.
Driving systems
Display messagesPossible causes/consequences and MSolutions
À
Attention Assist:
Take a Break!
Based on certain criteria, ATTENTION ASSIST has detected fatigue
or a lack of concentration on the part of the driver. A warning tone also sounds.
X If necessary, take a break.
During long journeys, take regular breaks in good time so you get enough rest.
À
Attention Assist
Inoperative
ATTENTION ASSIST is inoperative.
X Visit a qualified specialist workshop.
ë
Off
The HOLD function is deactivated. The vehicle is skidding.
A warning tone also sounds.
X Reactivate the HOLD function later ( Ypage 170).
The HOLD function is deactivated. When the brake pedal is firmly
depressed, an activation condition is not fulfilled.
A warning tone also sounds.
X Check the activation conditions for the HOLD function (Y page 170).
Display messages225
On-board computer and displays
Z
