2015 MERCEDES-BENZ B-Class ELECTRIC Owner's Manual

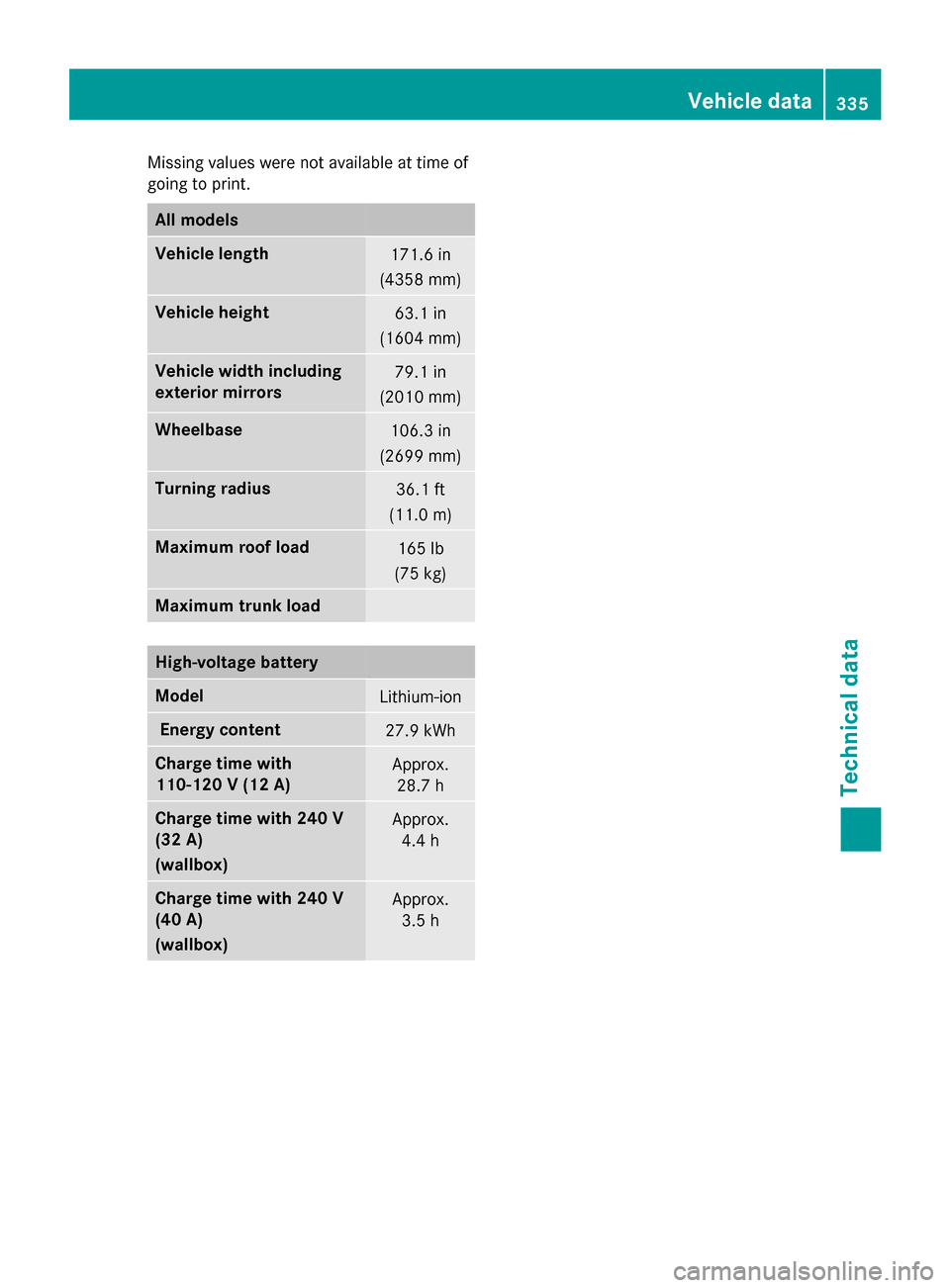

Missing values were not available at time of
going to print. All models
Vehicle length
171.6 in
(4358 mm) Vehicle height
63.1 in
(1604 mm) Vehicle width including
exterior mirrors
79.1 in
(2010 mm) Wheelbase
106.3 in
(2699 mm) Turning radius
36.1 ft
(11.0 m) Maximum roof load
165 lb
(75 kg) Maximum trunk load
High-voltage battery
Model
Lithium-ion
Energy content
27.9 kWh
Charge time with
110-120 V (12 A)
Approx.
28.7 h Charge time with 240 V
(32 A)
(wallbox)
Approx.
4.4 h Charge time with 240 V
(40 A)
(wallbox)
Approx.
3.5 h Vehicle data
335Technical data Z

336
