NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. The period in
which the tire was manufactured (both week
and year) is indicated by a 4-digit number.
Refer to Tire Labeling on page 9-23.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
ØLimited-Slip Differential System
Ø (With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-34.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset
(inset/outset).
Maintenance and Care
Owner Maintenance
8-35
MX-5_8EN7-EA-14E_Edition1 Page361
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (362,1)
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
8-36
Maintenance and Care
Owner Maintenance
MX-5_8EN7-EA-14E_Edition1 Page362
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (363,1)
MEMO
8-37
MX-5_8EN7-EA-14E_Edition1 Page363
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (364,1)

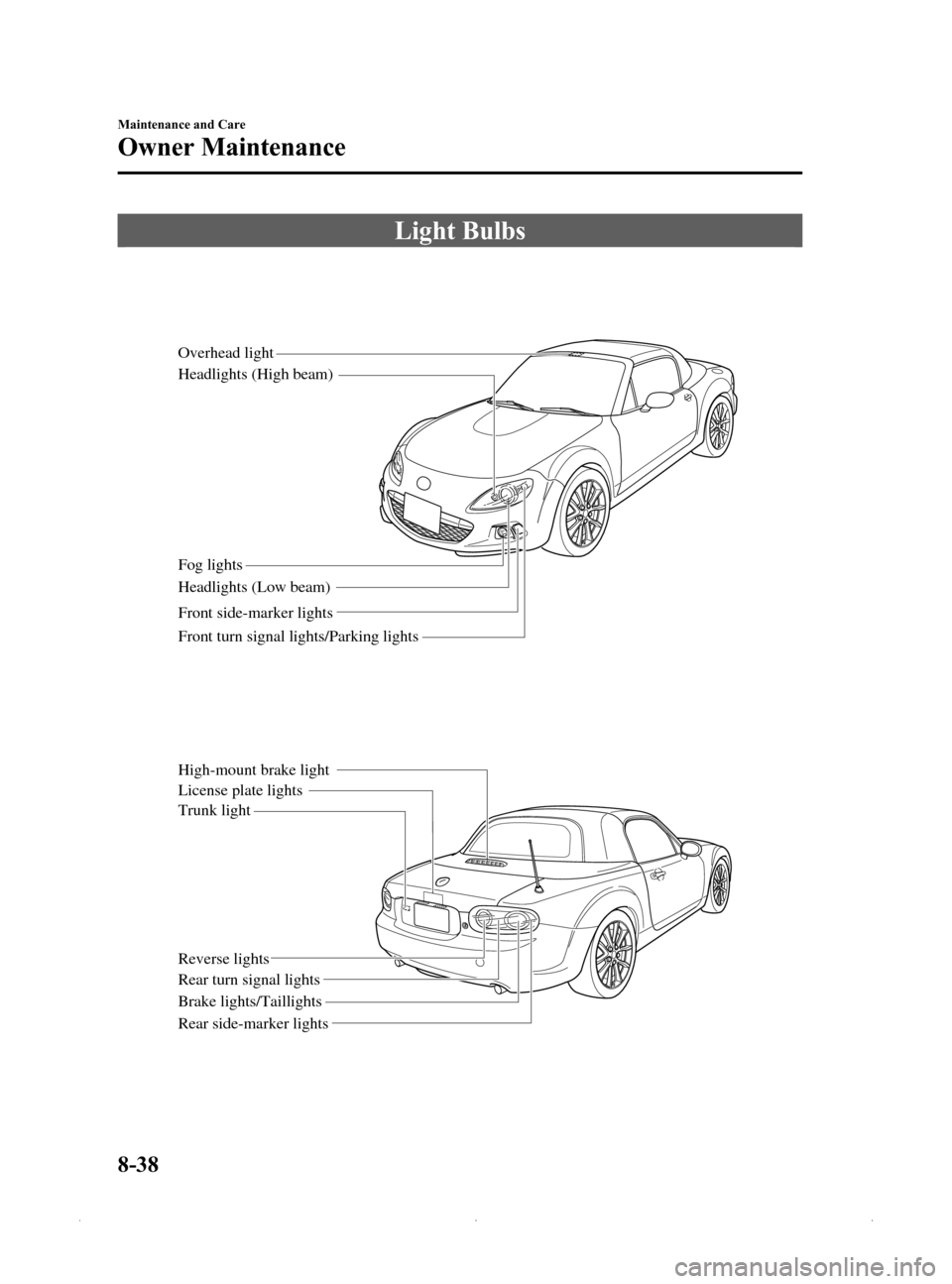

Light Bulbs
High-mount brake light
License plate lights
Trunk light
Reverse lights
Rear turn signal lights
Brake lights/Taillights
Rear side-marker lights Overhead light
Headlights (Low beam) Headlights (High beam)
Fog lights
Front turn signal lights/Parking lights Front side-marker lights
8-38
Maintenance and Care
Owner Maintenance
MX-5_8EN7-EA-14E_Edition1 Page364
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (365,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Headlight bulbs
High-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the connector from the bulb by pressing the tab on the connector
with your finger and pulling the
connector downward.
4. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
5. Install the new bulb in the reverse orderof the removal procedure.
Maintenance and Care
Owner Maintenance
8-39
MX-5_8EN7-EA-14E_Edition1 Page365
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (366,1)
Low-beam bulbs
(Xenon fusion bulbs)
You cannot replace the low beam bulbs by
yourself. The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. If you are changing the right bulb, startthe engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left,
and turn off engine.
2. Make sure the headlight switch is off.
3. Turn the center section of the plastic retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Disconnect the connector from the bulbby pressing the tab on the connector
with your finger and pulling the
connector rear.
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.
8-40
Maintenance and Care
Owner Maintenance
MX-5_8EN7-EA-14E_Edition1 Page366
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (367,1)
7. Remove the adapter.
8. Install the new bulb in the reverse orderof the removal procedure.
Fog light bulbs
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Turn the screws and the center section of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
Removal
Installation
3. Disconnect the connector from the bulbby pressing the tab on the connector
with your finger and pulling the
connector downward.
4. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
5. Install the new bulb in the reverse order
of the removal procedure.
Front side-marker lights
1. Make sure the ignition is switched off,and the headlight switch is off.
Maintenance and Care
Owner Maintenance
8-41
MX-5_8EN7-EA-14E_Edition1 Page367
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (368,1)
2. Turn the screws and the center sectionof the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
Removal
Installation
3. Disconnect the connector from the bulbby pressing the tab on the connector
with your finger and pulling the
connector downward.
4. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
NOTE
(Replacing front-passenger side lamp bulb)
Turn the socket and bulb assembly screw
counterclockwise.
8-42
Maintenance and Care
Owner Maintenance
MX-5_8EN7-EA-14E_Edition1 Page368
Friday, March 28 2014 3:41 PM
