2015 MAZDA MODEL MX-5 PRHT Owners Manual (in English)

Black plate (17,1)
Seat Warmerí
The driver and passenger seats can be
warmed by rotating the applicable seat
warmer dial while the ignition is switched
ON.
The seat temperature increases as the
number on the dial increases. When the
seat warmers are not in use, rotate the seat
warmer dials to 0.
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Ø Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
Ø Do not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
Ø Do not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
Essential Safety Equipment
Seats
2-5íSome models.
MX-5_8EN7-EA-14E_Edition1 Page17
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (18,1)
NOTE
Use the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
2-6
Essential Safety Equipment
Seats
MX-5_8EN7-EA-14E_Edition1 Page18
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (19,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and passenger always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the passenger's seat lap/shoulder belt retractors operate in two modes: emergency
locking mode, and for child-restraint systems, automatic locking mode.
Essential Safety Equipment
Seat Belt Systems
2-7
MX-5_8EN7-EA-14E_Edition1 Page19
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (20,1)

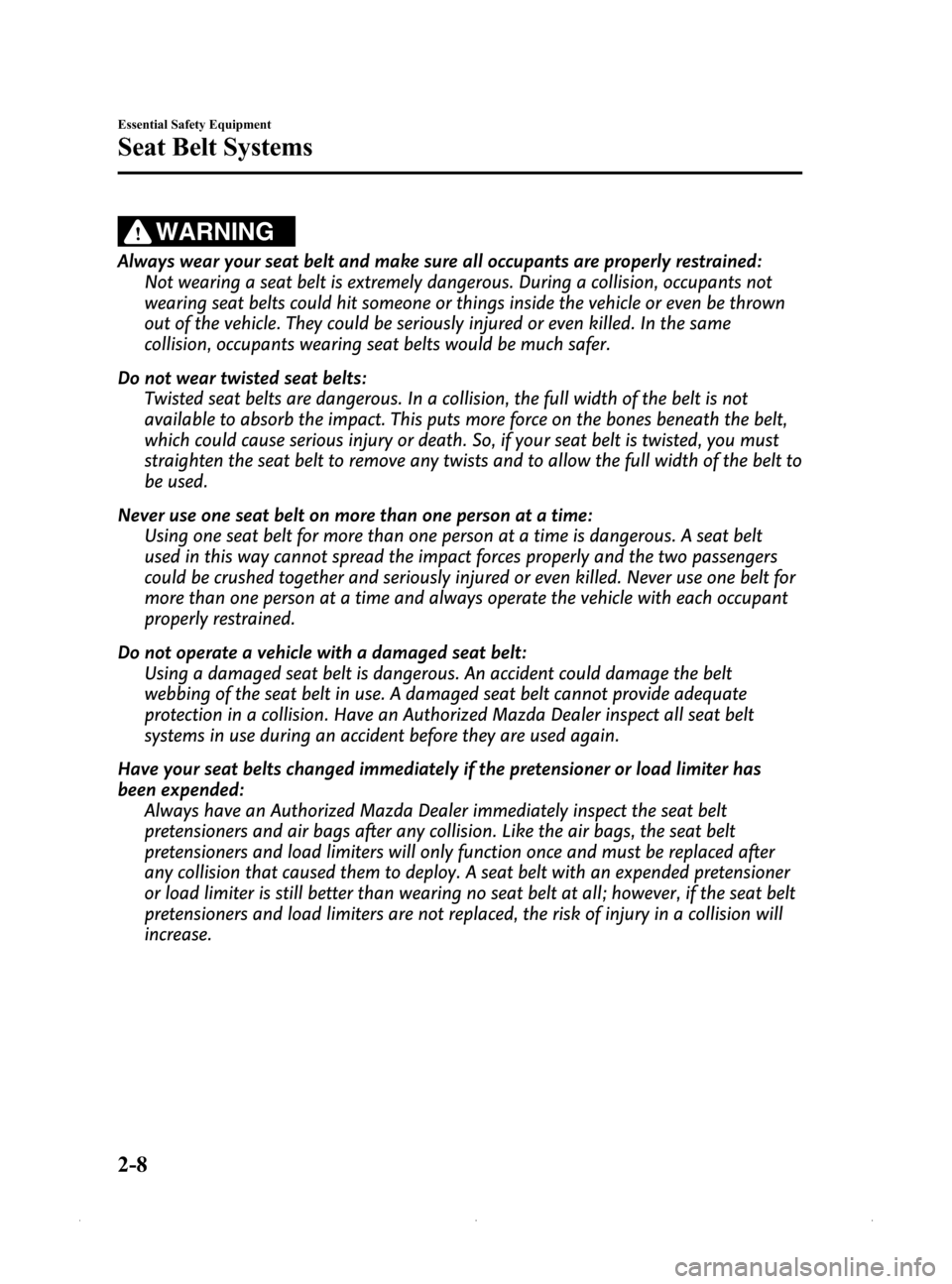

WARNING
Always wear your seat belt and make sure all occupants are properly restrained:Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended: Always have an Authorized Mazda Dealer immediately inspect the seat belt
pretensioners and air bags after any collision. Like the air bags, the seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the seat belt
pretensioners and load limiters are not replaced, the risk of injury in a collision will
increase.
2-8
Essential Safety Equipment
Seat Belt Systems
MX-5_8EN7-EA-14E_Edition1 Page20
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (21,1)
CAUTION
Belt retraction may become difficult if the belts and seat belt guides are soiled, so try
to keep them clean. For more details about cleaning the seat belts, refer to“Cleaning
the Lap/Shoulder Belt Webbing ”(page 8-61).
Seat belt guide
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
Essential Safety Equipment
Seat Belt Systems
2-9
MX-5_8EN7-EA-14E_Edition1 Page21
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (22,1)
qAutomatic Locking Mode
To enable seat belt automatic locking mode, pull it all the way out and connect it as
instructed on the child-restraint system. It will retract down to the child-restraint system
and stay locked on it. See the section on child restraint (page 2-18).
2-10
Essential Safety Equipment
Seat Belt Systems
MX-5_8EN7-EA-14E_Edition1 Page22
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (23,1)
Seat Belt
WARNING
Always wear the seat belt with it
correctly routed in its guide:Wearing a seat belt without the seat
belt routed in its guide is dangerous
because the seat belt would not be
able to provide adequate protection
in an accident, which could result in
serious injury.
Seat belt guide
qFastening the Seat Belt
1. Grasp the seat belt tongue.
2. Slowly pull out the lap/shoulder belt.
Lap/shoulder belt
Seat belt tongue
3. Insert the seat belt tongue into the seat belt buckle until you hear a click
sound.
Seat belt tongue
Seat belt buckle
WARNING
Positioning the Shoulder Portion of the
Seat Belt: Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible, not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Too high
Take up slack
Keep low on
hip bone
Essential Safety Equipment
Seat Belt Systems
2-11
MX-5_8EN7-EA-14E_Edition1 Page23
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (24,1)
WARNING
Positioning the Lap Portion of the Seat
Belt:The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
qUnfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qSeat Belt Caution Label
A caution label has been placed inside the
sleeve of the lap portion of the driver's
seat belt. When an accident occurs while
the seat belt is in use, the resulting stress
on the seat belt will cause an indicator
with the words “REPLACE BELT ”
visible on it to be pulled out of the sleeve
below the caution label. This indicates
that THE SEAT BELT MUST BE
REPLACED .
Also note that if at any time the seat belt
has undergone stress because of an
accident or other reason, damage to the
seat belt's webbing, metal fittings, or
anchor bolt may have occurred, even
though nothing appears to be wrong with
the seat belt. For this reason we
recommend that the seat belt be replaced
after it has undergone stress, whether or
not the indicator has been pulled out.
Caution
label
