2015 MAZDA MODEL MX-5 PRHT Owners Manual (in English)

Black plate (97,1)
Convertible Top (Soft Top)í
Windshield headerTop latch assembly
Top storage area
Convertible
top's handlesLabel (The label indicates the position where convertible
top is to be held when lowering or raising it.)
qConvertible Top Precautions
WARNING
Sit in the seat with the seat belt
correctly fastened when the vehicle is
moving:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when the vehicle is
moving is a dangerous way to ride.
During a sudden maneuver or
collision you could be seriously
injured or even killed. Always keep your hands and fingers
away from the fastening mechanisms
when moving the convertible top:
It is dangerous to place your hands
or fingers near the fastening
mechanisms. Your hands or fingers
could be caught and injured by the
mechanism.
CAUTION
Remove leaves or other matter that
may accumulate on and around the
soft top. Otherwise, the water
drainage outlets could become
blocked, resulting in water leakage.
For detailed maintenance of the
water draining outlets, consult an
Authorized Mazda Dealer.
Knowing Your Mazda
Doors and Locks
3-43íSome models.
MX-5_8EN7-EA-14E_Edition1 Page97
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (98,1)

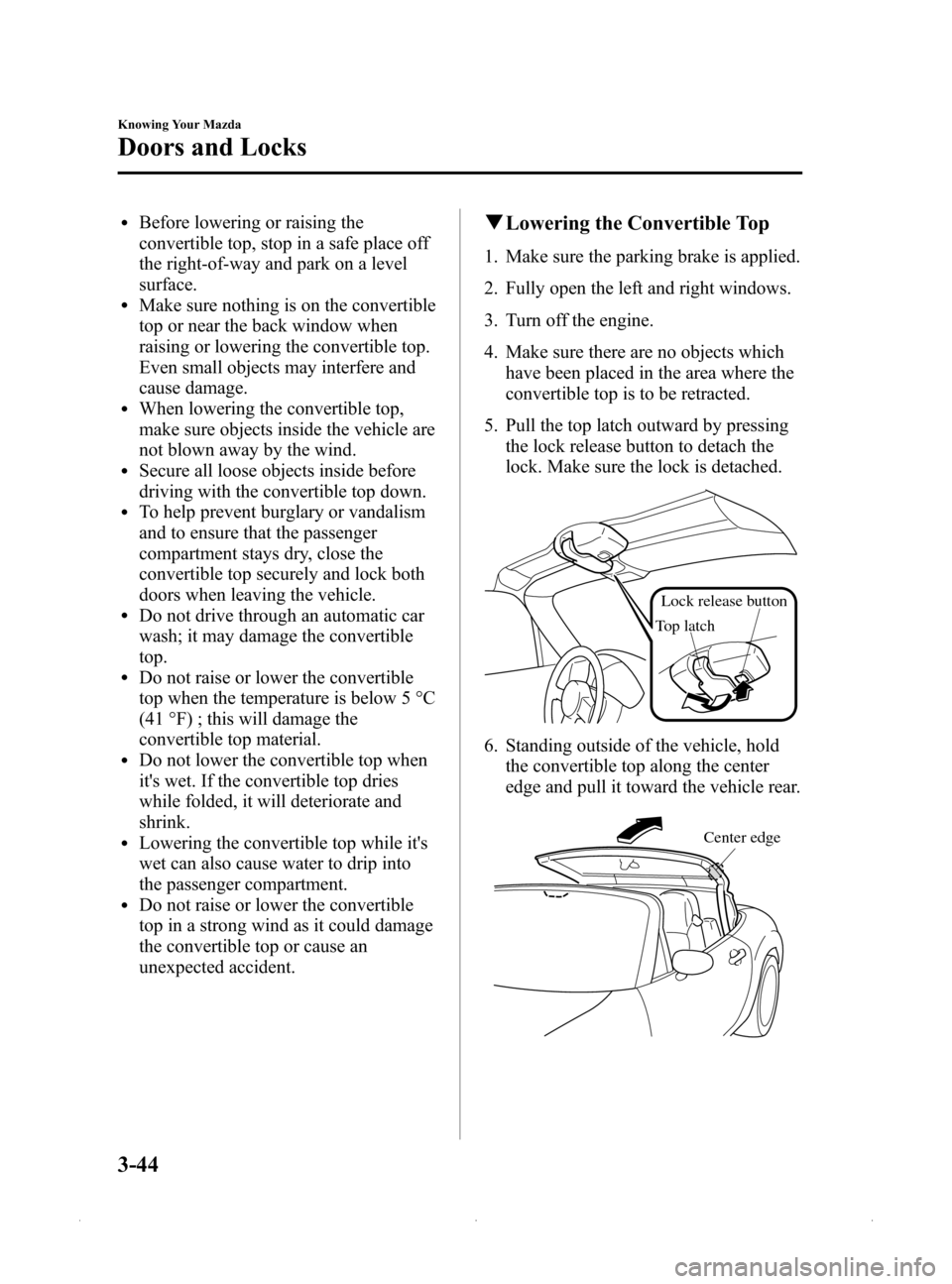

lBefore lowering or raising the
convertible top, stop in a safe place off
the right-of-way and park on a level
surface.
lMake sure nothing is on the convertible
top or near the back window when
raising or lowering the convertible top.
Even small objects may interfere and
cause damage.
lWhen lowering the convertible top,
make sure objects inside the vehicle are
not blown away by the wind.
lSecure all loose objects inside before
driving with the convertible top down.
lTo help prevent burglary or vandalism
and to ensure that the passenger
compartment stays dry, close the
convertible top securely and lock both
doors when leaving the vehicle.
lDo not drive through an automatic car
wash; it may damage the convertible
top.
lDo not raise or lower the convertible
top when the temperature is below 5 °C
(41 °F) ; this will damage the
convertible top material.
lDo not lower the convertible top when
it's wet. If the convertible top dries
while folded, it will deteriorate and
shrink.
lLowering the convertible top while it's
wet can also cause water to drip into
the passenger compartment.
lDo not raise or lower the convertible
top in a strong wind as it could damage
the convertible top or cause an
unexpected accident.
qLowering the Convertible Top
1. Make sure the parking brake is applied.
2. Fully open the left and right windows.
3. Turn off the engine.
4. Make sure there are no objects which
have been placed in the area where the
convertible top is to be retracted.
5. Pull the top latch outward by pressing the lock release button to detach the
lock. Make sure the lock is detached.
Lock release button
Top latch
6. Standing outside of the vehicle, hold the convertible top along the center
edge and pull it toward the vehicle rear.
Center edge
3-44
Knowing Your Mazda
Doors and Locks
MX-5_8EN7-EA-14E_Edition1 Page98
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (99,1)
NOTE
To lower the convertible top from inside the
vehicle, use the convertible top's handles.
Convertible top's
handles
7. Continue to move the convertible top
rearward while pressing the rear glass
lightly with your hand.
8. After the convertible top has beenfolded down, press the back end of the
folded down convertible top until a
click sound is heard, then the front end.
Lightly rock the retracted convertible
top to make sure it is securely locked.
9. Raise the windblocker if it is needed.
NOTE
The windblocker reduces the amount of wind
coming into the cabin from behind when
driving with the convertible top opened.
Refer to Windblocker on page 6-86.
qRaising the Convertible Top
1. Make sure the parking brake is applied.
2. Fully open the left and right windows.
3. Turn off the engine.
Knowing Your Mazda
Doors and Locks
3-45
MX-5_8EN7-EA-14E_Edition1 Page99
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (100,1)
4. Pull the unlock lever outward todisengage the lock.
Unlock lever
5. Standing outside of the vehicle, hold
the convertible top along the center
edge and pull it towards the vehicle
front.
Center edge
NOTE
To raise the convertible top from inside the
vehicle, use the convertible top's handles.
Convertible top's
handles
6. Sitting in a seat, grasp the convertible
top's handles, and press the convertible
top against the windshield.
Move the top latch slowly to make sure
the anchor engages with the striker,
then rotate the top latch to the lock
position until a click sound is heard.
Striker
Anchor
Convertible top's
handles
3-46
Knowing Your Mazda
Doors and Locks
MX-5_8EN7-EA-14E_Edition1 Page100
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (101,1)
CAUTION
Driving with the convertible top not
fully locked could damage the
convertible top.
If the red indicator is visible on the
lock release button, the convertible
top is not locked. After locking the
convertible top, verify that the red
indicator is not visible.
Locked position
Unlocked position Red indicator
NOTElThe convertible top may be constricted if it
is left retracted for a long period.
Therefore, if the top has become
constricted, it may be difficult to hook the
top latch striker to the anchor.
lMake sure the convertible top is securely
locked by pushing up on it. If it still sounds
loose (rattles) after being locked by the top
latch, have it inspected at an Authorized
Mazda Dealer.
q Taking Care of the Top
Refer to Convertible Top Maintenance
(page 8-57) for information on taking care
of the convertible top.
Knowing Your Mazda
Doors and Locks
3-47
MX-5_8EN7-EA-14E_Edition1 Page101
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (102,1)
Convertible Top (Power Retractable Hardtop)í
The power retractable hardtop opens/closes electrically by operating switches in the
vehicle. When opening/closing the hardtop, the hardtop, deck and window glass operate
together. The hardtop is stored in the storage area under the deck.
Top latch assembly
Close switchOpen switchDeck
Indicator light
Hardtop
3-48
Knowing Your Mazda
íSome models.
Doors and Locks
MX-5_8EN7-EA-14E_Edition1 Page102
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (103,1)
qPower Retractable Hardtop Precautions
WARNING
Always confirm that there are no people around the vehicle before operating the
hardtop:
If the hardtop were to operate unexpectedly, it could result in an accident and
serious injury from someone getting caught in the mechanism.
Always drive safely and observe the speed limit: Rollover accidents on a hardtop vehicle are dangerous. The hardtop is not as strong
as a regular steel roof. Rollover accidents could dislodge or crush the hardtop and
cause serious injuries or even death, just as with no top.
Sit in the seat with the seat belt correctly fastened when the vehicle is moving: Standing in the vehicle, or sitting on the deck or center console when the vehicle is
moving is a dangerous way to ride. During a sudden maneuver or collision you could
be seriously injured or even killed.
Always keep your hands and fingers away from the fastening mechanisms when
moving the hardtop: It is dangerous to place your hands or fingers near the fastening mechanisms. Your
hands or fingers could be caught and injured by the mechanism.
CAUTION
ØDo not drive with the hardtop partially opened; this could damage the hardtop or
cause an unexpected accident.
Ø Children should not be allowed to play with the open/close switch.
Ø Do not place objects or cargo around the deck, rear glass, or the hardtop storage
area.
Even small objects may interfere and cause damage.
Ø Remove leaves that accumulate on and around the hardtop. If the leaves are not
removed, they may block the water drainage outlets.
Ø Before opening the hardtop, make sure the rear window defogger switch
(Defroster) is turned off. Otherwise the heat generated from the defogger could
damage the hardtop and the internal material.
Ø When opening/closing the hardtop, verify that there is no obstruction above the
hardtop (about 1.5 m from the ground) so as not to damage the hardtop or the
obstruction.
Ø When opening/closing the hardtop, do not apply any load to the hardtop or the
deck. The opening/closing mechanism of the hardtop may be damaged.
lOpen/close the hardtop with the vehicle parked on level ground in a safe place where the
vehicle does not obstruct traffic. If the hardtop is opened/closed on a slope or bump, the
opening/closing mechanism of the hardtop may be damaged.
Knowing Your Mazda
Doors and Locks
3-49
MX-5_8EN7-EA-14E_Edition1 Page103
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (104,1)
lBefore opening or closing the hardtop, stop in a safe place off the right-of-way and park
on a level surface.
lWhen opening the hardtop, make sure objects inside the vehicle are not blown away by
the wind.
lSecure all loose objects inside before driving with the hardtop down.lTo help prevent burglary or vandalism and to ensure that the passenger compartment
stays dry, close the hardtop securely and lock both doors when leaving the vehicle.
lDo not drive through an automatic car wash as it may damage the hardtop.lDo not open or close the hardtop forcefully when the ambient temperature is low and the
hardtop or the surrounding area is frozen as it could damage the hardtop.
lOpening the hardtop while it is wet can also cause water to drip into the passenger
compartment.
lDo not open or close the hardtop in a strong wind as it could damage the hardtop.
qOperation Indicator Light
When illuminated
This notifies the driver that the hardtop is
only partially open.
When flashing
This indicates that the hardtop is being
open/closed. (During button operation)
When not illuminated
This indicates that the hardtop is open/
closed fully.
NOTE
If the operation indicator light flashes quickly,
there may be a system malfunction. Consult an
Authorized Mazda Dealer.
qOperation Conditions
If the following conditions have been
satisfied, the hardtop can be opened/
closed.
lThe vehicle is parked on a level surface
off the right-of-way and the parking
brake is firmly set.
lThe ignition is switched ON.lPut a vehicle with an automatic
transmission in Park (P) or Neutral (N),
a manual transmission in Neutral.
lThe trunk lid is closed.
NOTE
If the power retractable hardtop cannot be
closed even after the operation conditions are
all met, have it checked at an Authorized
Mazda Dealer.
The hardtop can be closed manually as an
emergency measure.
Refer to The Power Retractable Hardtop Does
not Close on page 3-54.
