2015 MAZDA MODEL MX-5 PRHT Owners Manual (in English)

Black plate (105,1)
qOpening the Power Retractable
Hardtop
1. Park on a level surface off the right-of-
way.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake pedal depressed.
4. Start the Engine.
NOTE
Do not open/close the hardtop with the engine
stopped. Otherwise the vehicle's battery power
could be depleted.
5. With the lock release button depressed, pull the top latch outward to unlock.
Lock release button
Top latch
6. Verify that the operation indicator light is illuminated and the lock is detached. 7. Press and hold the open button until the
hardtop opens completely.
NOTElWhen the open switch is pressed, a beep
sound is heard.
lThe hardtop keeps opening and the
operation indicator light flashes while the
open switch is pressed.
lIf the switch is released while the hardtop is
opening, the hardtop stops opening. If the
switch is pressed again, the hardtop
resumes opening.
8. The deck opens.
NOTE
If the windows are closed, the windows
automatically open partially when the deck
opens.
Knowing Your Mazda
Doors and Locks
3-51
MX-5_8EN7-EA-14E_Edition1 Page105
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (106,1)
9. The hardtop opens.
10. The hardtop retracts under the deck.
11. The deck closes.
NOTE
When the operation is finished, a beep sound is
heard and the operation indicator light turns
off.
qClosing the Power Retractable
Hardtop
1. Park on a level surface off the right-of-
way.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake pedal depressed.
4. Start the Engine.
NOTE
Do not open/close the hardtop with the engine
stopped. Otherwise the vehicle's battery power
could be depleted.
5. Press and hold the close button until the hardtop closes completely.
NOTElWhen the close switch is pressed, a beep
sound is heard.
lThe hardtop keeps closing and the
operation indicator light flashes while the
close switch is pressed.
lIf the switch is released while the hardtop is
closing, the hardtop stops closing. If the
switch is pressed again, the hardtop
resumes closing.
3-52
Knowing Your Mazda
Doors and Locks
MX-5_8EN7-EA-14E_Edition1 Page106
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (107,1)
6. The deck opens.
NOTE
If the windows are closed, the windows
automatically open partially when the deck
opens.
7. The hardtop comes out from under thedeck.
8. The hardtop closes.
9. The deck closes.
NOTElWhen the operation is finished, a beep
sound is heard and the operation indicator
light illuminates.
lThe power windows cannot be closed
automatically.
Knowing Your Mazda
Doors and Locks
3-53
MX-5_8EN7-EA-14E_Edition1 Page107
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (108,1)
10. Move the top latch slowly to makesure the anchor engages with the
striker, then rotate the top latch to the
lock position until a click sound is
heard.
Striker
Anchor
CAUTION
Driving with the hardtop not fully
locked could damage the hardtop.
If the red indicator is visible on the
lock release button, the hardtop is
not locked. After locking the hardtop,
verify that the red indicator is not
visible.
Locked position
Unlocked position Red indicator
NOTElThe operation indicator light turns off when
the top latch hook is locked.
lIf the hardtop is not closed properly even
with the top latch locked, contact Mazda to
have it inspected.
q The Power Retractable Hardtop
Does not Close
If the hardtop cannot be closed electrically
by pressing the close switch, verify the
power retractable hardtop operation
conditions first.
Refer to Operation Conditions on page
3-50.
If the power retractable hardtop cannot be
closed even after the operation conditions
are all met, have it checked at an
Authorized Mazda Dealer.
If you are unable to have the hardtop
checked at an Authorized Mazda Dealer,
the hardtop can be closed manually as an
emergency measure.
The procedure for manually closing the
hardtop is as follows:
1. Release the locks of the deck and open
it. (Refer to Opening the deck)
2. Lift up the hardtop and close it. (Refer to Closing the hardtop)
3. Tie the ropes to the deck links and close the deck. (Refer to Closing the
deck)
3-54
Knowing Your Mazda
Doors and Locks
MX-5_8EN7-EA-14E_Edition1 Page108
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (109,1)
CAUTION
ØDo not drive the vehicle with the
hardtop open halfway.
Ø Do not perform the procedure in a
strong wind as it could cause an
unexpected accident.
Ø Two adults are required to
perform the procedure, especially
when lifting up the hardtop. Do
not do it alone so as not to cause
injury or vehicle damage.
Ø Some steps in the procedure
require using multiple tools at the
same time and a certain level of
technical expertise. In addition,
holding your body extended over
the car can result in muscle strains
so Mazda recommends having the
hardtop checked at an Authorized
Mazda Dealer.
NOTE
Use a suitable means of illumination, such as a
flashlight, to improve visibility under the deck
lid when performing this task.
Before closing manually
1. Park on a level surface off the right-of- way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Switch the ignition off while depressing the brake pedal.
4. Turn on the hazard warning flasher if it is needed.
WARNING
Verify that the ignition is switched off
before manually operating the hardtop:
Manually retracting the hardtop with
the ignition not switched off is
dangerous as the retractor motors
could turn on suddenly and cause
injury resulting from hands or fingers
being pinched in the mechanism.
Manual closing
Tool preparation
Locate the following tools in the glove
box.
Refer to Tool Storage on page 7-3.
Rope
Eyebolt
Allen wrench
Opening the deck
1. Remove the antenna if it is installed.
Refer to AM/FM Radio Antenna on
page 6-14.
CAUTION
Do the procedure with the antenna
removed. The antenna may be
damaged if it is left installed.
Knowing Your Mazda
Doors and Locks
3-55
MX-5_8EN7-EA-14E_Edition1 Page109
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (110,1)
NOTElThe gear units on both sides have to be
unlocked to release the deck before it is
raised manually. Because the deck is heavy,
two adults are required to raise it.
lThe following describes the procedure for
the gear unit on one side. Perform the
procedure on both sides.
2. Insert the Allen wrench into the Allensocket in the bolt head that is pointed
forward of the gear unit located under
the deck lid as shown in the figure.
Deck
Bolt
Gear unit
Allen wrench
NOTE
The gear units are located underneath the
deck.
Bolt
3. Use the eyebolt to get enough torque on the short leg of the Allen wrench
and turn the Allen wrench 4 times
counterclockwise.
Allen wrench
Eyebolt
4. Disconnect the eyebolt from the Allen wrench leaving the Allen wrench in
place, and insert the threaded end of
the eyebolt in the hole directly above
the Allen socket and tighten it
clockwise two full turns.
Eyebolt
Bolt
Thread hole
NOTE
Tighten the eyebolt with the Allen wrench
inserted. The Allen wrench can serve as a
reference for inserting the eyebolt more easily.
5. Remove the bolt, which is loosened
using the Allen wrench, by turning it
counterclockwise.
3-56
Knowing Your Mazda
Doors and Locks
MX-5_8EN7-EA-14E_Edition1 Page110
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (111,1)
NOTElAfter the bolt is clear of the hole, keep the
Allen wrench level while pulling it out with
the bolt attached so as to prevent the bolt
from hitting the vehicle and dropping.
lBring the removed bolt to an Authorized
Mazda Dealer. If you drop the bolt in the
vehicle by mistake, contact an Authorized
Mazda Dealer.
6. Tighten the eyebolt by turning itclockwise 5 more times.
Eyebolt
7. Unscrew the eyebolt now by turning itcounterclockwise.
8. Insert the threaded end of the eyebolt through the guide.
Guide
Eyebolt
9. Press the eyebolt against the sector
gear.
Sector gear
Eyebolt
Guide
10. Press and rotate the sector gear rearward to release the lock.
Sector gear
Eyebolt
Guide
CAUTION
When releasing the sector gear lock
using the eyebolt, make sure the
eyebolt remains centered as you push
it against the sector gear lock. If the
eyebolt slips it could cause your hand
to veer and hit the vehicle resulting in
minor scrapes or bruises.
11. Pull out the eyebolt from the guide when the lock is released.
12. Do the same procedure on the other side.
Knowing Your Mazda
Doors and Locks
3-57
MX-5_8EN7-EA-14E_Edition1 Page111
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (112,1)

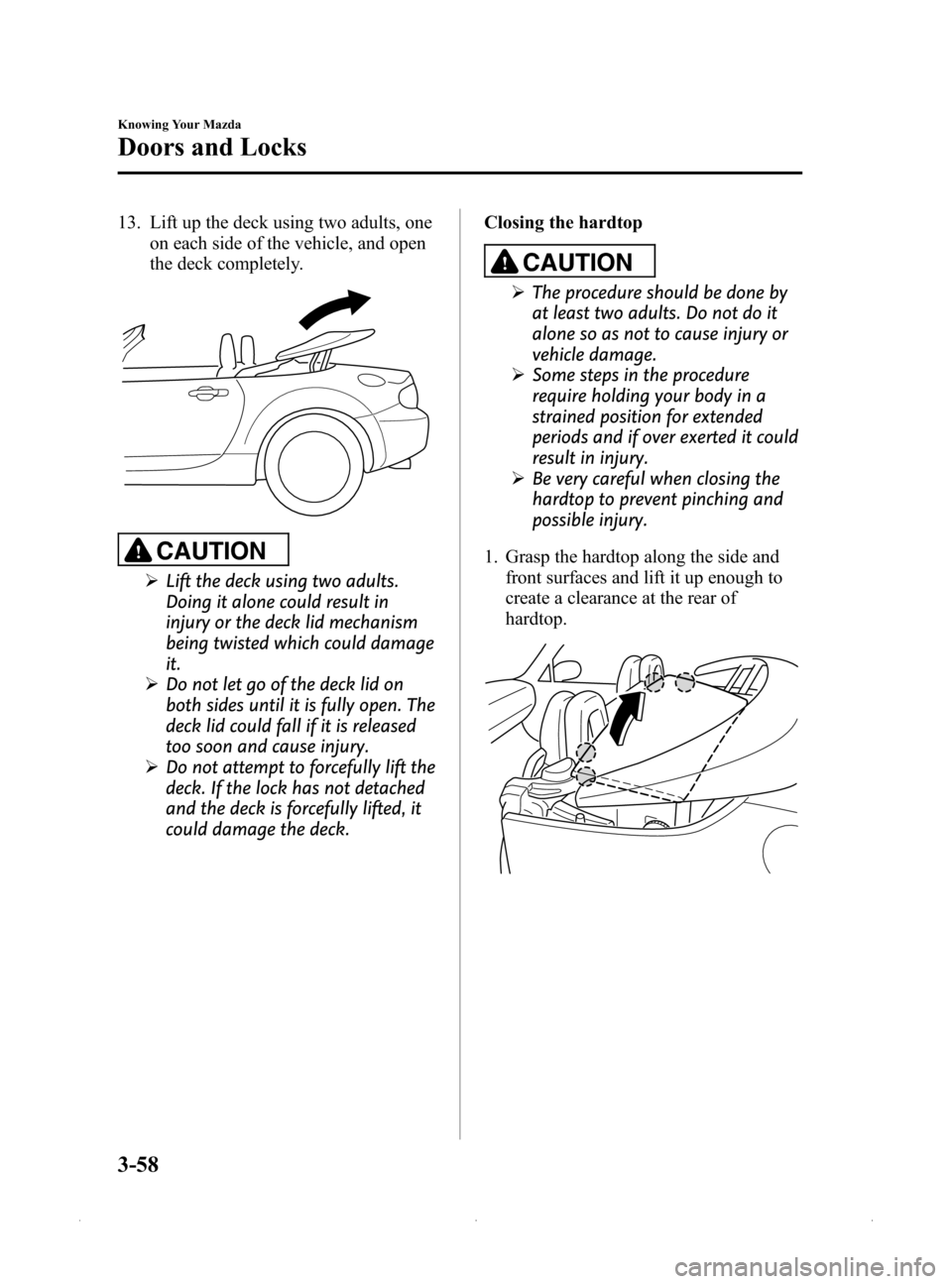

13. Lift up the deck using two adults, oneon each side of the vehicle, and open
the deck completely.
CAUTION
ØLift the deck using two adults.
Doing it alone could result in
injury or the deck lid mechanism
being twisted which could damage
it.
Ø Do not let go of the deck lid on
both sides until it is fully open. The
deck lid could fall if it is released
too soon and cause injury.
Ø Do not attempt to forcefully lift the
deck. If the lock has not detached
and the deck is forcefully lifted, it
could damage the deck. Closing the hardtop
CAUTION
Ø
The procedure should be done by
at least two adults. Do not do it
alone so as not to cause injury or
vehicle damage.
Ø Some steps in the procedure
require holding your body in a
strained position for extended
periods and if over exerted it could
result in injury.
Ø Be very careful when closing the
hardtop to prevent pinching and
possible injury.
1. Grasp the hardtop along the side and front surfaces and lift it up enough to
create a clearance at the rear of
hardtop.
3-58
Knowing Your Mazda
Doors and Locks
MX-5_8EN7-EA-14E_Edition1 Page112
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E
