When Driving
For details, refer to Section 4, “Instrument Cluster and Display”.
Warning/Indicator Lights
Signal Warning/Indicator Lights
1
2
3
4
5
6
7
8
9
10ABS Warning Light Master Warning Light
Charging System Warning Light
Engine Oil Warning Light
Check Engine Light
High Engine Coolant Temperature Warning
Light (Red)/ Low Engine Coolant
Temperature Indicator Light (Blue)
i-stop Warning Light (Amber)
/Indicator Light (Green)
RVM Warning Light (Amber) /
Indicator Light (Green)
Automatic Transaxle Warning Light
11
12
13
14Power Steering Malfunction
Indicator Light
Air Bag/Front Seat Belt Pretensioner
System Warning Light
Low Fuel Warning Light
15Seat Belt Warning Light
Door-Ajar Warning Light
17Low Washer Fluid Level Warning
Light
18
2022
23
24
30
31
32
33
Tyre Pressure Monitoring System
Warning LightHeadlight Auto-Leveling
Malfunction Indicator Light
High Beam Control System (HBC)
Warning Light (Amber) /Indicator
Light (Green)
Mazda Radar Cruise Control
(MRCC) Warning Light (Amber) /
Indicator Light (Green)
AFS OFF Indicator Light
Smart Brake Support/Smart City
Brake Support (SBS/SCBS) OFF
Indicator Light
i-ELOOP Indicator Light
Shift Position Indication
34
35
36
37
38Headlight High-Beam Indicator
Light
Direction Indicator/Hazard Warning
Indicator Lights
Security Indicator Light
Cruise Main Indicator Light (Amber) /
Cruise Set Indicator Light (Green)
40Adjustable Speed Limiter Main
Indicator Light(Amber)/ Adjustable
Speed Limiter Set Indicator Light
(Green)
Front Fog Light Indicator Light
41Rear Fog Light Indicator Light Signal Warning/Indicator Lights
Brake System Warning Light
Some of the warning/indicator lights are displayed in the instrument cluster.
If a warning/indicator light is displayed in the instrument cluster, verify the
meaning of the warning in the Warning (Display Indication) item.
19KEY Warning Light (Red) /Indicator
Light (Green)Glow Indicator Light
Diesel Particulate Filter Indicator
Light
Wrench Warning Indicator Light
25
26
27
Lane Departure Warning System
(LDWS) Warning Light (Amber) /
Indicator Light (Green)
28
29TCS/DSC Indicator Light
DSC OFF Indicator Light
Lights-On Indicator Light 39 Smart Brake Support/Smart City
Brake Support (SBS/SCBS)Warning
Light (Amber) /Indicator Light (Red)
21
16120 km/h Warning Light
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD

9
When Driving
Higher sensitivity
Less sensitivitySwitch
Centre
position
Lock-release
button
For details, refer to Section 4, “Transaxle” or “Switches and Controls”.
Automatic Transaxle Controls
Various Lockouts:
Indicates that you must depress
the brake pedal and hold in the
lock-release button to shift (The
ignition must be switched ON).
Indicates the selector lever can be
shifted freely into any position.
Operation of the Headlights
Without auto-light control With auto-light control
Operation of the Windscreen Wipers
With intermittent wiper With auto-wiper control
Single wipe cycle (mist)
Intermittent (With intermittent wiper)
Low speed Switch
Position Wiper operation
High speed
When the wiper lever
is in the
position, the rain
sensor senses the
amount of rainfall on
the windscreen and
turns the wipers on
or off automatically.
Auto control (With auto-wiper control)
Indicates that you must hold in
the lock-release button to shift.
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD

When Driving
10For details, refer to Section 4, “i-ACTIVSENSE”.
i-ACTIVSENSE
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver
support systems which make use of a Forward Sensing Camera (FSC) and radar
sensors.
These systems consist of active safety and pre-crash safety systems.
Driver awareness support systems
• Adaptive Front Lighting System (AFS)
• High-Beam Control system (HBC)
• Lane Departure Warning System (LDWS)
• Rear Vehicle Monitoring (RVM) System
• Distance Recognition Support System (DRSS)
These systems are designed to assist the driver in safer driving by reducing the load
on the driver and helping to avert collisions or reduce their severity. However,
because each system has its limitations, always drive carefully and do not rely
solely on the systems.
Active Safety Technology
Active Safety Technology supports safer driving by helping the driver to recognise
potential hazards and avert accidents.
Nighttime visibility
Forward/rear detection
Inter-vehicle distance recognition
• Mazda Radar Cruise Control (MRCC)
Inter-vehicle distance
• Adjustable Speed Limiter
Speed control
Collision damage reduction in low vehicle speed range
• Smart City Brake Support (SCBS)
Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in averting collisions or
reduce their severity in situations where they cannot be avoided.
Forward driving
• Smart Brake Support (SBS)
Collision damage reduction in medium/high speed range
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD

When Driving
11
Mazda Radar Cruise Control (MRCC) system
The Mazda Radar Cruise Control (MRCC) system is designed to maintain
headway control according to the vehicle speed using a radar sensor (front) to
detect the distance to a vehicle ahead, which frees the driver from having to
constantly use the accelerator or brake pedals.
Additionally, if your vehicle starts closing in on the vehicle ahead because, for
example, the vehicle ahead brakes suddenly, a warning sound and a warning
indication in the display are activated simultaneously to alert you to maintain a
sufficient distance between the vehicles.
The possible vehicle speed setting ranges are as follows:
For details, refer to Section 4, “Mazda Radar Cruise Control (MRCC)”.
Do not rely completely on the Mazda Radar Cruise Control (MRCC) system
and always drive carefully:
The Mazda Radar Cruise Control (MRCC) system has limitations in its ability to
detect vehicles ahead depending on the weather and road conditions.
Additionally, the system may be unable to decelerate sufficiently to avoid
hitting the vehicle ahead if the vehicle ahead applies the brakes suddenly or
another vehicle cuts into the driving lane, which could result in an accident.
Check the safety of the surroundings and pay sufficient attention to the
distance between your vehicle and the vehicles travelling in front and behind.
WARNING
Do not use the Mazda Radar Cruise Control (MRCC) system in the
following locations. Otherwise, it could lead to an accident:
Use the Mazda Radar Cruise Control (MRCC) system on expressways and other
highways which do not require a lot of repeated acceleration and deceleration.
• (European models)
About 30 km/h (19 mph) to 200 km/h (124 mph)
• (Except European models)
About 30 km/h (19 mph) to 145 km/h (90 mph)
• Roads with sharp curves, heavy traffic, or roads requiring repeated and
frequent acceleration.
• When entering expressway interchanges and service areas.
• Slippery roads such as ice or snow-bound roads.
• Long descending slopes.
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD

12
When Driving

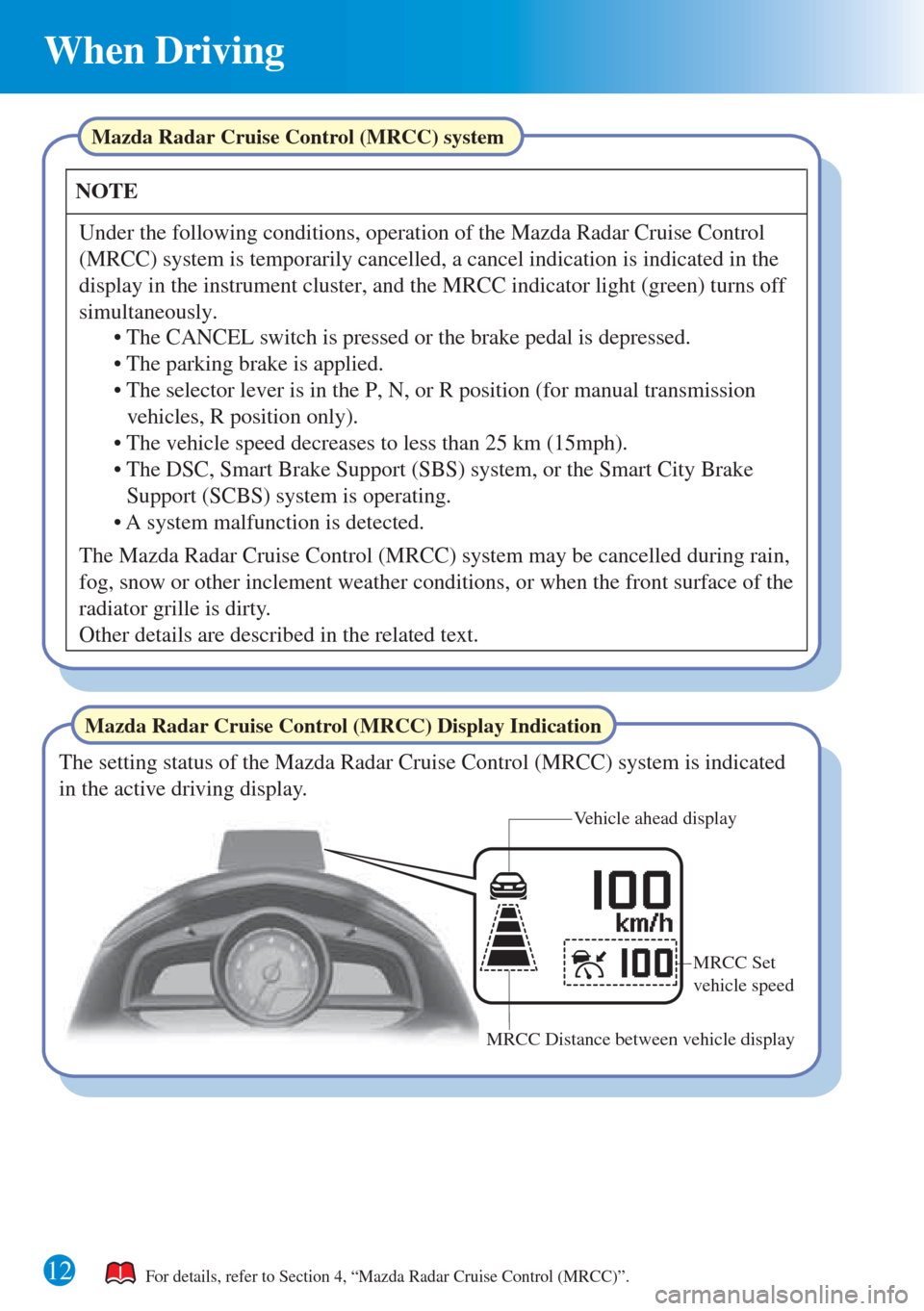

Mazda Radar Cruise Control (MRCC) Display Indication
Mazda Radar Cruise Control (MRCC) system
The Mazda Radar Cruise Control (MRCC) system may be cancelled during rain,
fog, snow or other inclement weather conditions, or when the front surface of the
radiator grille is dirty.
For details, refer to Section 4, “Mazda Radar Cruise Control (MRCC)”.
NOTE
Under the following conditions, operation of the Mazda Radar Cruise Control
(MRCC) system is temporarily cancelled, a cancel indication is indicated in the
display in the instrument cluster, and the MRCC indicator light (green) turns off
simultaneously.
The setting status of the Mazda Radar Cruise Control (MRCC) system is indicated
in the active driving display.
Vehicle ahead display
MRCC Distance between vehicle displayMRCC Set
vehicle speed
• The CANCEL switch is pressed or the brake pedal is depressed.
• The parking brake is applied.
• The selector lever is in the P, N, or R position (for manual transmission
vehicles, R position only).
• The vehicle speed decreases to less than 25 km (15mph).
• The DSC, Smart Brake Support (SBS) system, or the Smart City Brake
Support (SCBS) system is operating.
• A system malfunction is detected.
Other details are described in the related text.
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD

13
When Driving
ON/OFF switch
OFF switchON switch Without Adjustable Speed
LimiterWith Adjustable Speed
Limiter
CANCEL
switchCANCEL
switch
Switch SwitchRESUME
switchRESUME
switch
Switch Switch
SET+/SET- switch SET+/SET- switch
Setting the Mazda Radar Cruise Control (MRCC)
How to Set the Speed When the system is activated, the vehicle speed and the distance between vehicles
while in headway control can be set. The Mazda Radar Cruise Control (MRCC)
indication is shown in the active driving display.
1. Adjust the vehicle speed to the desired setting using the accelerator pedal.
2. Headway control begins when the SET + or SET - switch is pressed. The set
speed and the inter-vehicle distance display filled with white lines are displayed.
For details, refer to Section 4, “Mazda Radar Cruise Control (MRCC)”.
Travel statusDuring travel at constant
speedDuring travel under headway
control
Display
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD

When Driving
14
Setting the Mazda Radar Cruise Control (MRCC)
How to Set the Distance Between Vehicles During Headway Control
The distance between vehicles is set to a shorter distance each time the switch is
pressed. The distance between vehicles is set to a longer distance by pressing the
switch. The distance-between-vehicles can be set to 4 levels; Long, medium, short,
and extremely short distance.
Distance-between-
vehicles guideline
(at 80 km/h (50 mph)
vehicle speed)
Indication on
displayLong
(about 50 m
(164 ft))Medium
(about 40 m
(131 ft))Short
(about 30 m
(98 ft))Extremely
short
(about 25 m
(82 ft))
How to Change the Set Vehicle Speed
Changing the set vehicle speed using the SET+/SET- switch
Press the SET+ switch to accelerate. Press the SET- switch to decelerate. The set
vehicle speed changes as follows each time the SET+/SET- switch is pressed.
To accelerate using the accelerator pedal
Depress the accelerator pedal and press and release the SET + or SET - switch at
the desired speed. If a switch cannot be operated, the system returns to the set
speed when you release your foot from the accelerator pedal.
Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead
because the vehicle applies the brakes suddenly while
you are travelling in headway control, the warning
sound activates and the brake warning is indicated in
the display.
Always verify the safety of the surrounding area and
depress the brake pedal while keeping a safer distance
from the vehicle ahead. Additionally, always keep a
safer distance from the vehicles behind you.
For details, refer to Section 4, “Mazda Radar Cruise Control (MRCC)”.
Short press
Long pressExcept European models
5 km/h (5 mph)
European models
1 km/h (1 mph)
10 km/h (5 mph)
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD

When Driving
15
Smart City Brake Support (SCBS)
The Smart City Brake Support (SCBS) system is designed to reduce damage in the
event of a collision by operating the brake control (SCBS brake) when the
system's laser sensor (front) detects a vehicle ahead and determines that a collision
with the vehicle ahead is unavoidable.
For details, refer to Section 4, “Smart City Brake Support (SCBS)”.
It may also be possible to avoid a collision if the relative speed between your
vehicle and the vehicle ahead is less than about 15 km/h (9.3 mph).
Do not rely completely on the Smart City Brake Support (SCBS) system:
The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. It does not apply to 2-wheeled vehicles or pedestrians.
If the vehicle height or inclination is changed, the system will not be able to
correctly detect vehicles ahead resulting in the Smart City Brake Support
(SCBS) system not operating normally or mistakenly operating, which
could cause a serious accident.
WARNING
Do not modify the suspension:
NOTE
The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a
near-infrared laser beam and receiving the beam reflected off the reflector of the
vehicle ahead, and then using it for the measurement. Consequently, the Smart
City Brake Support (SCBS) may not operate under the following conditions:
• Trucks with low loading platforms and vehicles with an extremely low or
high profile.
• Under bad weather condition, such as rain, fog and snow.
• The window washer is being used or the windscreen wipers are not used when
its raining.
• The windscreen is dirty.
• The steering wheel is turned completely left or right, or the vehicle is
accelerated rapidly and comes close to the vehicle ahead.
Other details are described in the related text.
/C\FCA'(''.A'FKVKQPA3WKEM)WKFGKPFD
