2015 LEXUS RX450h turn signal

7104-3. Do-it-yourself maintenance
Replacing light bulbs
■ Headlight high beams (except vehicles with LED headlights)
Unplug the connector while
depressing the lock release.■ Rear bulb locations
Rear turn signal lightBack-up light
Rear side marker light Tail light
Tail light
STEP 1

7154-3. Do-it-yourself maintenance
4
Maintenance and care ■ Front turn signal light (left side)
Move the fuse box.
Vehicles with LED headlights:
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP 1
STEP 2
STEP 3
STEP 4

7164-3. Do-it-yourself maintenance
■ Front turn signal light (right side)
Move the washer fluid filler open-
ing.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP 1
STEP 2
STEP 3

7174-3. Do-it-yourself maintenance
4
Maintenance and care ■ Rear turn signal and tail lights
Remove the access hole cover. Use a flathead screwdriver
wrapped in a cloth.
Turn the bulb base counterclock-
wise.
Tail light
Rear turn signal light
Remove the light bulb.
Tail light
Rear turn signal lightSTEP 1
STEP 2
STEP 3

7204-3. Do-it-yourself maintenance
■ Rear side marker light (left side)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Lights other than the above
If any of the lights listed below ha s burnt out, have it replaced by your
Lexus dealer.
● Discharge headlight low beams (if equipped)
● LED headlight low beams (if equipped)
● Daytime running lights
● Parking lights
● Front side marker lights
● Front fog lights
● Side turn signal lights
● Stop lights
● High mounted stoplight
● License plate lightsSTEP 1
STEP 2

7214-3. Do-it-yourself maintenance
4
Maintenance and care ■
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.■
LED light bulbs
The LED headlight low beams (if equipped), daytime running lights, parking lights,
front side marker lights, LED front fog ligh ts (if equipped), side turn signal lights,
stop lights, high mounted stoplight and licence plate lights consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to have the
light replaced.■
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus dealer for more information in the following
situations: ●
Large drops of water are built up on the inside of the lens.●
Water has built up in side the headlight.
CAUTION■
Replacing light bulbs ●
Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.●
Do not touch the glass portion of the li ght bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid
getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●
Fully install light bulbs and any parts used to secure them. Failure to do so may
result in heat damage, fire, or water en tering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.

7245-1. Essential information

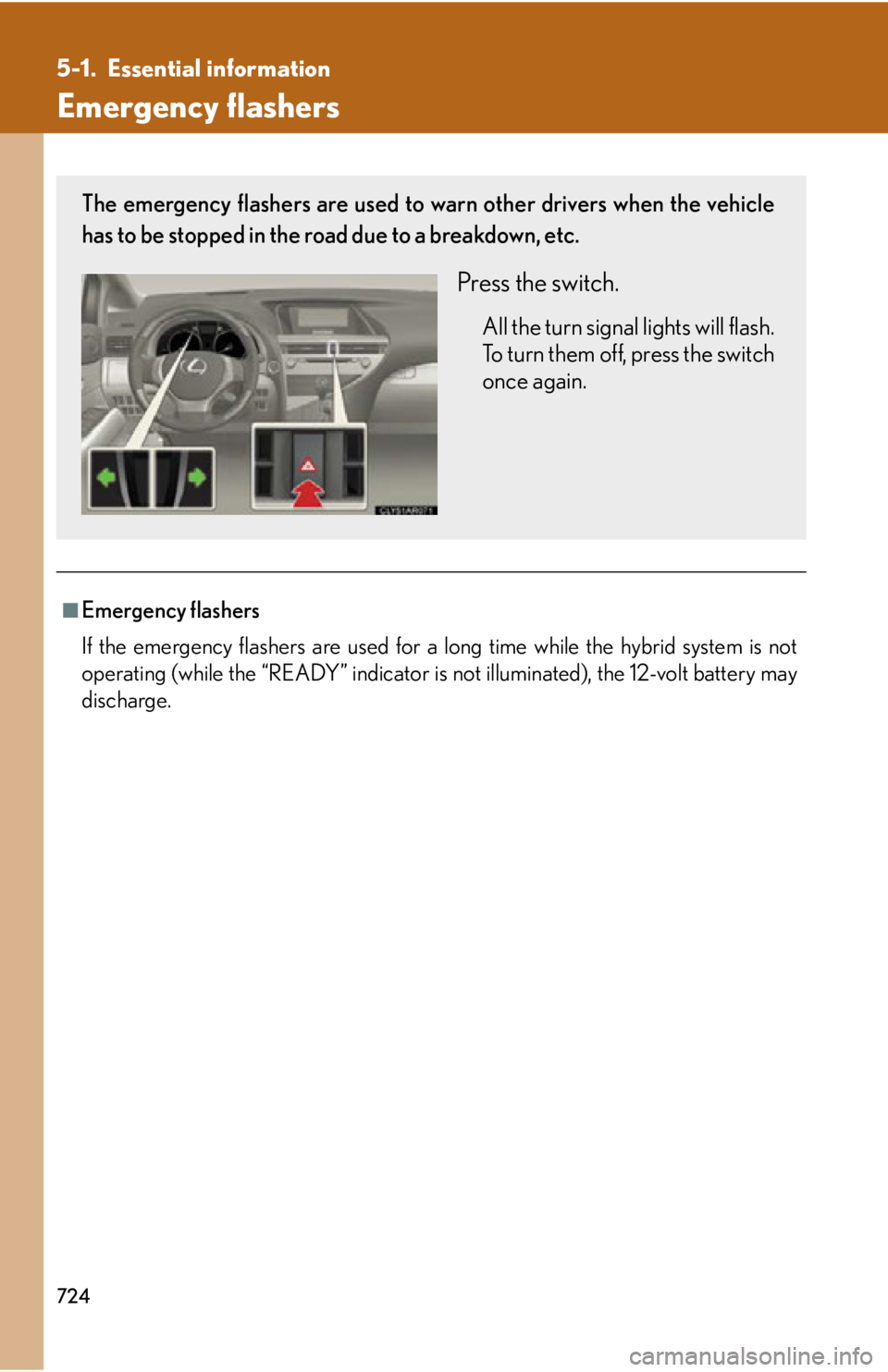

Emergency flashers
■
Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is not
operating (while the “READY” indicator is not illuminated), the 12-volt battery may
discharge.The emergency flashers are used to warn other drivers when the vehicle
has to be stopped in the road due to a breakdown, etc.
Press the switch. All the turn signal lights will flash.
To turn them off, press the switch
once again.

5
When trouble arises
7395-2. Steps to take in an emergency
■
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure chan ges caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few min-
utes).■
When a tire is replaced with a spare tire
Vehicles with a compact spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflatio n pressure. The tire pressure warning light
will go off after a few minutes.
Vehicles with a full-size spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust to the proper tire inflation pressure. The tire pressure warn-
ing light will turn off after a few minutes.■
If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.) ●
If tires not equipped with tire pressure warning valves and transmitters are used●
If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer●
If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm 2
or bar) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●
If electronic devices or facilities using similar radio wave frequencies are nearby
●
If a radio set at similar frequencies is in use in the vehicle
●
If a window tint that affects the radio wave signals is installed
●
If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
