2015 Lexus GX460 Owner's Manual

80
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
The brightness of the instrument cluster lights can be adjusted.
Brighter
Darker
Changing the display
Instrument cluster light control switch
1
2
GX460_OM_OM60L72U_(U).book Page 80 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
812. Instrument cluster
2
Instrument cluster
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness wi ll change. However, when the surroundings
are bright (daytime, etc.) turning on the tail lights will not change the instrument cluster
brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted based
on the light sensor detecting ho w bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the odometer will be displayed after resetting.
■Customization
Setting of sensitivity of the ambient light se nsor used for dimming the meter lights can be
changed. (Customizable features: → P. 5 8 6 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( →P. 5 5 5 )
GX460_OM_OM60L72U_(U).book Page 81 Friday, May 16, 2014 3:03 PM

82
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of driving-related
data.
●Trip information contents (
→P. 8 3 )
Displays driving range, fuel consump-
tion and other cruising related informa-
tion
●Electronic features control contents
(→ P. 8 4 )
●Other contents ( →P. 8 5 )
Display contents
GX460_OM_OM60L72U_(U).book Page 82 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
832. Instrument cluster
2
Instrument cluster
Menu switch
Changes modes to electronic features
control mode, customization mode or
back to normal display mode.
“ENTER” switch
Changes trip information items. This
switch is also used to turn on/off elec-
tronic features controls and to change
customization settings.
Trip information items displayed can be switched by pressing the “ENTER”
switch upwards or downwards.
■Outside temperature
Displays the outside temperature
• The temperature range that can be displayed is from -40°F (-40°C) to 122°F(50°C).
• When the outside temperature drops below 37°F (3°C), the outside temperature
display flashes several times.
■Front tire angle
The direction of the front tires is displayed
The tire direction is displayed in 3 stages for both left and right, in accordance with
the angle of the tire.
■Driving range
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining
• This distance is computed based on your average fuel consumption. As a result,
the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
• When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.
■Average fuel consumption after refueling
Displays the average fuel consumption since the vehicle was last refueled
Use the displayed average fuel consumption as a reference.
■Current fuel consumption
Displays the current rate of fuel consumption
Switching the display
1
2
Trip informat ion contents
GX460_OM_OM60L72U_(U).book Page 83 Friday, May 16, 2014 3:03 PM

84
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
■Average fuel consumption and Eco
Driving Indicator Zone Display
(→ P. 8 6 )
Displays the average fuel consumption since the function was reset
• The function can be reset by pressing th e “ENTER” switch for longer than 1 second
when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■Average vehicle speed
Displays the average vehicle speed since the engine was started or the func-
tion was reset
The function can be reset by pressing the “ENTER” switch for longer than 1 second
when the average vehicle speed is displayed.
■Elapsed time
Displays the elapsed time since the function was last reset
The function can be reset by pressing the “ENTER” switch for longer than 1 second
when the elapsed time is displayed.
■Display off
A blank screen is displayed
■Multi-terrain Select (if equipped) ( →P. 3 0 2 )
■Intuitive parking assist (if equipped) ( →P. 238)
■BSM (Blind Spot Monitor) (if equipped) ( →P. 3 5 1 )
■Second start mode ( →P. 191)
Electronic features control contents
GX460_OM_OM60L72U_(U).book Page 84 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
852. Instrument cluster
2
Instrument cluster
■Dynamic radar cruise control display* (if equipped) (→P. 2 2 1 )
■LDA (Lane Departure Alert) display* (if equipped) ( →P. 232)
■Intuitive parking assist display* (if equipped) ( →P. 238)
■Crawl Control display* (if equipped) ( →P. 340)
■Wa r n i n g m e s s a g e s ( →P. 5 1 9 )
Automatically displayed when a malfunction occurs in one of the vehicles sys-
tems.
■Customization
Settings (e.g. available language) can be changed.
(Customizable features: →P. 5 8 6 )
*: Automatically displayed when the system is used
■Electronic features control can be turned on/off when
Engine switch is in IGNITION ON mode.
■System check display
After turning the engine switch to IGNI TION ON mode, “CHECKING” is displayed
while system operation is checked. When the system check is complete, the normal
screen will return.
■Conditions for ending electronic features control
In the following situations, the electronic features control will end automatically:
●The menu switch is pressed
●Intuitive parking assist display starts operating
●The Crawl Control is operated
●The dynamic radar cruise control is operated
●A warning message appears after the electronic features control screen is displayed
Other contents
GX460_OM_OM60L72U_(U).book Page 85 Friday, May 16, 2014 3:03 PM

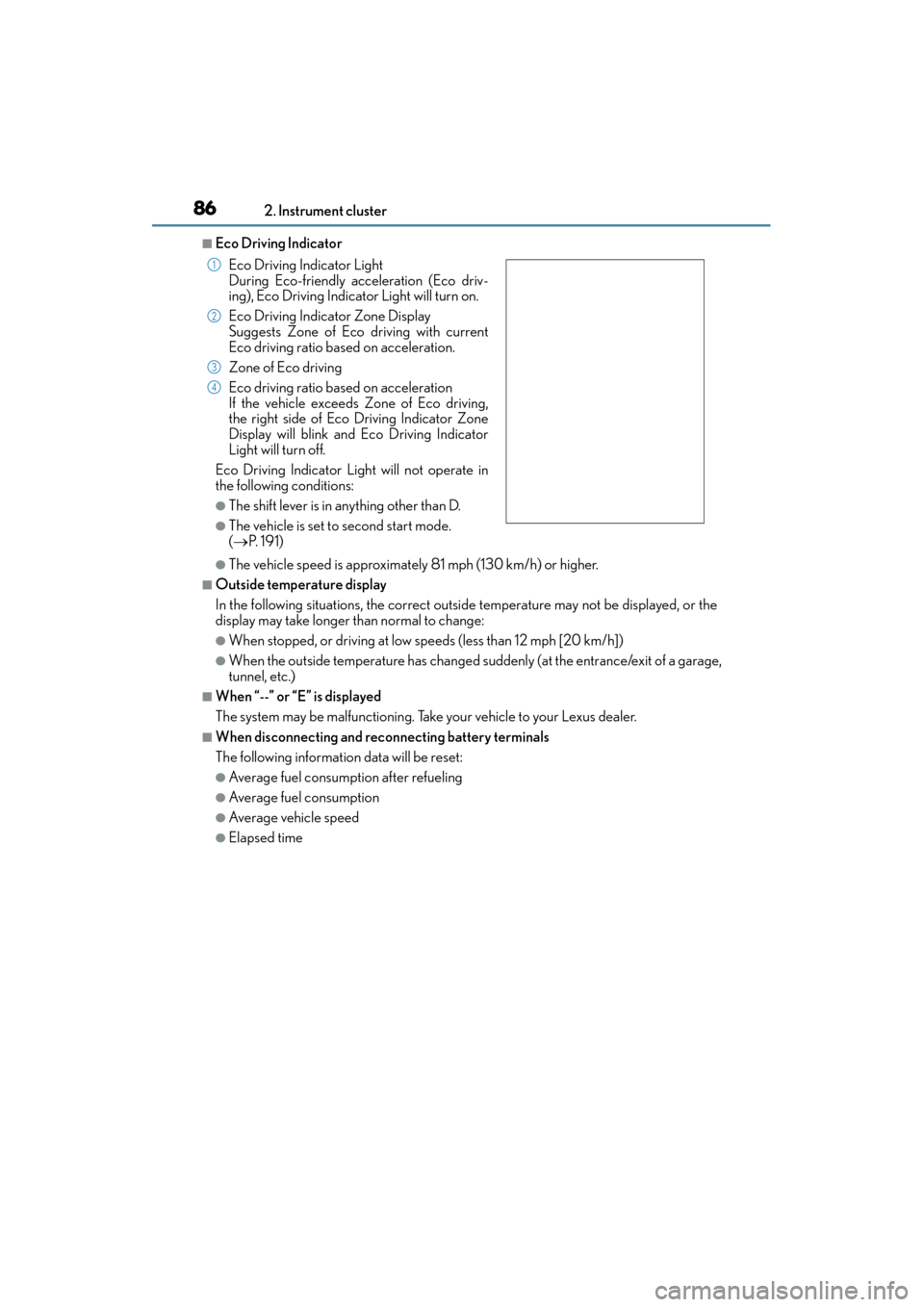

86
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
■Eco Driving Indicator
●The vehicle speed is approximately 81 mph (130 km/h) or higher.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change:
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a garage,
tunnel, etc.)
■When “--” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Lexus dealer.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Average fuel consumption after refueling
●Average fuel consumption
●Average vehicle speed
●Elapsed time Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), Eco Driving Indicator
Light will turn on.
Eco Driving Indicator Zone Display
Suggests Zone of Eco driving with current
Eco driving ratio based on acceleration.
Zone of Eco driving
Eco driving ratio based on acceleration
If the vehicle exceeds Zone of Eco driving,
the right side of Eco Driving Indicator Zone
Display will blink and Eco Driving Indicator
Light will turn off.
Eco Driving Indicator Light will not operate in
the following conditions:
●The shift lever is in anything other than D.
●The vehicle is set to second start mode.
( → P. 1 9 1 )
1
2
3
4
GX460_OM_OM60L72U_(U).book Page 86 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
872. Instrument cluster
2
Instrument cluster
CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the information display. At
extremely low temperatures, the informatio n display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or seri-
ous injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon monoxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-
play features.
