Four-wheel drive system
H4 (high speed position)
Normal driving on all types of roads.
L4 (low speed position)
Driving requiring maximum power and
traction such as climbing or descending
steep hills, off-road driving, and hard
pulling in sand or mud, etc.
The low speed four-wheel drive indica-
tor will come on.
Use the four-wheel drive control switch and center differential lock/unlock
switch to select the following transfer and center differential modes.
Four-wheel drive control switch
1
2
GX460_OM_OM60L72U_(U).book Page 336 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
3374-5. Using the driving support systems
4
Driving
Lock the center differential when your
vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy
surface.
The center differential lock indicator will
come on.
Unlock the center differential after the
wheels have been freed, or after moving
to a flat, non-slippery surface.
To unlock the center differential, push the switch again.
■Shifting from H4 to L4Stop the vehicle completely with brake pedal held down.
Shift the shift lever to N.
Push and shift the four-wheel drive control switch to L4.
Maintain this condition until the low sp eed four-wheel drive indicator turns on.
■Shifting from L4 to H4
Stop the vehicle completely with brake pedal held down.
Shift the shift lever to N.
Push and shift the four-wheel drive control switch to H4.
Maintain this condition until the low sp eed four-wheel drive indicator turns off.
Center differential lock/unlock switch
Shifting between H4 and L4
1
2
3
1
2
3
GX460_OM_OM60L72U_(U).book Page 337 Friday, May 16, 2014 3:03 PM

338
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
■When the four-wheel drive control switch can be operated
●The engine switch is in IGNITION ON mode.
●The shift lever is in the N position.
●The vehicle is stopped completely.
■The low speed four-wheel drive indicator
●The indicator blinks while sw
itching between H4 and L4.
●If the low speed four-wheel drive indicator continues to blink when you operate the
four-wheel drive control switch to the H4 or L4 position, stop the vehicle completely,
shift the shift lever securely into N and then operate the switch again.
●If the shift lever is moved before the low speed four-wheel drive indicator turns on/off,
the transfer mode may not be shifted completely. The transfer mode disengages both
the front and rear drive shafts from the powertrain and allows the vehicle to move
regardless of the shift position. (At this time, the indicator blinks and the buzzer sounds.)
Therefore, the vehicle is free to roll even if the shift lever is in P. You or someone else
could be seriously injured. You must comple te the shifting of the transfer mode and
confirm that the indicator has turned off (H4) or turned on (L4).
●If the engine coolant temperature is too low, the four-wheel drive control system may
not be able to shift. When the engine is warmer operate the switch again.
If the indicator continue to blink even if doing so, have the vehicle inspected by your
Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system.
■When the transfer mode is switched to L4
Vehicles without Multi-terrain Select:
VSC is automatically turned off. (The VSC OFF indicator will come on.)
Vehicles with Multi-terrain Select:
VSC and TRAC/Active TRAC are automatically turned off. (The VSC OFF indicator will
come on and the “TRAC OFF” will be shown on the multi-information display.)
■When the center differential lock/unlock switch can be operated
The engine switch is in IGNITION ON mode.
■The center differential lock indicator
●The indicator blinks wh ile locking/unlocking the center differential.
●If the center differential lock indicator b links and the buzzer sounds when the center
differential is locked, stop the slipping or spinning and push the switch again.
If the indicator continue to blink even if doing so, have the vehicle inspected by your
Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system.
GX460_OM_OM60L72U_(U).book Page 338 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
3394-5. Using the driving support systems
4
Driving
■Locking/unlocking the center differential
●If the operation is not completed, the center differential lock indicator blinks. If the indi-
cator does not turn off when unlocking the center differential, drive straight ahead
while accelerating or decelerating, or drive in reverse.
●Avoid turning suddenly while the center differential is locked. If you do turn suddenly,
the difference in turning speeds between the front and rear wheels may have a similar
effect to braking, thus making driving difficult.
CAUTION
■While driving
Observe the following precautions. Failure to do so may cause an accident resulting in
death or serious injury.
●Never move the four-wheel drive control switch if the wheels have lost traction.
●Do not operate the center differential lock/unlock when the vehicle is turning or
when its wheels are spinning freely off the ground.
NOTICE
■To prevent damage to the center differential
●For normal driving on dry and hard surface roads, unlock the center differential.
●Unlock the center differential after the wheels are out of the ditch or off the slippery
or bumpy surface.
GX460_OM_OM60L72U_(U).book Page 339 Friday, May 16, 2014 3:03 PM

340
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
Crawl Control∗
ON/OFF switch
Speed selection switch
On/off
The Crawl Control indicator is lit and
the slip indicator flashes when operat-
ing.
Also, the operating status and speed
select status of the Crawl Control are
shown on the multi-information display.
Higher
Lower
∗: If equipped
Allows travel on extremely rough off-road surfaces at a fixed low speed with-
out pressing the accelerator or brake
pedal. Minimizes loss of traction or
vehicle slip when driving on slippery road surfaces, helping for stable driving.
Crawl Control switch
1
2
System operation
1
2
3
GX460_OM_OM60L72U_(U).book Page 340 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
3414-5. Using the driving support systems
4
Driving
●LO (low mode)
Effective when traveling on rocks, or descending a slope of mogul and rub-
ble.
*
●MED (medium mode)
Effective when ascending a slope of mogul.
*
●HI (high mode)
Effective when ascending a slope of mogul and rubble, or traveling on snow,
dirt, mud, sand, gravel, grass etc.
*
The position between low and medium modes and the position between medium
and high modes can also be selected.
*: Depending on the road surface, may not be the most effective.
■The Crawl Control can be operated when
●The shift lever is in any gear other than P or N.
●The four-wheel drive control switch is in L4.
●The driver’s door is closed.
■Automatic system cancelation
In the following situations, the system is canceled automatically:
At that time, the buzzer will sound, the slip in dicator turns off, and the Crawl Control indi-
cator flashes.
A notification will be displayed on the mult i-information display for several seconds.
( → P. 5 1 9 )
●When the shift lever is moved to P or N.
●When the four-wheel drive control switch is in H4.
●When the driver’s door is opened.
When turning off Crawl Control while traveling, stop the vehicle before the Crawl Con-
trol indicator turns off, or drive extremely carefully.
■Function limit
●In the following situations, you will be able to use brake control to drive downhill at a
fixed low speed, but you will be unable to use engine control to drive uphill at a fixed low
speed.
• When the driving mode is set to second start mode.
• When the vehicle speed is higher than 6 mph (10 km/h).
●When the vehicle speed is higher than 15 mph (25 km/h), engine control and brake
control will stop temporarily. At that time, the Crawl Control indicator flashes.
Speed modes
GX460_OM_OM60L72U_(U).book Page 341 Friday, May 16, 2014 3:03 PM

342
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems

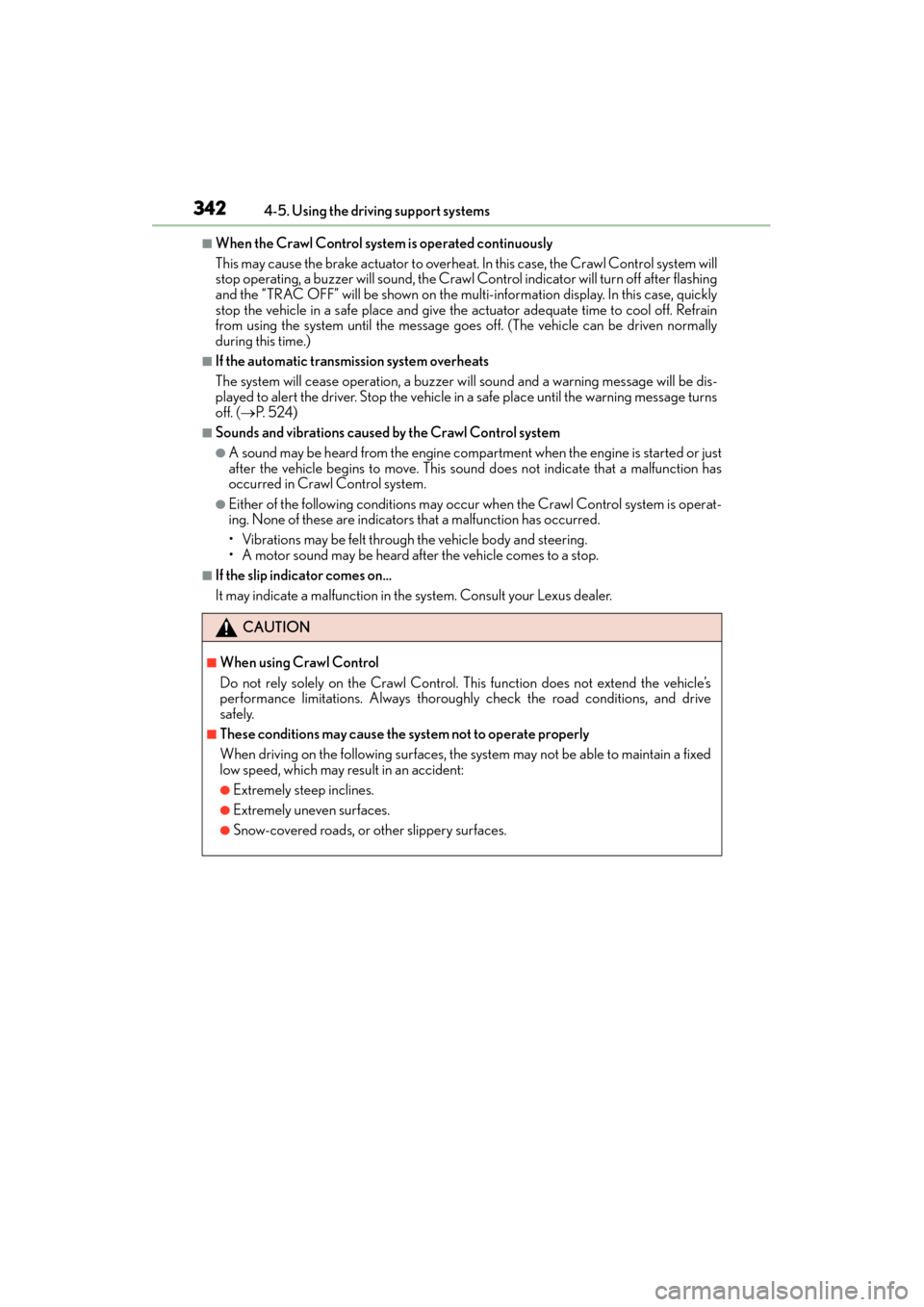

■When the Crawl Control system is operated continuously
This may cause the brake actuator to overheat. In this case, the Crawl Control system will
stop operating, a buzzer will sound, the Crawl Control indicator will turn off after flashing
and the “TRAC OFF” will be shown on the multi-
information display. In this case, quickly
stop the vehicle in a safe place and give the actuator adequate time to cool off. Refrain
from using the system until the message goes off. (The vehicle can be driven normally
during this time.)
■If the automatic transmission system overheats
The system will cease operation, a buzzer w ill sound and a warning message will be dis-
played to alert the driver. Stop the vehicle in a safe place until the warning message turns
off. ( →P. 5 2 4 )
■Sounds and vibrations caused by the Crawl Control system
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This sound does not indicate that a malfunction has
occurred in Crawl Control system.
●Either of the following conditions may occu r when the Crawl Control system is operat-
ing. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■If the slip indicator comes on...
It may indicate a malfunction in the system. Consult your Lexus dealer.
CAUTION
■When using Crawl Control
Do not rely solely on the Crawl Control. This function does not extend the vehicle’s
performance limitations. Always thoroughly check the road conditions, and drive
safely.
■These conditions may cause the system not to operate properly
When driving on the following surfaces, the system may not be able to maintain a fixed
low speed, which may result in an accident:
●Extremely steep inclines.
●Extremely uneven surfaces.
●Snow-covered roads, or other slippery surfaces.
GX460_OM_OM60L72U_(U).book Page 342 Friday, May 16, 2014 3:03 PM

343
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
4
Driving
Downhill assist control system∗
Shift the “DAC” switch to ON. The
downhill assist control system indicator
light comes on and the system will
operate.
When the system is in operation, the slip
indicator light will flash, and the stop
lights/high mounted stop lights will be lit.
Shift the “DAC” switch to OFF while the system is in operation. The downhill
assist control system indicator will flash as the system gradually ceases operation,
and will turn off when the system is fully off.
Shift the “DAC” switch to ON while the downhill assist control system indicator is
flashing to start the system again.
∗: If equipped
The downhill assist control system helps to prevent excessive speed on steep
downhill slopes.
The system will operate when the vehicle is traveling under 15 mph (25 km/h)
and the four-wheel drive control switch is in the L4 position.
System operation
Turning off the system
GX460_OM_OM60L72U_(U).book Page 343 Friday, May 16, 2014 3:03 PM
