2015 Lexus ES350 Owner's Manual - ES 300h, ES 350

ES350_300h_OM_OM33B99U_(U)
5036-4. Other interior features
6
Interior features
Test the HomeLink® operation
by pressing the newly pro-
grammed button and observ-
ing the indicator light:
●If the indicator light is solid/
continuous, programming
has been completed and
your device should activate
when the HomeLink
® but-
ton is pressed and released.
●If the indicator light blinks
rapidly for 2 seconds and
then turns into a solid/con-
tinuous light, proceed with
the following instructions for programming a roll-
ing code system.
3
4

504
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features
XProgramming a rolling code
system
Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.
This button can usually be found
where the hanging antenna wire is
attached to the unit. The name and
color of the button may vary by
manufacturer. Please refer to the
operator’s manual supplied with
the garage door opener motor for
details.
Press and release the “Learn”
or “Smart” button.
Perform within 30 seconds
after performing .
4
5
6
5

ES350_300h_OM_OM33B99U_(U)
5056-4. Other interior features
6
Interior features
Press and hold the pro-
grammed HomeLink
® button
(located inside the vehicle) for
2 seconds and release it.
Repeat this sequence (press/
hold/release) up to 3 times to
complete programming.
If the garage door opener motor
activates when the HomeLink®
button is pressed, the garage door
opener motor recognizes the
HomeLink
® signal.
Repeat the steps above to program another device for any of the
remaining HomeLink
® buttons.
■Reprogramming a single HomeLink® button
When the following procedure is performed, buttons which already
have devices registered to them can be overwritten:
With one hand, press and hold the desired HomeLink
® button.
When the HomeLink
® indicator starts flashing, continue to hold the
HomeLink
® button and perform “Programming HomeLink®” from
(it takes 20 seconds for the HomeLink
® indicator to start flash-
ing).
6
7
1
2
1

506
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features
Press and hold the 2 outside buttons
shown in the illustration for 10 sec-
onds until the indicator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
® memory.
■Programs stored in the HomeLink® memory
●The registered codes are not erased even if the 12-volt battery cable is discon-
nected.
●If learning failed when registering a different code to a HomeLink® button that
already has a code registered to it, the already registered code is not erased.
■Certification for the garage door opener
XFor vehicles sold in the U.S.A.
Erasing the entire HomeLink® memory (all three programs)

ES350_300h_OM_OM33B99U_(U)
5076-4. Other interior features
6
Interior features
XFor vehicles sold in Canada
■When support is necessary
Visit on the web at www.homelink.com
or call 1-800-355-3515.
CAUTION
■When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are
out of danger to prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
® compatible transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an interfering object. A door or
device without these features increases the risk of death or serious injury.
■When operating or programming HomeLink®
Never allow a child to operate or play with the HomeLink® buttons.

508
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features
Compass∗
To turn the compass on or off, push
the switch.∗
: If equipped
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
Operation
Displays and directions
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”We s t
“NW”Northwest

ES350_300h_OM_OM33B99U_(U)
5096-4. Other interior features
6
Interior features
The direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over one of the map boundaries shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibration”.
Calibrating the compass

510
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features

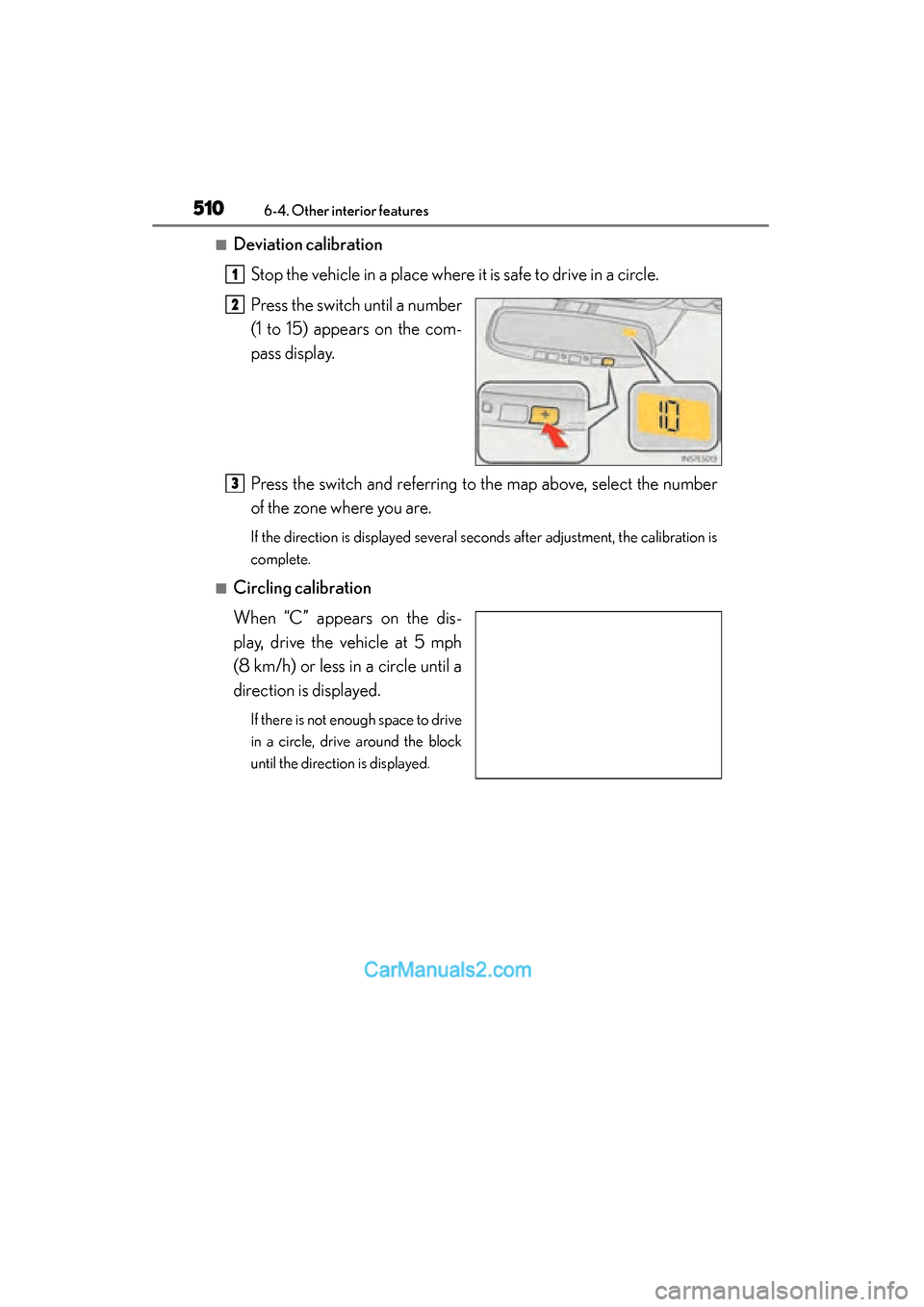

■Deviation calibrationStop the vehicle in a place where it is safe to drive in a circle.
Press the switch until a number
(1 to 15) appears on the com-
pass display.
Press the switch and referring to the map above, select the number
of the zone where you are.
If the direction is displayed several seconds after adjustment, the calibration is
complete.
■Circling calibration
When “C” appears on the dis-
play, drive the vehicle at 5 mph
(8 km/h) or less in a circle until a
direction is displayed.
If there is not enough space to drive
in a circle, drive around the block
until the direction is displayed.
1
2
3
