2015 KIA QUORIS Owners Manual

Safety features of your vehicle
10
3
Forward and backward adjustment
The headrest may be adjusted for-
ward or backward by pulling the
lower part of the headrest forward or
backward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck.
Adjusting the height up and down
For manual type
To raise the headrest, pull it up to the
desired position (1). To lower theheadrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desiredposition (3).
OKH032008OKH032010CAUTION
If you recline the seatback
towards the front with the head-rest and seat cushion raised, the headrest may come in con-tact with the sunvisor or otherparts of the vehicle.
OYFH034205

311
Safety features of your vehicle
For power type
Push the control switch up to raise or
down to lower the headrest. Release
the switch once the headrest reach-es the desired position.
Removal
1. Recline the seatback (2) with therecliner control switch (1). For manual type
2. Raise it as far as it can go.
3. Press the release button (3) while
pulling upward (4).
OKH032011
OKH033095
OKH033096

Safety features of your vehicle
12
3
For power type
2. Raise it as far as it can go by
pulling the switch up (3).
3. Pull the headrest up (4).
Installation
1. Recline the seatback (2) with the recliner control switch (1). For manual type
2. Put the headrest poles (3) into the
holes while pressing the release
button (4).
3. Recline the seatback (6) with the recliner control switch (5).
4. Adjust the headrest to the appro- priate height.
OKH033101
OKH033100
OKH033098L

313
Safety features of your vehicle
For power type
2. Raise it as far as it can go bypulling the switch up (3).
3. Put the headrest poles (4) into the holes and then pull the switch
down (5) until the headrest moves
to the lowest position.
4. To install the headrest securely, move the headrest up and down 2
or 3 times by pulling the switch up
and down.
5. Recline the seatback (7) with the recliner control switch (6).
6. Adjust the headrest to the appro- priate height.
Electronic active headrest
The electronic active headrest is
designed to trigger the headrest for-
ward and upward when impact sensor
detects a rear impact. This helps to
prevent the driver's and front passen-
ger’s heads from moving backward
and thus helps minimize neck injuries.
WARNING
If you don't install the headrest
securely, the active headrest
may not operate normally. When
reinstalling the headrest, install
it securely as procedures.
OBH038069
WARNING
Do not operate the vehicle with
the headrests removed as
severe injury to the occupants
may occur in the event of an
accident. Headrests may pro-
vide protection against neck
injuries when properly adjusted.
WARNING
Make sure the headrest locks in position after adjusting it to
properly protect the occupants.
CAUTION
The active headrest is a safety device to reduce injuries from arear impact. Do not hit or pullthe headrest intentionally.
OKH033102

Safety features of your vehicle
14
3
Rear seat adjustment
The rear seat can be adjusted by
using the control switches located on
the door.Forward, backward and seatback
angle (for power seat)
Push the control switch forward or
backward to move the seat to the
desired position. Release the switchonce the seat reaches the desiredposition.
WARNING
Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
while the seat is moving. Do not adjust the seat while
wearing seat belts. Moving the
seat cushion forward may
cause strong pressure on theabdomen.
WARNING
Do not operate the rear power
seat while the child seat isinstalled.
CAUTION
The power seat is driven by an electric motor. Stop operatingonce the adjustment is com-pleted. Excessive operationmay damage the electrical equipment.
When in operation, the power seat consumes a large amountof electrical power. To preventunnecessary charging system drain, don’t adjust the powerseat longer than necessarywhile the engine is not running.
(Continued)
(Continued) Do not operate two or more power seat control switches atthe same time. Doing so may result in power seat motor orelectrical component malfunc-tion.
WARNING
The power seat is operable with
the engine start/stop button in
OFF.
Therefore, children should never
be left unattended in the vehicle.
OKH032035

315
Safety features of your vehicle

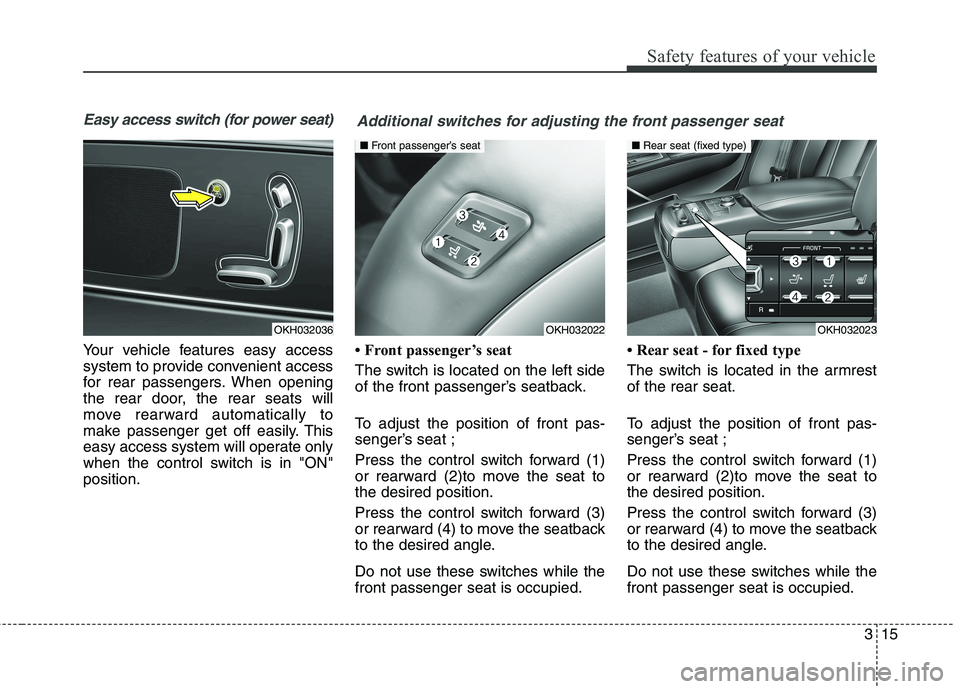

Easy access switch (for power seat)
Your vehicle features easy access
system to provide convenient access
for rear passengers. When opening
the rear door, the rear seats will
move rearward automatically to
make passenger get off easily. This
easy access system will operate only
when the control switch is in "ON"position. Front passenger’s seat
The switch is located on the left side
of the front passenger’s seatback.
To adjust the position of front pas-
senger’s seat ;
Press the control switch forward (1)
or rearward (2)to move the seat tothe desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the front passenger seat is occupied. Rear seat - for fixed type
The switch is located in the armrest of the rear seat.
To adjust the position of front pas-
senger’s seat ;
Press the control switch forward (1)
or rearward (2)to move the seat tothe desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the front passenger seat is occupied.
OKH032022
■
Front passenger’s seat
OKH032036OKH032023
■ Rear seat (fixed type)
Additional switches for adjusting the front passenger seat

Safety features of your vehicle
16
3
Rear relaxation seat system
(for rear right passenger’s seat) (for power type)
The rear relaxation seat system pro-
vides the passenger’s comfort.
The front passenger seat will move
forward and the seatback will fold for-
ward to provide space. The rear right
side passenger seat seatback will
lean towards the back of the vehicle.
But if the front passenger’s side door is opened, the rear relaxation seat
system will not operate. Front passenger side walk-in seat
Press and hold the switch (1).
The seat will move forward and the
seatback will fold automatically. After
the operation is completed, a beep
will sound once.
Press and hold the switch (2).
The seat and seatback will move to
its standard position. After the opera-tion is completed, a beep will sound
once. If the seat reaches the desired posi-
tion, release the switch.Rear relaxation seat system
Press and hold the switch (3).
The front passenger seat will move
forward and the seatback will fold
automatically. Then the rear right
side passenger seat seatback will
lean towards the back of the vehicle.
After the operation is completed, a
beep will sound once.
Press and hold the switch (4).The front passenger seat and the
rear right side passenger seat will
move to its standard position. After
the operation is completed, a beepwill sound. If the seat reaches the desired posi-
tion, release the switch.
OVI039062
OKH032037
■
Rear seat (power)
OKH032077

317
Safety features of your vehicle
Lumbar support (if equipped)
The lumbar support can be adjusted
by pushing the lumbar support switch.
Push the lever to left side(1) increase
support or push the lever to the right
side (2) to decrease support.
To move the support position up or
down, push the lever upside (3) or
down side (4).
Armrest
To use the armrest, pull it forward
from the seatback.
Carrying long / narrow cargo (for fixed seat, if equipped)
Additional cargo space is provided to
accommodate long/narrow cargo
(skis, poles, etc.) not able to fit prop-
erly in the trunk when closed.
1. Pull the armrest down.
2. Pull the cover down while pushing the release lever down.
OKH032032OKH033027
OKH032076
