2015 JEEP GRAND CHEROKEE SRT Owners Manual

Power Distribution Center
The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, micro fuses, relays, and circuit breakers. A
description of each fuse and component may be stamped
on the inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that corresponds to
the following chart.
Cavity Cartridge Fuse Micro Fuse Description
F03 60 Amp Yellow – Radiator Fan
F05 40 Amp Green – Compressor for Air Suspension - If Equipped
F06 40 Amp Green – Anti-lock Brakes/Electronic Stability Control
Pump
Power Distribution Center
7
MAINTAINING YOUR VEHICLE 575

Cavity Cartridge Fuse Micro Fuse Description
F07 40 Amp Green – Starter Solenoid
F08 20 Amp Blue – Emission Sensors (Diesel engine only)
F09 30 Amp Pink – Diesel Fuel Heater (Diesel engine only)
F10 40 Amp Green – Body Controller / Exterior Lighting #2
F11 30 Amp Pink – Trailer Tow Electric Brake - If Equipped
F12 40 Amp Green – Body Controller #3 / Power Locks
F13 40 Amp Green – Blower Motor Front
F14 40 Amp Green – Body Controller #4 / Interior Lights #2
F17 30 Amp Pink – Headlamp Washer- If Equipped
F19 20 Amp Blue – Headrest Solenoid- If Equipped
F20 30 Amp Pink – Passenger Door Module
F22 20 Amp Blue – Engine Control Module
F23 30 Amp Pink – Interior Lights #1
F24 30 Amp Pink – Driver Door Module
F25 30 Amp Pink – Front Wipers
576 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Micro Fuse Description
F26 30 Amp Pink – Anti-lock Brakes/Stability Control Module/
Valves
F28 20 Amp Blue – Trailer Tow Backup Lights - If Equipped
F29 20 Amp Blue – Trailer Tow Parking Lights - If Equipped
F30 30 Amp Pink – Trailer Tow Receptacle - If Equipped
F32 30 Amp Pink – Drive Train Control Module
F34 30 Amp Pink – Slip Differential Control
F35 30 Amp Pink – Sunroof - If Equipped
F36 30 Amp Pink – Rear Defroster
F37 25 Amp Clear – Rear Blower Motor - If Equipped
F38 30 Amp Pink – Power Inverter 115V AC - If Equipped
F39 30 Amp Pink – Power Liftgate - If Equipped
F40 – 10 Amp Red Daytime Running Lights/Headlamp Level-
ing
F42 – 20 Amp Yellow Horn
7
MAINTAINING YOUR VEHICLE 577

Cavity Cartridge Fuse Micro Fuse Description
F44 – 10 Amp Red Diagnostic Port
F46 – 10 Amp Red Tire Pressure Monitor - If Equipped
F49 – 10 Amp Red Integrated Central Stack / Climate Control
F50 – 20 Amp Yellow Air Suspension Control Module - If
Equipped
F51 – 15 Amp Blue Ignition Node Module / Keyless Ignition /
Steering Column Lock
F52 – 5 Amp Tan Battery Sensor
F53 – 20 Amp Yellow Trailer Tow – Left Turn/Stop Lights - If
Equipped
F55 – 10 Amp Red DTV / DSRC
F56 – 15 Amp Blue Additional Content (Diesel engine only)
F57 – 15 Amp Blue HID Headlamps LH - If Equipped
F59 – 10 Amp Red Purging Pump (Diesel engine only)
F60 – 15 Amp Blue Transmission Control Module
578 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Micro Fuse Description
F61 – 10 Amp Red Transmission Control Module/PM Sensor
(Diesel engine only)
F62 – 10 Amp Red Air Conditioning Clutch
F63 – 20 Amp Yellow Ignition Coils (Gas), Urea Heater (Diesel)
F64 – 25 Amp Clear Fuel Injectors / Powertrain
F66 – 10 Amp Red Sunroof / Passenger Window Switches /
Rain Sensor
F67 – 15 Amp Blue CD / DVD / Bluetooth Hands-free Module -
If Equipped
F68 – 20 Amp Yellow Rear Wiper Motor
F69 – 15 Amp Blue Spotlight Feed - If Equipped
F70 – 20 Amp Yellow Fuel Pump Motor
F71 – 30 Amp Green Audio Amplifier
F73 – 15 Amp Blue HID Headlamp RH - If Equipped
F74 – 20 Amp Yellow Brake Vacuum Pump - If Equipped
7
MAINTAINING YOUR VEHICLE 579

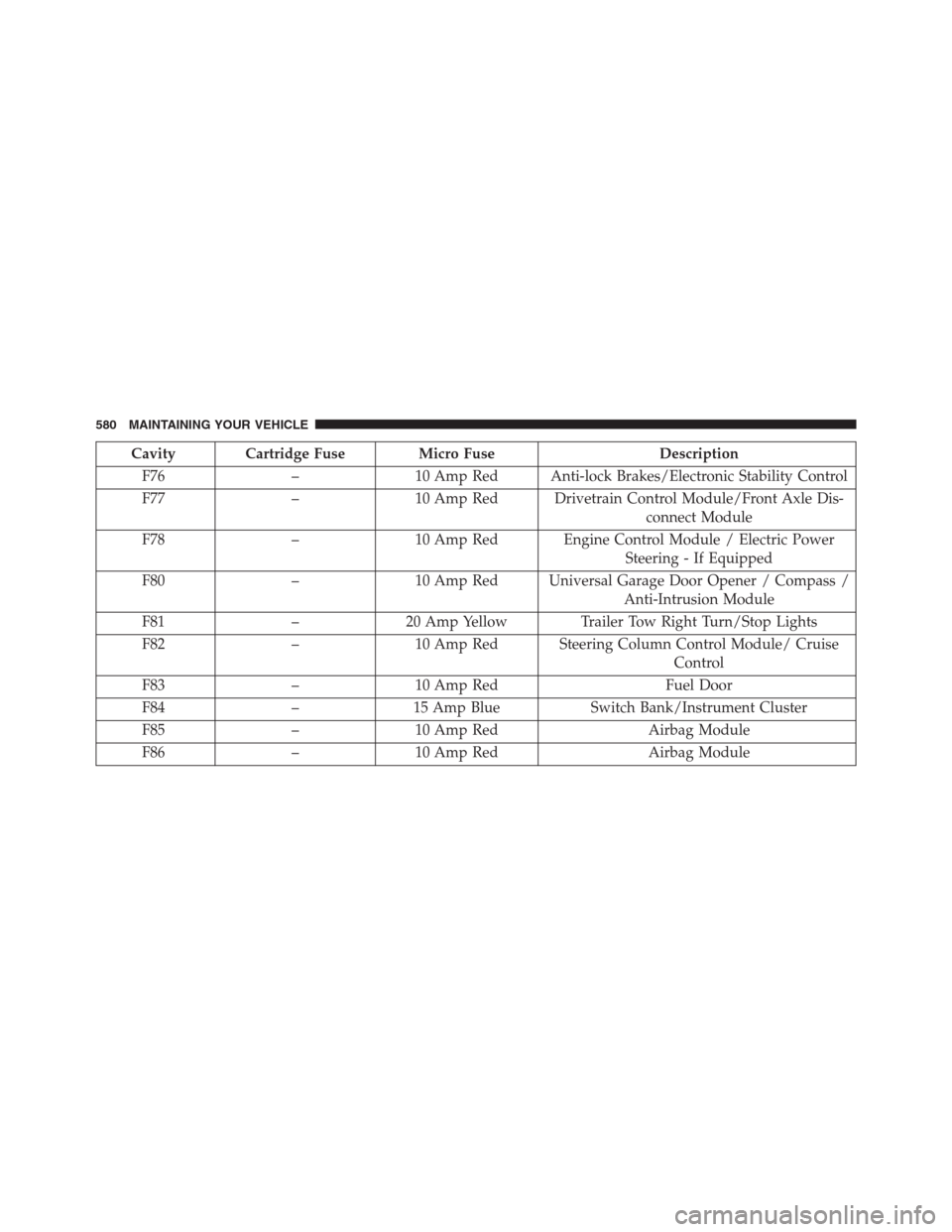

Cavity Cartridge Fuse Micro Fuse Description
F76 – 10 Amp Red Anti-lock Brakes/Electronic Stability Control
F77 – 10 Amp Red Drivetrain Control Module/Front Axle Dis-
connect Module
F78 – 10 Amp Red Engine Control Module / Electric Power
Steering - If Equipped
F80 – 10 Amp Red Universal Garage Door Opener / Compass /
Anti-Intrusion Module
F81 – 20 Amp Yellow Trailer Tow Right Turn/Stop Lights
F82 – 10 Amp Red Steering Column Control Module/ Cruise
Control
F83 – 10 Amp Red Fuel Door
F84 – 15 Amp Blue Switch Bank/Instrument Cluster
F85 – 10 Amp Red Airbag Module
F86 – 10 Amp Red Airbag Module
580 MAINTAINING YOUR VEHICLE

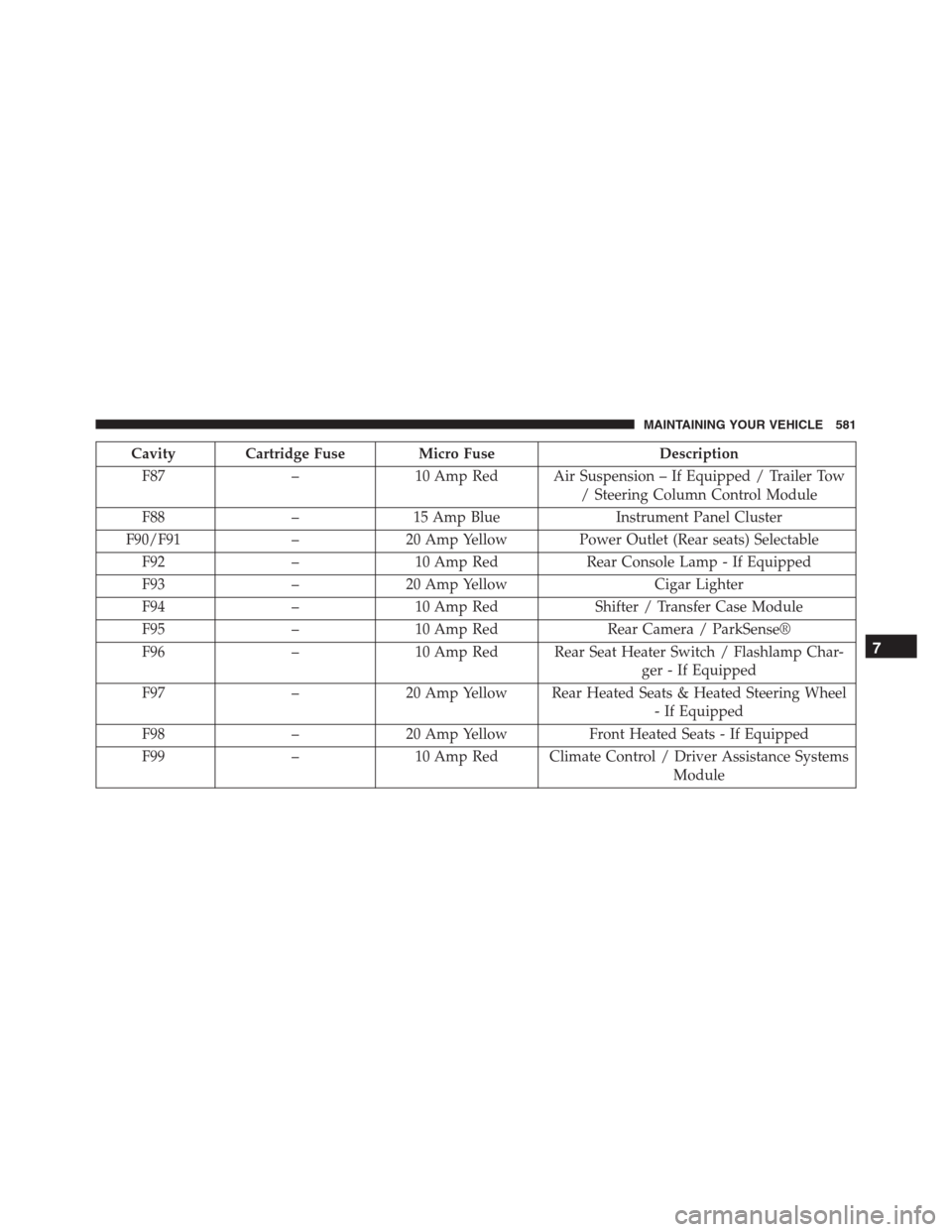

Cavity Cartridge Fuse Micro Fuse Description
F87 – 10 Amp Red Air Suspension – If Equipped / Trailer Tow
/ Steering Column Control Module
F88 – 15 Amp Blue Instrument Panel Cluster
F90/F91 – 20 Amp Yellow Power Outlet (Rear seats) Selectable
F92 – 10 Amp Red Rear Console Lamp - If Equipped
F93 – 20 Amp Yellow Cigar Lighter
F94 – 10 Amp Red Shifter / Transfer Case Module
F95 – 10 Amp Red Rear Camera / ParkSense®
F96 – 10 Amp Red Rear Seat Heater Switch / Flashlamp Char-
ger - If Equipped
F97 – 20 Amp Yellow Rear Heated Seats & Heated Steering Wheel
- If Equipped
F98 – 20 Amp Yellow Front Heated Seats - If Equipped
F99 – 10 Amp Red Climate Control / Driver Assistance Systems
Module
7
MAINTAINING YOUR VEHICLE 581

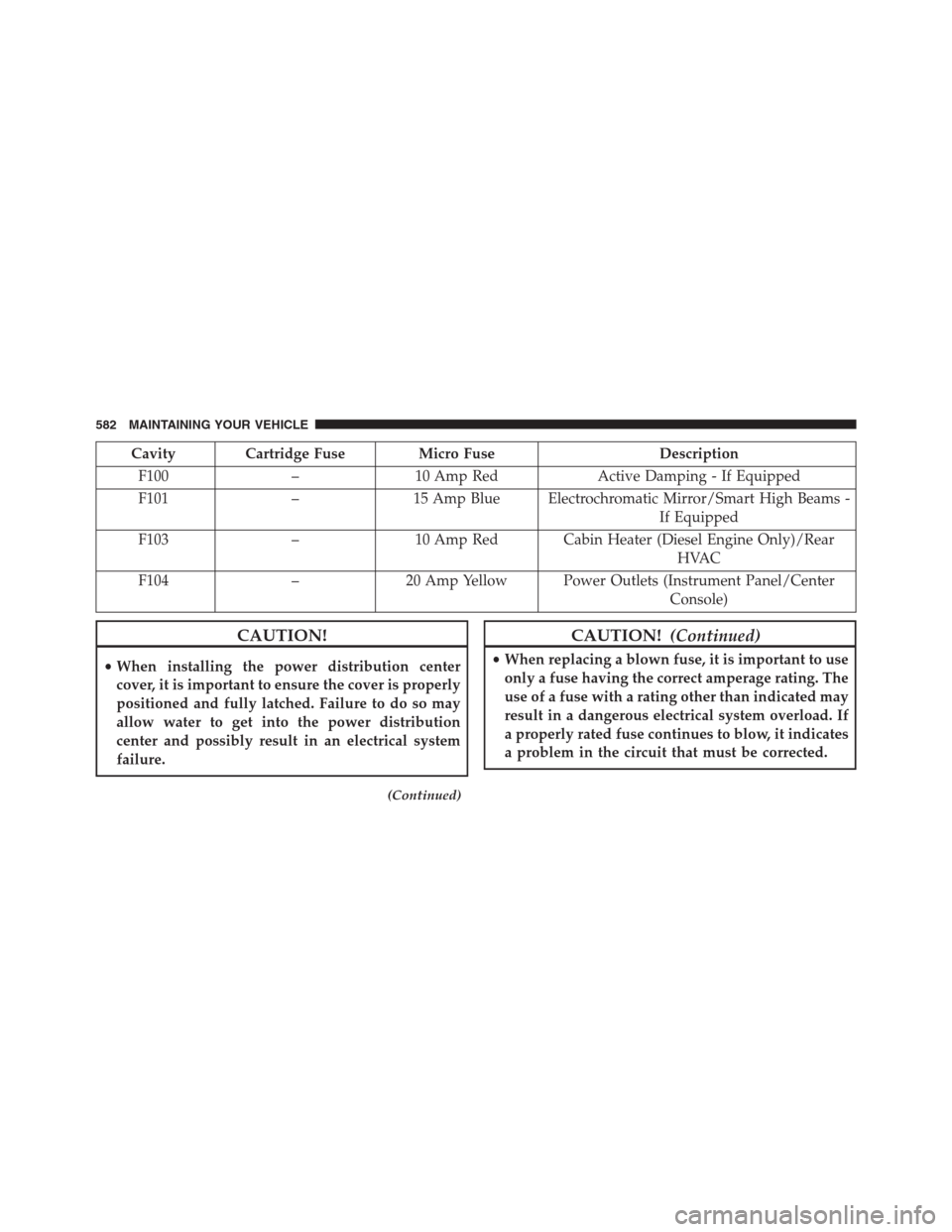

Cavity Cartridge Fuse Micro Fuse Description
F100 – 10 Amp Red Active Damping - If Equipped
F101 – 15 Amp Blue Electrochromatic Mirror/Smart High Beams -
If Equipped
F103 – 10 Amp Red Cabin Heater (Diesel Engine Only)/Rear
HVAC
F104 – 20 Amp Yellow Power Outlets (Instrument Panel/Center
Console)
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
(Continued)
CAUTION!(Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
