2015 INFINITI QX60 Quick Reference Guide

7
3rd Row Power Folding Seats
The 3rd row seats can be folded flat for maximum
cargo hauling or extra storage space.

Before folding down the 3rd row seats:
• The vehicle’s shift lever must be in the P (PARK)
position or the N (NEUTRAL) position.
MANUAL SEAT FOLD DOWN

To fold the 3rd row seats flat:
1. Pull the strap to release the head restraint
forward
1.
2. Stow the 3
rd row seat belts in the seat belt hooks
found in the cargo area
2.
3. Pull up on the latch located on the corner of each
seatback and lower the seatback forward over the
seat base
3.
POWER UNFOLDING SEAT (if so equipped)

When the ignition is in the OFF position, the power
unfolding seats are always operational.

If the ignition switch is in the ON position, the
power unfolding seats are only operational
when the shift lever is in the P (PARK) or
N (NEUTRAL) position.

To return the 3rd row seats to the upright position:
1. Push and hold the switch. The seatback will rise up while holding the sw\
itch.

A chime will sound once to indicate the start of the operation.

A warning chime will sound continuously if the seat is not in the fully \
upright or folded
position when the ignition switch is placed in the ON position.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (sectio\
n 1) ” of your
Owner’s Manual.
1
2
3
1923535_15c_Infiniti_QX60_QRG_061815.indd 76/18/15 2:16 PM

8
essential information
Tire Pressure Monitoring System (TPMS) with Tire Inflation Indicator
A Tire Pressure Low – Add Air warning message
will appear in the vehicle information display

1
and the low tire pressure warning light 2 will
illuminate when one or more tires are low in
pressure and air is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more
or driven less than 1 mi (1.6 km) at
moderate speeds.

When adding air to an under-inflated tire, the TPMS
with Tire Inflation Indicator provides visual and
audible signals to help you inflate the tire to the
recommended COLD tire pressure.
To use the tire inflation indicator:
1. Move the shift lever to the P (PARK) position and apply the parking brake.
2. Place the ignition switch in the ON position. Do not start the engine.
3. Add air to the under-inflated tire, and within a few seconds, the hazard\
warning lights will
start flashing.
4. When the designated tire pressure is reached, the horn will beep once an\
d the hazard
warning flashers will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.

After tire pressures are adjusted, drive the vehicle at speeds above 16 \
mph (25 km/h).
The Tire Pressure Low – Add Air warning message and low tire pressure warning light
will extinguish.

When the low tire pressure warning light flashes for approximately 1 min\
ute and then
remains on, the TPMS is not functioning properly. Have the system checke\
d by an
INFINITI retailer.

Tire pressure rises and falls depending on the heat caused by the vehicl\
e’s operation and
the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This m\
ay cause the low
tire pressure warning light to illuminate. If the warning light illumina\
tes, check the tire
pressure in your tires.
• Check the tire pressure (including the spare tire) often and always pr\
ior to long
distance trips.

The Tire and Loading Information label contains valuable information. Re\
fer to the
“Technical and consumer information (section 9)” in your Owner’\
s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
1
2
1923535_15c_Infiniti_QX60_QRG_061815.indd 86/18/15 2:16 PM

9
Accessing the Front Cup Holders
To open the cup holders, push the lid 1 down
and release.
For more information, refer to the “Instruments and controls (section 2)”
of your Owner’s Manual.1
Loose Fuel Cap
A LOOSE FUEL CAP warning message will appear in
the vehicle information display

1 when the
fuel-filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will extinguish when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button
2 is pressed for about 1 second.

If the cap is not properly tightened, the Malfunction
Indicator Light

may illuminate.
For more information, refer to the “Instruments and controls (section 2)”
and the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
1
2
Fuel-filler Door
The fuel-filler door is located on the driver’s side of

the vehicle.

The fuel-filler door automatically locks or unlocks
when the driver’s door is locked or unlocked.

To open the fuel-filler door, push the right side of the
fuel-filler door and release.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
Towing Your Vehicle
All-Wheel Drive (AWD) Vehicle:
•
An all-wheel drive vehicle must be towed with all wheels off the ground \
even if the
vehicle is placed in the 2WD mode.

For proper towing and to avoid accidental damage to your vehicle, INFINI\
TI
recommends that a service operator tow your vehicle after carefully read\
ing the Owner’s
Manual precautions.
For more information, refer to the “In case of emergency (section 6)” of your Owner’s Manual.
1923535_15c_Infiniti_QX60_QRG_061815.indd 96/18/15 2:16 PM

10
essential information
Clock Set/Adjustment
DIGITAL CLOCK ADJUSTMENT

To adjust the time and the appearance of the clock on the display:
1. Press the SETTING button on the control panel.
2. Touch the Others key.
3. Touch the Clock key.

The following settings can be adjusted:
• On-screen Clock: The clock in the upper right
corner of the display can be turned ON or OFF.
• Clock Format (24h): The clock can be set to 12 hours or 24 hours.
• Offset (hour): The time can be adjusted by increasing or decreasing per hour.
• Offset (min): The time can be adjusted by increasing or decreasing per minute.
• Daylight Savings Time: The application of daylight savings time can be turned ON or OFF.
• Time Zone: Adjust the time zone. Choose a time zone from the available list.
Press the BACK button to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of your
Owner’s Manual.
Front Arm Rest/Center Console Storage Box
To access the top storage bin, pull up on the driver’s
side lever

1.

To access the bottom storage bin, pull up on the
passenger’s side lever

2.
For more information, refer to the “Instruments and controls (section 2)”
of your Owner’s Manual.
12
1923535_15c_Infiniti_QX60_QRG_061815.indd 106/18/15 2:16 PM

11
first drive features
INFINITI Intelligent Key System
The INFINITI Intelligent Key system allows you to lock or unlock your
vehicle, open your liftgate and remotely start the engine. It is importa\
nt to
make sure the Intelligent Key is with you (that is, in your pocket or p\
urse).
REMOTE ENGINE START* (if so equipped)

The remote engine start system must be enabled in the vehicle
settings within the vehicle information display.

The remote engine start operating range is approximately 200 ft
(60 m) from the vehicle. The effective operating range may be
shorter due to environmental conditions or obstacles between you
and the vehicle.

For the remote engine start to function, the vehicle must be in
the P (PARK) position with the ignition off and all the doors
closed and locked.

To start your vehicle remotely:
1. Press the

button
1.
2. Within 5 seconds, press and hold the remote engine start

button
2
for at least 2 seconds.

The engine will start, and the parking lights will turn on.

Automatic climate control will begin heating or cooling the vehicle depe\
nding on the last
used mode.

The engine will run for 10 minutes and then turn off.

Repeat steps 1 and 2 to extend the time for an additional 10-minute peri\
od.
• After two remote starts, the ignition switch must be cycled before the r\
emote start can be
used again.

To start driving, depress the brake pedal and push the ignition switch START/STOP button.
LOCKING AND UNLOCKING THE VEHICLE

The lock and unlock operating range of the
Intelligent Key is within 31.5 in (80 cm) from
each request switch.

To lock the vehicle, push either door handle
request switch

3 once or press the
button
1
on the key fob.

To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch

3 once; the corresponding door will unlock.
Push the door handle request switch 3 again within 30 seconds; all other doors
will unlock, or
• Press the

button
4 on the key fob to unlock the driver’s side door. Press the
button 4 again; all other doors will unlock.
*Laws in some communities may restrict the use of remote starters. Check\
local regulations before using this feature.
2
1
4
5
6
3
1923535_15c_Infiniti_QX60_QRG_061815.indd 116/18/15 2:16 PM

12

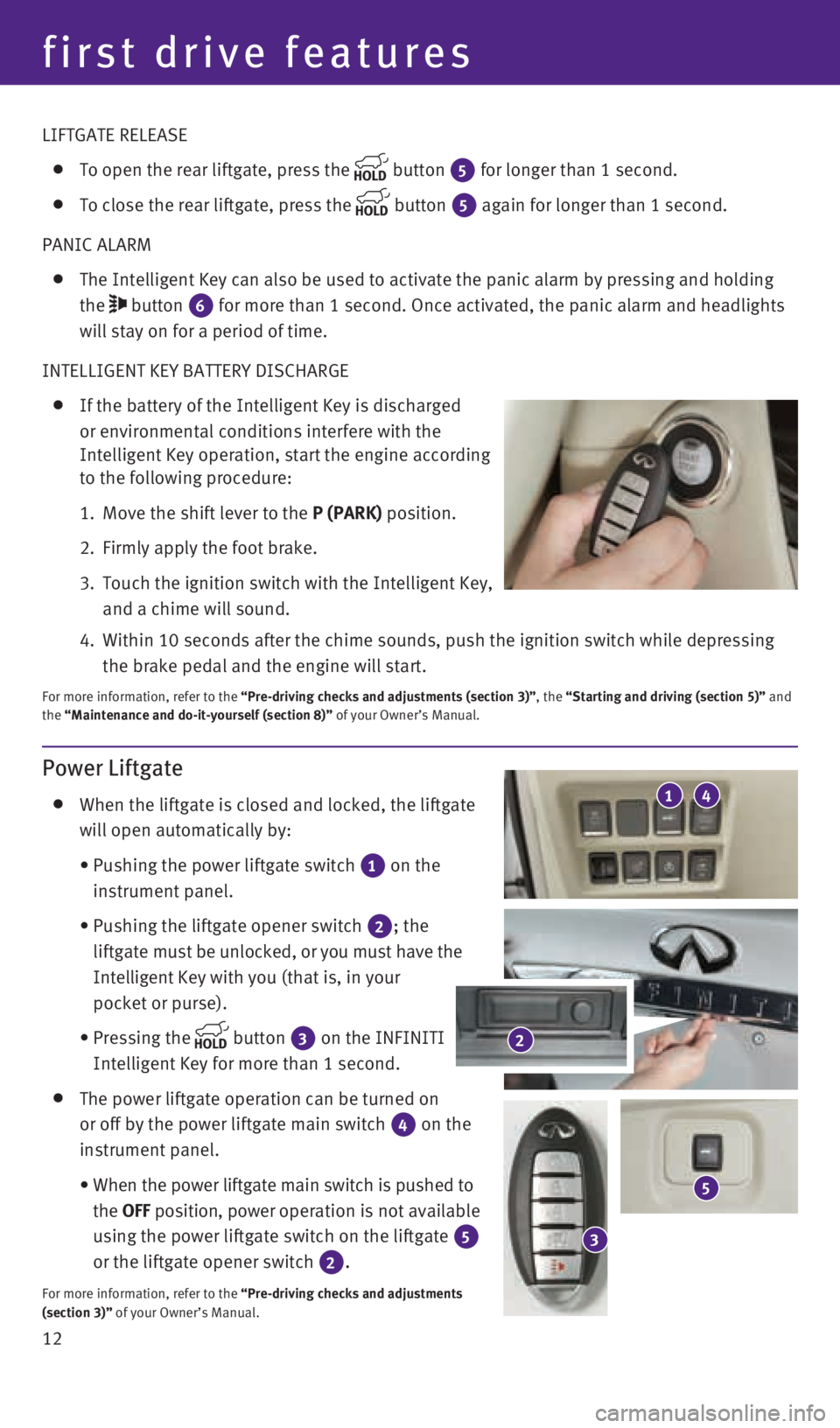

Power Liftgate
When the liftgate is closed and locked, the liftgate
will open automatically by:
• Pushing the power liftgate switch

1 on the
instrument panel.
• Pushing the liftgate opener switch

2; the
liftgate must be unlocked, or you must have the
Intelligent Key with you (that is, in your
pocket or purse).
• Pressing the

button
3 on the INFINITI
Intelligent Key for more than 1 second.

The power liftgate operation can be turned on
or off by the power liftgate main switch

4 on the
instrument panel.
• When the power liftgate main switch is pushed to
the OFF position, power operation is not available
using the power liftgate switch on the liftgate

5
or the liftgate opener switch 2.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
LIFTGATE RELEASE

To open the rear liftgate, press the
button
5 for longer than 1 second.

To close the rear liftgate, press the
button
5 again for longer than 1 second.
PANIC ALARM

The Intelligent Key can also be used to activate the panic alarm by pres\
sing and holding
the
button
6 for more than 1 second. Once activated, the panic alarm and headlights
will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE

If the battery of the Intelligent Key is discharged
or environmental conditions interfere with the
Intelligent Key operation, start the engine according
to the following procedure:
1. Move the shift lever to the P (PARK) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the Intelligent Key,
and a chime will sound.
4. Within 10 seconds after the chime sounds, push the ignition switch while\
depressing
the brake pedal and the engine will start.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving (section 5)” and
the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
41
2
5
3
first drive features
1923535_15c_Infiniti_QX60_QRG_061815.indd 126/18/15 2:16 PM

13
Power Seat Adjustments
To slide the seat forward or backward, push the
switch
1 forward or backward.

To recline the seatback, push the switch
2
forward or backward.
SEAT LIFTER

To raise or lower the front portion or height of the
seat, push the front or back end of the
switch 1 up or down.
POWER LUMBAR SUPPORT (if so equipped for driver’s seat)

To adjust the seat lumbar support, push the front or back end of the switch 3.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (se\
ction 1)” of your
Owner’s Manual.
2nd Row Seats
To slide the seat forward or backward, pull the
center of the bar

1 up and hold it while you slide
the seat forward or backward to the desired
position. Release the bar to lock the seat
in position.

To recline the seatback, pull up on the recline handle

2 and lean back. To bring the seatback forward, pull

the lever up and lean your body forward. Release the
lever to lock the seatback in position.
MULTI-MODE/CHILD SEAT ACCESS FUNCTION

This feature is not available on the driver’s side of the 2nd row seat.

If a child safety seat is installed on the passenger’s side of the 2nd row seat, the 3rd row
can be accessed without removing the child safety seat.

To access the 3rd row from outside the vehicle, lift up on the seatback release lever
3.
EZ ENTRY MODE

To enter the 3rd row from outside the vehicle, lift fully up on the seatback lever
3. This will
release the back of the seat and fold up the seat cushion.

For access to the rear seat, slide the entire seat forward by pushing on\
the upper
seatback area.

To return the seat to a locked position, push the upper seatback rearwar\
d until the
seatback and track are locked. Push the seat cushion down. Locking the s\
eatback will also
lock the track.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (se\
ction 1)”
of your Owner’s Manual.
123
12
3
1923535_15c_Infiniti_QX60_QRG_061815.indd 136/18/15 2:16 PM

14
3RD Row Manual Reclining Seatback
To recline the seatback, pull up on the latch
1
located on the outside corner of each seatback.
Lean back until the desired angle is obtained.

To bring the seatback forward again, pull up on the
latch

1 and move your body forward. The
seatback will move forward.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
Automatic Drive Positioner (if so equipped)

Two positions for the driver’s seat, steering column
and outside mirrors can be stored in the automatic
drive positioner

1 memory.

Follow this procedure to set the memory positions:
• Push the ignition switch to the ON or ACC
position. (The vehicle should be stopped while
setting the memory.)
• Adjust the driver’s seat, steering column and
outside mirrors to the desired positions using the
adjusting switches for each feature.
• Push the SET switch and within 5 seconds push the memory switch (1 or 2).
• The indicator light for the memory switch you select will illuminate for\
approximately 5
seconds and a chime will sound when the memory is stored.
• The driver’s seat, steering column and outside mirror positions are n\
ow set to
your preferences.

These memorized positions can also be linked to your INFINITI Intelligen\
t Key.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
Outside Mirror Control Switch
To select the right or left side mirror, move the
control switch

1 right or left.

Adjust each mirror to the desired position using the
control switch
2.

To fold the outside rearview mirrors, push
the control switch
3 to the
position. To unfold
the outside rearview mirrors, push the control
switch
3 to the
position.
2
1
3
1
1
first drive features
1923535_15c_Infiniti_QX60_QRG_061815.indd 146/18/15 2:16 PM
