2015 INFINITI QX60 Quick Reference Guide

2015 Infiniti QX60Quick Reference Guide
1923535_15c_Infiniti_QX60_QRG_061815.indd 36/18/15 2:15 PM

22
23
25
24
28272616171819
1112
14
21
*See your Owner’s Manual for information.
1 INSTRUMENT BRIGHTNESS
CONTROL SWITCHES*
2 BACK-UP COLLISION INTERVENTION
(BCI) SWITCH
3 TWIN TRIP ODOMETER RESET SWITCH*
4 VEHICLE INFORMATION DISPLAY
5 HEADLIGHT AND TURN SIGNAL SWITCH
6 LOW TIRE PRESSURE WARNING LIGHT
7 WINDSHIELD WIPER AND
WASHER SWITCH
8 VEHICLE INFORMATION
DISPLAY SWITCH
9 STEERING WHEEL SWITCHES FOR
AUDIO*/BLUETOOTH®/NAVIGATION
10 INTELLIGENT CRUISE CONTROL
11 VEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH*
12 POWER LIFTGATE SWITCH
13 POWER LIFTGATE MAIN SWITCH
14 DISTANCE CONTROL ASSIST
(DCA) SYSTEM SWITCH*
1
4
65
8
7
2
3
15 TILT/TELESCOPIC STEERING
WHEEL SWITCH*
16 HEADLIGHT AIMING
CONTROL SWITCH*
17 WARNING SYSTEMS SWITCH
18 HEATED STEERING WHEEL SWITCH*
19 POWER INVERTER SWITCH
20 HOOD RELEASE*
21 CONTROL PANEL DISPLAY SCREEN*
22 CLIMATE CONTROL SYSTEM
23 AUDIO SYSTEM
24 FRONT PASSENGER AIR BAG
STATUS LIGHT*
25 POWER OUTLET
26 DRIVER’S CLIMATE-CONTROLLED
SEAT SWITCH*
27 INFINITI DRIVE MODE SELECTOR*
28 PASSENGER’S CLIMATE-CONTROLLED
SEAT SWITCH*
109
Behind
steering wheel
Behind
steering wheel Behind
steering wheel
15
13
20
1923535_15c_Infiniti_QX60_QRG_061815.indd 46/18/15 2:15 PM

table of contents
new system features INFINITI Connection™ System (if so equipped) ......................2
NavTraffic and NavWeather (if so equipped) ......................... 3
Around View
® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped) ................................................ 4
Warning Systems Switch (if so equipped) ........................... 6
3
RD Row Power Folding Seats ...................................... 7
essential information Tire Pressure Monitoring System (TPMS) with Tire Inflation Indicator .....8
Loose Fuel Cap ................................................. 9
Fuel-filler Door ................................................. 9
Towing Your Vehicle ............................................. 9
Accessing the Front Cup Holders .................................. 9
Front Arm Rest/Center Console Storage Box ........................ 10
Clock Set/Adjustment .......................................... 10
first drive features INFINITI Intelligent Key System .................................. 11
Power Liftgate ................................................. 12
Power Seat Adjustments ........................................ 13
2
ND Row Seats ................................................. 13
3RD Row Manual Reclining Seatback ............................... 14
Automatic Drive Positioner (if so equipped) ........................ 14
Outside Mirror Control Switch .................................... 14
Starting/Stopping the Engine .................................... 15
Headlight Control Switch ........................................ 16
Windshield Wiper and Washer Switch ............................. 17
Automatic Climate Controls ...................................... 18
Rear Climate Controls .......................................... 19
FM/AM/SiriusXM
® Satellite Radio with CD/DVD Player (if so equipped) ..20
USB (Universal Serial Bus) Connection Port/iPod® Interface ........... 21
Conventional (Fixed Speed) Cruise Control ......................... 21
Intelligent Cruise Control (ICC) System (if so equipped) ..............22
Power Outlets ................................................. 23
system guide Vehicle Information Display ..................................... 24
Bluetooth® Streaming Audio with Navigation (if so equipped) ......... 25
Bluetooth® Hands-free Phone System ............................. 27
System Operating Tips ....................................... 27
Bluetooth
® System without Navigation (if so equipped) .............. 28
Bluetooth® System with Navigation (if so equipped) ................. 29
Navigation System (if so equipped) ............................... 32
Theater Package (if so equipped) ................................. 34
HomeLink
® Universal Transceiver ................................. 35
Additional information about your vehicle is also available in your Owne\
r’s
Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.
Please see your Owner’s Manual for important safety information
and system operation limitations.
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, climate,
audio, phone and voice recognition systems (section 4)” and the
“Starting and driving (section 5)” of your Owner’s Manual.
To view detailed
instructional videos, go to
www.infinitiownersinfo.mobi/2015/qx60 or snap this barcode
with an appropriate barcode reader.
1923535_15c_Infiniti_QX60_QRG_061815.indd 56/18/15 2:15 PM

2
INFINITI Connection™ System* (if so equipped)
INFINITI Connection™ combines personalized
convenience and concierge settings and personal security
features to compliment the Total Ownership Experience.
For more details on INFINITI Connection or to enroll
your vehicle, please visit www.Infiniticonnection.com
or call 855-444-7244.
Available services include:

INFINITI Personal Assistant – To access INFINITI Personal Assistant, \
select “Connect to
Voice Menu” from the INFINITI Connection menu or touch the

key on the map screen.
At the voice prompt, say “INFINITI Personal Assistant” to be conne\
cted.
• Your INFINITI Personal Assistant can send destination information direct\
ly to your vehicle.
To access, go to the INFINITI Connection menu and select “Sync All In\
formation Feeds”.
Then go to the feeds menu page and download the desired destination info\
rmation.

Automatic Collision Notification – In case of air bag deployment, a s\
ignal is sent containing
the vehicle location and customer information to a Response Specialist w\
ho notifies the
proper authorities.

Emergency Call – This service provides emergency assistance by connec\
ting the subscriber
to an INFINITI Connection Specialist.
• In case of an emergency, press the in-vehicle
telematics SOS button

1.
• A Response Specialist will provide assistance based
on the situation described by the vehicle’s occupant.

Enhanced Roadside Assistance – Roadside
Assistance can be accessed by touching the
INFINITI Connection key on the Info menu or the

key on the map screen or by pressing the SOS button 1.
• This service allows subscribers to receive assistance for a non-emergenc\
y incident, such
as towing or a third party response.
• If warranted, Roadside Assistance may also be used in conjunction with t\
he Emergency
Assistance service by pressing the SOS button
1.

My Schedule – Access your personal online Google Calendar™, hear d\
etails read via
text-to-speech** and select a location as a destination via the Navigati\
on System.

Report Stolen Vehicle – A Response Specialist will attempt to obtain \
location information
from a reported stolen vehicle and provide that information to local law\
enforcement
agencies to assist in the recovery of your stolen vehicle.

Remote Door Lock/Unlock – Remotely access your vehicle via an INFINIT\
I Connection
Response Specialist or designated website to remotely lock or unlock you\
r vehicle.

Alarm Notification – This system will notify you when the factory-ins\
talled vehicle alarm
system has been activated.
new system features
1
* INFINITI Connection™ is only available on vehicles equipped with an o\
ptional INFINITI Connection™
subscription service.
**Laws in some communities may restrict the use of text-to-speech. Check\
local regulations before using this feature.
1923535_15c_Infiniti_QX60_QRG_061815.indd 26/18/15 2:15 PM

3


Scheduled Maintenance Notification – Receive scheduled maintenance no\
tifications based
on mileage data provided by your vehicle.

Maintenance Alert – Receive notification of a vehicle system malfunct\
ion that triggers
instrument panel warning lights.

Destination Assistance – Receive point-of-interest assistance via a g\
uided IVR (Interactive
Voice Response) or Response Specialist by pressing the

key on the map screen or the
INFINITI Connection web portal.

Destination Send-to-Vehicle – Find and download point-of-interest inf\
ormation
from Google Maps™.

Connected Search – Select “Connected Search” from the Destinati\
on menu on the vehicle’s
Navigation System to conduct a point-of-interest search within a certain\
distance of the
vehicle’s location.

Drive Zone – Monitor the movement of your vehicle within a specified \
region. Set up
boundaries in the Monitoring section of the INFINITI Connection web port\
al.

Max Speed Alert – Set up a maximum speed on the INFINITI Connection w\
eb portal. You
will receive notifications if your vehicle exceeds the maximum speed set\
ting.

Mobile Information Service – Receive the latest news headlines, stock\
quotes and sports
scores by setting up preferences on the Mobile Information Service page \
in the INFINITI
Connection web portal.

Valet Alert – Use Valet Alert to set up a 0.2-mile radius around your\
vehicle.
• Activate alerts by pressing the “Connect to Voice Menu” button on \
the INFINITI
Connection screen or by pressing the
key on the map screen.
• At the prompt, say “Valet Alert” and then “Activate” or “\
Deactivate”.
For more information, refer to the “Viewing technical information (section 7)” of your Navigation System Owner’s Manual.
NavTraffic* and NavWeather* (if so equipped)

Your vehicle’s Navigation System is equipped with
NavTraffic and NavWeather capabilities.

NavTraffic enables your vehicle’s Navigation System
to display real-time traffic conditions, such as
accidents or road construction, and may provide a
detour to help avoid congestion.

NavWeather tracks nationwide weather
information, provides real-time weather reports
and automatically alerts you to severe weather
conditions around your current vehicle location.
* These features, SiriusXM® Satellite Radio, NavTraffic and NavWeather,
require an active subscription. Multiple subscriptions may be necessary \

to activate the various features.
For more information, refer to the “Monitor, climate, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
1923535_15c_Infiniti_QX60_QRG_061815.indd 36/18/15 2:15 PM

4
new system features
Start from any Control Panel screen
Press
Press
Press
Press

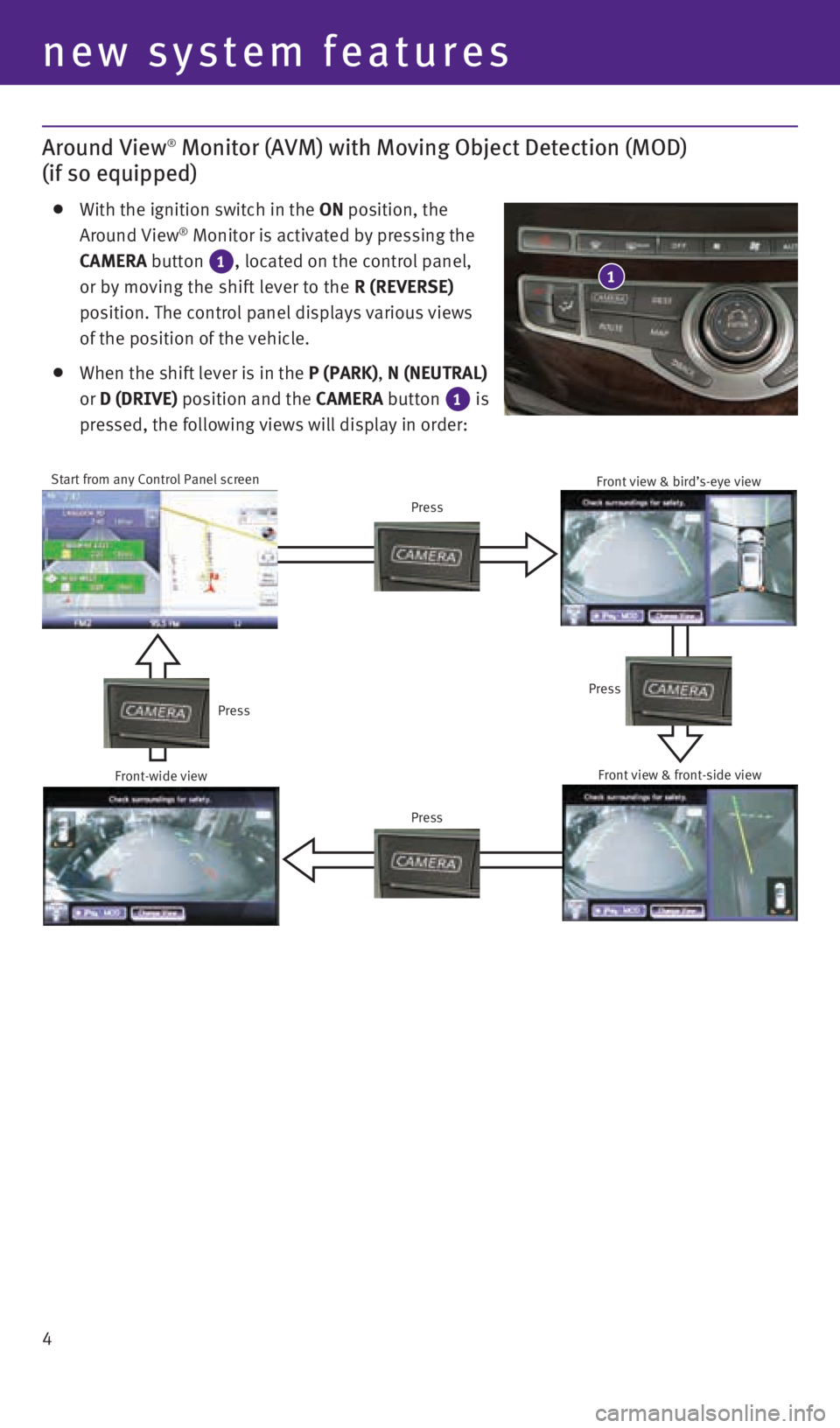

Around View® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped)
With the ignition switch in the ON position, the
Around View® Monitor is activated by pressing the
CAMERA button
1, located on the control panel,
or by moving the shift lever to the R (REVERSE)
position. The control panel displays various views
of the position of the vehicle.

When the shift lever is in the P (PARK), N (NEUTRAL)
or D (DRIVE) position and the CAMERA button

1 is
pressed, the following views will display in order:
1
Front-wide view Front view & bird’s-eye viewFront view & front-side view
1923535_15c_Infiniti_QX60_QRG_061815.indd 46/18/15 2:16 PM

5
2
3
The colored guide lines on the display screen indicate vehicle width and\
approximate
distances to objects with reference to the vehicle body line.
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and 10 ft \
(3 m).

There are some areas where the system will not show objects.
• When in the front or the rear view display, an
object below the bumper or on the ground may
not be viewed

2.
• When in the bird’s-eye view, a tall object near
the seam of the camera viewing areas

3
will not appear in the monitor.

The distance between objects viewed on the
AVM differs from the actual distance.

Objects in the bird’s-eye view will appear further
than the actual distance.


When the shift lever is in the R (REVERSE) position and the CAMERA button
1 is pressed,
the following views will display in order:
Rear view & bird’s-eye view
Press
PressPress Rear view & front-side view
Rear-wide view
1923535_15c_Infiniti_QX60_QRG_061815.indd 56/18/15 2:16 PM

6
Warning Systems Switch (if so equipped)
The warning systems switch
1 will turn on and off
the systems enabled in the vehicle information
display. The systems controlled by the warning
systems switch include:
• Lane Departure Warning (LDW) system
• Blind Spot Warning (BSW) system
• Forward Collision Warning (FCW) system

When the warning systems switch is turned off, the
indicator

2 on the switch is off. If the
warning systems switch is illuminated, the enabled
systems are on. The indicator will also
be off if all of the warning systems are deactivated
using the “Settings” menu.

To enable or disable these systems, perform the
following operation:
• Press the

button
3 on the steering
wheel multiple times until you reach the
“Settings” menu.
• Press up or down on the

button
4 to select the
“Driver Assistance”
5 and “Driving Aids”
6
menu items.
• Press the ENTER button

4 to change a menu item.
For more information, refer to the “Instruments and controls (section 2)” of

your Owner’s Manual.
new system features
3
4
6
1
2
MOVING OBJECT DETECTION (MOD)

If the MOD system detects moving objects
surrounding the vehicle, a yellow frame

1 will
be displayed on the camera image and a chime
will sound.

In the bird’s-eye view, a yellow frame is displayed
on those camera images (front, rear, right, left)
where moving objects are detected.

When the following are displayed:
• Blue MOD icon

2; the system is operative in this view.
• Gray MOD icon

3; the system is not operative in this view.
• No MOD icon; the system is off.

To temporarily turn the system on or off, touch the MOD key 4.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of your
Owner’s Manual.
5
123
4
1923535_15c_Infiniti_QX60_QRG_061815.indd 66/18/15 2:16 PM
