DODGE CHARGER SRT 2015 7.G Owners Manual 1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
S

Page 530 of 595

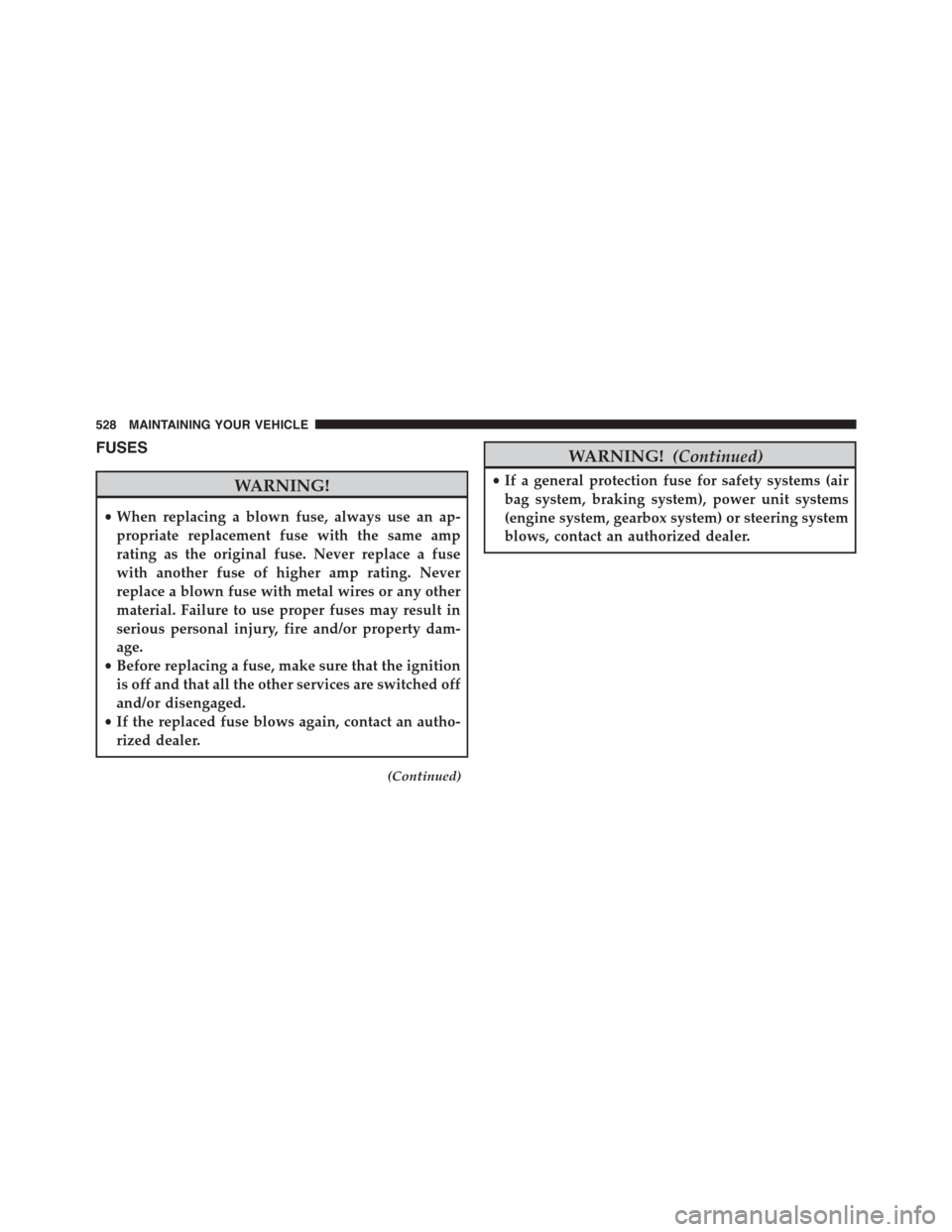

DODGE CHARGER SRT 2015 7.G Owners Manual FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating.

Page 531 of 595

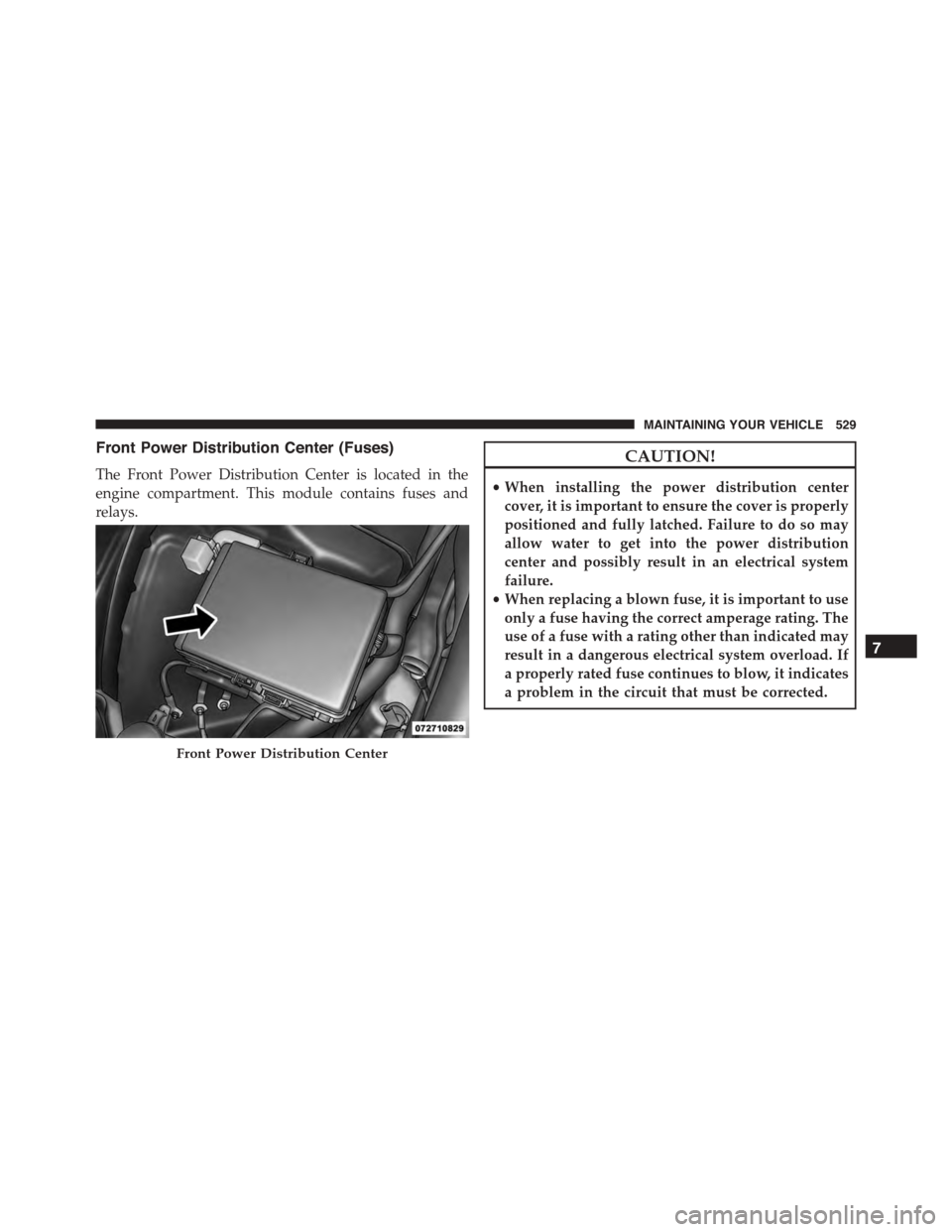

DODGE CHARGER SRT 2015 7.G Owners Manual Front Power Distribution Center (Fuses)
The Front Power Distribution Center is located in the
engine compartment. This module contains fuses and
relays.
CAUTION!
•When installing the power distribut

Page 532 of 595

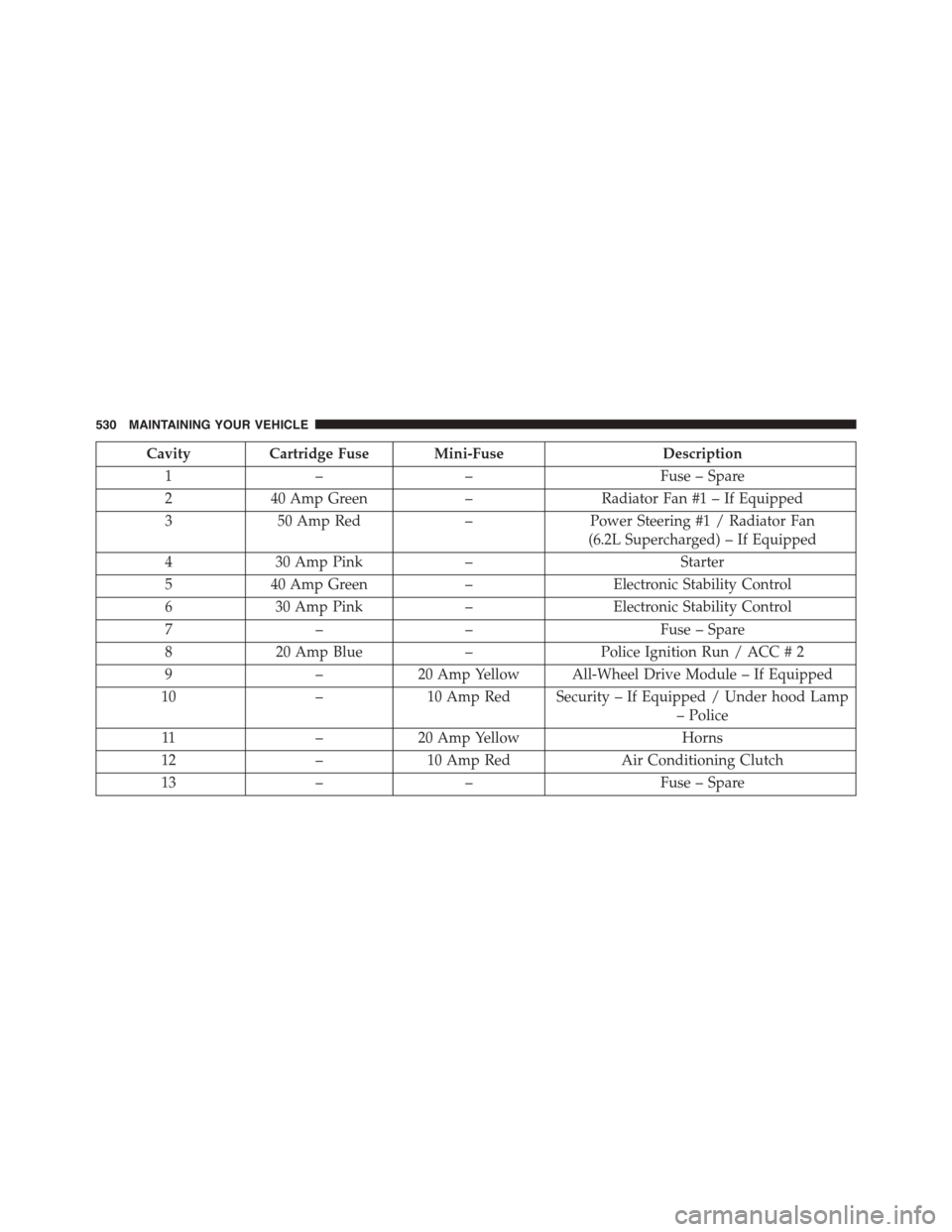

DODGE CHARGER SRT 2015 7.G Owners Manual CavityCartridge Fuse Mini-FuseDescription
1––Fuse – Spare
240 Amp Green–Radiator Fan #1 – If Equipped
350 Amp Red–Power Steering #1 / Radiator Fan
(6.2L Supercharged) – If Equipped
430 A

Page 533 of 595

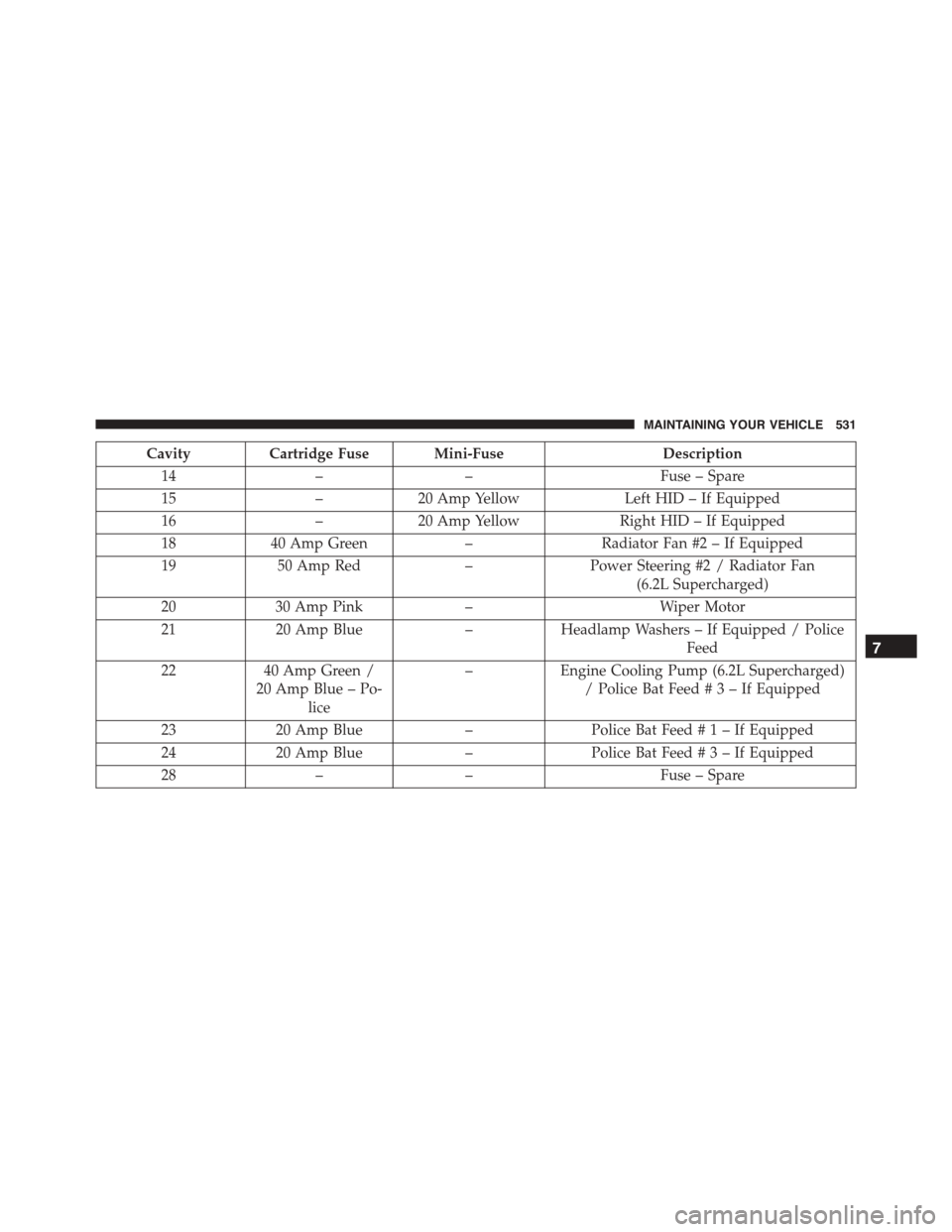

DODGE CHARGER SRT 2015 7.G Owners Manual CavityCartridge Fuse Mini-FuseDescription
14––Fuse – Spare
15–20 Amp YellowLeft HID – If Equipped
16–20 Amp YellowRight HID – If Equipped
1840 Amp Green–Radiator Fan #2 – If Equipped

Page 534 of 595

DODGE CHARGER SRT 2015 7.G Owners Manual CavityCartridge Fuse Mini-FuseDescription
29–15 Amp BlueTransmission Control Module
(LA/LD Police)
30––Fuse – Spare
31–25 Amp ClearEngine Module
32––Fuse – Spare
33––Fuse – Spare

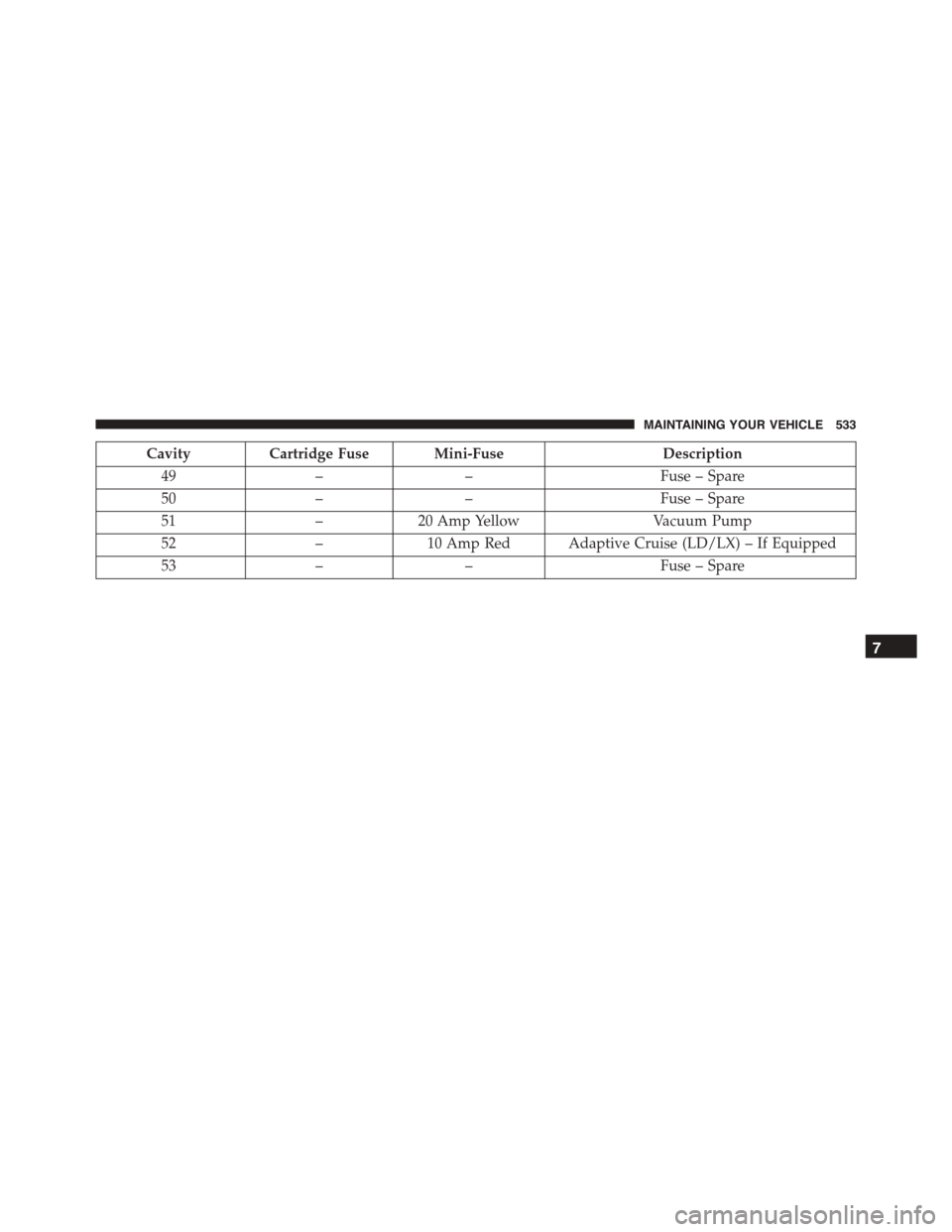

Page 535 of 595

DODGE CHARGER SRT 2015 7.G Owners Manual CavityCartridge Fuse Mini-FuseDescription
49––Fuse – Spare
50––Fuse – Spare
51–20 Amp YellowVacuum Pump
52–10 Amp Red Adaptive Cruise (LD/LX) – If Equipped
53––Fuse – Spare
7
M

Page 536 of 595

DODGE CHARGER SRT 2015 7.G Owners Manual Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
CAUTION!
•When install
