2015 AUDI Q7 display

7 2 Clear vision
-Repeated or prolonged exposure to elec­
trolyte can cause irritation to the respira­ tory system, especially among people
with asthma or other respiratory condi­
tions . Get fresh air immediately by leav­
ing the vehicle or, if that is not possible,
open windows and doors all the way.
- If electrolyte gets into the eyes, flush
them thoroughly with large amounts of
clean water for at least 15 minutes;
medical attention is recommended.
- If electrolyte contacts skin, flush affect­
ed area with clean water for at least 15
minutes and then wash affected area
with soap and water; medical attention
is recommended . Thoroughly wash af­
fected clothing and shoes before reuse.
- If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes. Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately.
(D Note
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge.
@ Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimming function of
the exterior mirrors*.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected.
-Automatic dimming for the mirror only operates properly if the sun shade* for
the rear window is not in use or the light
striking the inside mirror is not hindered
by other objects.
Digital compass
Activating or deactivating the compass
Applies to veh icles: w ith dig ital compass
The direction is displayed on the interior rear
view mirror .
Fig. 75 Inside rear view mirror: digital compass acti­
vated
.. To activate or deactivate, hold the @ button
down until the red display appears or disap­
pears.
The digital compass only works with the igni­
t ion turned on. The directions are displayed as
initials:
N (North), NE (Northeast), E (East),
SE (Southeast), S (South), SW (Southwest),
W (West), NW (Northwest).
@ Tips
To avoid inaccurate directions, do not al­
low any remote controls, electrical sys­
tems, or metal parts close to the mirror .

M
"' 0 ..J
' "' rl
"' rl
Setting the magnetic deflection zone
Applies to vehicles: with dig ital compass
The correct magnetic deflection zone must be
set in order to display the directions correctly .
Fig. 76 North America: magnet ic def lect ion zone
boundari es
.. Hold the @ Q page 72, fig. 75 button down
until the number of the set magnetic deflec­
tion zone appears on the interior rear view
mirror .
.. Adjust the magnetic deflection zone by re­
peatedly pressing on the @ button . The set
mode automatically deactivates after a few
seconds .
Calibrating the compass
Applies to vehicles: with dig ital compass
The compass hos to be recalibrated if the dis­
play is wrong or inaccurate .
.. Hold the @ button down until the letter C is
displayed on the interior rear view mirror .
.. Drive in a circle at a speed of about 5 mph
(10 km/h) until a direction is shown on the
interior rear view mirror.
Clear vision 7 3
A WARNING
The digital compass is to be used as a di­
rectional aid only. Even though you may
want to look at it while you are driving, you
must still pay attention to traffic, road and
weather conditions as well as other possi­
ble hazards.

M
"' 0 _,
"". rl I.O
"' rl
"' rl
-Any articles of cloth ing that you have
hung up must not interfere with the driv­
er's view. The coat hooks are designed
only for lightweight clothing. Never hang
any clothing with hard, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the airbag is deployed -
these objects could injure any passen­
gers inside the vehicle.
Glove compartment
Fig. 105 Unlocking button for glove compa rtment
To open glove compartment
.. Press the button:]...--r=> fig . 105 (a rrow) -the
lid opens automatically.
To close glove compartment
.. Push the glove compartment lid up until the
lock engages.
In the g love compartment lid you will find a
p lace to store a pen and a pad of paper .
A WARNING
To reduce the risk of persona l injury in an
accident or sudden stop, always keep the
glove compartment closed whi le driving.
(D Tips
Should you not be able to open the glove
compartment as described, make sure the
valet key function is not activated
r=>poge 41.
Seats and storage 91
Cooling box in glove compartment
The cooling box works only when the air-con­
ditioning is in cooling mode.
F ig . 106 Glove box with cooling box open an d switched
on
.. Open the glove compartment r=> page 91,
fig. 105 .
.. Turn the rotary switch @counter-clockwise
to switch the cooling on . The symbols on the
rotary switch must be displayed
9 fig. 106
accordingly .
.. Turn the rotary switch@clockw ise to
switch the cooling off.
The cooling box works only in the cooling
mode.
If the climate control is in the heating
mode, we recommend switching the cooling
box off.
Emergency unlocking of glove
compartment
The glove comportment con be unlocked in on
emergency.
Fig. 107 In strument panel right: pry off security cover
.. Remove the cover with the aid of a screw­
driver~
fig. 107 .
.. Now press the locking p in inward with the
screwdrive r.

M
"' 0 _,
"". rl I.O
"' rl
"' rl
,&_ WARNING
Reduced visibility is dangerous and can
cause accidents.
-
-For safe driving it is very important that
all windows be free of ice, snow and con­
densation.
- Completely familiarize yourself with the proper use and function of the heating
and ventilation system and especially
how to defog and defrost the windows.
- Never use the windshield wiper/washer
system in freezing weather until you
have warmed the windshield first, using
the heating and ventilation system. The
washer solution may freeze on the wind­
shield and reduce visibility.
(D Note
- If you suspect that the climate control
system has been damaged, switch the
system off to avoid further damages,
and have it inspected by a qualified deal­
ership.
Controls
Warm and cold 95
-Repairs to the Audi air conditioner re­
quire special technical knowledge and
special tools. Contact an authorized Audi
dealer for assistance.
@ Tips
- Keep the air intake slots (in front of the
windshield) free from ice, snow and de­
bris in order to maintain the proper func­
tion of the climate control system.
- Air inside the vehicle escapes through air
vents located in the side trim panels be­
neath the rear side windows. Make sure
that the outlet slots are not covered by
clothing, etc.
- Climate control works most effectively if
the windows and the Panoramic sliding
sunroof* are closed. However, if the inte­
rior of a parked vehicle is extremely hot
from the sun's rays, briefly opening the
windows can speed up the cooling proc­
ess.
This overview will help you to familiarize yourself with the air conditioning controls.
-------. .- .--. -
AUTO ON/OFF A /C AUTO
;;__,
Fig. 114 Air condit ioning control elements
The left display indicates the temperature se­
lected for the driver's side, the right display
indicates the temperature selected for the
passenger's side. The
settings you make are shown in the MMI
display for a few seconds when MMI is turned
on. .,.

96 Warm and cold
Each function is turned on or off by briefly
pressing the corresponding button . The indi­
cator light in the button illum inates when the
function is active.
Button(s ) Function
ION/OFFI Climate control on/off
c> page96
IA/Cl Air conditioner on/off
c>page96
IAU TO I Automatic mode
¢page 97
Regulatora) G Temperature selection
c>page 97
[tl Seat heating*
¢page 103
~
Seat ventilation*
i=>page 103
~ Fan
¢ page 97
Qi] Air distr ibut ion
c> page 97
~ Defrost
i=>page 97
~ Manua l recircu lation
c>page98
~ Heated rear window
i=>page 98
al The re gula tor is also used to set th e fan speed, air dis ­
t ribution, seat heating and seat vent ilat ion.
Synchroniz ing clim ate control
By pressing and holding the regu lator on the
d river's s ide, the temperature setting on the
driver's side can be switched to the passeng ­
e r's side, and vice versa. The new temperature
is shown in the display.
Synchronizing four-zone automatic
comfort air conditi oning*
By pressing and holding the regu lator on the
driver's side, the temperature setting on the
driver's side can be switched to the passeng­
er's side and to the outer rear seats. The new
temperature is shown in the disp lay. By sim
ultaneously pressing and holding the
regulators o n the driver's side and front pas ­
senger's s ide, the temperature setting on the
driver's side can be switched to the front pas­
senger's side . The new temperature is shown
i n the disp lay .
(D Tips
The gr ille on the controls m ust rema in un­
obstr ucted and m ust not be taped over.
Measur ing sensors are located behind it.
Turning on and off~
Turning the climate control on
.,. Press the ION/O FF! button, or
.,. Press the
IAUTO I button.
Turning the climate control off
.,. Press the ION/O FFj button to sw itch the cli ­
mate contro l off and to block the air supply
from the outside.
The air conditioner turns bac k on when you
press the
temperature regulator or one of the
buttons.
(D Tips
With the ign ition t urned off, you can acti­
vate the residua l heat funct ion by pressing
the
ION/O FF I button. The res idual heat
from the coolant can be used to heat the
vehicle interior .
Air Conditioner On/Off~
Switching off the air conditioner saves fuel.
.,. Press the IAIC I button to switch the air con-
ditioner on or off.
When the air conditioner is switched on, the
indicator lamp in the button will illum inate
and the heat ing/venti lation system is control­
led automatically.
P lease keep in mind that with the air condi­
tione r switched off, the interior tempe rat ure ..,_

M N
0 ...J
'SI: ...... \!) 1.1'1
...... 1.1'1 ......
cannot be lower than the outside tempera ­
ture. The air wi ll not be cooled or
dehumid ified. The windows can fog up.

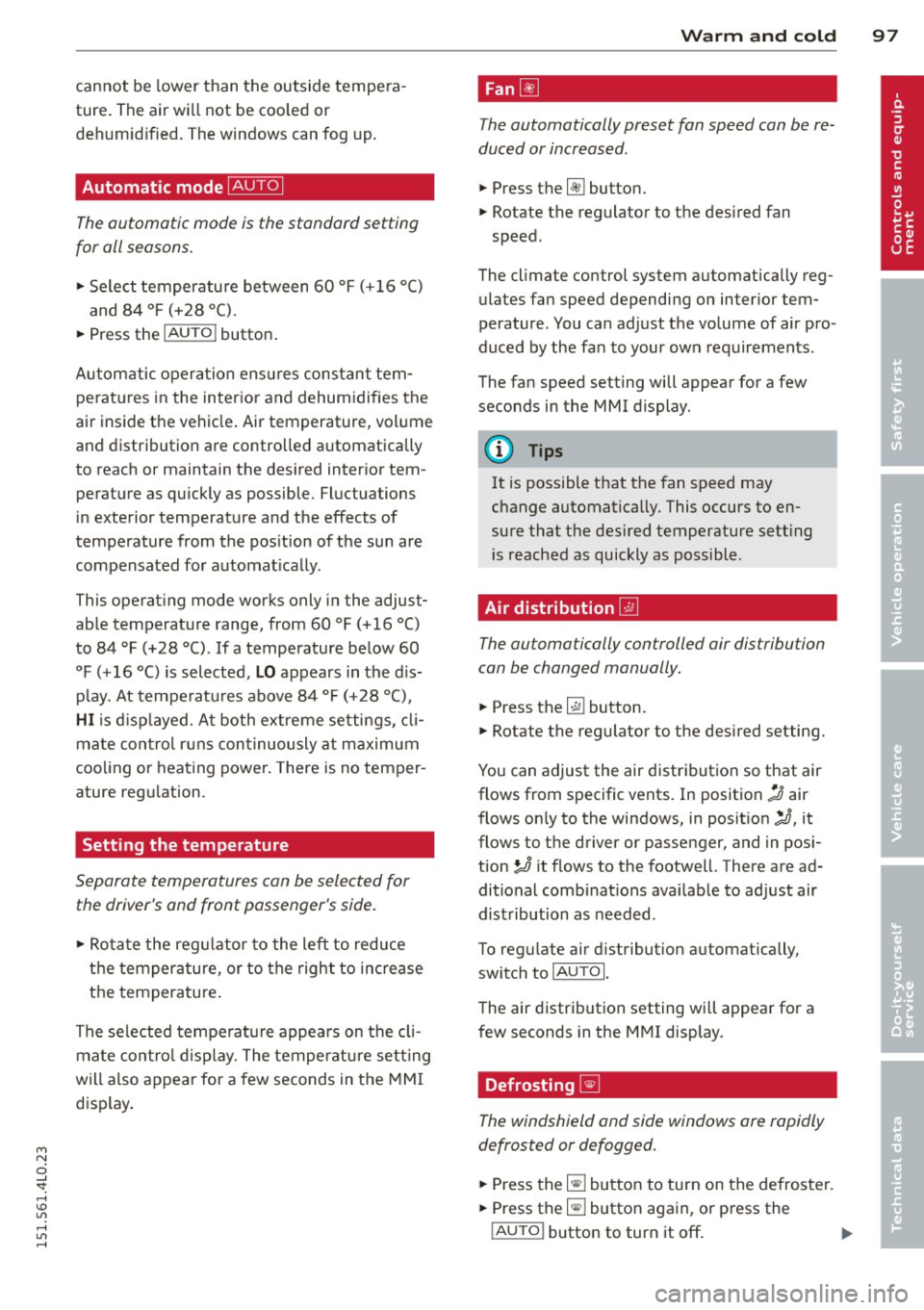

Automat ic mode ~
The automatic mode is the standard setting
for all seasons.
.,. Se lect temperature between 60 °F ( + 16 °()
and 84 °F (+ 28 °C) .
.. Press the !AUTO ! button.
Automatic opera tion ens ures constant tem ­
peratures in the interior and dehumidifies the
air inside the vehicle . Air temperature, vol ume
and distribution are controlled automatically
to reach or maintain the desired interior tem­ perature as quickly as possible. Fluctuations
in exterior temperature and the effects of
temperature from the pos ition of the sun are
compensated for automat ically.
This operat ing mode works only in the adjust­
ab le temperature range, from 60
°F ( + 16 °C)
to 84 °F (+28 °C) . If a temperature be low 60
°F ( + 16 °C) is selected, L O appears in the d is­
p lay. At tempe rat ures above
84 °F (+ 28 °C),
HI is d isplayed. At both extreme settings, cl i­
mate con trol r uns con tinuously at maximum
coo ling or heat ing power . There is no temper ­
ature reg ulation.
Setting the temperature
Separate temperatures con be selected for
the driver's and front passenger's side.
.,. Rotate the reg ulator to the left to reduce
the temperature, or to the right to increase
the temperature.
The se lected temperatu re appea rs on the cli ­
mate con trol d isp lay. The tempe rature sett ing
will also appear for a few seconds in the MMI
d isp lay .
Warm and c old 97
Fan~
The automatically preset fan speed con be re­
duced or increased .
.. Press the [!] button .
.. Rotate the regulator to the des ired fan
speed.
The climate control system automatically reg­ ulates fan speed depending on inter ior tem­
perature. You ca n adjust the volume of air pro ­
duced by the fan to your own requirements .
The fan speed setting will appear for a few
seconds in the MMI display.
(D Tips
It is possible that the fan speed may
change automatically. This occurs to en­
sure that the des ired temperature sett ing
i s reached as quickly as possible .
Air distribution ~
The automatically controlled air distribution
con be changed manually.
.. Press the G!J button.
.. Rotate the regulator to the des ired setting.
You can adjust the air distribut ion so that air
flows from specific vents. In position
:,0 air
flows on ly to the windows, in posit ion
;J, it
flows to the driver or passenger, and in pos i­
tion
!J it flows to the footwell. There are ad­
ditional comb inat ions availab le to adjust air
distribution as needed .
To regulate air d istribution automatically,
switch to
IAUTOI.
The air distribution setting will appear for a
few seconds in the MMI display.
Defrosting ~
The windshield and side windows ore rapidly
defrosted or defogged.
.,. Press the~ button to turn on the defroster .
.. Press the~ button again, or press the
!AUTO ! button to turn it off . ..,.

100 Warm and cold
@ Tips
If the climate control system is ope rating
in cooling mode, a ir flows primari ly from
the outlets in the center conso le and in the
door pillars. To achieve adequate cooling,
you should never close the outlets com­
pletely .
Using climate control economically
Using the climate controls prudently can help
save fuel.
When you use the air cond it ioner , engine pow­
er is reduced and fuel consumption increases.
To save fuel, you should use the air condition ­
er only when necessary . Also please note the
following points :
.,. To save fuel, turn off cooling mode by press­
ing the
I A/Cl button (indicator light goes
out) .
.,. In add it ion, if you open the w indow or the
Panoramic sliding sunroof* wh ile driving,
tu rn off cooling mode by press ing the
IA/C l
button (indicator light goes out).
.,. If the vehicle is extremely hot due to the
heat of the sun, briefly open doors and win­
dows.
@ For the sake of the environment
By reducing the amount of fue l you use,
you also reduce the amount of pollutants emitted into the air.
Rear Air Conditioning
Rear air conditioning - controls
Applies to veh icles: w ith four -zo ne automatic comfort ai r
condit io ning
This overview is to assist you in familiarizing
yourself with the rear air conditioning con­
trols.
....
"' (0 :;
-------------~ -----~
Fig. 116 Rea r air conditioning controls
The left display indicates the temperature se­
lected for the rear left passenger, the right
display indicates the temperature selected for
the rear right passenger . If the settings for
seat heating *, air distr ib ution or the air cond i­
tioning fan are changed, the relevant indica­
tor will appear briefly on the display .
Functions are set by rotating the control or
are switched on and off by tapping the but­
tons. The indicator light in the button illumi­
nates when the funct ion is active .
Button(s) Function
ION/OFFI Climate control on/off
¢ page 101
IAUTOI Automatic mode
¢page 101
Regulatoral B Temperature selection
¢page 101
Q] Seat heating*
<=:>page 104
~
Fan
c::> page 101
~
Air distribution
¢page 102
•> The regu lator is also used to set the fan speed , air dis-
tr ibut ion and seat heating.
II-

M N
0 ..J
'SI: ,...., \!) ..,.,
,...., ..,., ,....,
Synchronizing rear air conditioning: By
pressing and holding the regulator on the rear
left side, the temperature sett ing of the rear
left side can be switched to the rear right side
and v ice versa. The new temperature is shown
in the display .
Turning on and off~
App lies to vehicles: with four-zone automatic comfort air
cond it ioning
Turning the climate control on
• Press the !ON/OFF I button, or
• Press the
!AU TO I button.
Turning the climate control off
• Press the !ON/O FF I button to switch the cli­
mate control off and to block the air supply
from the outside .
The air conditioner turns back on when you
press the
temperature regulator or one of the
buttons.
(D Tips
If the power child safety lock is on, the
rea r air conditioning control element will
not operate . In this case, dashes" ••• " wi ll
appear in the air conditioning control ele­
ment disp lay.
Automatic mode in rear~
Applies to vehicles: with four-zone automatic comfort air
conditioning
The automatic mode is the standard setting
for all seasons.
• Se lect temperature between 60 °F (+16 °C)
and
84 °F (+28 °().
• Press the
!AUTO I button.
Automatic operation ensures constant tem­ peratu res in the inter ior and dehumidifies the
air inside the vehicle. Ai r temperature, volume
and distribution are controlled automatically
to reach or maintain the desired interior tem ­
perature as quickly as possible. Fluctuations
in exterior temperature and the effects of
Warm and cold 101
temperature from the position of the sun a re
compensated for automatically .
T his operating mode works on ly in the adjust­
able temperature range, from
60 °F (+ 16 °()
to
84 °F ( +28 °C) . If a temperature below 60
°F (+ 16 °C) is se lected, LO appears in the dis­
play . At temperatures above
84 °F (+ 28 °(),
HI is displayed . At both extreme sett ings, cli­
mate control runs continuously at maximum
cooling or heating power . There is no temper­
ature regulat ion .
Setting rear temperature
Applies to vehicles: with four -zone automatic comfort air
conditioning
The temperature can be separately adjusted
for the rear left and right sides.
• Rotate the regulator to the left to reduce
the temperature, or to the right to increase
the temperature .
T he selected temperature appears on the cli­
mate control display.
Rear fan~
Applies to vehicles: with four-zon e automatic comfort air
conditioning
The automatically preset fan speed can be re­
duced or increased.
• Press the~ button .
• Rotate the regulator to the desired fan
speed .
The climate control system automatically reg­
ulates fan speed depending on inter ior tem ­
perature. You ca n adjust the volume of air pro­
duced by the fan to your own requirements .
(D Tips
It is possible that the fan speed may
change automatically. This occurs to en­
sure that the desired temperature setting
i s reached as quickly as possible.
