132 Audi side assist
-The radar sensor's vision can be reduced
or entirely blocked by rain, snow, and
heavy spray . This can result in side assist
not adequately detecting vehicles or, in
some cases, not detecting them at all.
Always keep an eye on the direction you
are traveling and the relevant area
around the vehicle.
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed
of at least 19 mph (30 km/h).
- Side assist signal does not work around
tight corners (turning radius less than
328 feet, or 100 m).
- Side assist is no replacement for the driv­
er's full attention. The driver alone is re­
sponsible for lane changes and similar
driving maneuvers. Always keep an eye
on the direction you are traveling and the relevant area around the vehicle.
- To ensure that you do not adversely af­
fect side assist, do not block the area on
the rear bumper where the radar sensors
are located with foreign objects (such as
stickers or bicycle racks).
- Make sure that the signal light on the
outside mirror is not blocked by stickers
or other items.
(Di Tips
- Side assist automatically deactivates if it
detects that the radar sensors are
blocked ¢
page 13 7. The indicator light
on the button goes out .
- The area on the bumper where the radar
sensors are located must consistently re­
main free of snow, ice, and heavy soiling
so that side assist can function properly.
Follow the additional notes on
¢page 138.
-For vehicles with a factory installed tow­
ing hitch* or a trailer hitch* that was in­
stalled later according to factory specifi­
cations, side assist is automatically deac- tivated
as soon as the electrical connec­
tion to the trailer electrical socket is made
¢ page 137.
-For vehicles with a trailer hitch that was
not installed according to factory specifi­
cations, switch off the side assist when
towing a trailer .
- Additional tinting on the front side win­
dows can make it harder to see and cor­
rectly understand the signal light on the
outside mirror.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions¢
page 329.
Sensor detection area
Applies to vehicles: with side assist
-----··· .... ·--·--
@ / ,
--­
ill b''T -
Fig. 153 Sc hematic illustration: Sensor detectio n area
The detection ¢ fig. 153 of the radar sensor
detection area is made up of:
-
- the approach area (light red area) (D, about
230 feet (70 m) behind the vehicle, and
- the "blind spot" (dark red area) @.
The radar sensors cover the adjacent left and
right lanes. Other lanes are
not covered by the
radar sensors.
(D Tips
Side assist does not measure actual lane
width. The system assumes a fixed lane
width . Detection in the left and right lanes
is based on this assumed lane width.
When driving on narrow roads or when
driving to the left or right of the center of
a travel lane, it is possible that vehicles
will be detected that are
not in the lane

136 Audi side assist
but is not considered notable in the event of a
lane change, because it is dropping back so
quickly. The signal on the outside mirror does not light up¢.&.
in Safety tips on page 138.
@ Signal on outside mirror does not light
up
If you activate your turn signal in driving sit­
uation @, the signal still does not light up on
the outside mirror¢.&.
in Safety tips on
page 138.
MMI settings
App lies to vehicles: with side assist
The basic brightness setting of the signal on
the outside mirror can be adjusted via the
MMI.
.. Select : I CARI function button> Systems*
control button > Audi side assist. Or
.. Select :
I CAR ! function button > Car systems*
control button > Driver assist > Audi side
assist.
The brightness of the signal light for both the
informational and alert stages is automatical ­
ly adjusted to ambient light conditions. In ad­
dition, you can adjust the
basic brightness
separately, via the brightness function.
While making the adjustment, the new
brightness setting is displayed briefly . The
brightness displayed is that of the informa­
tional stage signal. The alert stage signal
brightness is linked to the informational stage
signal brightness.
The informational stage signal brightness
should be adjusted so that you notice the sig­
nal illumination when you look in the outside
mirror, but not when you look forward
through the windshield.
In very dark or light surroundings, the auto­
matic brightness setting adjusts signal light
brightness to maximum or minimum intensi­
ty, as needed. In circumstances such as these,
you may not notice any change in the bright­
ness on the outside mirror when adjusting the
basic brightness.
You may not notice the change until lighting
conditions are normal again.
(D Tips
- Side assist is not active when the basic
brightness is adjusted. The signal light
comes on briefly to help you make the
adjustment.
- Your settings are automatically stored
and assigned to the remote control key
being used.
· General information '
App lies to vehicles : wit h side assist
Side assist has limits and cannot detect
vehicles under all road and weather condi­
tions . Please remember system limitations
and never rely on the system, especially when:
- driving through curves¢
page 136,
-lanes are of different widths¢ page 137.
' When driving through curves
Applies to vehicles: wit h side assist
Side assist cannot detect vehicles in curves
with a turning radius of less than 328 feet
(100 m).
When driving through a curve, it is possible
that side assist may register a vehicle two
lanes over, and the signal on the outside mir­
ror will light up.

M
"' 0 _,
"". rl I.O
"' rl
"' rl
Lane width
Applies to vehicles: with side assist
-· Fig. 158 Lan es o f a norma l wid th are in detect ion area
Fig . 159 Narrow lanes: Side ass ist may detect vehicles
two la nes away
Side assist's detection area is designed to cov­
e r l anes of standard w idth to the left and
r ight of your travel lane, depending on wheth­
er you dr ive in the center of your lane or closer
to the edge.
I f you drive in narrow lanes, s ide ass ist's de­
tec tion a rea may a lso incl ude other lanes -es­
pec ia lly if you tend to d rive on the edge of
your lane
c:::> fig. 159 . Under these cond it ions,
ve hicles can also be detected that are two
l anes away, and side assist then could switch
between the informat ional and warn ing stage
signals.
When driving in very wide lanes, vehicles in
the adjacent lane may not be detected be ­
cause they are not inside the detection area.
Notes
Messages in instrument cluster display
Applies to vehicles: with side assist
If s ide ass ist t urns off automa tically, the ind i­
cator l igh t on the button wi ll go ou t and you
Aud i side assist 13 7
will see a message in the instrument cluster
display:
Audi side assist not available: sensors
blocked
T he side assist sensors are built into the rear
bumper on the left and r ight (not visible on
the outside)
c:!> poge 131, fig . 150. To ensure
that you do not adversely affect the way side
ass ist functions, foreign objects (such as stick­
ers or bicycle racks) should not be attached to
the area on the rear bumper where the sen­
sors a re located . If side ass ist functions are
adverse ly affec ted, you w ill see th is message
in the instrument cluster disp lay . Remove any ­
th ing t hat may be blocking the sensors.
If no vehicle is detected for a longer per iod of
t ime wh ile dr iv ing, s ide ass ist w ill also switch
off automati cally.
Audi side assist cu rrently not available
If there is a temporary problem (such as the
vehicle 's battery charge be ing low), side assist
cannot be act ivated temporar ily .
Audi side as sis t: system fault
Have the system checked by an author ized
Audi dealer or qualified workshop.
Audi side assist not available when
towing
The radar sensor's view is limited when tow­ ing a tra iler. For vehicles with a factory instal­
led tow ing hitch or a trailer hitch that was in­
stalled later according to facto ry specifica­
t ions, s ide ass ist is automatically deact ivated
as soon as the ele ctrical connection to the
trailer's e lectrical socke t is made, an d this sta­
tus message appears in the instrument clus­
ter display. Deactivation cannot be guaran ­
teed when using a ret rofitted towing hitch
that was
not installed according to factory
specifications .

138 Audi side a ssis t
Safety tips
App lies to vehicles: wit h side ass ist
The s ide ass ist detect ion may be lim ited when
d riving around narrow street corners , on hilly
streets, and under poor weathe r cond itions.
It is poss ible that the radar sensors may also
detect other objects , such as high o r stag­
gered guardra ils .
Side assist does not measure actual lane
width . T he system assumes a fixed lane w idth .
Detection in the left and r ight lanes is based
on this assumed lane width . When driving on
na rrow roads or when driving to the left or
right of the center of a travel lane , it is possi ­
b le that vehicles wi ll be detected that are
not
in the lane next to the lane you are using.
A WARNING
- Improper reliance on the s ide ass ist sys­
tem can cause collisions and serious per­
sonal injury :
- Neve r rely only on side assist when
changing lanes .
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side ass ist cannot detect a ll vehicles un­
der all cond itions- danger of accident!
- Side ass ist cannot detect vehicles in time
to alert you when they approach from beh ind at very h igh speeds or drop back
very quick ly .
- T he radar sensor's
vision can be reduced
or entirely blocked by rain, snow, and
heavy spray. This can result in side assist
not adequately detecting vehicles or, in
some cases, not detecting them at a ll.
Always keep an eye on the direction you are traveling and the relevant area
around the vehicle .
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed
of at least 19 mph (30 km/h). -
Side assist signa l does not work around
tight corners (turning radius less than
328 feet, or 100 m).
- Side assist is no replacement for the driv­
er 's full attention. The driver alone is re­
sponsible for lane changes and sim ilar
driving maneuvers. Always keep an eye
on the d irect ion you are traveling and the
re levant area around the vehicle.
(D Note
To ensure that side assist is not adversely
affected, you should not block the area on
the rear bumper where the radar sensors
are located with foreign objects (such as
with stickers or bi cycle racks).
(D Tips
If the pos itions of the radar sensors have
been changed as a result of a rear end-co l­
lision, for instance, have s ide assist
checked by an autho rized Aud i deale r for
safety reasons.

M N
0 ...J
'SI: ,...., \!) ..,.,
,...., ..,., ,....,
Vehicl e ca re a nd cl eanin g 243
& WARNING
-Only wash the vehicle when the ignition
is off and follow the instructions from
the car wash operator to reduce the risk
of accidents.
- To reduce the risk of cuts, protect your­
self from sharp meta l components when
washing the underbody or the inside of
the wheel housings.
- After washing the vehicle, the braking ef­
fect may be delayed due to moisture on
the brake rotors or ice in the winter . The
brakes must be dried first with a few
careful brake applicat ions .
{[) Note
-If you wash the vehicle in an automatic
car wash, you must fold the exterior m ir­
rors in to reduce the r isk of damage to
the mirrors . Power folding exterior m ir­
ro rs* must only be folded in and out us­
i ng the power folding function.
- Compare the track of your vehicle w ith
the d istance between the gu ide ra ils of
the faci lity- there is a risk of damage to
the wheels and tires.
- Compare the height and width of you r
vehicle with the he ight and width of the
tunnel at the facility. -
To prevent paint damage, do not wash
the vehicle in direct sunlight.
- To reduce the r isk o f damage to the sur­
face, do not use insect removing spong­
es, kitchen sponges or similar items.
- Matte finish painted vehicle compo­
nents:
- To reduce the risk of damage to the
surface, do not use polishing agents or
ha rd wax .
- Never use car wash cycles that apply
protective wax.
It can destroy the
matte fin ish effect .
- Do not place any stickers o r magnet ic
signs on vehicle parts painted w ith
matte fin ish paint. The pai nt cou ld be
damaged when the stickers o r magnets
a re removed.
@ For the sake of the environment
Only wash the ve hicl e in facilities spe cially
designed for that purpose . This will red uce
the r is k of dirty water contam ina ted with
oil from entering the sewer system.
Cleaning and care information
When cle aning and caring for individua l vehi ­
cle components, refe r to the fo llowing tab les.
The information contained there is simply rec ­
ommendations. For questions or for compo -nents that are not listed,
re fer to an author­
ized Audi dealer or a qualified workshop . Also
follow the information fo und in¢.& .
Cle aning ex terio r
Component Situation Solution
Wipe r bla des
Dirty c:> page 69, Cleaning windshield wiper blades
H eadligh ts/ Dirty Soft sponge with a m ild soap solutiona >
tail lights
S ensors /
Dirty Sensors: soft cloth with a so lvent-free cleaning product
camera l enses Came ra lenses : soft cloth with an alcohol -free cleaning
solution
Snow/ice Hand brush/solvent-free de-icing spray
•
•

M N
0 ...J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
-If you notice unusual vibra­
tion or if the vehicle pulls to one side when driving, al­
ways stop as soon as it is safe to do so and check the
wheels and tires for dam­ age.
(D Note
-Please note that summer
and winter tires are de­
signed for the conditions
that are typical in those sea­
sons. Audi recommends us­ing winter tires during the
winter months. Low tem­ peratures significantly de­
crease the elasticity of
summer tires, which affects
traction and braking ability.
Tires and wheels 273
If summer tires are used in
very cold temperatures, cracks can form on the tread
bars, resulting in perma­
nent tire damage that can
cause loud driving noise and unbalanced tires. Audi is not
responsible for this type of
damage.
-Burnished, polished or chromed rims must not be used in winter road condi­
tions. The surface of the
rims does not have suffi­
cient corrosion protection
for this and could be perma­
nently damaged by road salt
or similar substances.
•
•
'
Glossary of tire and loading terminology
Accessory weight
means the combined weight (in
excess of those standard items
which may be replaced) of auto­ matic transmission, power
steering, power brakes, power
windows, power seats, radio, and heater, to the extent that
these items are available as fac­
tory-installed equipment (whether installed or not).
Aspect ratio
means the ratio of the height to
the width of the tire in percent. Numbers of 55 or lower indi­
cate a low sidewall for im­
proved steering response and
better overall handling on dry
pavement.

M N
0 ...J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

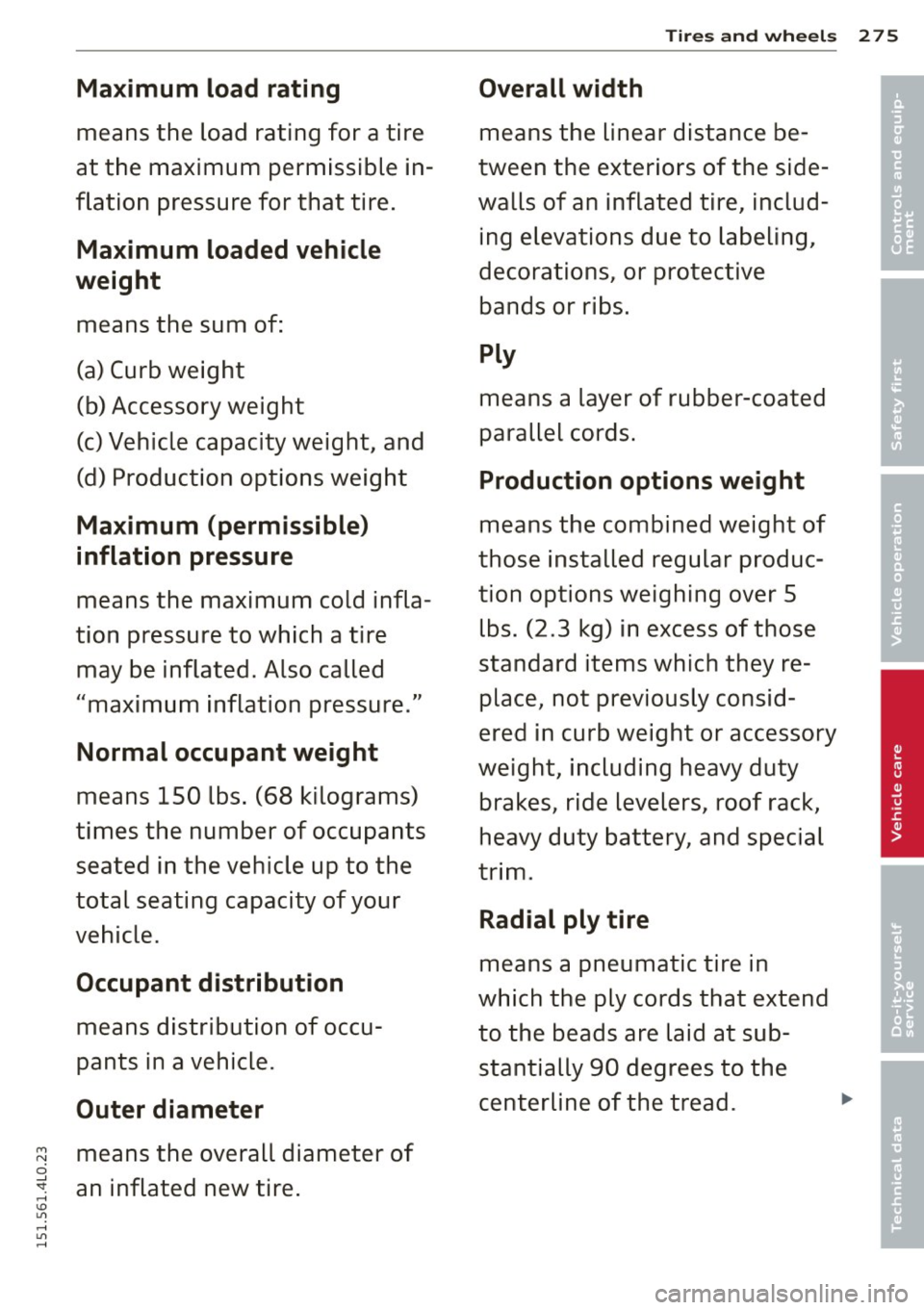

Maximum load rating
means the load rating for a tire
at the maximum permissible in­
flation pressure for that tire.
Maximum loaded vehicle
weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Production options weight
Maximum (permissible)
inflation pressure
means the maximum cold infla­
tion pressure to which a tire
may be inflated. Also called
"maximum inflation pressure."
Normal occupant weight
means 150 lbs. (68 kilograms)
times the number of occupants seated in the vehicle up to the
total seating capacity of your
vehicle.
Occupant distribution
means distribution of occu­ pants in a vehicle.
Outer diameter
means the overall diameter of
an inflated new tire.
Tires and wheels 275
Overall width
means the linear distance be­
tween the exteriors of the side­
walls of an inflated tire, includ­ ing elevations due to labeling,
decorations, or protective bands or ribs.
Ply
means a layer of rubber-coated
parallel cords.
Production options weight
means the combined weight of
those installed regular produc­
tion options weighing over 5 lbs. (2 . 3 kg) in excess of those
standard items which they re­
place, not previously consid­
ered in curb weight or accessory
weight, including heavy duty
brakes, ride levelers, roof rack,
heavy duty battery, and special
trim.
Radial ply tire
means a pneumatic tire in
which the ply cords that extend
to the beads are laid at sub­ stantially 90 degrees to the
centerline of the tread.
•
•
'

276 Tires a nd whee ls
Recommended inflation Sidewall
pressure
means that portion of a tire be -
see
c:::> page 2 7 4, Cold tire infla-tween the tread and bead.
tion pressure.
Speed rating (letter code )
Reinforced tire
means the speed at which a tire
means a tire design to operate is designed to be driven for ex-
at higher loads and at higher tended periods of time. The rat-
inflation pressures than the ings range from 93 mph (150
corresponding standard tire .
km/h) to 186 mph (298 km/h)
Reinforced tires may be identi -
c:::> page 294. You may not find
fied as "XL", "xl", "EXTRA
this information on all tires be-
LOAD", or "RF" on the sidewall.
cause it is not required by law.
Rim The speed rating letter code,
means a metal support for a where applicable, is molded on
tire or a tire and tube assembly the tire sidewall and indicates
upon which the tire beads are the maximum permissible
road
seated . speeds
c:::> A in Winter tires on
Rim d
iameter
page 298.
means nominal diameter of the
T ir e pressure mon itoring
system
bead seat. If you change your means a system that detects
wheel size, you will have to pur-
chase new tires to match the when one or more of a vehicle's
new rim diameter . tires are underinflated and illu-
Rim
size de signation
m inates a low tire pressure
warning telltale.
means rim diameter and width.
Tread
R im width
means that portion of a tire
means nominal distance be- that comes into contact with
tween rim flanges. the road.
...
