For additional loading information, see page
6-8.

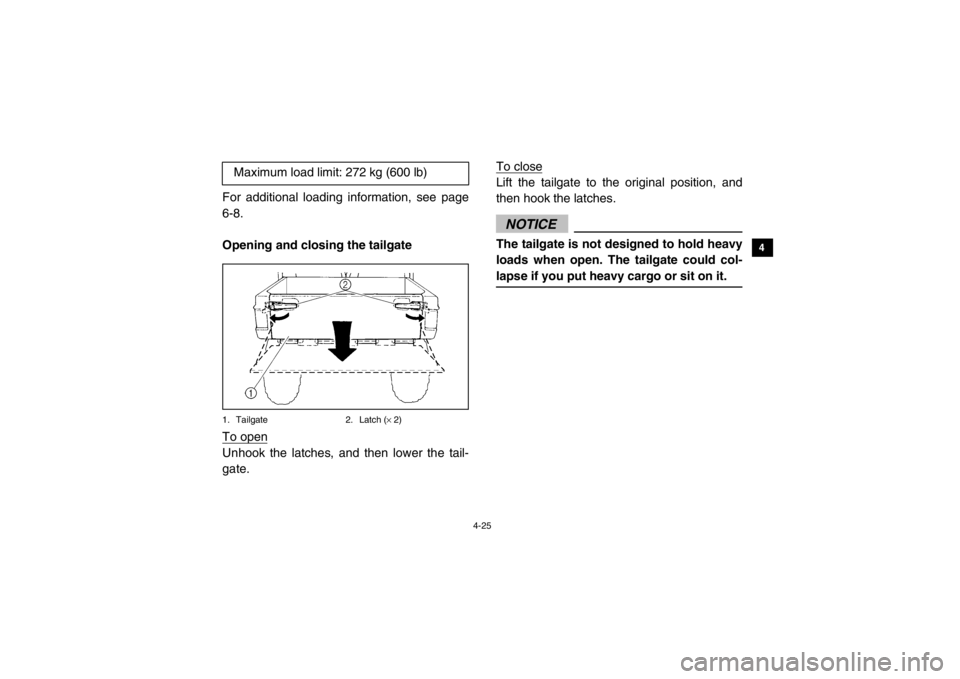

Opening and closing the tailgate1. Tailgate2. Latch (× 2)To openUnhook the latches, and then lower the tail-
gate. To close
Lift the tailgate to the original position, and
then hook the latches.NOTICEThe tailgate is not designed to hold heavy
loads when open. The tailgate could col-
lapse if you put heavy cargo or sit on it.
Maximum load limit: 272 kg (600 lb)
1XP7B_EE.book Page 25 Tuesday, February 4, 2014 3:40 PM

4-26
4
5
6
7
8
9
10
11
12
13
14
Lifting and lowering the cargo bed1. Cargo bed release leverTo liftPull up the cargo bed release lever on the left
or right side of the vehicle, and then slowly lift
up the cargo bed until it stops. To lower
With hands and fingers clear of pinch points,
lower the cargo bed slowly to its original posi-
tion and be sure it is locked into place.
WARNING! Keep hands, body, and other people away from pinch points when low-
ering bed. Do not hold onto the cage/frame
while closing the bed.
1
1XP7B_EE.book Page 26 Tuesday, February 4, 2014 3:40 PM

4-27
1
2
34
5
6
7
8
9
10
11
12
13
14
5UG1B001 The front and rear shock absorber
assemblies
WARNING
These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.●
Do not tamper with or attempt to open
the cylinder assemblies.
●
Do not subject the shock absorber as-
semblies to an open flame or other
high heat source. This may cause the
unit to explode due to excessive gas
pressure.
●
Do not deform or damage the cylin-
ders in any way. Cylinder damage will
result in poor damping performance.
●
Do not dispose of a damaged or worn
out shock absorber assembly your-
self. Take the shock absorber assem-
bly to a Yamaha dealer for any
service.
1XP7B_EE.book Page 27 Tuesday, February 4, 2014 3:40 PM

4-28
4
5
6
7
8
9
10
11
12
13
14
EVU00370Trailer hitch brac ket and receiverThis vehicle is equipped with a trailer hitch
bracket and a 5 cm (2 in) receiver for a stan-
dard trailer hitch. Trailer towing equipment
can be obtained at a Yamaha dealer. (See
page 6-8 for precaution information.)1. Trailer hitch bracket 2. Receiver
EVU00380Auxiliary DC jackThe auxiliary DC jack is located at the right
side of the storage compartment under the
multi-function meter. The auxiliary DC jack
can be used for suitable work lights, radios,
etc. The auxiliary DC jack should only be used
when the engine is running and the headlights
are turned off.
1. Set the light switch to “ ”.
2. Turn the accessory off.
3. Start the engine. (See page 6-2.)
2
1
1XP7B_EE.book Page 28 Tuesday, February 4, 2014 3:40 PM

4-29
1
2
34
5
6
7
8
9
10
11
12
13
14
4. Open the auxiliary DC jack cap, and theninsert the accessory power plug into the
jack.1. Auxiliary DC jack cap 1. Auxiliary DC jack
5. Turn the accessory on.
6. When the auxiliary DC jack is not being
used, cover it with the cap.
1
Maximum rated capacity for the auxiliary
DC jack:DC 12 V, 10 A (120 W)
1
1XP7B_EE.book Page 29 Tuesday, February 4, 2014 3:40 PM

4-30
4
5
6
7
8
9
10
11
12
13
14
NOTICE●
Do not use accessories requiring
more than the maximum capacity stat-
ed above. Doing so may overload the
circuit and cause the fuse to blow.
●
If accessories are used without the
engine running, the battery may dis-
charge.
●
Do not use an automotive cigarette
lighter or other accessories with a
plug that gets hot, because the jack
can be damaged.
1XP7B_EE.book Page 30 Tuesday, February 4, 2014 3:40 PM

5-1
1
2
3
45
6
7
8
9
10
11
12
13
14
EVU01200
1-FOR YOUR SAFETY – PRE-OPERATION CHECKS
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Own-
er’s Manual.
WARNING
Failure to inspect or maintain the vehicle properly increases the possibility of an accident
or equipment damage. Do not operate the vehicle if you find any problem. If a problem
cannot be corrected by the procedures provided in this manual, have the vehicle inspect-
ed by a Yamaha dealer.Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Brakes Check operation, free play, fluid level, and fluid leakage.
Fill with DOT 4 brake fluid if necessary. 5-3, 8-32, 8-36
Parking brake Check for proper operation, condition, and free play. 8-35
Fuel Check fuel level.
Fill with the recommended fuel if necessary. 5-4
Engine oil Check oil level.
Fill with oil to proper level if necessary. 5-6, 8-9
Coolant Check coolant level in reservoir.
Fill with coolant if necessary. 5-6, 8-20
1XP7B_EE.book Page 1 Tuesday, February 4, 2014 3:40 PM

5-2
5
6
7
8
9
10
11
12
13
14 Final gear oil/
Differential gear oil
Check for leakage. 5-7, 8-15, 8-17
Accelerator pedal Check for proper accelerator pedal operation. 5-7
Seat belts Check for proper operation and belt wear. 5-7
Passenger handhold Check for stability and proper fastening. 5-8, 7-9
Steering Check for proper operation. 5-8
Fittings and fasteners Check all fittings and fasteners. 5-8
Instruments, lights and
switches Check operation, and correct if necessary.
5-8, 8-49, 8-52, 8-53
Wheels and tires Check tire pressure and for wear and damage. 5-8, 8-39, 8-41
Axle boots Check for damage. 8-21
ITEM
