INTRODUCTION
EAU60580
Welcome to the Yamaha world of motorcycling!
As the owner of the MW125, you are benefiting from Yamaha’s vast experience and newest technology regarding the de-
sign and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your MW125. The Owner’s Manual
does not only instruct you in how to operate, inspect and maintain your vehicle, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your vehicle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most cur- rent product information available at the time of printing, there may be minor discrepancies between your vehicle and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
WARNING
EWA17780
Please rea d this manual carefully an d completely before operatin g this vehicle.
U2CME0E0.book Page 1 Friday, May 2, 2014 2:55 PM

IMPORTANT MANUAL INFORMATION
EAU10134
Particularly important information is distinguished in this manual by the following notations:
*Product and specifications are subject to change without notice.This is the safety alert sym
bol. It is use d to alert you to potential personal injury
hazar ds. Ob ey all safety messa ges that follow this sym bol to avoi d possi ble injury
or death.
A WARNING in dicates a hazar dous situation which, if not avoi ded , coul d result in
d eath or serious injury.
A NOTICE in dicates special precautions that must be taken to avoi d d ama ge to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
U2CME0E0.book Page 1 Friday, May 2, 2014 2:55 PM

IMPORTANT MANUAL INFORMATION
EAU37432
MW125
OWNER’S MANUAL
©2014 by Thai Yamaha Motor Co., Lt d.
1st e dition, April 2014
All ri ghts reserve d.
Any reprintin g or unauthorize d use
without the written permission of
Thai Yamaha Motor Co., Lt d.
is expressly prohi bite d.
Printe d in Thailan d.
U2CME0E0.book Page 2 Friday, May 2, 2014 2:55 PM

TABLE OF CONTENTSSAFETY INFORMATION.................. 1-1
Further safe-riding points ............... 1-5
DESCRIPTION .................................. 2-1

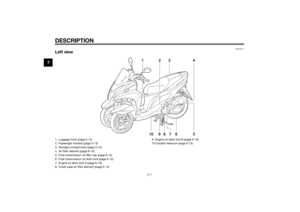

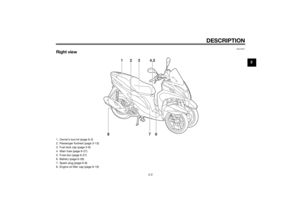

Left view ......................................... 2-1
Right view ....................................... 2-2

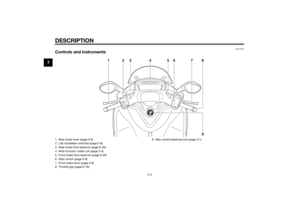

Controls and instruments ............... 2-3
INSTRUMENT AND CONTROL
FUNCTIONS ...................................... 3-1

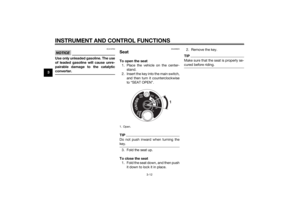

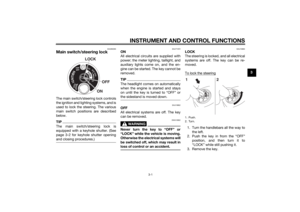

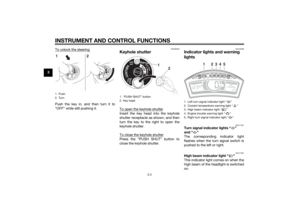

Main switch/steering lock............... 3-1
Keyhole shutter .............................. 3-2
Indicator lights and warning lights............................................ 3-2
Self-diagnosis device ..................... 3-3

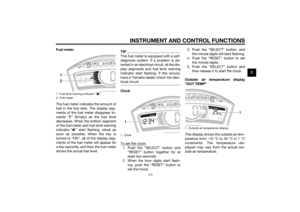

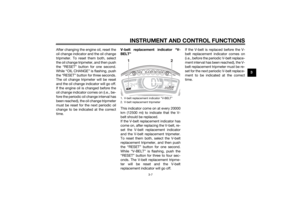

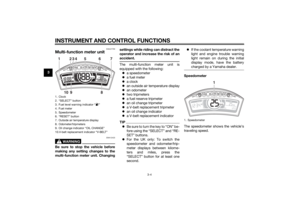

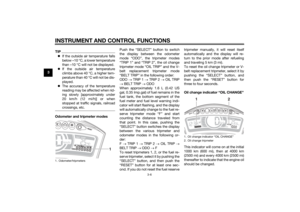

Multi-function meter unit ................ 3-4

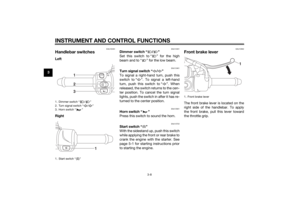

Handlebar switches ........................ 3-8

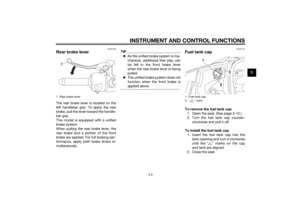

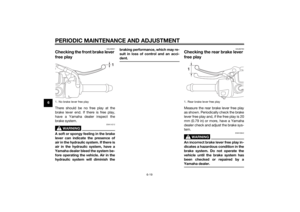

Front brake lever ............................ 3-8
Rear brake lever ............................. 3-9

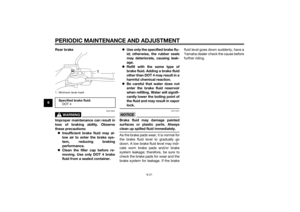

Fuel tank cap .................................. 3-9
Fuel ............................................... 3-10
Catalytic converter ....................... 3-11

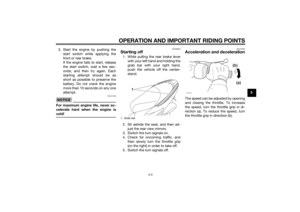

Seat .............................................. 3-12
Passenger footrest ....................... 3-13

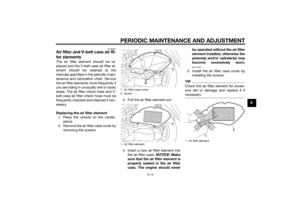

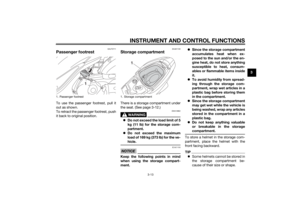

Storage compartment .................. 3-13
Luggage hook............................... 3-14
Sidestand ..................................... 3-14

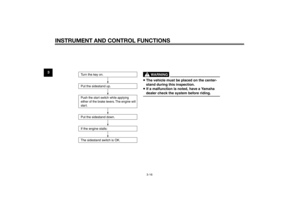

Ignition circuit cut-off system ....... 3-15

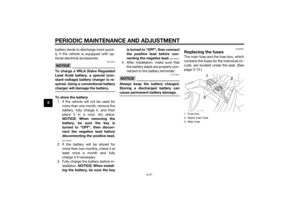

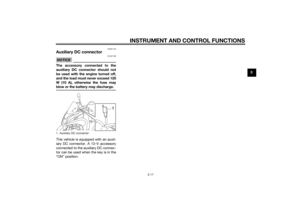

Auxiliary DC connector ................. 3-17 FOR YOUR SAFETY –
PRE-OPERATION CHECKS
............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS ................................ 5-1
Starting the engine .......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ............................................ 5-3
Tips for reducing fuel consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 6-1
Owner’s tool kit ............................... 6-2
Periodic maintenance chart for the
emission control system .............. 6-3
General maintenance and
lubrication chart ........................... 6-4

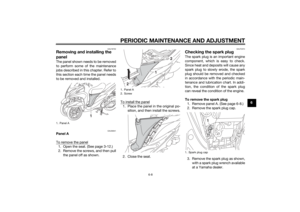

Removing and installing the panel ............................................ 6-8

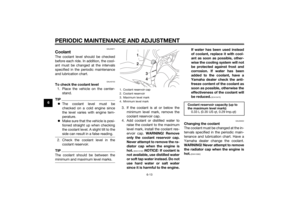

Checking the spark plug ................. 6-8

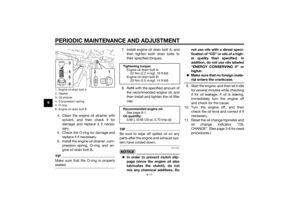

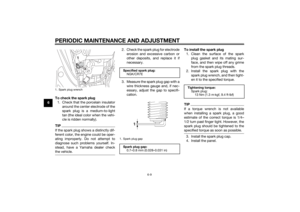

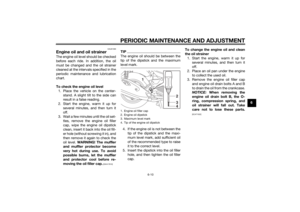

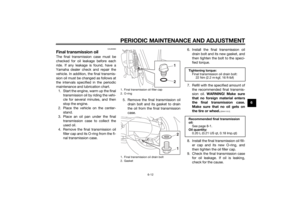

Engine oil and oil strainer .............. 6-10
Final transmission oil..................... 6-12
Coolant.......................................... 6-13

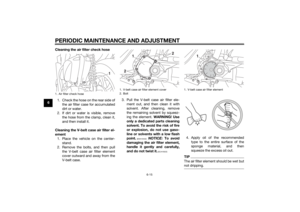

Air filter and V-belt case air filter elements .................................... 6-14
Checking the throttle grip free play ............................................ 6-16 Valve clearance............................. 6-16
Tires .............................................. 6-17
Cast wheels .................................. 6-18
Checking the front brake lever
free play..................................... 6-19
Checking the rear brake lever free play..................................... 6-19

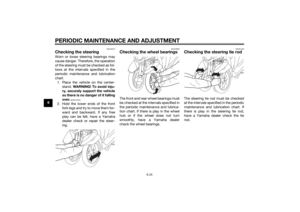

Checking the front and rear
brake pads ................................ 6-20
Checking the brake fluid level ...... 6-20
Changing the brake fluid .............. 6-22
Checking and lubricating the cables ........................................ 6-22
Checking and lubricating the
throttle grip and cable ............... 6-22
Lubricating the front and rear brake levers ............................... 6-23
Checking and lubricating the centerstand and sidestand........ 6-23
Checking the front fork ................. 6-24
Checking the steering................... 6-25
Checking the wheel bearings ....... 6-25
Checking the steering tie rod ....... 6-25
Checking the leaning system ....... 6-26

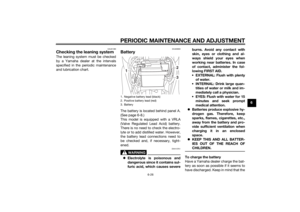

Battery .......................................... 6-26
Replacing the fuses ...................... 6-27

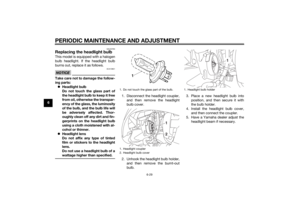

Replacing the headlight bulb ........ 6-29
Tail/brake light .............................. 6-30
Turn signal light bulb .................... 6-30
Auxiliary light ................................ 6-30
Troubleshooting............................ 6-31U2CME0E0.book Page 1 Friday, May 2, 2014 2:55 PM

TABLE OF CONTENTS

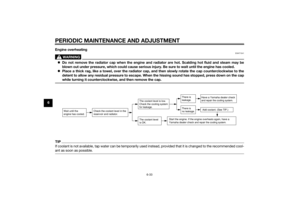

Troubleshooting charts .................6-32
VEHICLE CARE AND STORAGE ......7-1
Matte color caution .........................7-1
Care .................................................7-1
Storage ............................................7-4
SPECIFICATIONS ..............................8-1
CONSUMER INFORMATION ............9-1

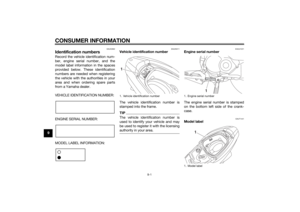

Identification numbers .....................9-1
INDEX ...............................................10-1
