Warning and indicator lamps in the overhead control panel
Problem Possible causes/consequences and
0050
0050Solutions 0073006F
The passenger front
air bag off indicator
lamp illuminates and
remains illuminated
with the weight of a
typical adult or some-
one larger than a
small individual on
the passenger seat. There is a malfunction in the system.
X
Have the system checked at an authorized electric drive
smart center. 0073006F
The passenger front
air bag off indicator
lamp does not illumi-
nate or remains out
with the weight of a
typical 12‑month‑old
child in a standard
child restraint or less
on the passenger seat There is a malfunction in the system.
X
Have the system checked at an authorized electric drive
smart center. G
WARNING
If the 0073006Findicator lamp illuminates and remains illuminated with the weight
of a typical adult or someone larger than a small individual on the passenger seat, do not
have any passenger use the passenger seat until the system has been repaired. G
WARNING
If the 0073006Findicator lamp does not illuminate or remains out with the weight of
a typical 12‑month‑old child in a standard child restraint or less on the passenger seat, do
not transport a child on the passenger seat until the system has been repaired. What to do if ...
175>> Practical hints. Z

Loss of key
Problem Possible causes/consequences and
0050
0050Solutions You lose a key. X
Have the key deactivated at an authorized electric drive
smart center.
X Report the loss of the key to your car insurance company
immediately.
X If necessary, have the mechanical lock replaced.
Your authorized electric drive smart center will be glad to
supply you with a replacement following an identity check. Acoustic warning signals
Problem Possible causes/consequences and
0050 0050Solutions A warning signal
sounds while driving. You are driving with the parking brake engaged.
X
Release the parking brake (Y page 77).A warning signal
sounds when opening
the driver’s door. You have opened the driver’s door while the exterior lighting
is still switched on.
X
Turn the exterior lamp switch to position 003F.A warning signal
sounds. The door is opened while a gear is engaged with the drive sys-
tem running and neither the brake nor accelerator pedals are
depressed.
X
Close the driver’s and passenger door.
X Move the gear selector lever to park position P.
or
X Switch off the drive system. You open the driver’s door with the key in starter switch posi-
tion
0to remind you not to leave the key in the vehicle.
X Close the driver’s door.
or
X Remove the key from the starter switch. A warning signal
sounds. The seat belts are not fastened when the drive system is
started. For details, see seat belt telltale (Y page 168).
X Fasten your seat belts. 176
What to do if ...>> Practical hints.

Problem Possible causes/consequences and
0050
0050Solutions A warning signal
sounds when parking. You have not engaged the parking brake before releasing the
brake pedal and switching off the drive system.
X
Switch on the ignition to deactivate the acoustic warning.
X Engage the parking brake.
X Make sure the gear selector lever is in park position P.
X Turn the key to starter switch position 0.
X Remove the key from the starter switch.
For safety, it is important that you perform the parking pro-
cedure as described (Y page 77).You can hear a contin-
uous noise from the
front axle when brak-
ing. The vehicle is equipped with a mechanical/acoustic brake pad
indicator.
X
Have the brake pads checked at an authorized electric drive
smart center. Unlocking/locking manually
Unlocking the vehicle
You can unlock the driver’s door and the
charge socket flap by unlocking the
driver’s door using the key. The lock cyl-
inder is fitted with a cap.
X Press button 0034on the key.
i For replacing the transmitter battery
(Y page 178). X
Remove cap 0043from lock cylinder 0044.
X Unlock the driver’s door.
The driver’s door and the charge socket
flap are unlocked. i
To unlock the vehicle centrally press
the central unlocking switch in the upper
center console (Y page 27). Locking the vehicle
If you can no longer lock the vehicle using
the remote control and you do not have a
spare transmitter battery at hand, please
proceed as follows:
X Open the driver’s door.
X Press the central locking switch
(Y page 53).
The indicator lamp on the central lock-
ing switch comes on, when the starter
switch is in position 1.
The indicator lamp on the central lock-
ing switch flashes, when the starter
switch is in position 0.
X Remove the key from the starter switch,
take it with you, and close all doors.
The vehicle is now locked. Unlocking/locking manually
177>> Practical hints. Z

Closing the rear soft top
If the rear soft top does not lock properly
after being closed, proceed as follows:
X Stop the vehicle in a safe location.
X Engage the parking brake.
X Make sure the key is in starter switch
position 1.
X Fold up the rear soft top completely.
The rear soft top stops in the unlocked
position.
X Within one minute, press and hold symbol
0055 on the retractable soft top switch
for 15 seconds twice.
The rear soft top closes the locking
hooks.
X Close the retractable soft top com-
pletely.
X Have the rear soft top checked at an
authorized electric drive smart center. Replacing transmitter battery
Notes
The remote control’s transmitter battery is
almost spent when the turn signals flash
rapidly nine times in a row when locking
the vehicle.
i If you do not replace the transmitter
battery, after about 100 more times you
will no longer be able to lock or unlock
the vehicle using the remote control.
X Replace the transmitter battery.
or
X Have the transmitter battery replaced at
an authorized electric drive smart
center. G
WARNING
Batteries contain poisonous and corrosive
substances. Therefore keep the batteries
out of reach of children.
If a battery is swallowed, seek medical help
immediately. Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states/provinces
require sellers of batteries to accept old
batteries for recycling. Replacing battery
Replacement battery: CR 2016 button cell
! Replace the remote control’s transmit-
ter battery every two years at the latest.
Otherwise there is a danger of leakage.
The remote control could be damaged. X
Insert a suitable object such as a coin
into the slot at the eyelet of the key hous-
ing.
X Carefully turn the coin until key housing
top half 0043is unlatched.
X Open key housing top half 0043to the side. X
Remove transmitter battery 0044from the
board. 178
Replacing transmitter battery>> Practical hints.

!
Check the polarity when inserting the
new transmitter battery. You could oth-
erwise damage parts of the electrical
system. When inserting the batteries,
make sure they are clean and free of lint.
X Insert the new transmitter battery.
X Press both halves of the key housing
together again.
X Check the operation of the remote
control. Replacing bulbs
About replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is
therefore essential that all bulbs and lamp
assemblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. Contact an author-
ized electric drive smart center for head-
lamp adjustment. G
WARNING
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before changing
a bulb. Otherwise you could be burned if you
touch them.
Keep bulbs out of the reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
R touch or move it when hot
R drop the bulb
R scratch the bulb
Wear eye and hand protection.
i If the headlamps or front fog lamps* are
fogged up on the inside as a result of
high humidity, driving the vehicle a
distance with the lights on should clear
up the fogging. Notes on bulb replacement:
R
Only use bulbs of the same type and with
the specified watt rating.
R Switch the lights off before replacing a
bulb to prevent short circuits.
R Always use a clean lint-free cloth when
handling bulbs.
R Your hands should be dry and free of oil
and grease.
R Avoid touching the glass of the bulb with
bare fingers.
R If the newly installed bulb does not come
on, contact an authorized electric drive
smart center.
R Have the bulbs for the front fog lamps*
and the LED daytime running lamps*
replaced at an authorized electric drive
smart center. Replacing bulbs
179>> Practical hints.
* optional Z

Overview bulbs
Front lamps
Headlamp Type
0043
Low‑beam headlamp
H7 (55 W)
0044 High‑beam headlamp
H7 (55 W)
0087 Parking and side marker lamp
WY 5 W
0085 Turn signal lamp
2357 A Front fog lamp* Type
0043
Front fog lamp
H 11 Side turn signal lamp Type
0043
Side turn signal lamp
WY 5 W 180
Replacing bulbs>> Practical hints.
* optional

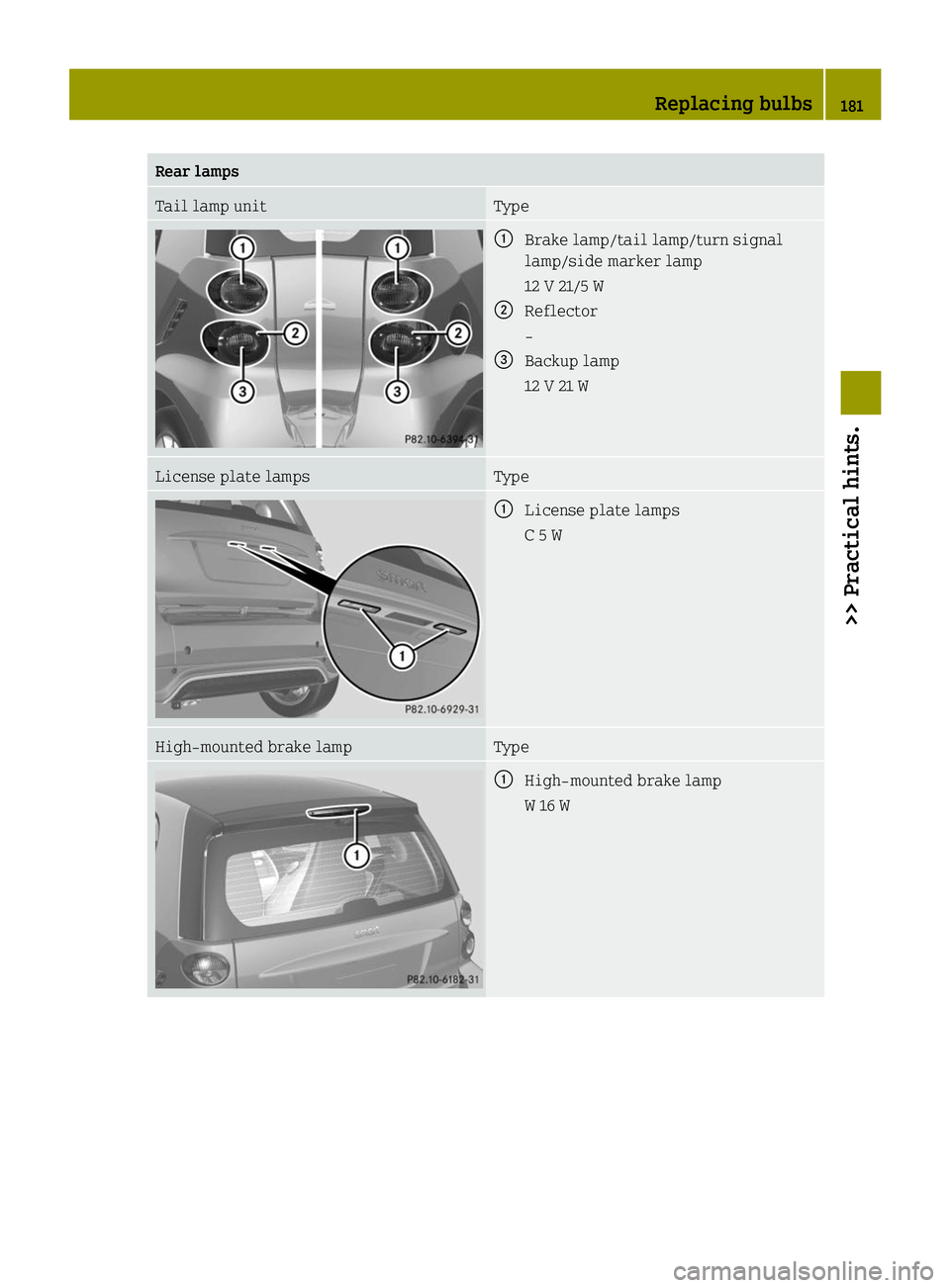

Rear lamps
Tail lamp unit Type
0043
Brake lamp/tail lamp/turn signal
lamp/side marker lamp
12 V 21/5 W
0044 Reflector
-
0087 Backup lamp
12 V 21 W License plate lamps Type
0043
License plate lamps
C 5 W High‑mounted brake lamp Type
0043
High‑mounted brake lamp
W 16 W Replacing bulbs
181>> Practical hints. Z

Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X Turn the exterior lamp switch to position
003F (Ypage 64).
X Switch off the ignition.
X Open the service flap (Y page 123).Left headlamp, (right headlamp in reverse)
Parking and side marker lamp bulb X
Removing:
Driver’s side: Turn bulb socket 0085toward
the outside.
Passenger side: Turn bulb socket 0085
toward the outside.
X Pull bulb socket 0085out of the headlamp
housing.
X Pull the bulb out of bulb socket 0085.
X Installing: Insert the new bulb into bulb
socket 0085.
X Insert bulb socket 0085into the headlamp
housing.
X Driver side: Turn bulb socket 0085toward
the inside.
Passenger side: Turn bulb socket 0085
toward the inside.
Low‑beam headlamp bulb X
Removing: Take off low‑beam headlamp
cover 0087.
X Detach the electrical connector. X
Bend the retainer spring end down and
forward until it unclips. Fold the
retainer spring back.
X Pull the bulb out of the headlamp hous-
ing.
X Installing: Insert the new bulb into the
headlamp housing.
X Fold the retainer spring forward.
X Bend the retainer spring end forward
then up and back to clip in.
X Attach the electrical connector.
X Reinstall low‑beam headlamp cover 0087.
High‑beam headlamp bulb X
Removing: Take off high‑beam headlamp
cover 0044.
X Detach the electrical connector.
X Tilt the bulb socket down and pull it out.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Fit the bulb so that the retaining lug of
the base plate is pointing up.
X Press the bulb into the bulb socket until
it is fully engaged.
X Attach the electrical connector.
X Reinstall high‑beam headlamp cover 0044.
Front turn signal lamp bulb X
Removing: Turn bulb socket 0043counter-
clockwise by a quarter of turn and pull it
out of the headlamp housing.
X Press gently onto the bulb and turn it
counterclockwise.
X Pull the bulb out of bulb socket 0043.
X Installing: Insert the new bulb into bulb
socket 0043.
X Press gently onto the bulb and turn it
clockwise.
X Insert bulb socket 0043into the headlamp
housing. 182
Replacing bulbs>> Practical hints.
