Changing a bulb


1 - Dipped beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.


2 - Sidelamps

Type A
, W 5 W - 5 W


- Remove the cover by turning it
anticlockwise.

- Pull the bulb holder to gain access to the
bulb.

- Change the bulb.

3 - Main beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Remove the bulb holder.

- Change the bulb taking care to align the
metal part with the groove on the lamp.

4 - Direction indicators

Type B
, PY 21 W - 21 W amber


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer or a qualified workshop.

When each operation has been
completed, check the operation of the
lamps.

5 - Foglamps

Type E
, H1 - 55 W
Contact a PEUGEOT dealer or a qualified
workshop.

152



Changing a bulb



Front/rear courtesy lamps


Type C
, 12 V 10 W - 10 W


- Release the courtesy lamp using a
screwdriver.

- Remove the cover to gain access to
the bulb.

- Change the bulb moving aside the two
contacts.

- Ensure that the new bulbs are secured
correctly between the two contacts.

- Close the protective flap.

- Fix the courtesy lamp in its housing and
ensure that it is secured correctly.



Direction indicator side repeaters


Type A
, WY 5 W - 5 W amber


- Push the repeater rearwards and release it.

- Support the connector and turn the bulb
holder a quarter of a turn to the left.

- Turn the bulb a quarter of a turn to
the left.

- Pull the bulb then change it.

- When refitting, engage the repeater
rearwards then move it forwards.

153
7
QUICK HELP



Changing a bulb



Rear lamps



- Identify the faulty bulb then open the rear
doors.

- Unscrew the two screws using the
screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.

- Release the lamp unit.

- Disconnect the electrical connector.

- Remove the support by moving aside the
tabs.

- Change the bulb.


Number plate lamps


Type A, C 5 W - 5 W


- Unclip the transparent cover using
the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.

- Change the bulb by moving aside the two
contacts.

- Ensure that the new bulbs are secured
correctly between the two contacts.

- Replace the plastic lens and press on it.
For further information concerning the bulbs,
refer to the table "Types of bulb".



1. Brake lamps
Type B, P21 W - 21 W

2. Direction indicators
Type B, PY 21 W - 21 W amber

3. Reversing lamps
Type B, P21 W - 21 W

4. Sidelamps/Foglamps
Type B, P4/21 W - 4 W/21 W

On the hinged rear doors
On the tailgate

154



Changing a bulb



Third brake lamp


On the hinged rear doors


Type B,
W 5 W - 5 W (4 bulbs)


- Unclip the transparent cover using the
screwdriver located in the tool kit.

- Disconnect the electrical connector.

- Remove the bulb holder by squeezing the
two tabs.

- Remove the faulty bulb.

- Change the bulb.

On the tailgate

Type B,
W5W - 5W (5 bulbs)


- Open the tailgate.

- Remove the two cover retaining screws,
then the cover.

- Remove the bulb holder by squeezing the
two tabs.

- Remove the faulty bulb.

- Change the bulb.


If you encounter any difficulty, consult a
PEUGEOT dealer or a qualified workshop.

155
7
QUICK HELP

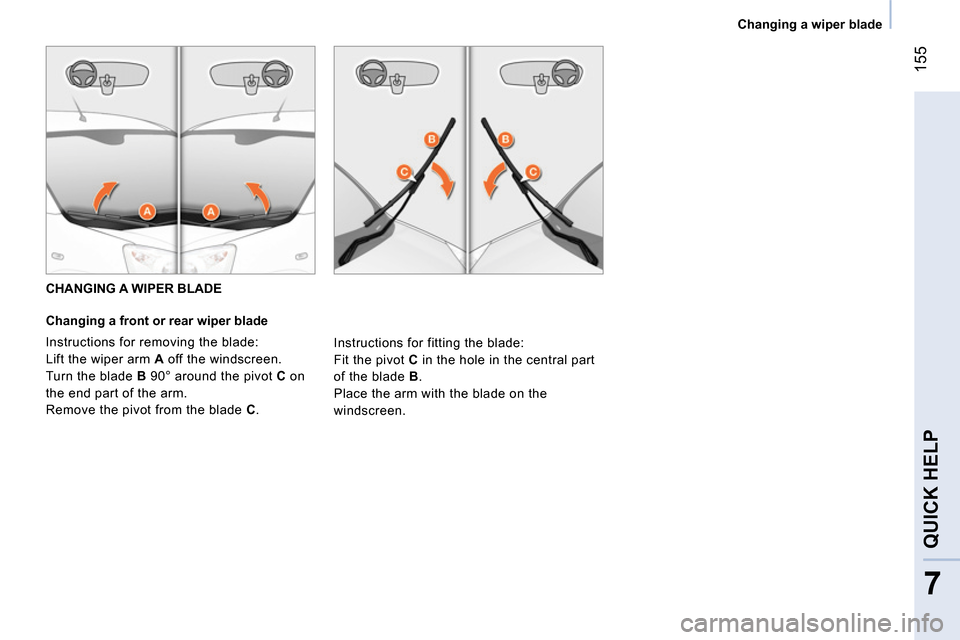

Changing a wiper blade



CHANGING A WIPER BLADE

Changing a front or rear wiper blade
Instructions for removing the blade:
Lift the wiper arm A off the windscreen.
Turn the blade B 90° around the pivot C on
the end part of the arm.
Remove the pivot from the blade C . Instructions for fitting the blade:
Fit the pivot C in the hole in the central part
of the blade B .
Place the arm with the blade on the
windscreen.

156



Changing a fuse


CHANGING A FUSE

The two fuseboxes are placed on the
dashboard on the driver’s side and under
the bonnet.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a PEUGEOT dealer or a
qualified workshop.
Access to fuses in the dashboard


- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

A.
Good.

B.
Failed.

C.
Tweezer.


Access to fuses in the engine
compartment


- For access to the fuses in the engine
compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

157
7
QUICK HELP



Changing a fuse



Table of dashboard fuses, driver’s
side

Mark
ing


Rating


Functions


F12
7.5 A Right-hand dipped beam headlamp supply

F13
7.5 A Left-hand dipped beam headlamp supply - headlamp height
adjuster

F31
5 A Engine control unit supply switch

F32
7.5 A Front lamp - front courtesy lamp - rear courtesy light lamp

F36
10 A Audio system - mobile telephone pre-equipment -
air conditioning control panel - EODB diagnostic socket

F37
5 A Brake lamp - instrument panel

F38
20 A Door locking

F43
15 A Screenwash pump

F47
20 A Driver’s electric window motor supply

F48
20 A Passenger’s electric window motor supply

F49
5 A Parking sensors control unit - rear lighting switch - electric
door mirrors - volumetric alarm control unit

F50
7.5 A Airbags control unit

F51
7.5 A Switch on brake pedal - switch on clutch pedal - door mirror
controls - central Bluetooth system

F53
5 A Instrument panel - rear foglamps

158



Changing a fuse



Marking


Rating


Functions


F41
7.5 A Door mirror demisting.

F94
15 A Cigar lighter.

F96
15 A 12 V accessory socket.

F97
10 A Heated seat, driver’s side.

F98
10 A Heated seat, passenger’s side.
